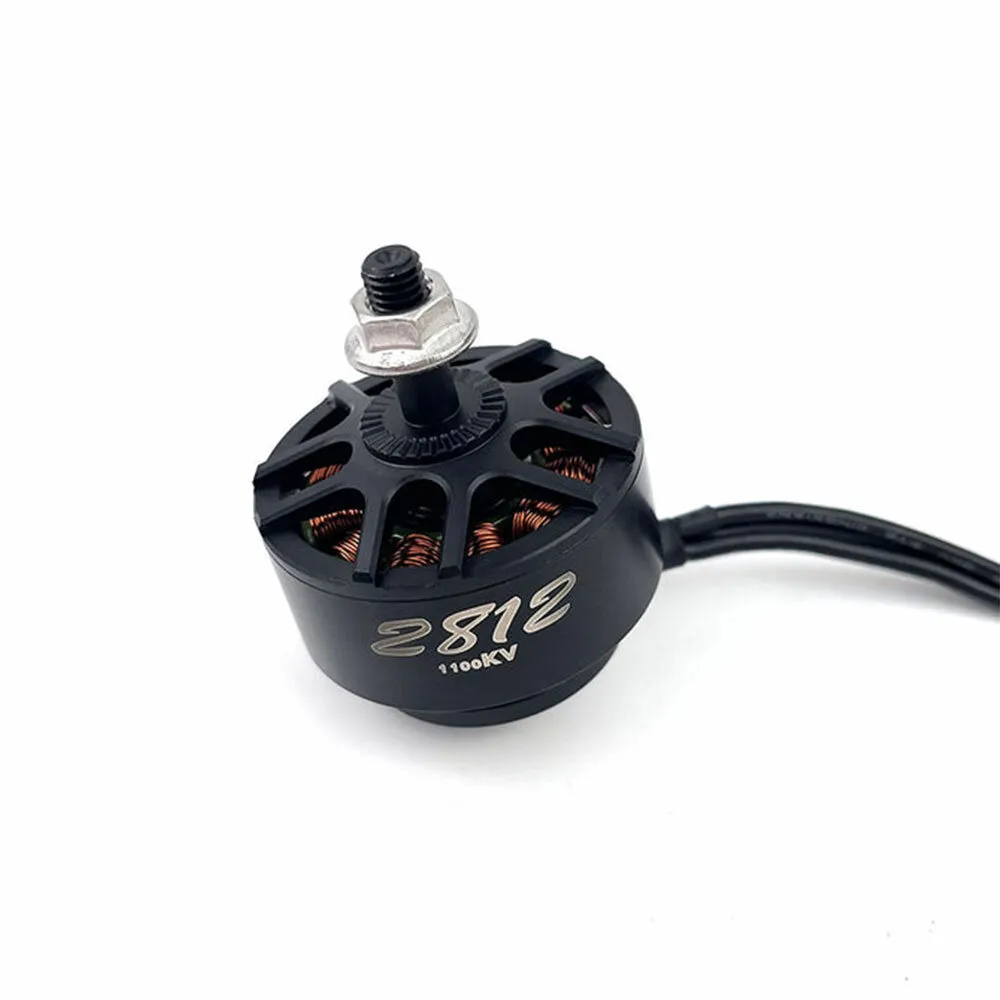

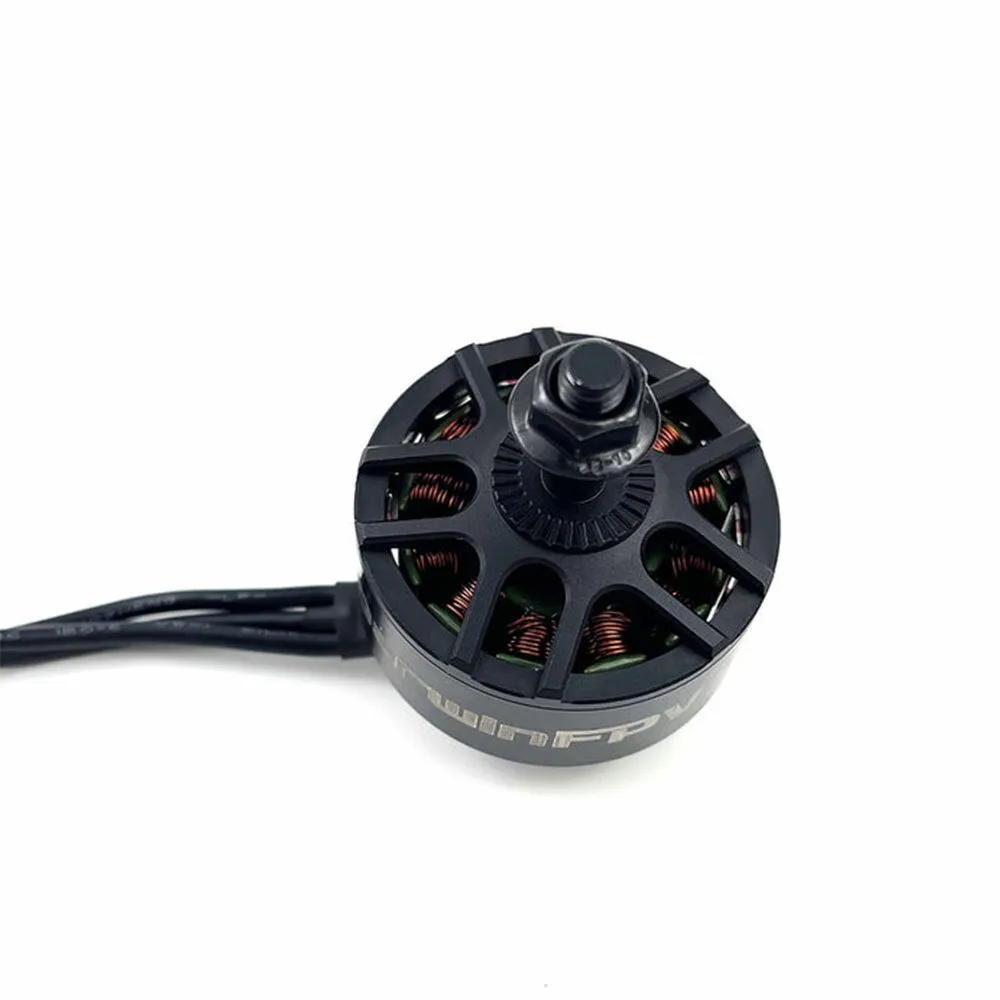

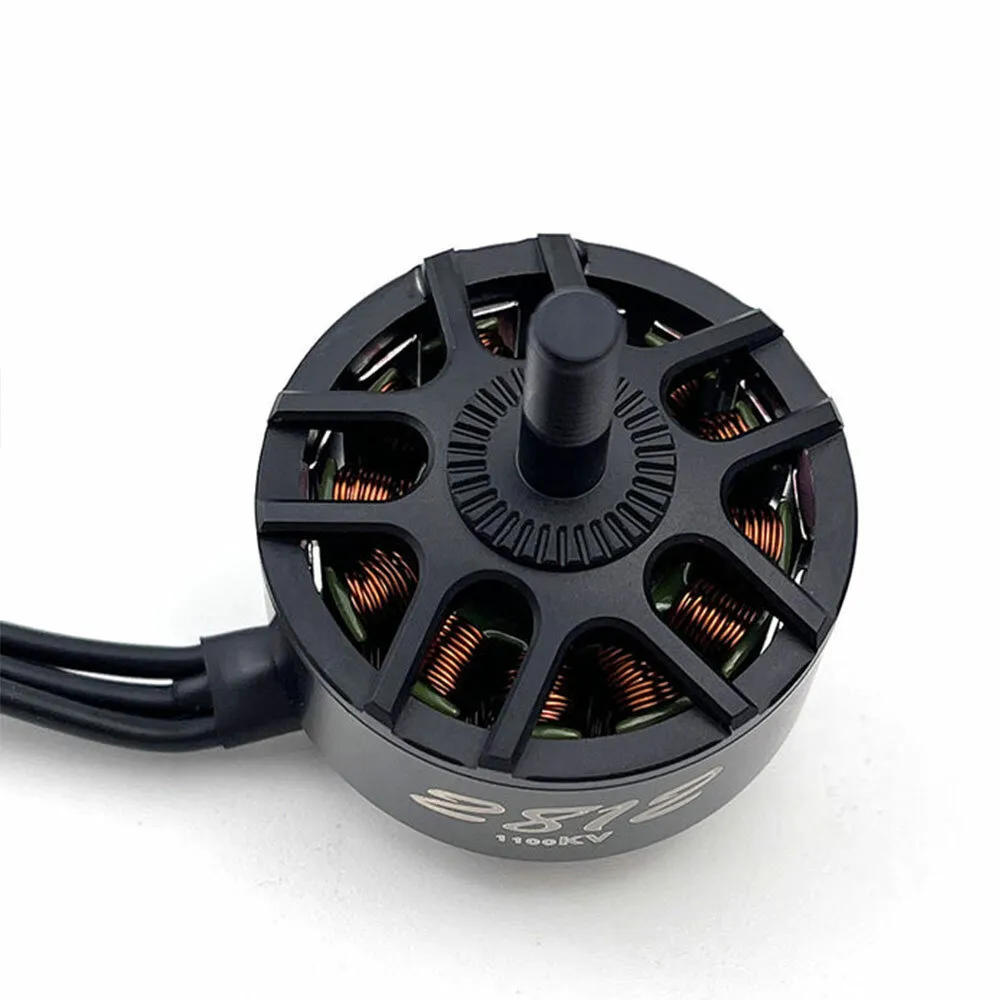

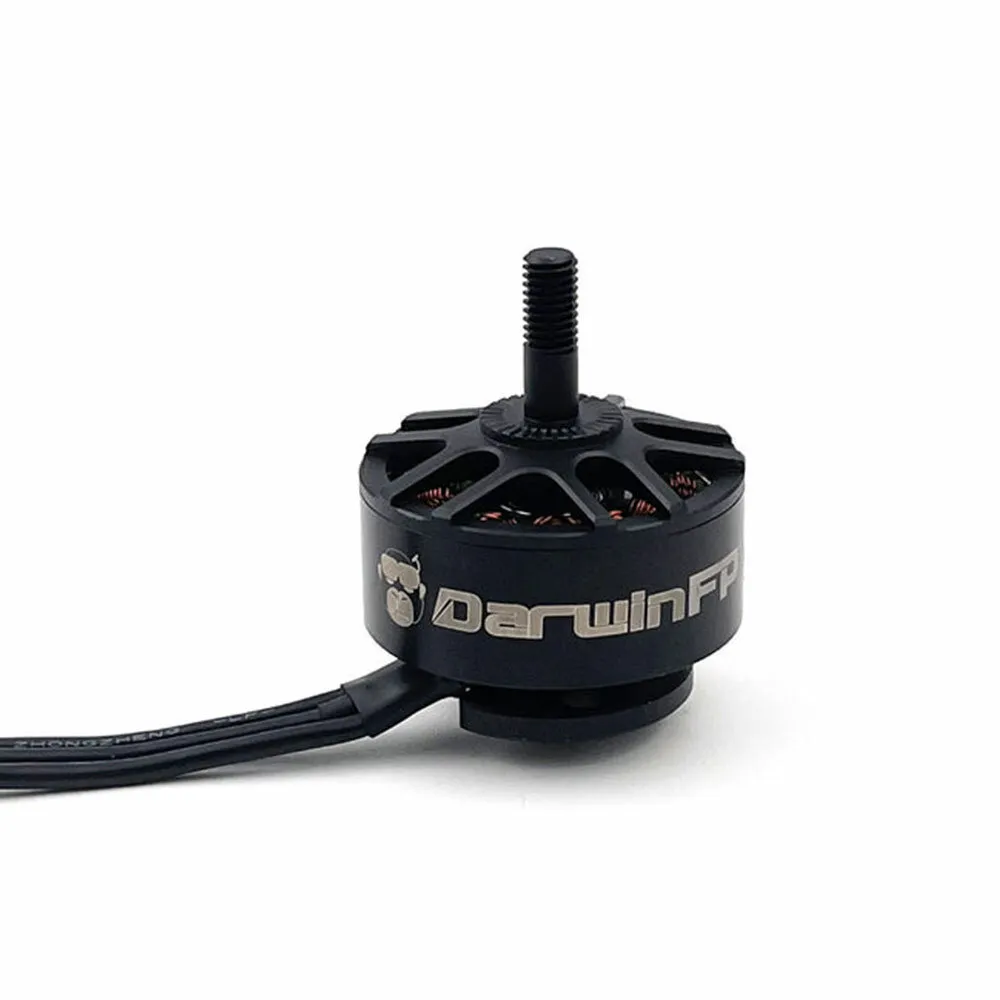

DarwinFPV 2812 1100KV 6S BLDC Motor for 7-10 Inch Long Range FPV Drone 7-8 Inch X8 Models

• weight: 485 g

Specifications:
Brand: DarwinFPV
Model: 2812 BLDC
KV: 1100KV

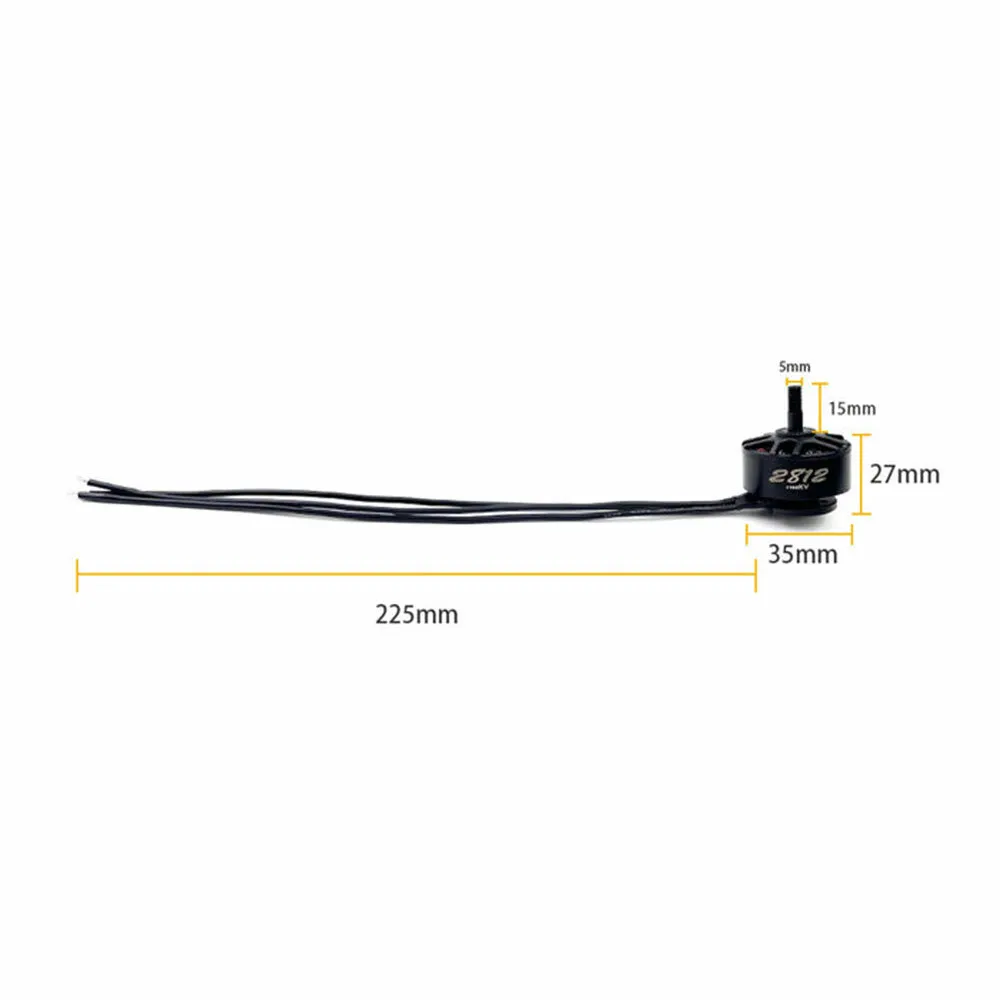

Stator Dimension: φ28 × 12mm
Dimensions: φ35×42mm
Rated Voltage: 24V (6S LiPo)
Idle Current: 1.12A/24V
Maximum Current: 55.8A
Maximum Power: 1339W

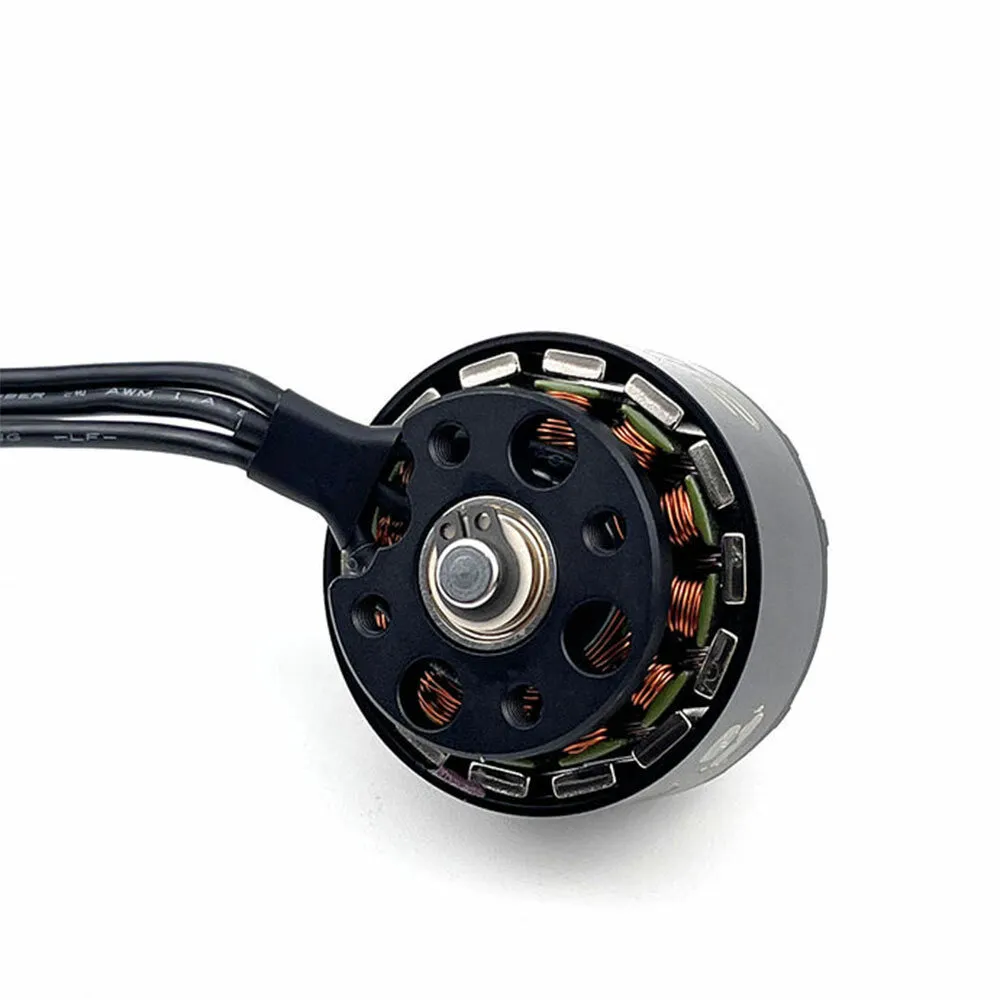

Framework: 12N14P
Prop Shaft: φ5 × 15mm
Interphase Resistance: 68mΩ
Bearing Specification: φ5.0× φ11 ×4.0mm
Rotor Specifications: Split
Magnet: N52H
Winding: Multi-strand winding
Lead Wire Size: 18AWG × 225mm
Mounting Holes: 19×19mm (M3)

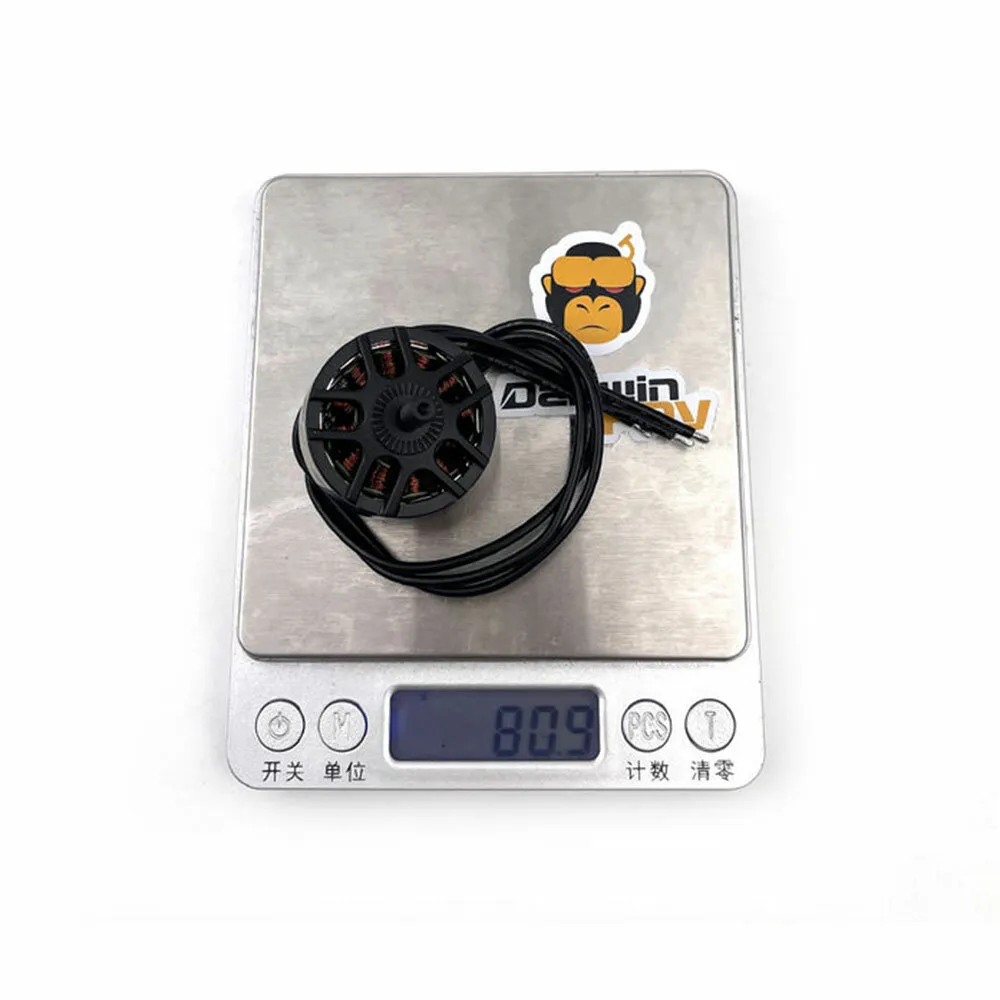

Weight (including wire): 79.5g
Applicable Models: 7-10 inch long range FPV drones / 7-8 inch X8 models

Features:

Engineered with a magnetic circuit design mirroring DJI's structures and high-quality materials, ensuring unmatched energy efficiency.

Suitable for a range of drone models, ideal for both 7-10 inch long range and 7-8 inch X8 variants.

High power output of 1339W coupled with efficient multi-strand winding ensures performance reliability.

Lightweight at just 79.5g including the wire, aiding in streamlined drone operation.

Enhanced durability and functionality with a split rotor design and powerful N52H magnet.

Package included:
1x 2812 motor

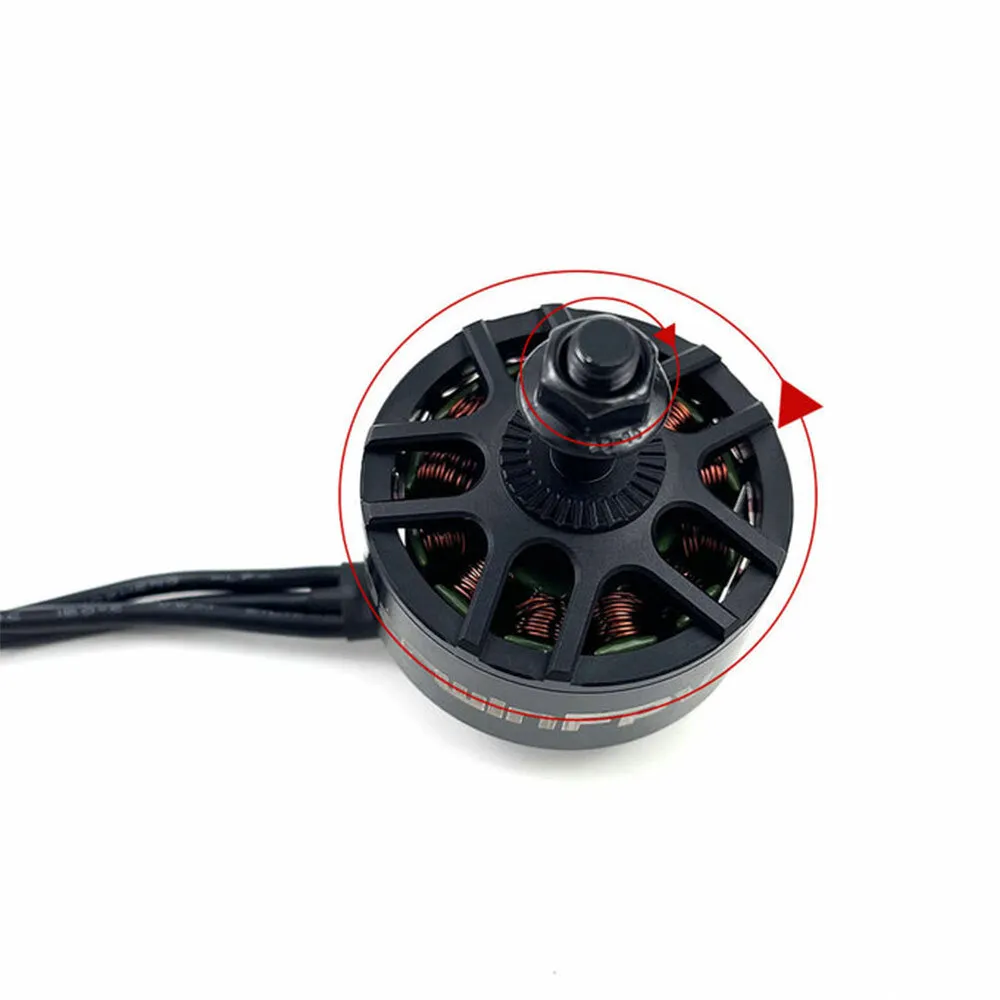

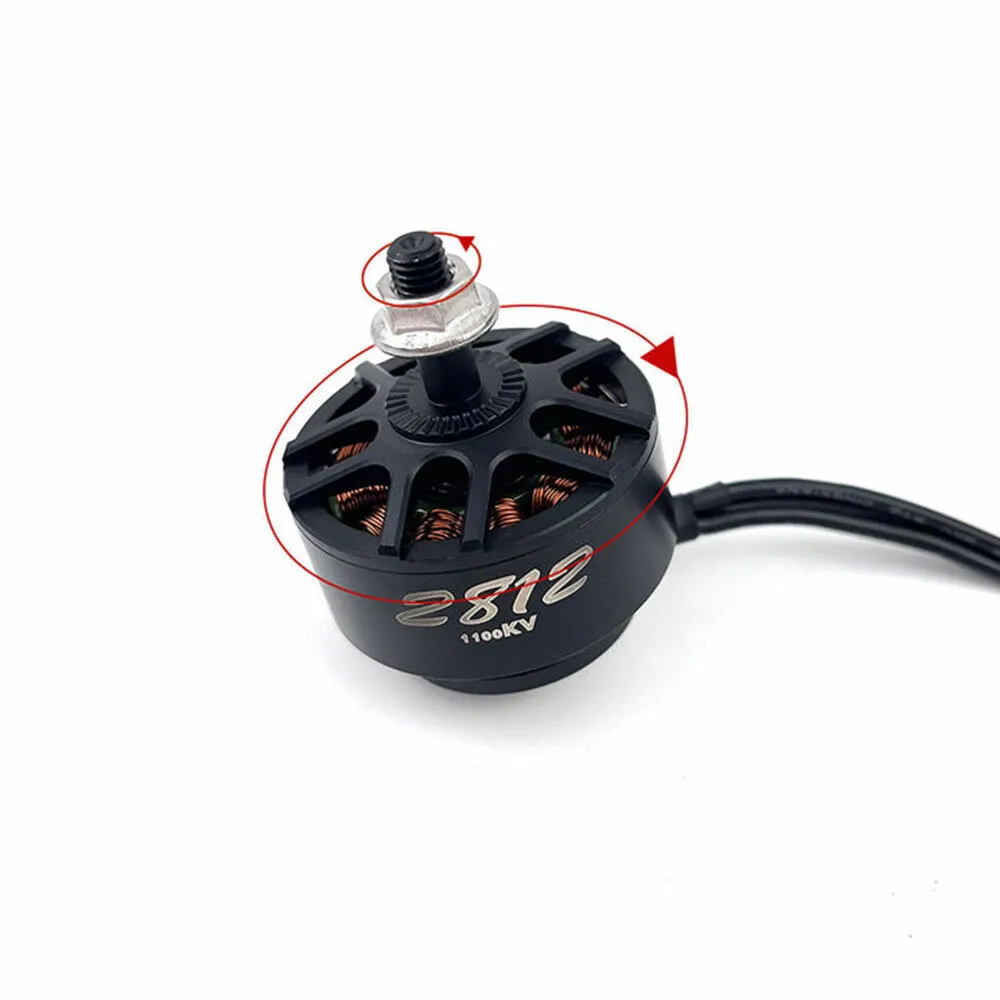

1x M5 anti-slip nut (thickness 4.8mm)
4x M3*10 black hexagon socket head round head screws
