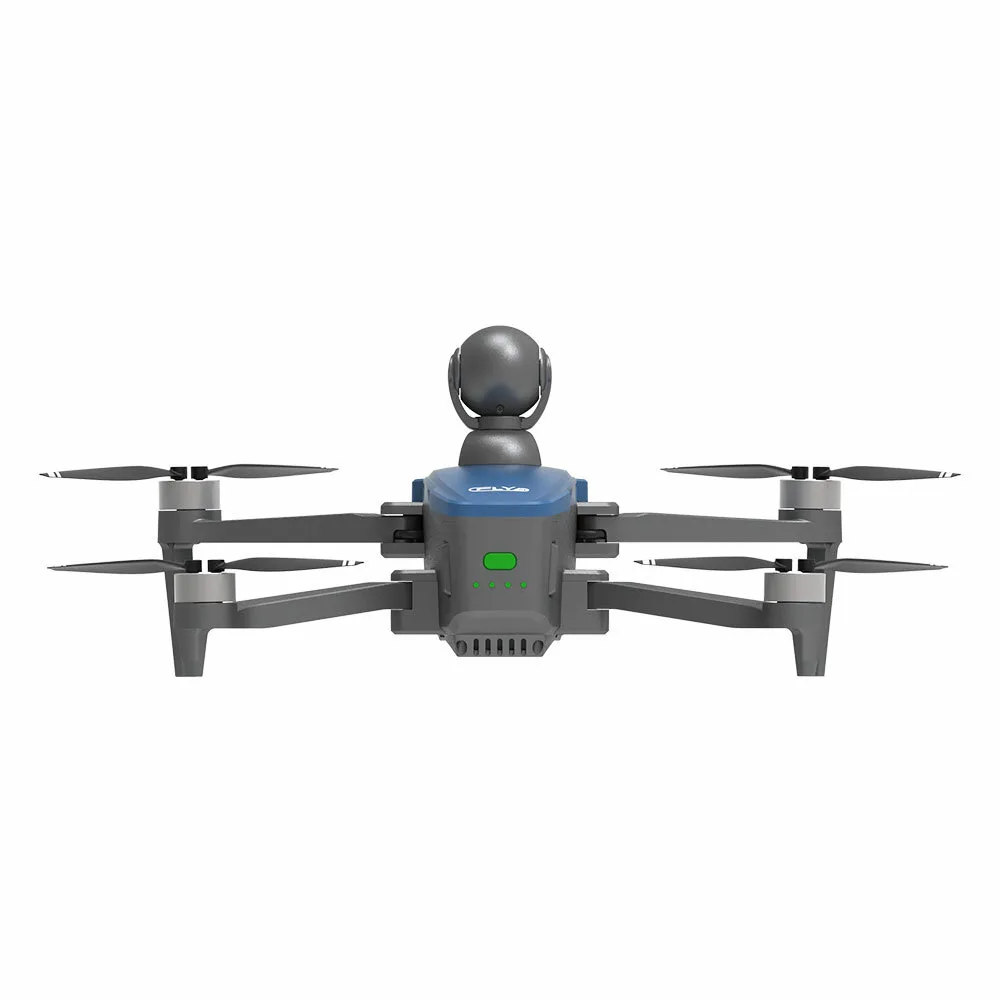

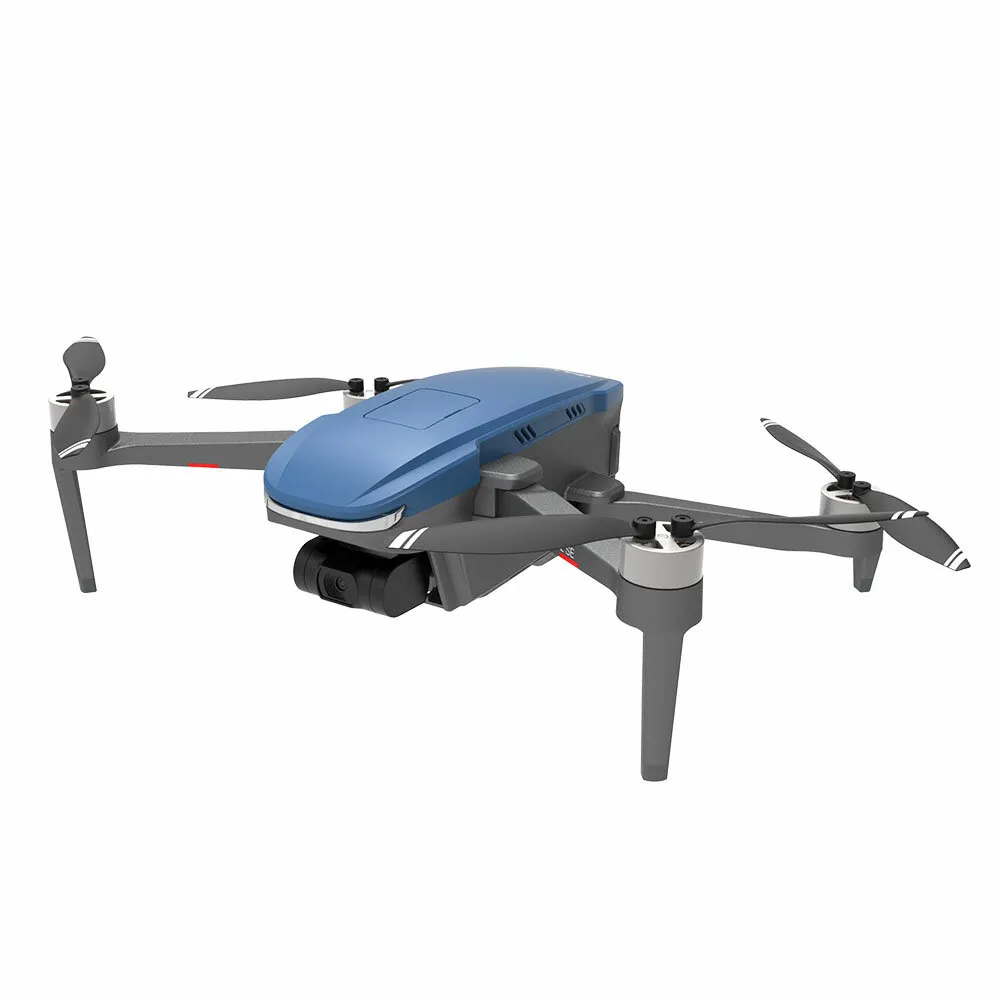

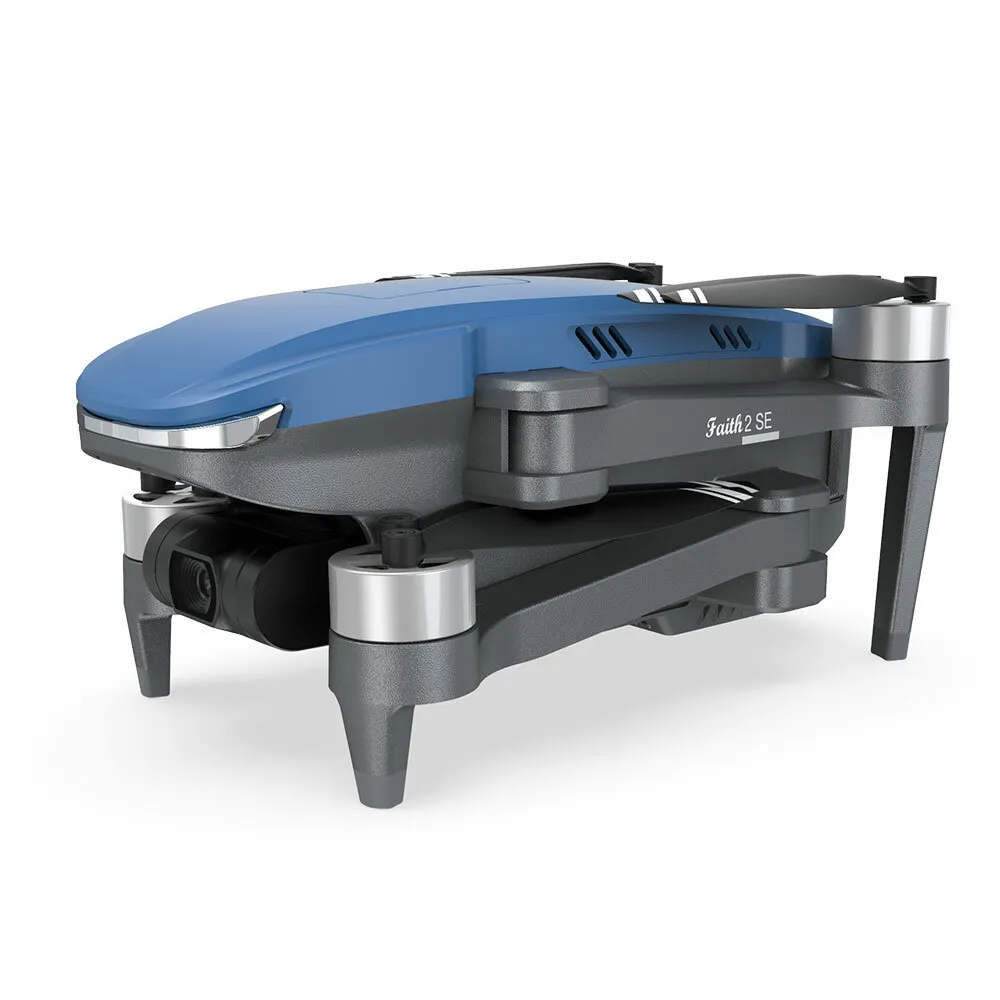

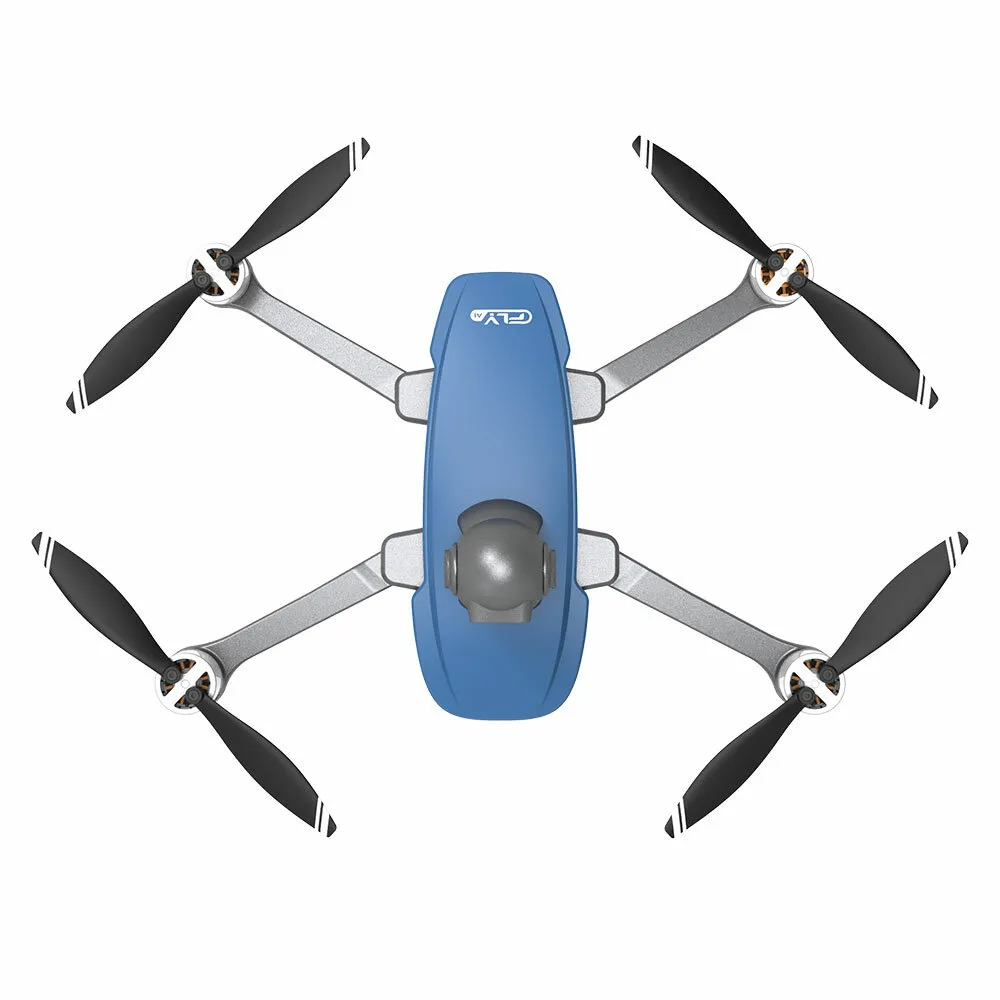

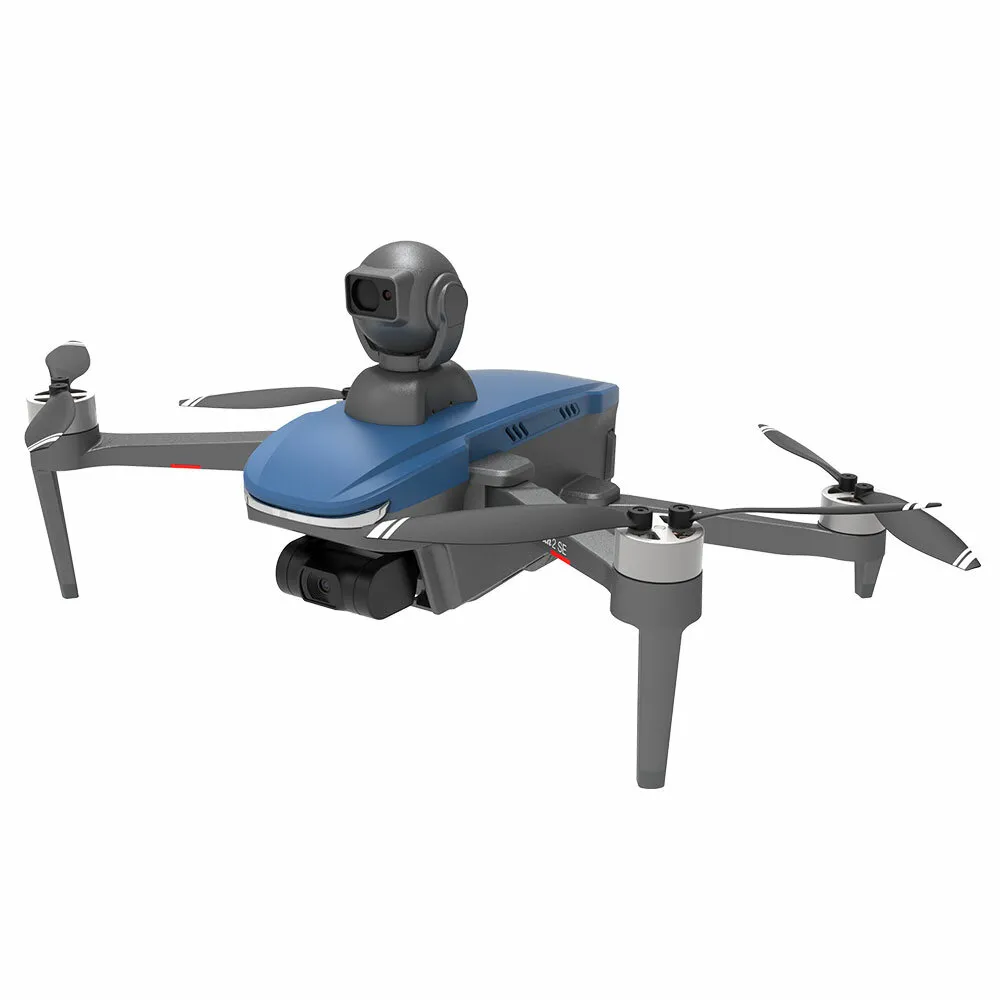

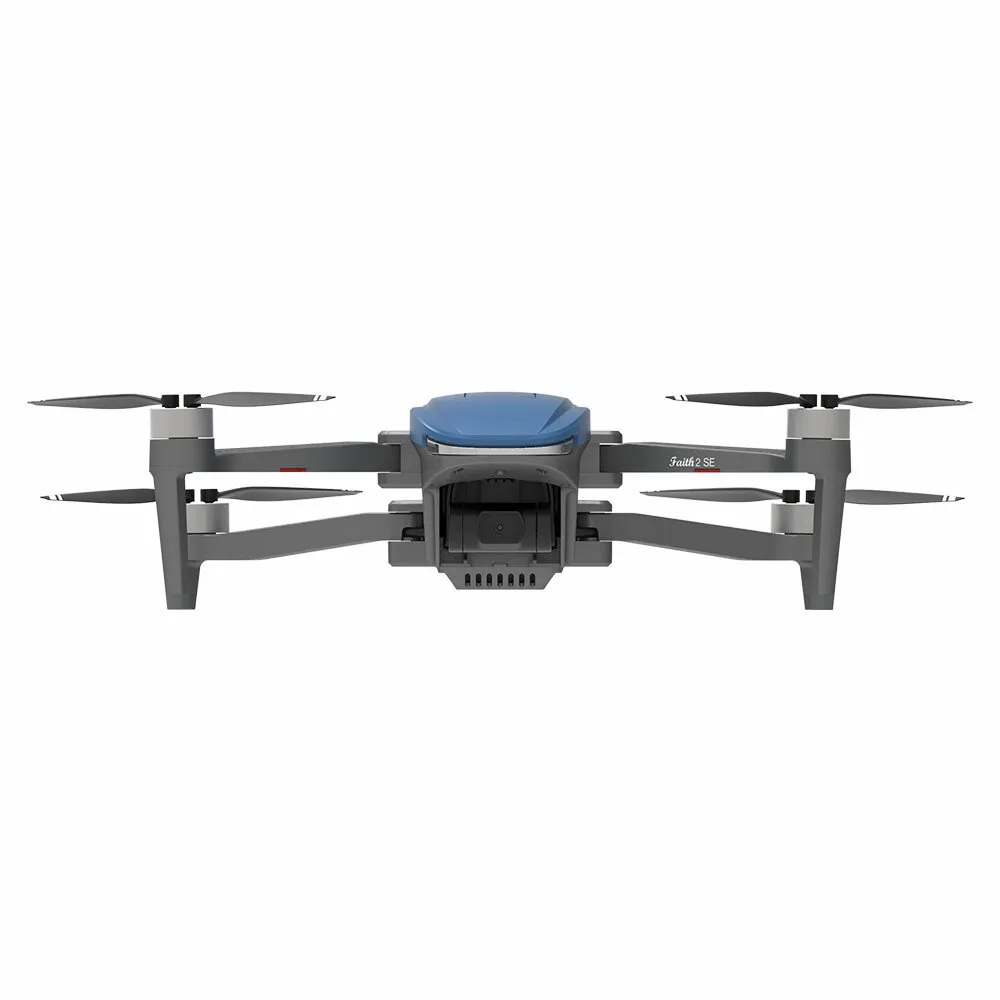

C-FLY Faith 2 SE DF809G GPS 5.8G 3KM FPV with 4K Camera 3-Axis Brushless Gimbal 540° 2-Axis Obstacle Avoidance Foldable RC Drone Quadcopter RTF
| Qty: | 4-7 | >=8 |
| Price: | $196.19 | $185.29 |
- weight: 485 g
Specification:
| Item Name | Specification | |
| Faith 2 PRO Drone | Brand Name: | C-Fly |
| Item NO.: | Faith2 SE (DF809G) | |
| Color: | Blue | |
| Dimension: | 186 x 258 x 112mm (Expanded); 167 x 97 x 112mm (Folding) | |
| Diagonal Size: | 280 mm | |
| Drone Weight: | 500g (with battery, propellers and Obstacle Avoider ) | |
| Max Descending Speed: | 4m/s (Sport Mode) | |
| 3m/s (Normal Mode) | ||
| 3.5m/s (Return Mode) | ||
| Max Horizontal Flight Speed: | 14m/s (Sport Mode) | |
| 10m/s (Normal Mode) | ||
| 12m/s (Return Mode) | ||
| Max Flying Altitude: | 4000m | |
| Max Flying Time: | 27mins | |
| Satelite Positioning System: | GPS+GLONASS | |
| Hovering Accuracy: | Vertical: ±0.5m, ±0.2m (when optical flow positioning and ultrasonic positioning works normally) | |
Horizontal:±1.5m, ±0.3m (when optical flow positioning and ultrasonic positioning works normally) | ||
| Operating Frequency: | 5.8GHz | |
| Flight Height: | 120m(default)/ 500m(maximum) (manually change the APP settings) | |
| Operating Temperature: | 0-40℃ | |
| Optical Flow System | Optical Flow System: | yes |
| Operating Environment: | surface with clear pattern and adequate light (lux＞15, Normal indoor fluorescent lighting environment） | |
| Vellocity Range: | Flight speed ≤ 1.5m/s (height 2 meters, sufficient light) | |
| Altitude Range: | 0.5-6m | |
| Ultrasonic Height Fixing System | Operating Environment: | Except for water surfaces, or floors with absorbing materials such as thick carpets |
| Speed Measurement Range: | Flight speed ≤ 3m/s | |
| Altitude Range: | 0.05-4.5m | |
| Obstacle Avoidance System | Obstacle Avoidance Type | Two-axis |
| Obstacle Avoidance Direction | 540°, front, back, left, right, up | |
| Maximum Detection Distance | 20m | |
| Maximum Obstacle Avoidance Speed | 10m/s | |
| Gimbal | Gimbal: | 3-Axis Brushless |
| Stablized Mode: | Brushless Motor Mechanical Stabilization | |
| Controllable Rotation Range: | -90°〜0°(Pitch), -90° to 20° (extended setting) | |
| Stabilization System: | 3-axis (pitch +35/-125°, roll ±35°, direction ±30°) | |
| Camera | Sensor: | Sensor CMOS |
| Image Size: | 3840*2160 (8MP) | |
| Photo Shooting Mode: | Single Shot, Time-lapse Shooting, Continuous Shooting | |
| Video Recording resolution: | 3840×2160 (4K) 15fps, 2716 x 1524 (2.7K) 25FPS | |
| Max Bitrate: | 25Mbps | |
| File System: | FAT32 | |
| Image Format: | JPEG | |
| Video Format: | MP4 | |
| Recommended SD Card: | MicroSD card, Max 128GB, C10 UHS-I Speed Grade 3 | |
| Battery | Capacity: | 3000mah |
| Voltage: | 11.4V | |
| Type: | LiPo 3S | |
| Energy: | 29.64Wh | |
| Battery Weight: | 170g | |
| Charging Temperature: | 0-40℃ | |
| Maximum Charging power: | 29W | |
| Charging Time: | less 4h | |
| Input: | 5V 2A | |
| Output: | 4.35V 0.7A×3 | |
| Rated Power: | 10 W | |
| APP | App Name: | CFly 2 |
| Max Image Transmission Distance: | 3000m | |
| Max Image Transmission: | 720P | |
| Aerial Mode: | Fading mode, surround mode, skyward mode, spiral mode | |
| Phone System Version: | Android 6.0 or above，IOS 10.0 or above | |
| Remote Controller | Operating Frequency: | 5.8GHz |
| Maximum Signal Effective Distance: | 3000 m | |
| EIRP: | ＜26 dBm,(FCC), ＜20 dBm,(CE, SRRC, MIC) | |
| Working Current: | 700mA | |
| Mobile Phone Bracket: | Thickness 6.5-8.5 mm, maximum length 80 mm | |
| Battery Capacity: | 2600 mAh | |
| Battery Voltage: | 3.7 V | |
| Battery Power | 9.62Wh | |
| Type: | LiPo 18650 | |
| Operating Temperature: | 0-40℃ | |
| Charging Mode: | USB | |
| Maximum Charging Power: | 10W | |
| Charging Time: | 2.5h(different mobile phones will be different) | |
Features:
World's leading 3-Asix micro gimbal for image/video stabilization
● 4K Camera: image 3840x2160P; video: 3840x2160P(4K) 15FPS
● Sensor: S0NY 1/2.6 CMOS
● Main control: Ambarella A12
● Positioning System: GPS/GLONASS + Optical Flow System + Ultrasonic Range Finders
● Long Range: up to 3000m Digital Image Transmission Range ; up to 3000m remote range
● Return to Home (RTH): One-key RTH, Low Battery RTH and Failsafe RTH
● Intelligent Modes: Follow-Me, Orbiting, Waypoint Planning, Gesture Recognition, Gravity Sensor Control
● Foldable and compact design, portable to carry
● Support flight control by a phone
● Max Flying Time: 26min

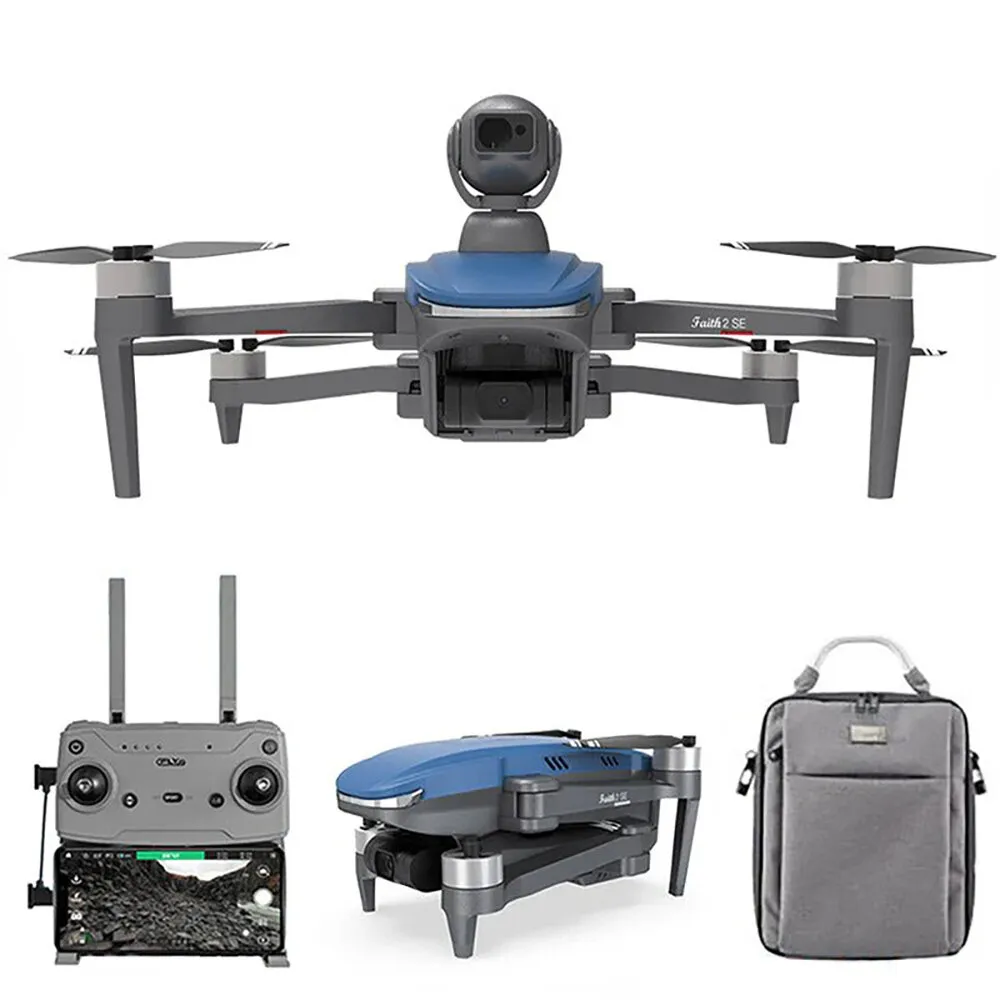

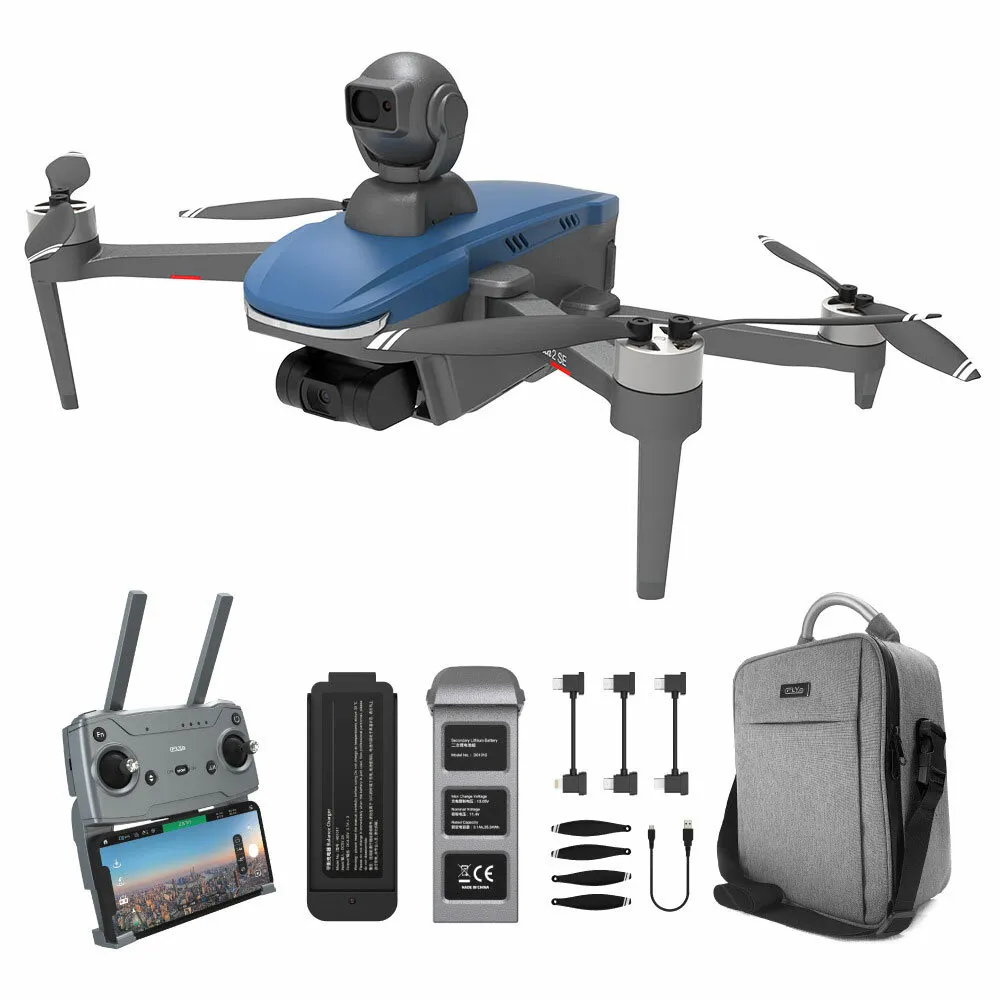

Package Included:
1 x Faith2 SE RC Drone 1 x Remote Controller1 x 11.4V Battery1 x Charger1 x USB Charging Cable2 x Spare Propellers3 x RC Connected Cable1 x English Manual 1 x Storage Bag
