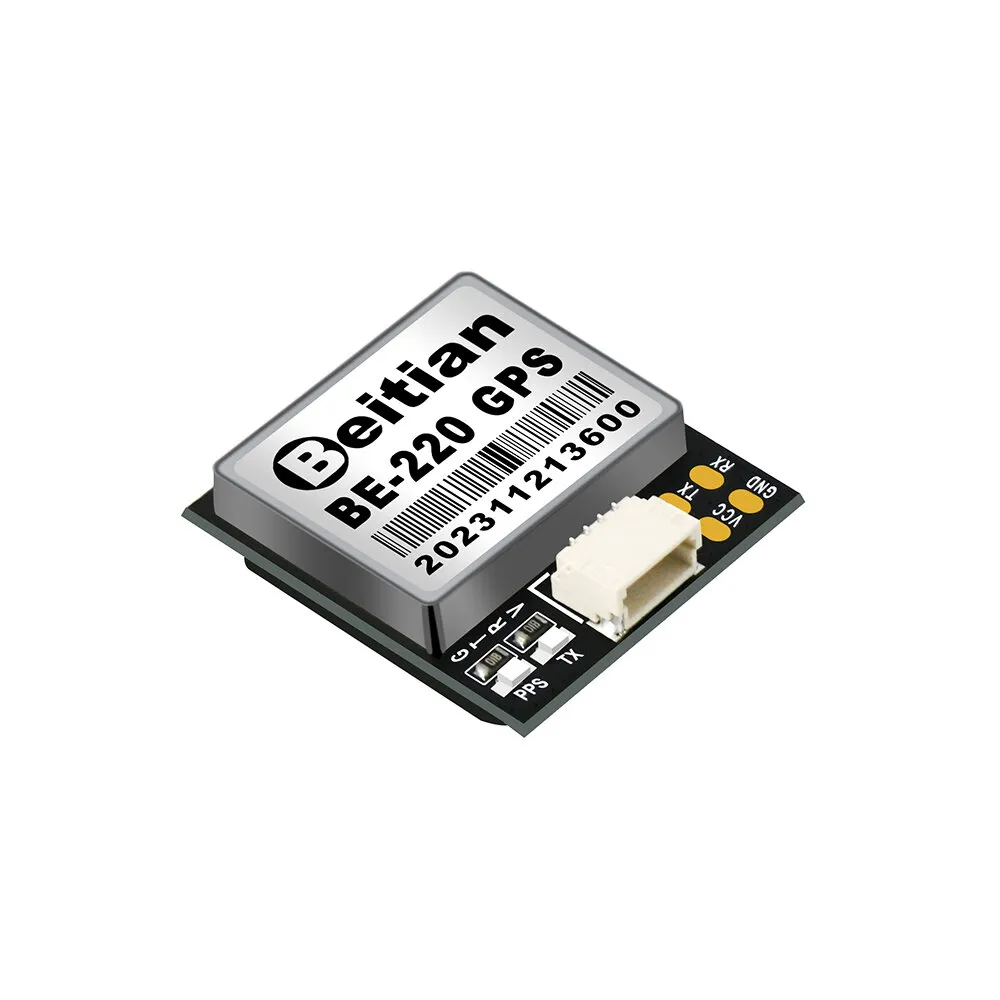

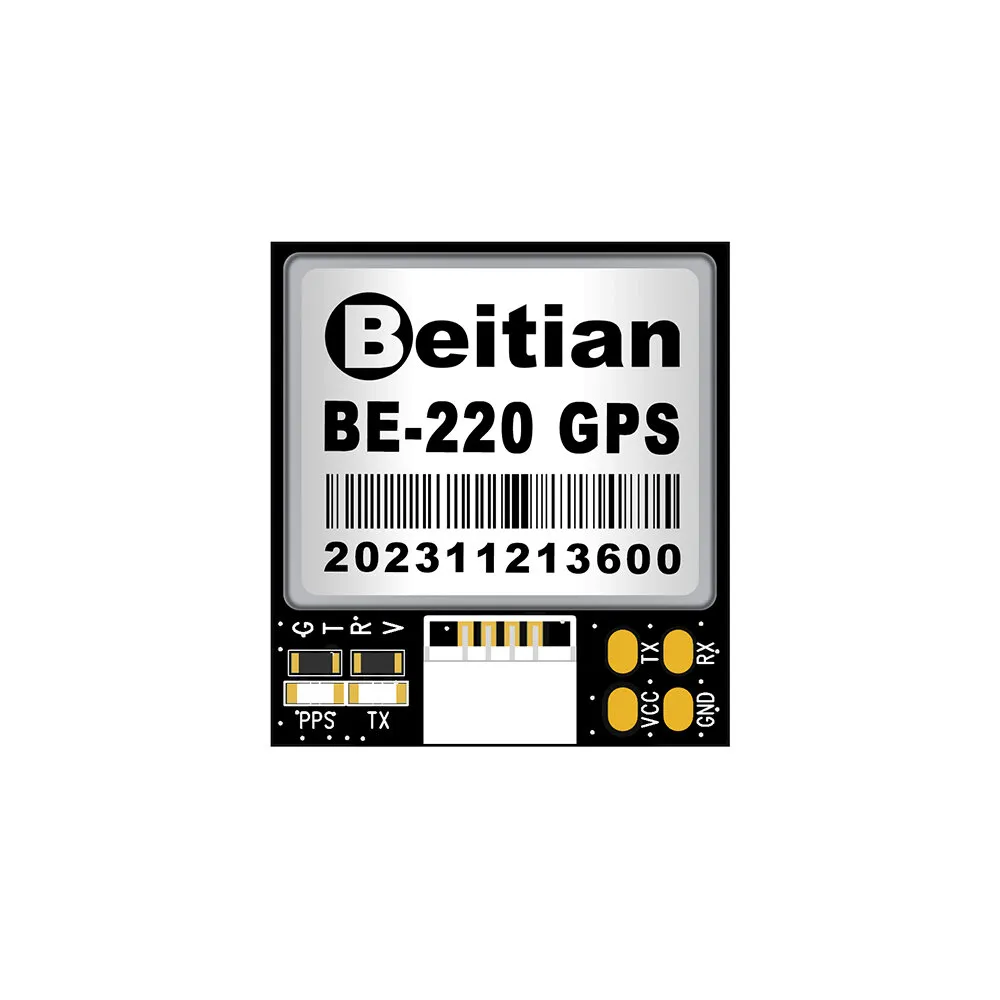

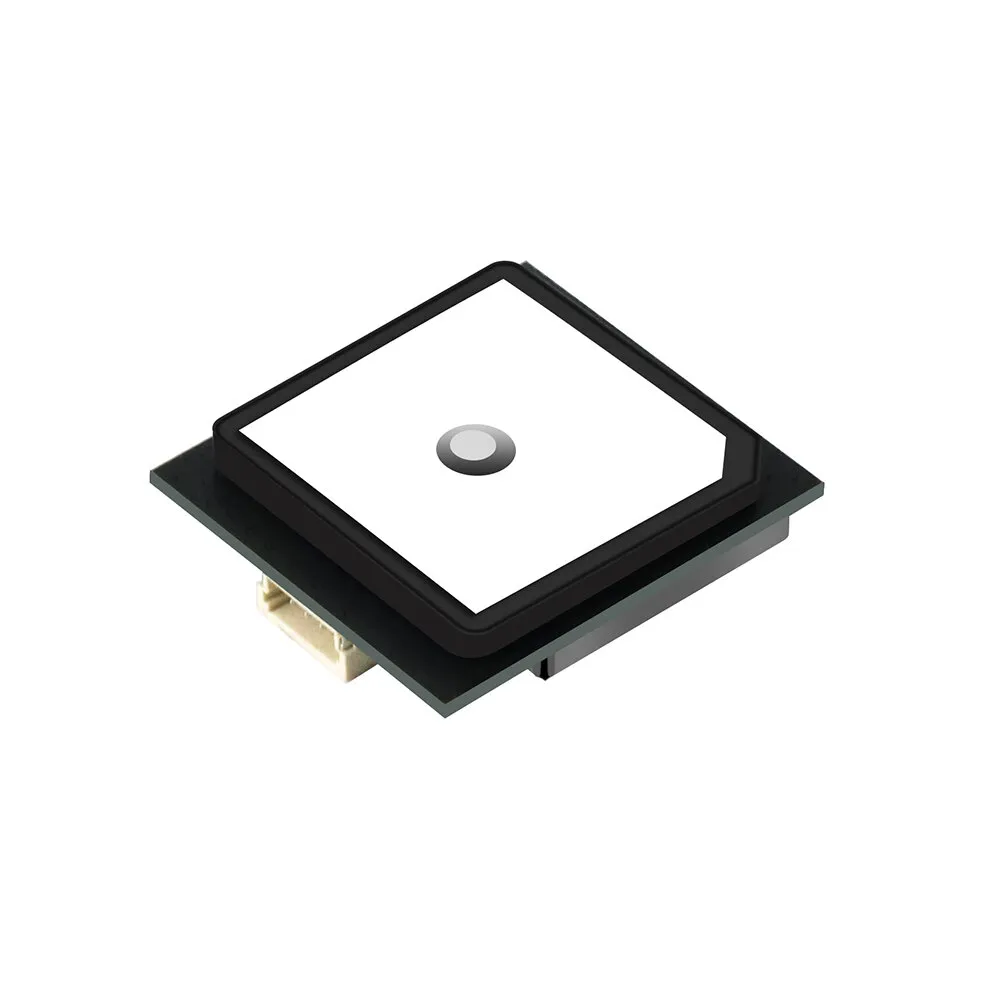

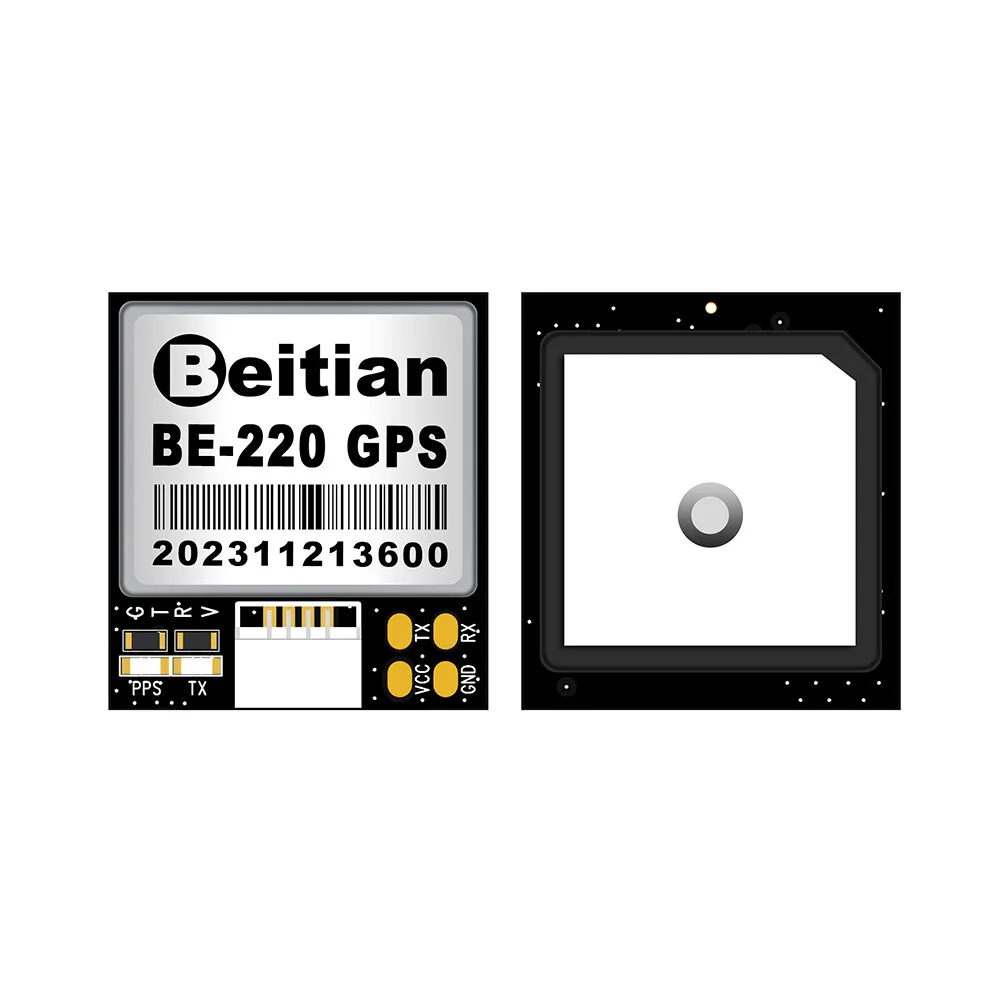

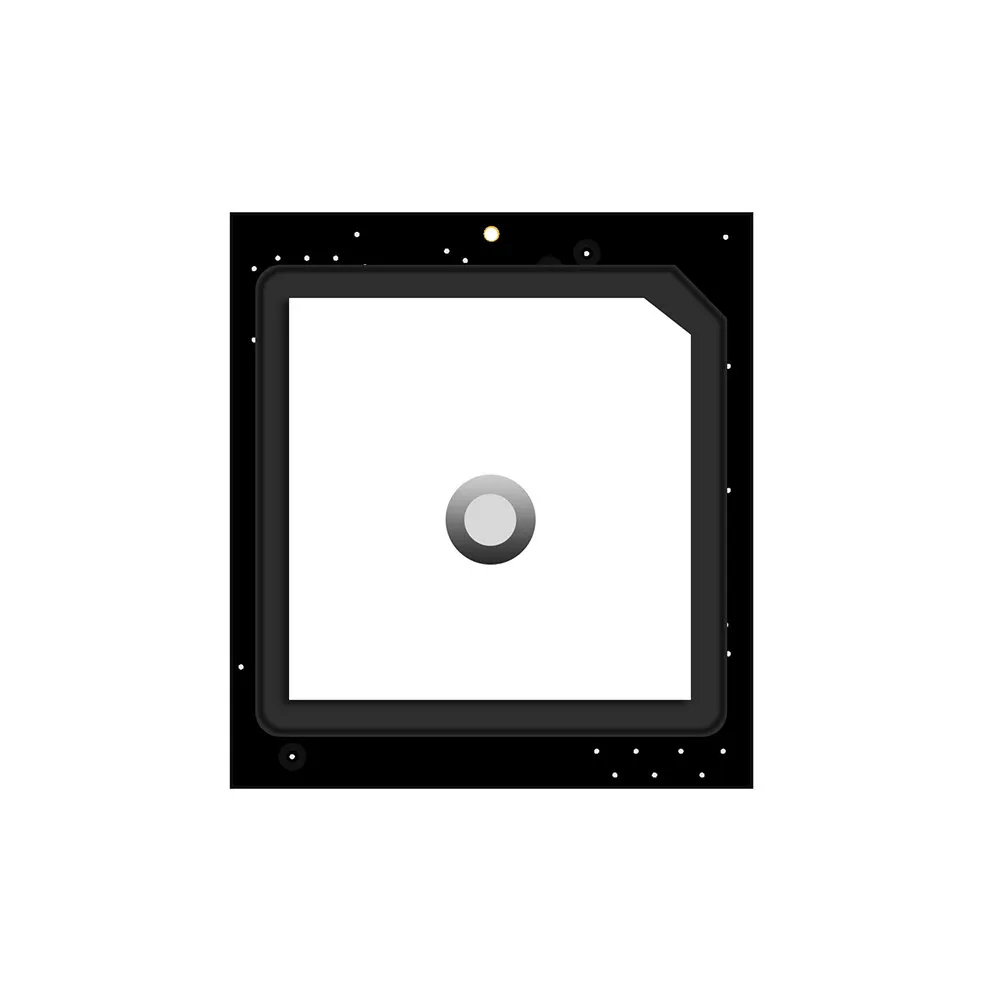

Beitian BE-220 GPS Module GLONASS TTL Level BN-220 Upgrade Version For APM Pixhawk CC3D Naze32 F3 F4 Flight Controller RC Drone Airplane

Brand Name: Beitian

Item Name: BE-220

Chip: M10050

Receiver Type: GPS L1 C/A, QZSS L1 C/A/S, BDS B1I/B1C, Galileo E1B/C, SBAS L1 C/A, WAAS, EGNOS, MSAS, GAGAN.

Default Position System: GPS, BDS, GALILEO

Augmentation System: SBAS, QZSS

Channel: N/A

Tracking & Navigation: -166dBm

Reacquisition Sensitivity: -160dBm

Cold Start Sensitivity: -148dBm
Hot Start Sensitivity: -160dBm
Position Horizontal Accuracy: 2 m CEP
Speed Accuracy: 0.05m/s

Dynamic Heading Accuracy: 0.3 deg

1PPS Time Accuracy: RMS 30ns, 99% 60ns

Cold Start Acquisition Time: 27s
Hot Start Acquisition Time: 1s
Auxiliary Start Acquisition Time: 1s

Data Output Support Rate: 4800bps to 921600bps, Default 38400bps
Data Output Level: TTL Level
Data Output Protocol: NMEA, UBX
Data Output NMEA Message: RMC, VTG, GGA, GSA, GSV, GLL
Data Output Update Rate: 0.25Hz-18Hz, Default 1Hz

FLASH: With FLASH, the configuration can be changed, and the power will not be lost.
Frequency of Time Pulse Signal: 0.25Hz-10MHz can be configured, the default period is 1s, and the high level lasts for 100ms
Operational Altitude Limits: 80000m
Operational Speed Limits: <500m/s
Operational Acceleration Limits: <4g
Power Consumption of VCC: DC Voltage 3.6V-5.5V, Typical: 5.0V
Power Consumption of Current: 15mA/5.0V
Dimension: 22.0mm*20.0mm*6.0mm
Weight: 5.3g
Connector: 1.00mm 4pins connector
Operating Temp: -40 °C ~ +85°C
Storage Temp: -40°C ~ +105°C
TX LED: Blue. The data output, TX LED flashing.
PPS LED: Red. PPS LED not bright when GPS not fixed, flashing when fixed.

Pin Description:

1x Beitian BE-220 GPS Module
