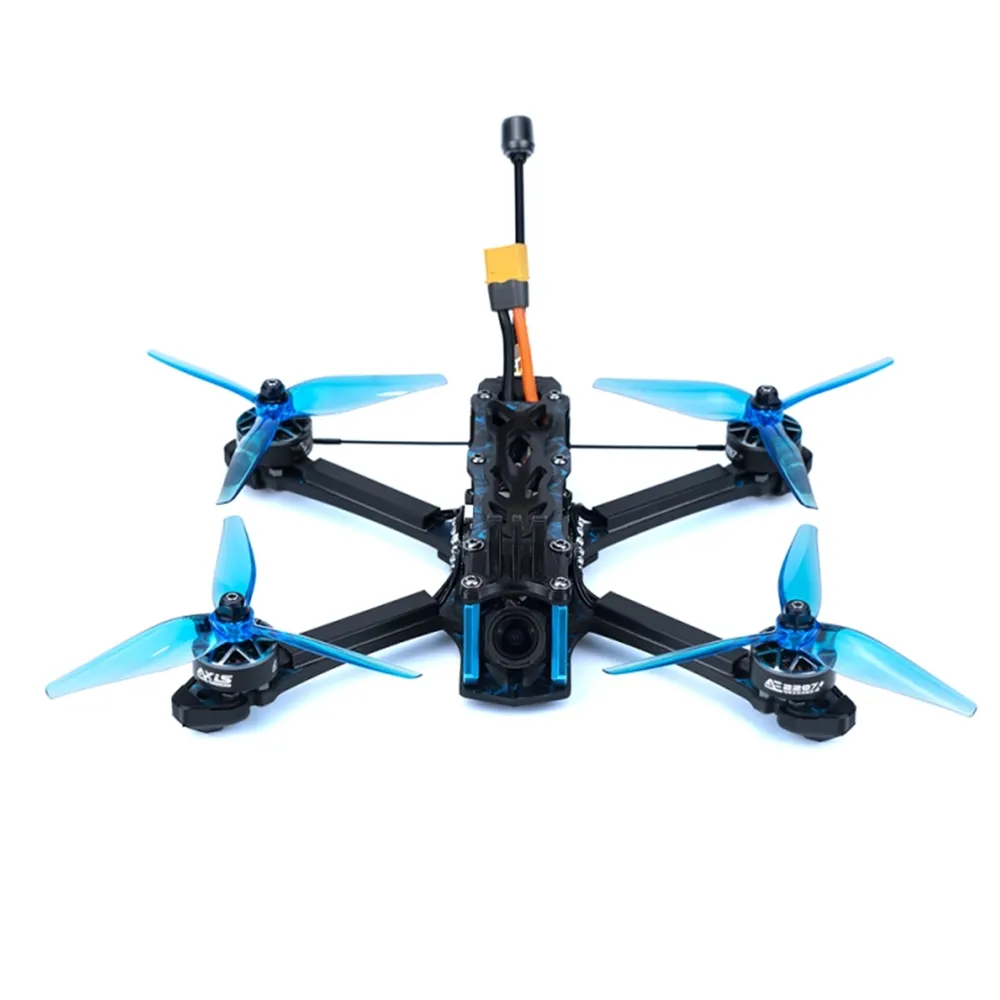

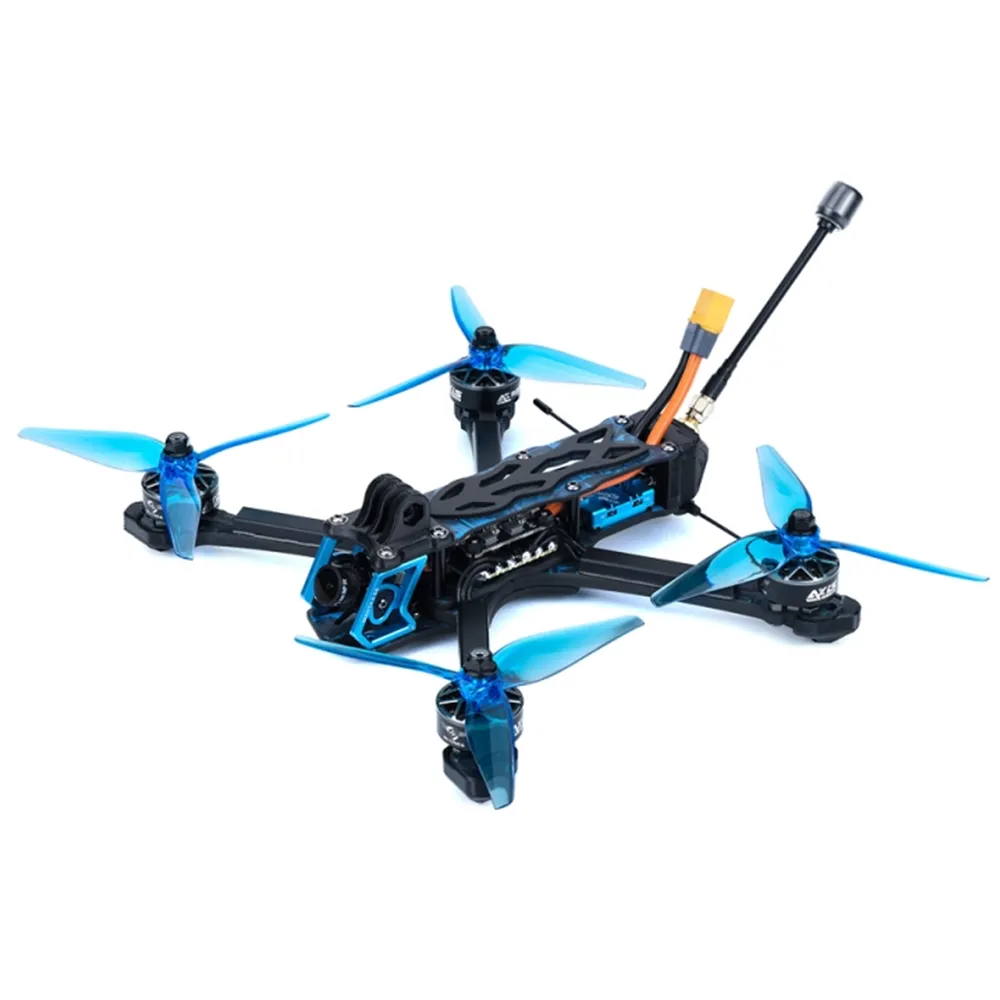

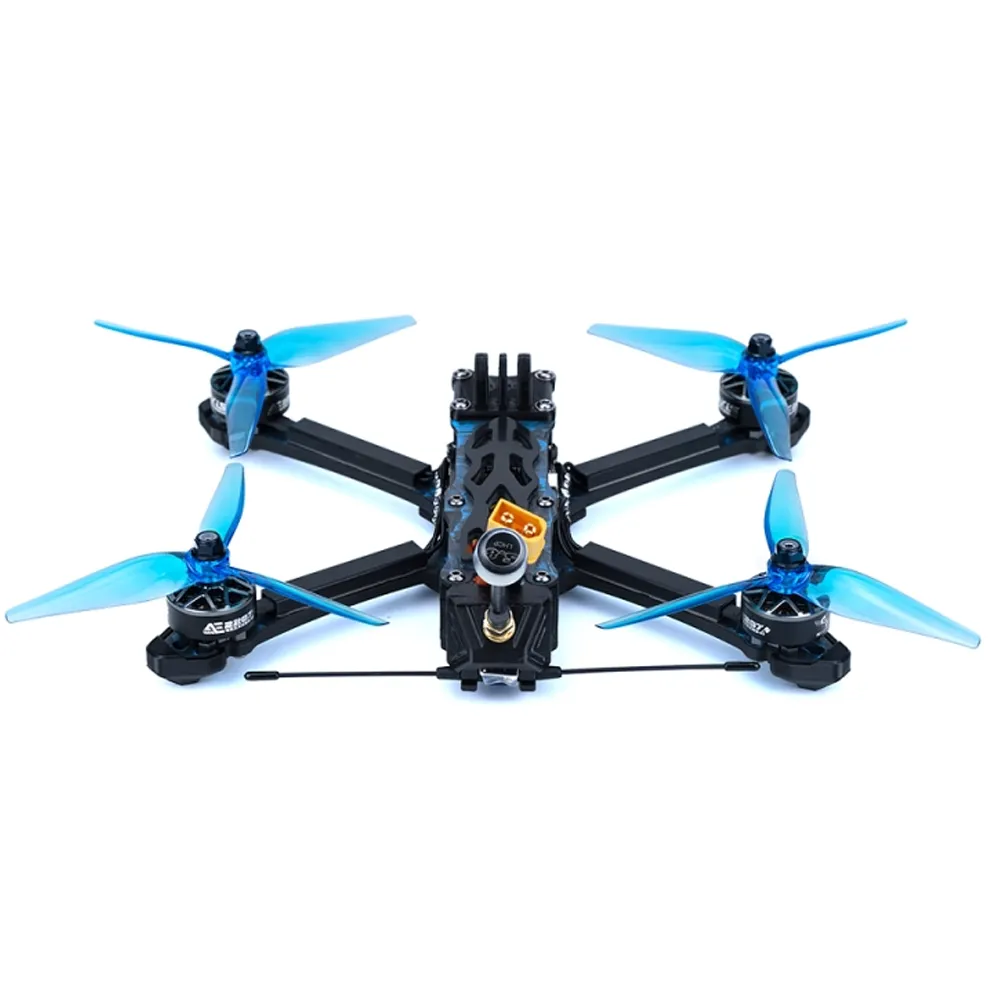

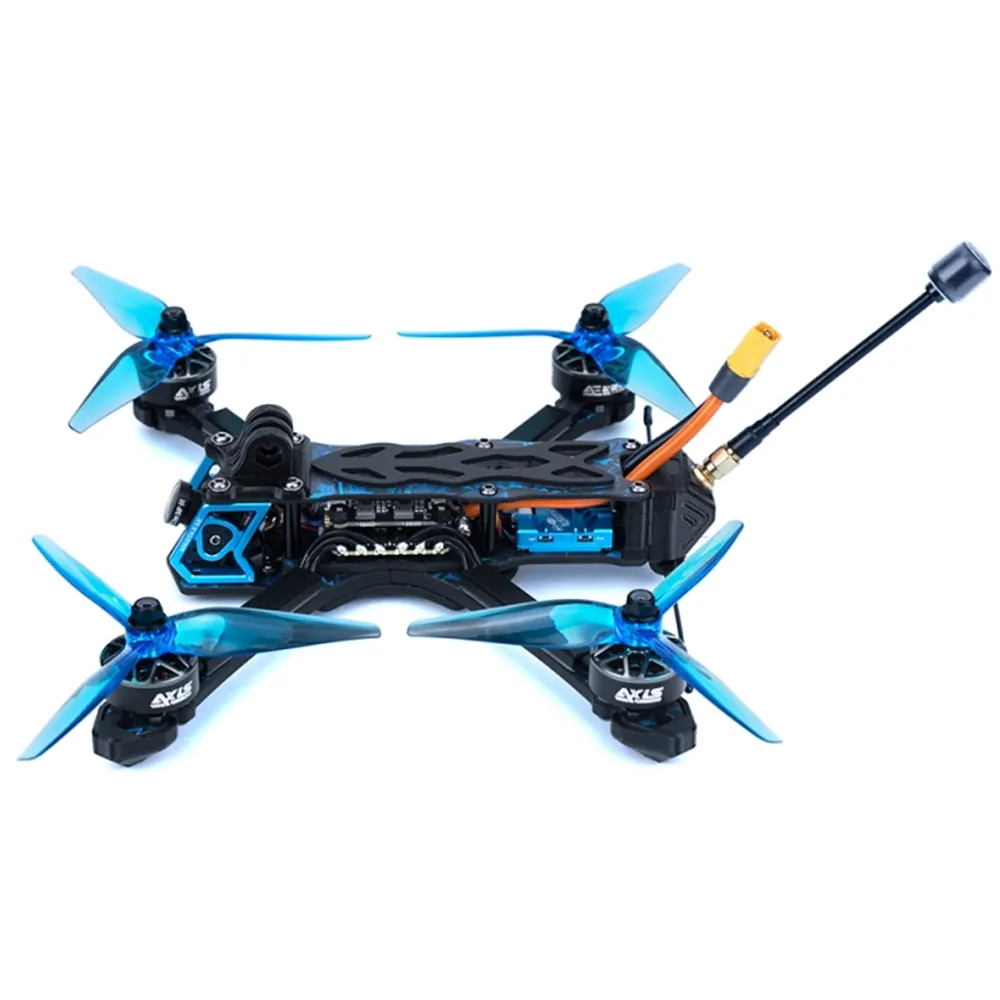

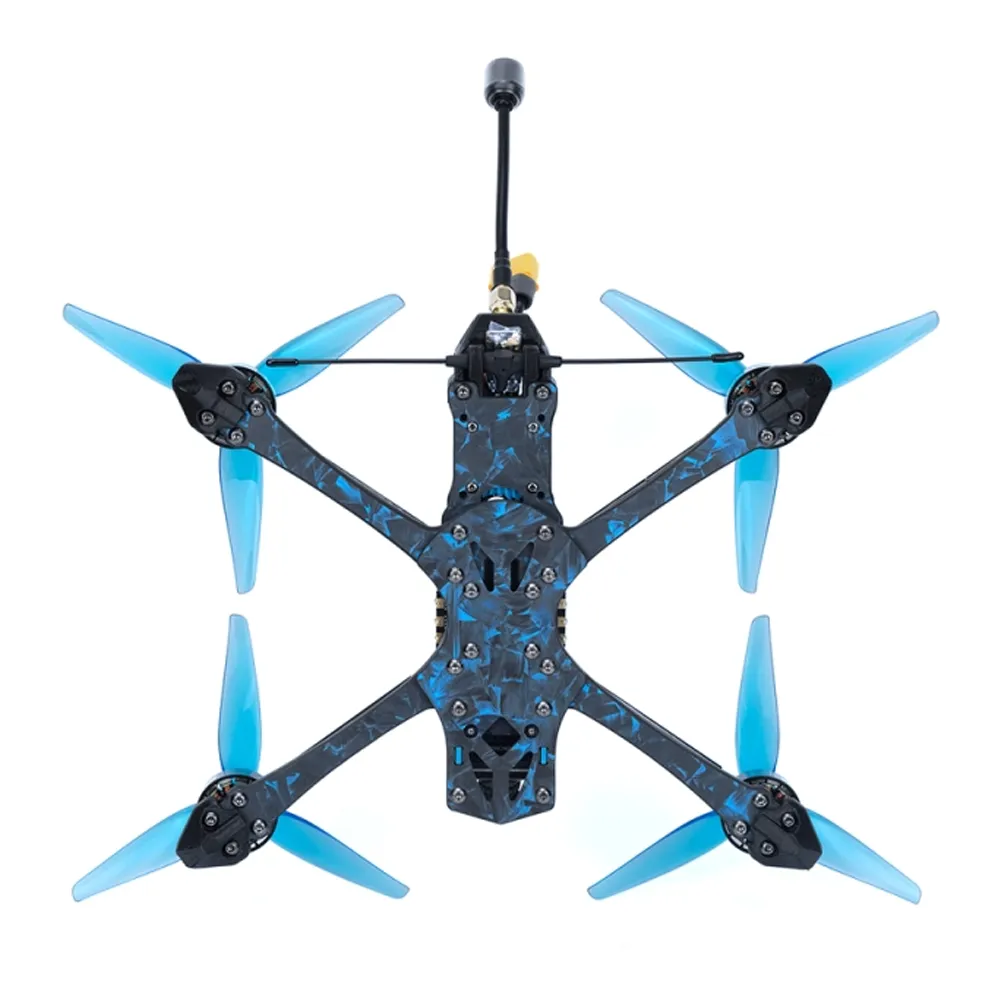

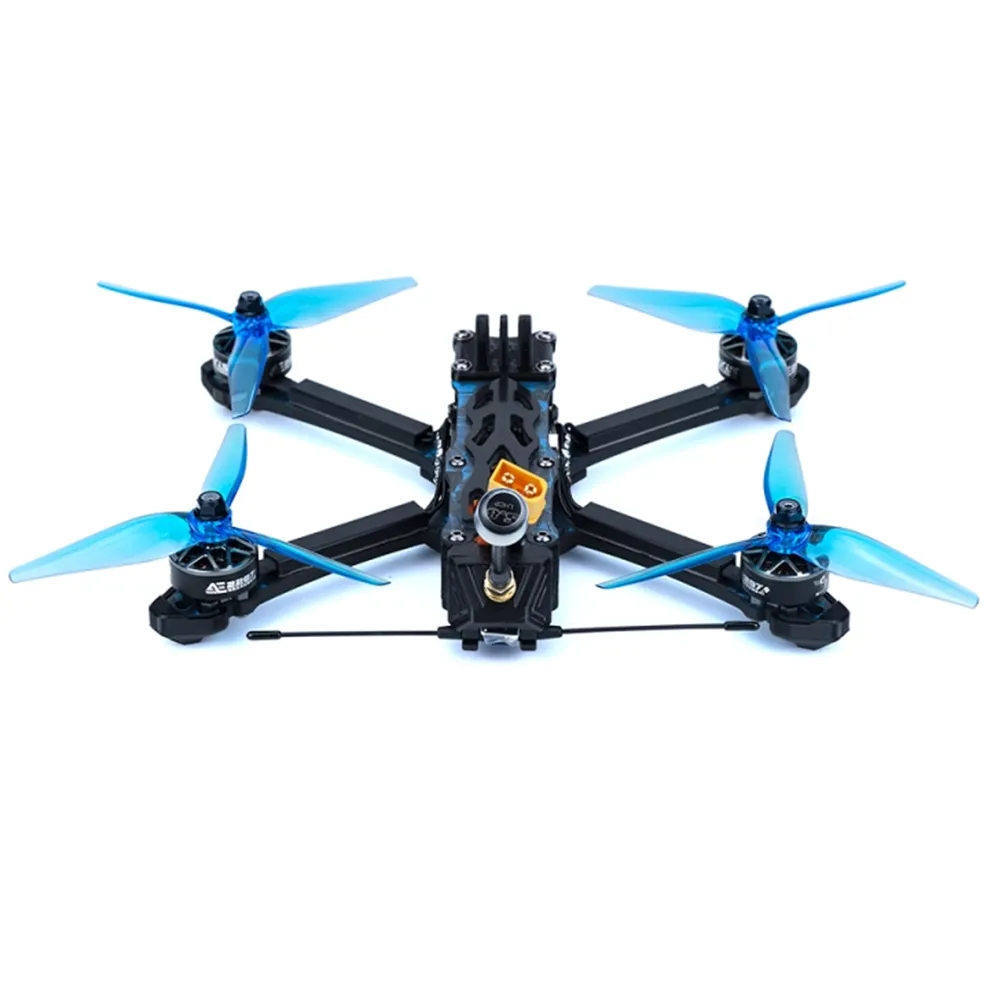

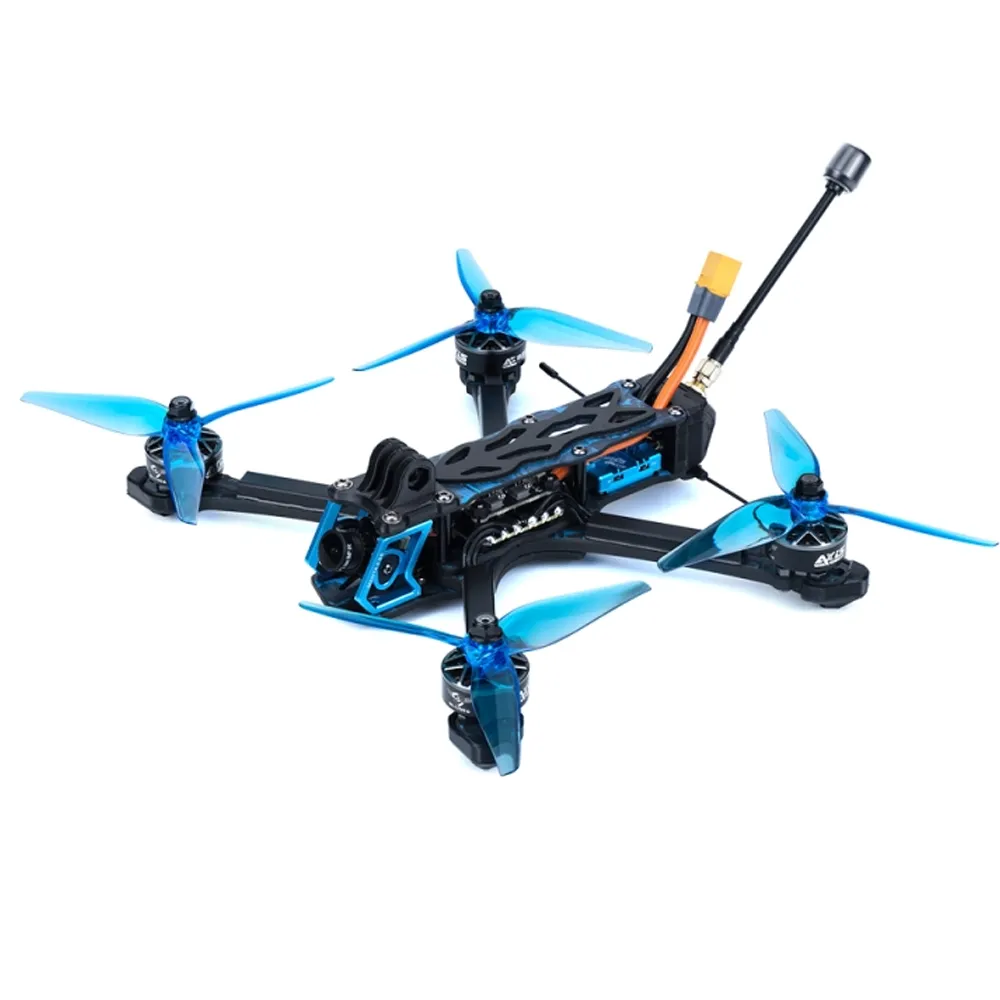

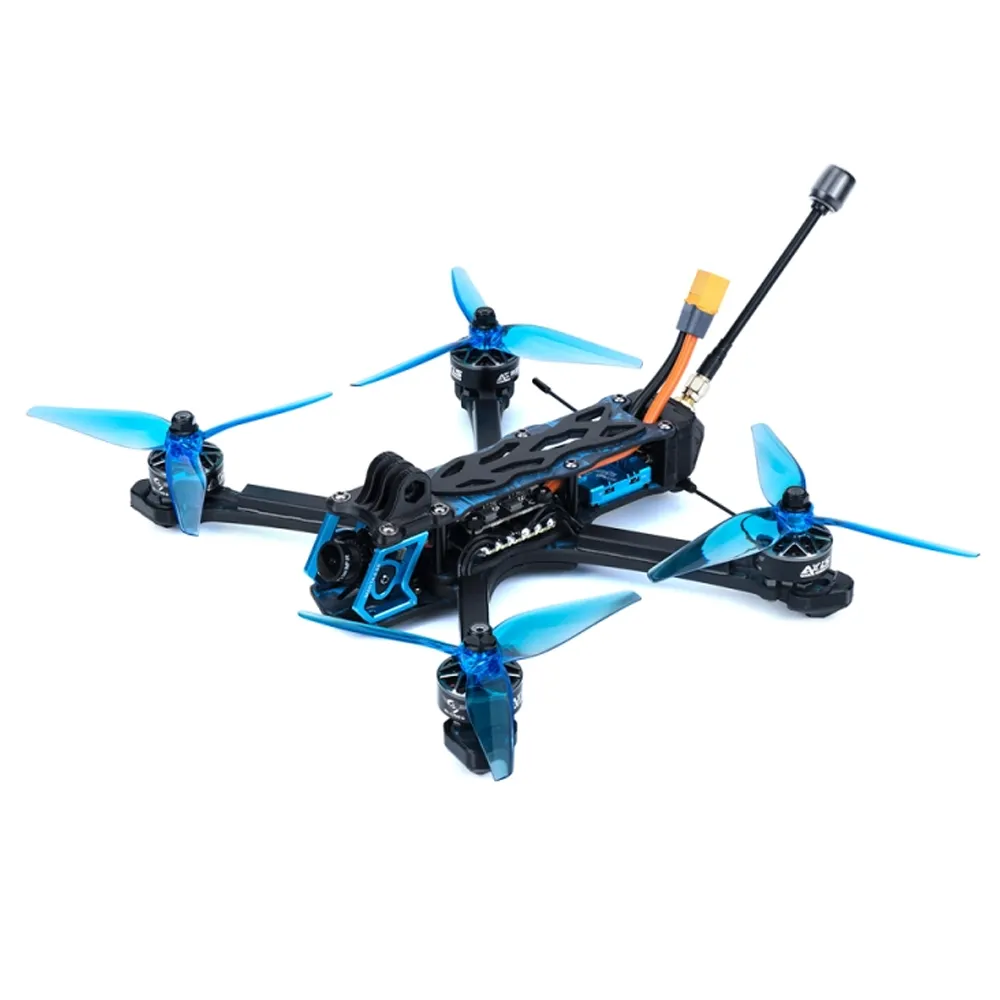

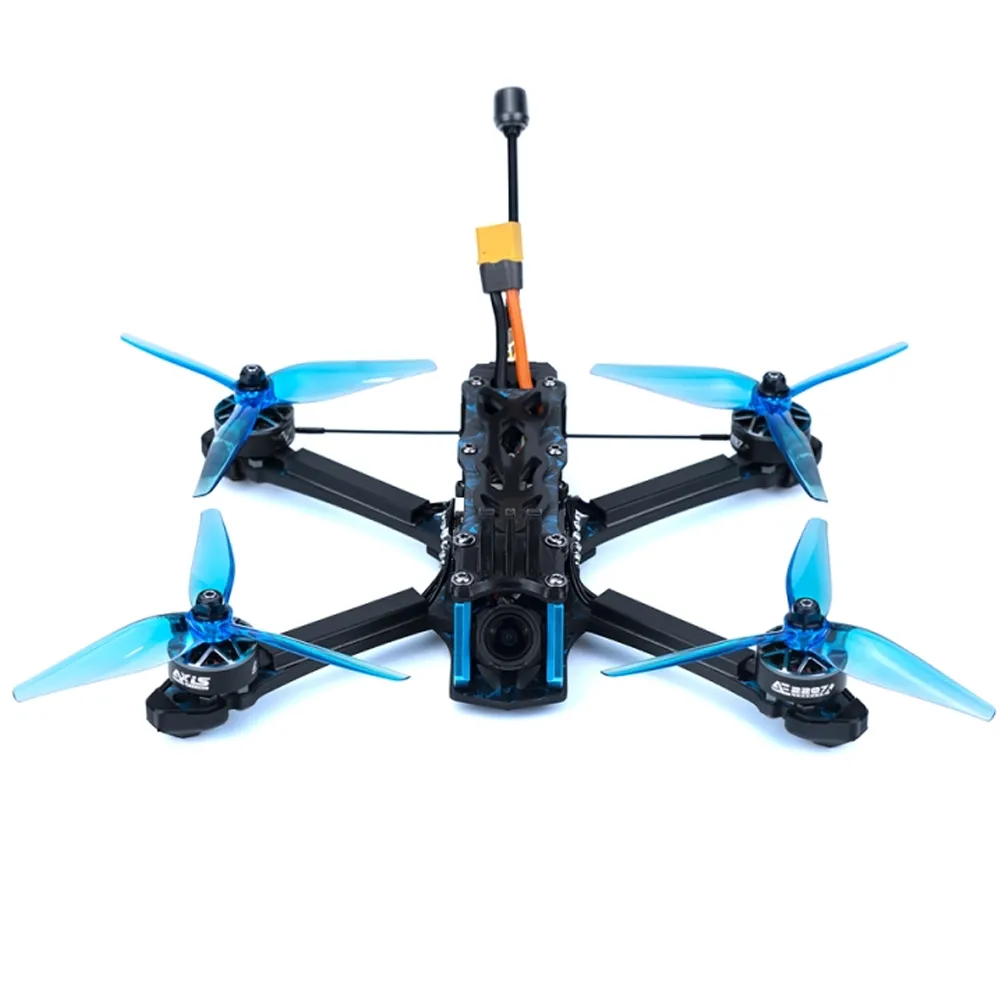

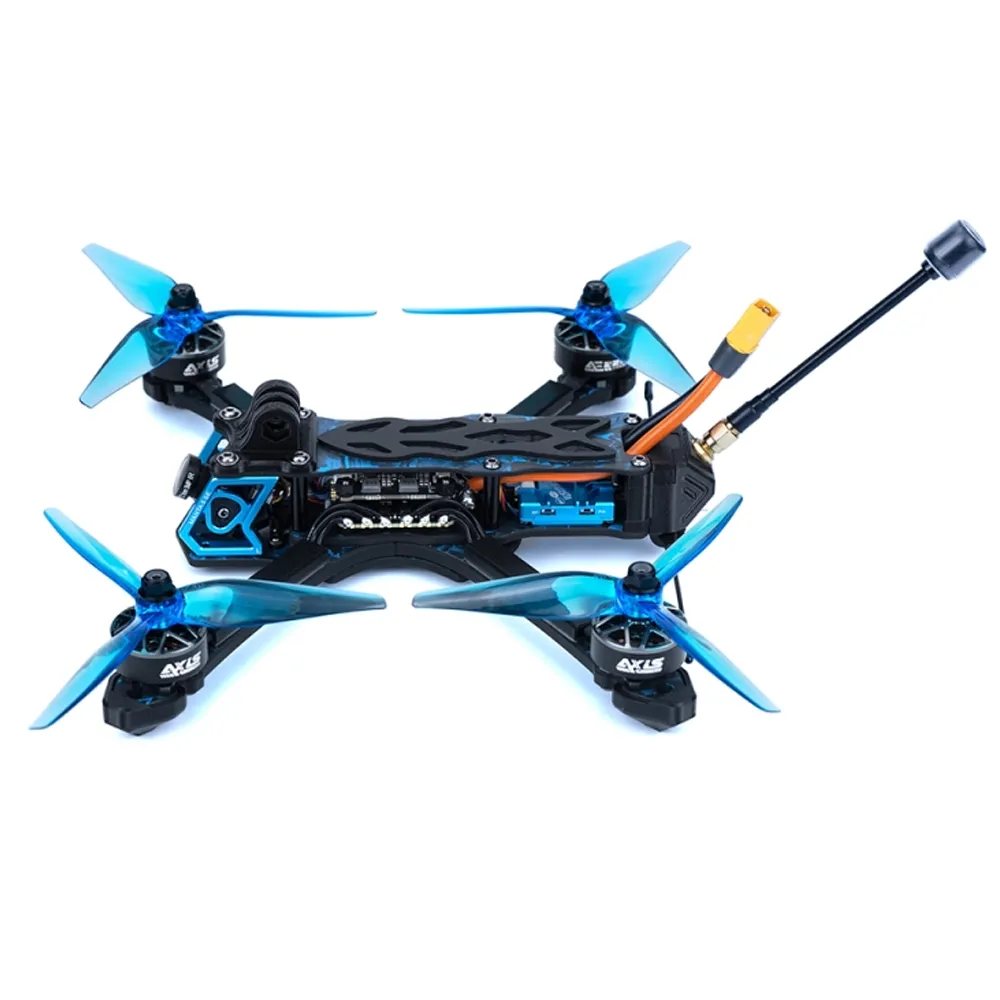

Axisflying Manta 5 SE Suqeshed X Smurfs GPS FPV Racing Drone PNP BNF with Analog / DJI O3 Air Unit Optional

SKUK81136

36 Reviews

USD 299.99

Wholesale Prices :

Qty:	4-7	>=8
Price:	$193.49	$182.74

Qty:

In stock

30-day Return Policy, Learn More

Description

weight: 485 g

DJI O4 Version Clink Here

Note to Buyers:

This product include the ESC, motor, and servos all pre-installed from the factory. Transmitter, battery, and charger are not included.

Features:
-- Advanced Video Transmission: Equipped with DJI O3 AIR UNIT or Smurfs VTX-5.8G-1.6W for high-quality video transmission, ensuring a crystal-clear FPV experience.
-- High-Performance Motors: Features AE2207 V2-1960KV motors and propellers, providing exceptional thrust and flight stability for competitive racing.
-- Robust Frame Design: The frame features 2mm top plate, 3mm center/bottom plates, and 5.5mm thick arms, ensuring durability and stability during high-speed flights.
-- Powerful Flight Controller: Utilizes Axisflying Argus ECO FC F405 with 60A-6S ESC and ICM-42688-P GYRO, providing reliable flight control and responsiveness.
-- Flexible Receiver Options: Compatible with TBS Nano RX and ELRS 2.4G receivers, allowing you to choose your preferred transmitter for optimal control.

Specifications:
Brand: Axisflying

Model: Manta 5 SE
Item Name: Suqeshed X Smurfs FPV Racing Drone
Frame: Axisflying Manta 5 SE frame
Wheelbase Size: 223mm
Weight: 362(Analog) / 391(Vista) / 401(DJI 03) ±10g

Max Speed: 180 Km/h
Top Plate Thickness: 2mm
Center Plate Thickness: 3mm
Bottom Plate Thickness: 3mm
Arm Thickness: 5.5mm
Flight Controller: Axisflying Argus ECO FC F405
ESC System: Axisflying Argus ECO ESC 60A-6S(Bluejay 8 Bit)
GYRO: ICM-42688-P
VTX: DJI O3 AIR UNIT or Axisflying Smurfs VTX-5.8G-1.6W(Optional)
Motors: AE2207 V2-1960KV

GPS: M10 GPS

Propellers: 5.1*3.7*3
Battery Interface: XT60
Receiver Version: TBS Nano RX,ELRS 2.4G
Recommended Battery: LIHV/ LIPO 1050-1300 mAH 6S(Not Include)

Package Included:
1x FPV Drone
1x Spare Battery Anti-slip Sticker

2x Propellers Sets

1x Spare Battery Straps
1x VTX Antenna
1x GPro Fixing Screws (Including Nuts)
1x Manual
1x Screw Driver (M3)

Axisflying Manta 5 SE Suqeshed X Smurfs GPS FPV Racing Drone PNP BNF with Analog / DJI O3 Air Unit Optional

More Details

customers reviews ( 36 )

0 / 5.0

5 stars 0%

4 stars 0%

3 stars 0%

2 stars 0%

1 stars 0%

View All Reviews (36)

By BG213213171

Really robust drone and well built. FC Firmware is already updated to betaflight 4.5.1. ESC firmware is bluejay 1.19 (which is not the latest, but is good). ELRS firmware is a CE LBT version (havn't check if it's the latest, and not worth it in my opinion to update). ELRS Antenna doesn't match the image and is the "Axisflying elrs antenna receiver", which is also a T shaped/dipole antenna. Wires cover is not black, but transparent (looks better anyway). Camera is the "axisflying C2 camera". Beeper is included and has a pretty dedicated mount to the frame but not battery powered (only wired to B+ and B-). Flight controller is "flipped" (see online images of the Argus ECO): soldering pads of the FC are facing the ground. JST ports are facing up. Though, wire management is impeccable, so this could be the reason. This makes soldering a little bit difficult. Default VTX antenna is lhcp. Programmable Pit mode supported on VTX. The battery "grip" is surprisingly good. Propellers are hq props, with replacements included, so extremely good props. For better confort and based on other reviews, I replaced the camera with caddx ratel 2, VTX antenna replaced with cherry rush 2 rhcp (because I also don't have vrx lhcp antenna). Replaced the straps with high visiblity straps which also have non-slip. Battery used is 1300mah tattu. Total weight around 600g. having only used tinywhoops and 2in drone, this is really big and heavy. Missing tool: You need a wrench size 8 to mount the propellers. Didn't test long range yet, nor I fully tested a long flight (my backyard is not safe enough). GPS is not tested (tested via betaflight, so I can tell it works, but that's it.) Overall, a pretty well built drone for a cheap cost, considering other options like Nazgul and DIY 5in drones. Also it looks sick.

2025-07-23 00:00:00

By hardrain

Fast shipping. Easy to bind with Radiomaster Pocket and to setup. Very well built, in every detail. GPS locked after a few minutes. Only on flight so far but very happy with performance using a 5S battery. Good FPV image.

2025-07-07 00:00:00

By BG463350185

fast and agile drone, recommend

2025-06-26 00:00:00

By BG145539413

good

2025-06-06 00:00:00

By BG501134154

after simulator i bought this drone, very good flying even for a newbie like me

2025-06-04 00:00:00

By BG476737154

fast!

2025-05-27 00:00:00

By BG392043241

Manta (ELRS) arrived without issues. Looks great, sounds great and it is powerful. I tried it with the 6S 1800 mAh battery and it went quickly high up in the sky as fast as (or a little bit faster than) my Nazgul 5'' drone.

2025-05-04 00:00:00

By BG171452163

very good, came exactly as described

2025-05-02 00:00:00

By BG475717103

Bardo tania 5. Lata bardzo dobrze. Jedynie do wymiany kamera. Orginalna słaba.

2025-04-21 00:00:00

By BG537343215

good quality,not flown yet however real test will be when flying them

2025-04-10 00:00:00
