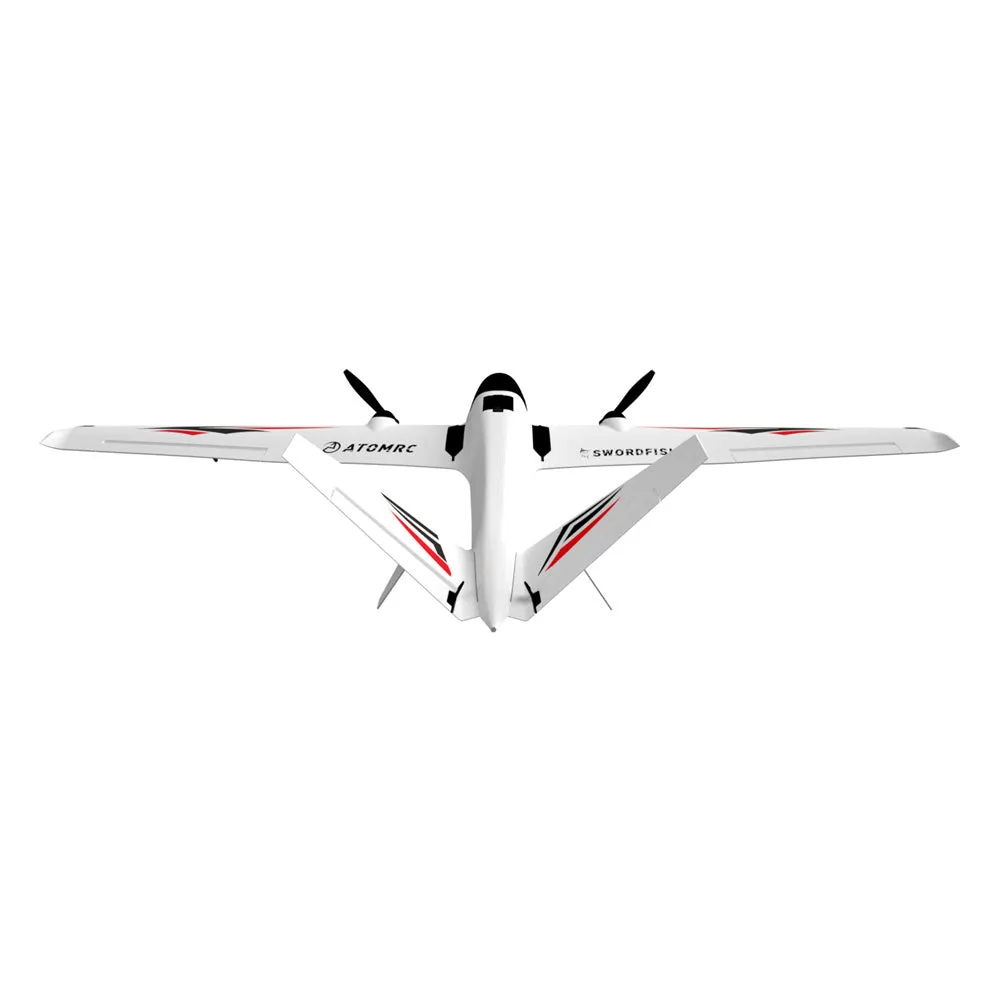

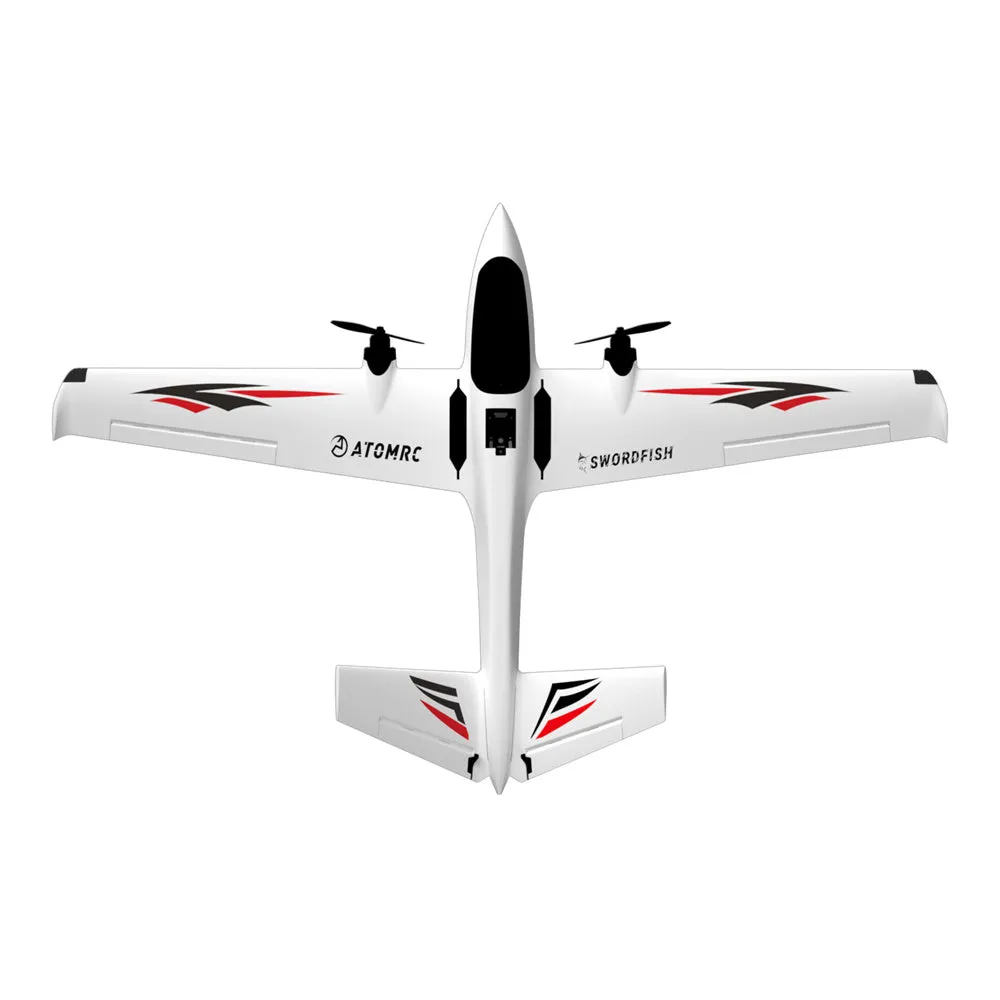

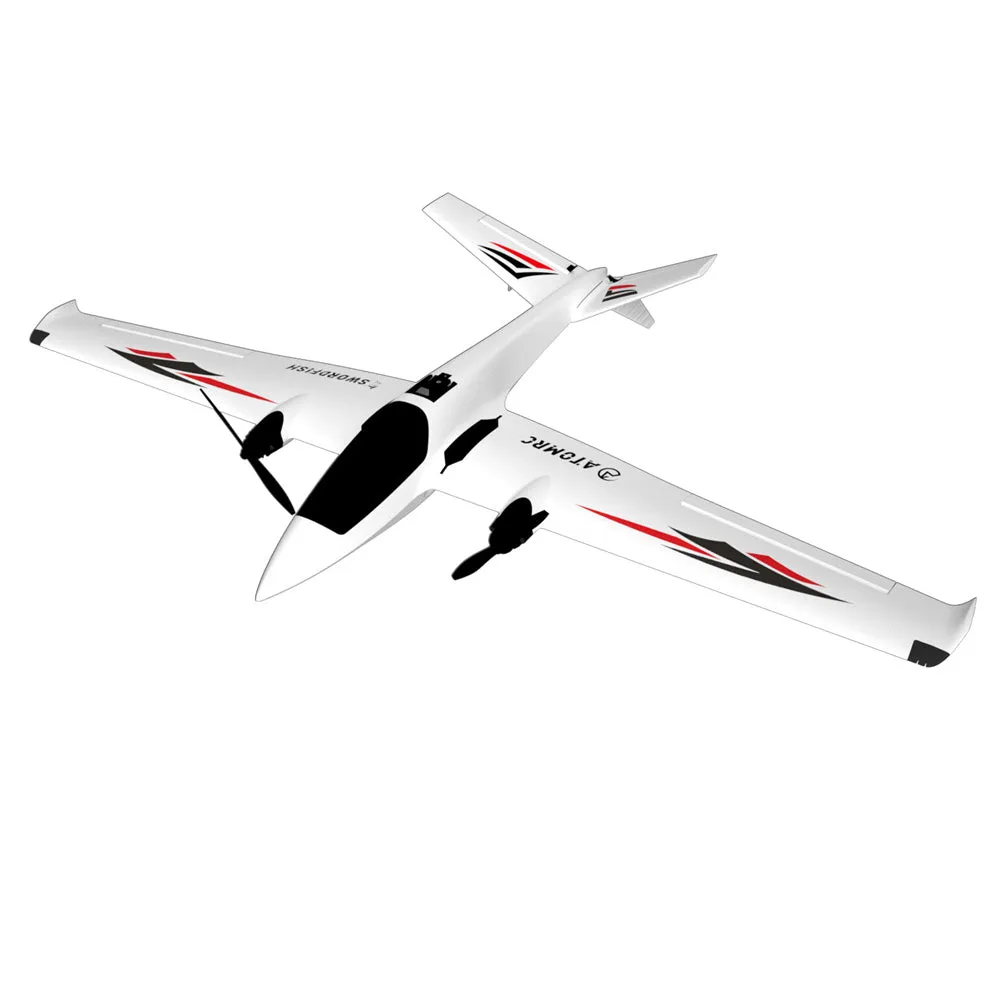

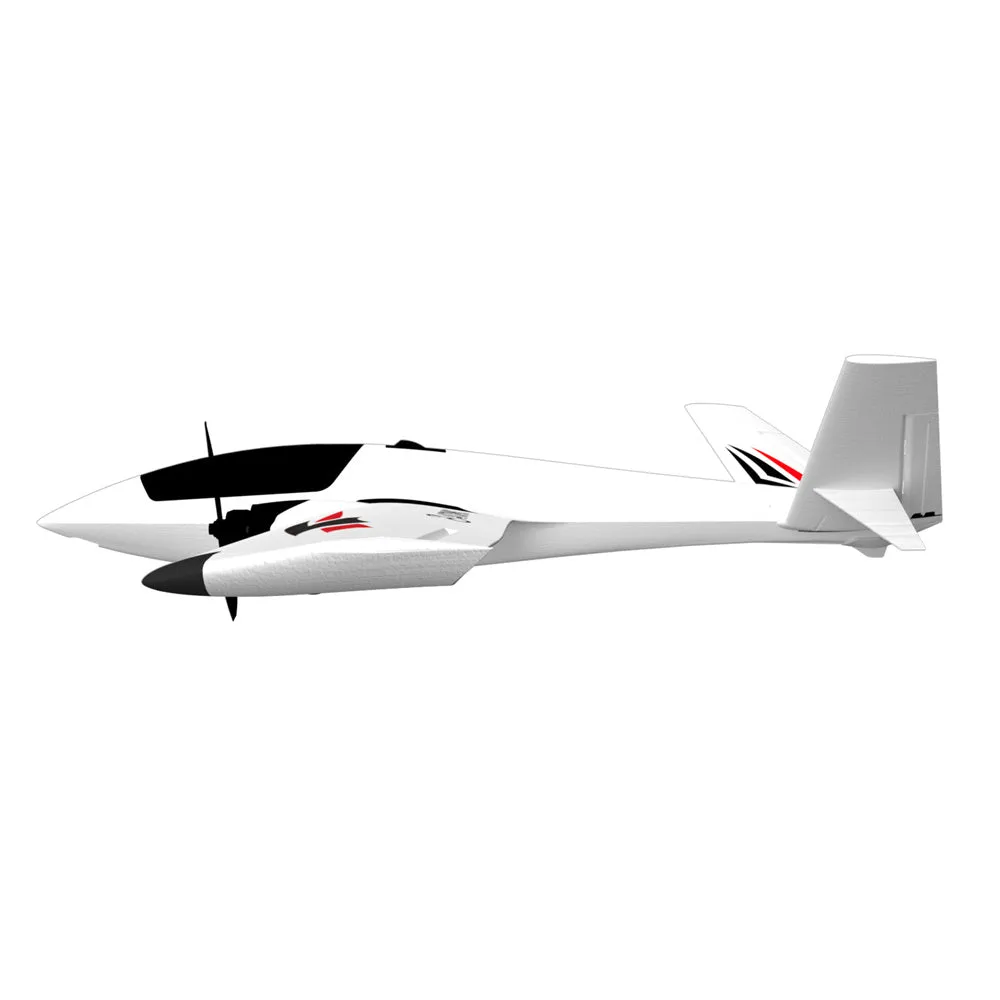

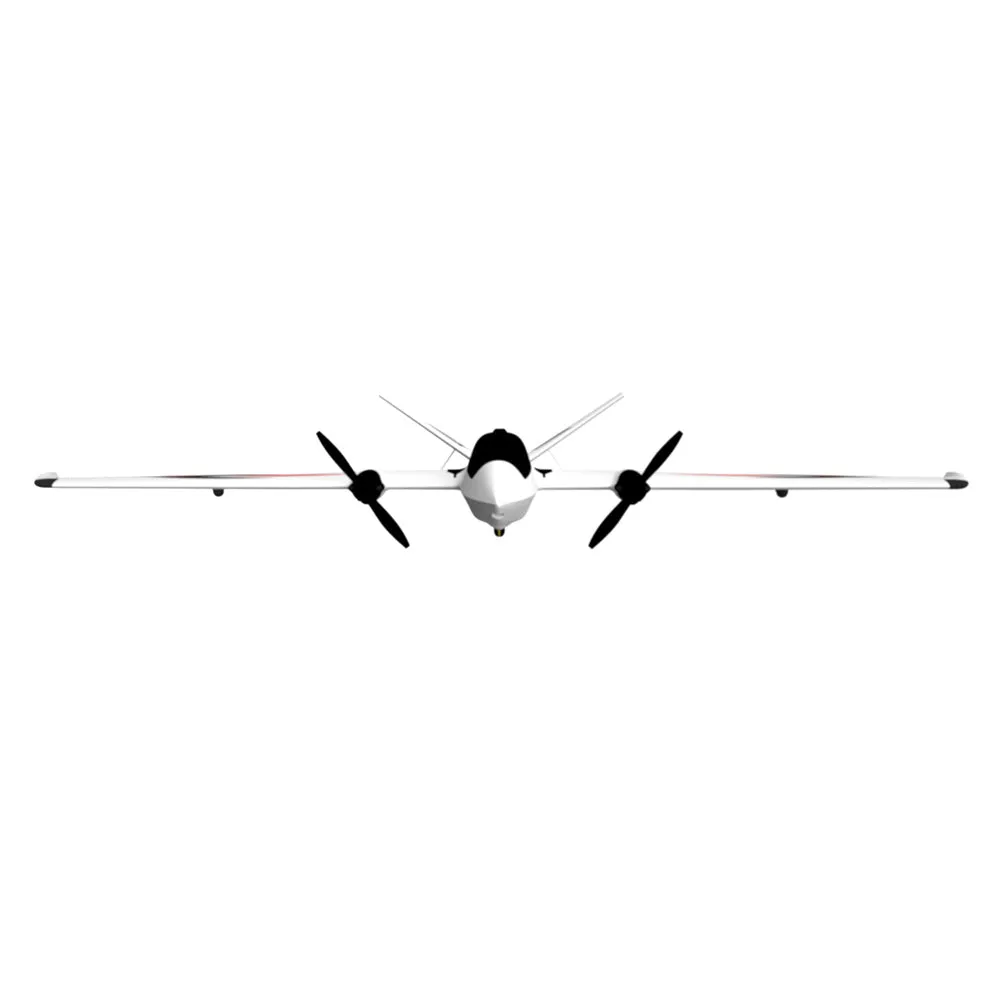

ATOMRC Swordfish 1200mm Wingspan Dual Motor EPP FPV Glider RC Airplane Fixed Wing KIT/PNP/FPV/RTH/RTH+FPV

• weight: 485 g

Overview:

Atomrc Swordfish Build for FPV, Intelligence flight. Flight controller have two firmware INAV or Arduplane, both firmware already pre-turned for the plane. RTH and RTH FPV version are plug and play, use just plug theire receiver and battery, plane is ready to go just like racing drones, no need glue or installed the electronics.

Arduplane version is also available, we can upload arduplane parameter setting on our web (Click Here), you just need flash the arduplane firmware, load the settings.

Specifications:

Brand Name: ATOMRC

Item Name: Swordfish

Wingspan: 1200mm

Length: 810mm

Material: EPP

Wing Area: 15.35 dm²

Package Size: 815*220*185mm

Recommend Motor: 2004~2306

Recommend Prop: 7045

Recommend Battery: 4s 5000mAh/21700 1P4s

Servo: 4Pcs 9g servo

Item Weight: 1.2kg

Features:

- Easy for beginners, pre turned and pre-installed electronics.

- Auto launch mode, return to home, circle mode. Need install the ATOMRC F405 NAVI flight controller, the RTH and RTH+FPV have intelligence flight mode.

- Quick Release connector. The quick release connector using soft connection, solved the disconnection from vibration or crash. Easy to install the wing and detach the wing.

- Hatch Lock. The screw and nuts are more durabl and reliable than magnet, the hatch will never fall off in the air.

- Carbon fiber reinforcement and plastic injection mount for tail, more rigid for high speed and landing

- Precise Plastic injection parts. The wing connector, motor mount, VTX mount, V tail base and flight light cover are using precise Plastic injection parts, more durabl and light weight.

Atomrc Swordfish Versions (optional):

KIT Version: Pre-glued fixed wing

PNP Version: KIT+Motor+ESC+Servo

FPV Version: PNP+VTX+Camera

RTH Version: PNP+Pre-turned FC+GPS, all electronics are installed

RTH+FPV Version: RTH+VTX+Camera, all electronics are installed

English Manual, Click Here

KIT Version Included:

1x Pre-glued fixed wing

1x Wood Plate

1x Screws and Nuts

1x Sticker

1x Manual

1x Flight Light

PNP Version Included:

1x Pre-glued fixed wing

1x Wood Plate

1x Screws and Nuts

1x Sticker

1x Manual

1x Flight Light

2x ATOMRC 2306 1700KV Motor

2x ATOMRC BLS 30A 2-4S ESC

4x ATOMRC 9g Servo

4x 7042-2 Propeller

FPV Version Included:

1x Pre-glued fixed wing

1x Wood Plate

1x Screws and Nuts

1x Sticker

1x Manual

1x Flight Light

2x ATOMRC 2306 1700KV Motor

2x ATOMRC BLS 30A 2-4S ESC

4x ATOMRC 9g Servo

4x 7042-2 Propeller

1x Foxeer Toothless NANO Camera

1x ATOMRC Exceed TX500 VTX

1x Antenna

RTH Version Included:

1x Pre-glued fixed wing

1x Wood Plate

1x Screws and Nuts

1x Sticker

1x Manual

1x Flight Light

2x ATOMRC 2306 1700KV Motor

2x ATOMRC BLS 30A 2-4S ESC

4x ATOMRC 9g Servo

4x 7042-2 Propeller

1x ATOMRC F405 NAVI Flight Controller

1x BN220 GPS Module

RTH-FPV Version Included:

1x Pre-glued fixed wing

1x Wood Plate

1x Screws and Nuts

1x Sticker

1x Manual

1x Flight Light

2x ATOMRC 2306 1700KV Motor

2x ATOMRC BLS 30A 2-4S ESC

4x ATOMRC 9g Servo

4x 7042-2 Propeller

1x Foxeer Toothless NANO Camera

1x ATOMRC Exceed TX500 VTX

1x Antenna

1x ATOMRC F405 NAVI Flight Controller

1x BN220 GPS Module
