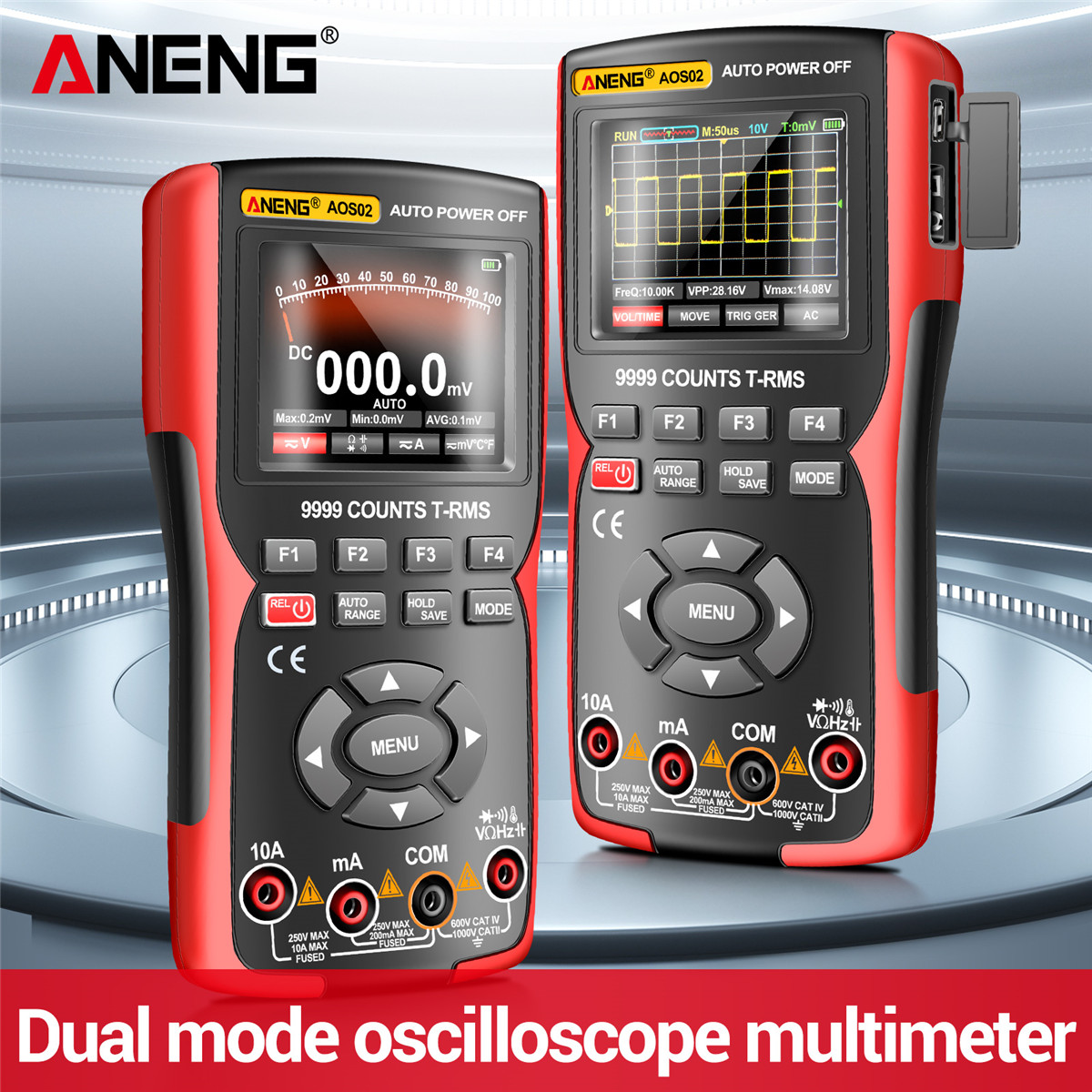

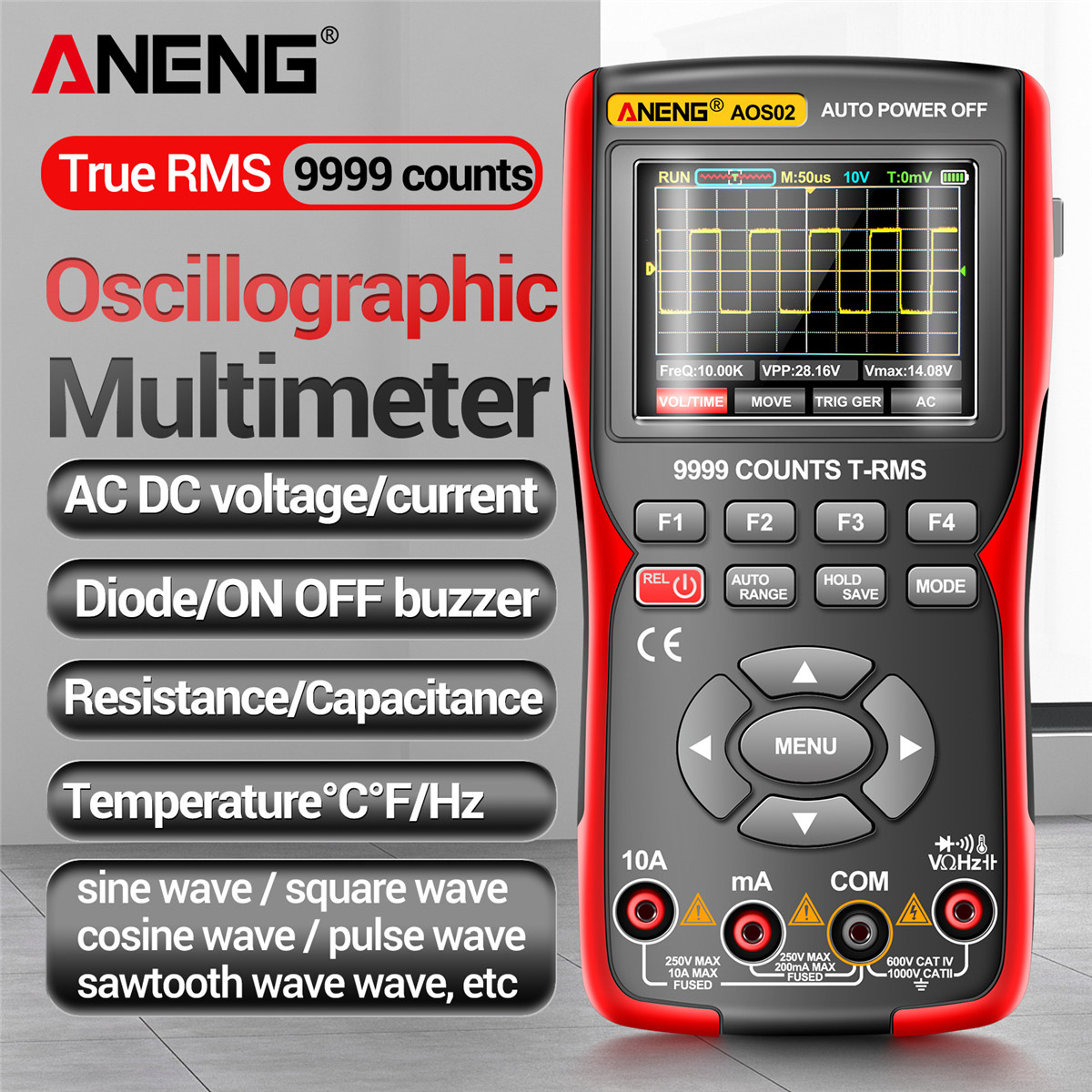

ANENG AOS02 9999 Counts Digital Professional Oscilloscope Multimeter 48M/S 10MHZ PC Waveform Data Storage True RMS Tranistor
| Qty: | 4-7 | >=8 |
| Price: | $62.99 | $59.49 |
- weight: 485 g
Features:

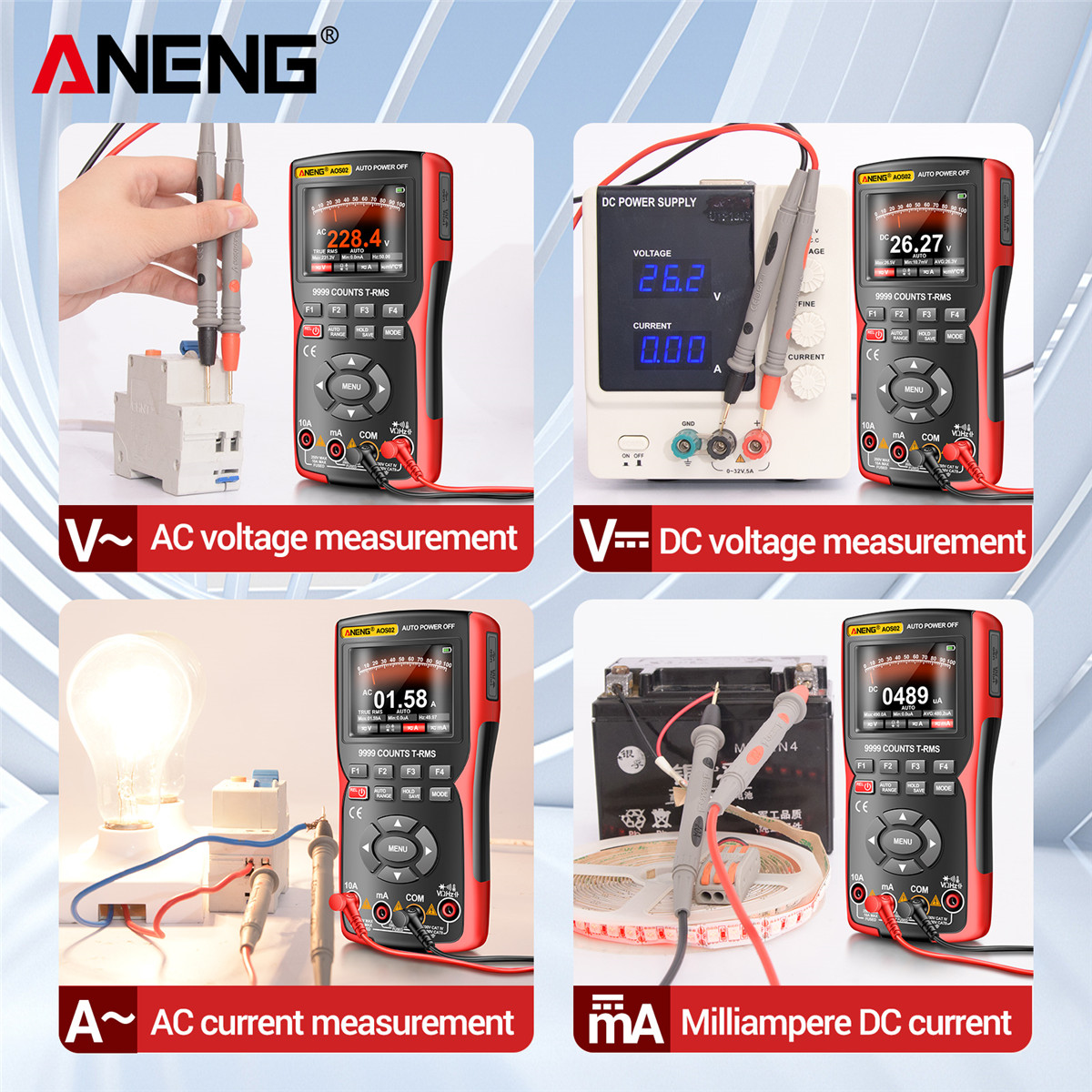

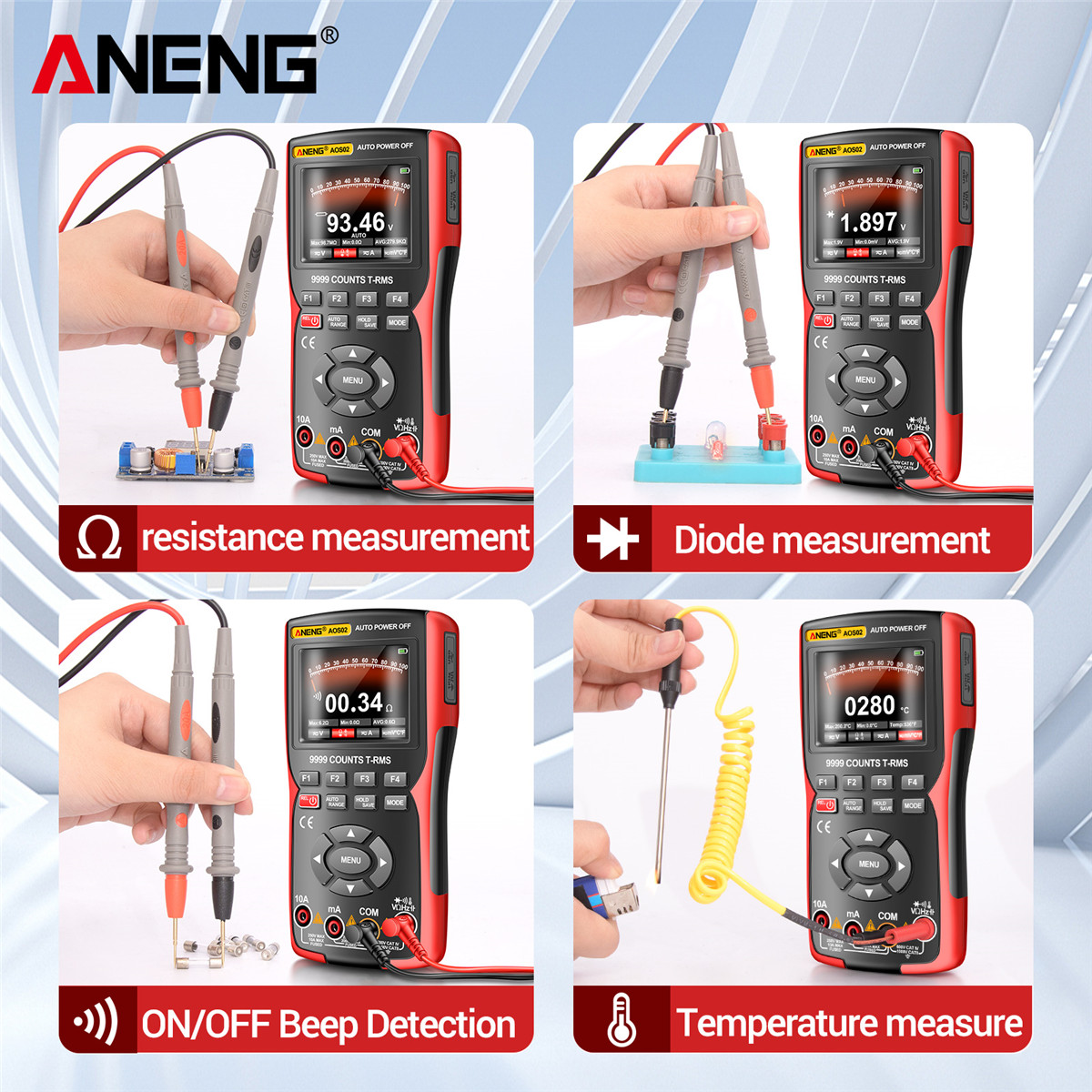

Multifunctional: Measures a variety of parameters including DC/AC voltage, DC/AC current, resistance, capacitance, frequency, and temperature.
High Accuracy: Provides accurate readings with specified accuracy ranges for different functions.
Data Retention: Allows data storage for easier reference and analysis.
Language Selection: Comes with Chinese/English selectable interface for user convenience.
Bright Display: Adjustable brightness at 30%, 50%, 80%, and 100%.
Computer Connection: Supports USB connection to computer for data transfer and analysis.
Auto Shutdown: Can set shutdown time, ensuring energy efficiency.
Robust Materials: Made from ABS/TPE and brass/PVC ensuring durability.

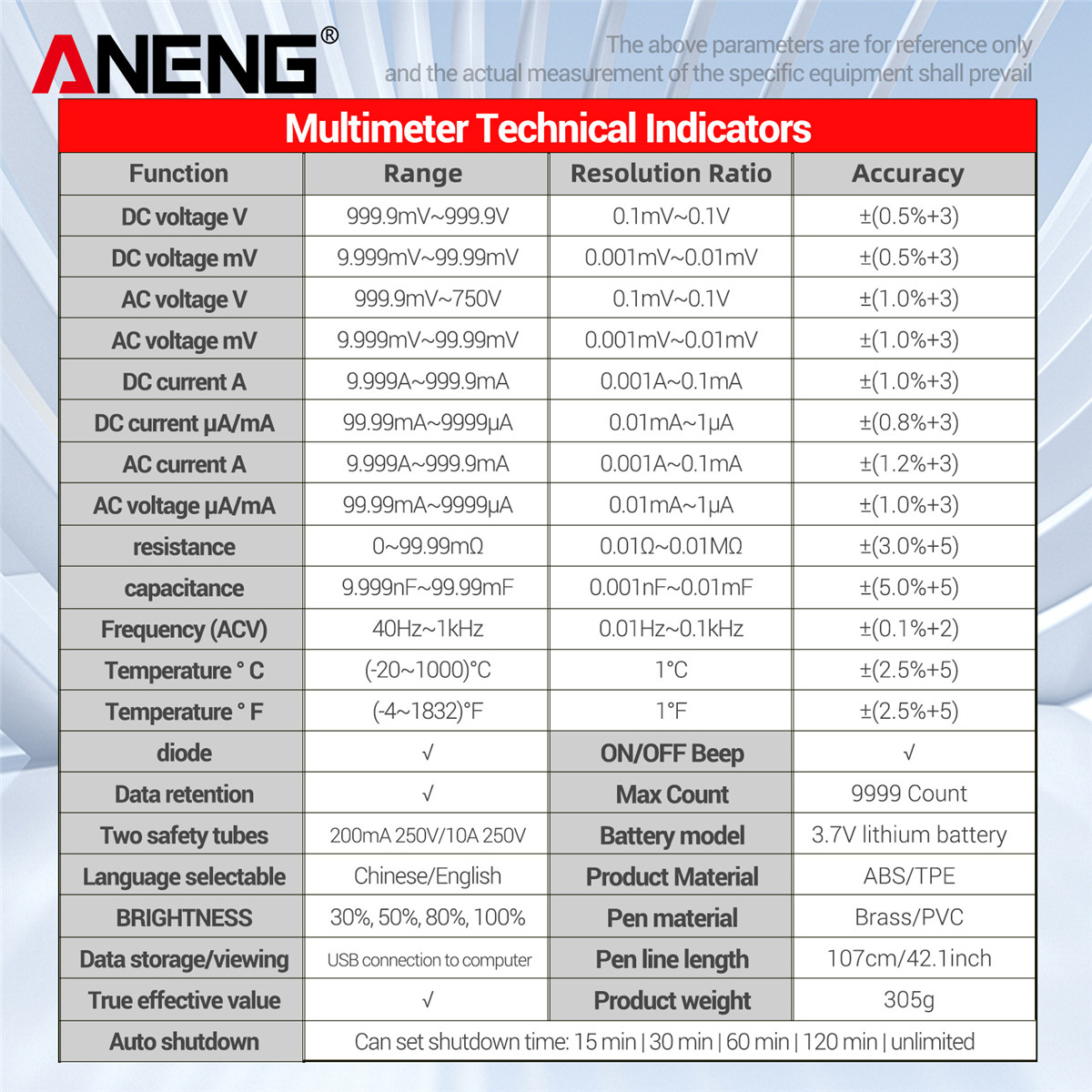

Specifications:
Function | Resolution | Ratio Range | Accuracy |
DC Voltage (V) | 999.9mV~999.9V | 0.1mV~0.1V | ±(0.5%+3) |
DC Voltage (mV) | 9.999mV~99.99mV | 0.001mV~0.01mV | ±(0.5%+3) |
AC Voltage (V) | 999.9mV~750V | 0.1mV~0.1V | ±(1.0%+3) |
AC Voltage (mV) | 9.999mV~99.99mV | 0.001mV~0.01mV | ±(1.0%+3) |
DC Current (A) | 9.999A~999.9mA | 0.001A~0.1mA | ±(1.0%+3) |
DC Current (uA/mA) | 9.999A~999.9mA | 0.001A~0.1mA | ±(1.2%+3) |
AC Current (A) | 9.999A~999.9mA | 0.001A~0.1mA | ±(1.0%+3) |
Resistance | 0~99.99mQ | 0.01Q~0.01MQ | ±(3.0%+5) |
Capacitance | 9.999nF~99.99mF | 0.001nF~0.01mF | ±(5.0%+5) |
Frequency (ACV) | 40Hz~1kHz | 0.01Hz~0.1kHz | ±(0.1%+2) |
Temperature (°C) | (-20~1000)°℃ | 1℃ | ±(2.5%+5) |
Temperature (º F) | (-4~1832)°F | 1°F | ±(2.5%+5) |
Package Includes:
1 x Multifunction Meter
2 x Test Leads
2 x Safety Tubes (200mA 250V, 10A 250V)
1 x 3.7V Lithium Battery
1 x USB Cable
1 x Portable Case
1 x User Manual
