A2212 1000KV/1400KV/2200KV Brushless Motor+40A ESC+SG90 9g Servo+8060/6035 Propeller RC Power Combo System for RC Airplane Fixed Wing

• weight: 485 g

A2212 1000KV/1400KV/2200KV Brushless Motor+40A ESC+SG90 9g Servo+8060/6035 Propeller RC Power Combo System for RC Airplane Fixed Wing

Description:

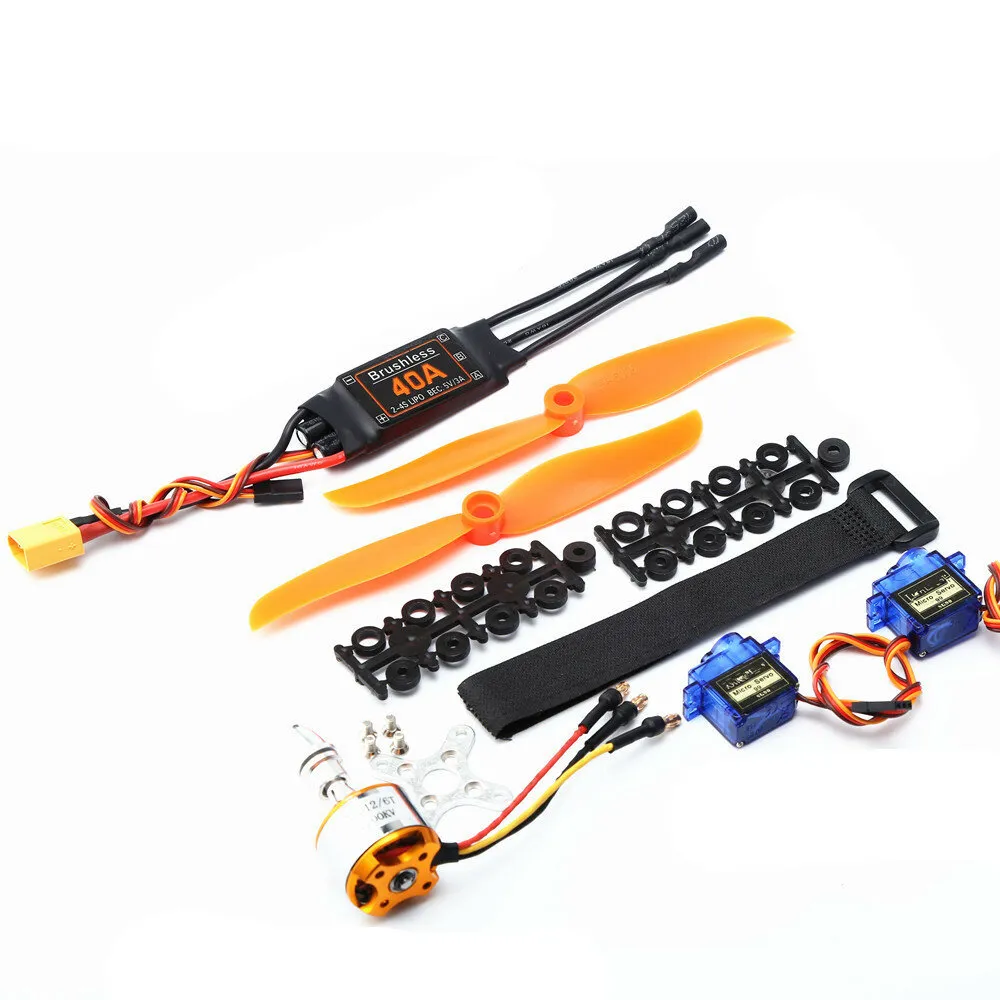

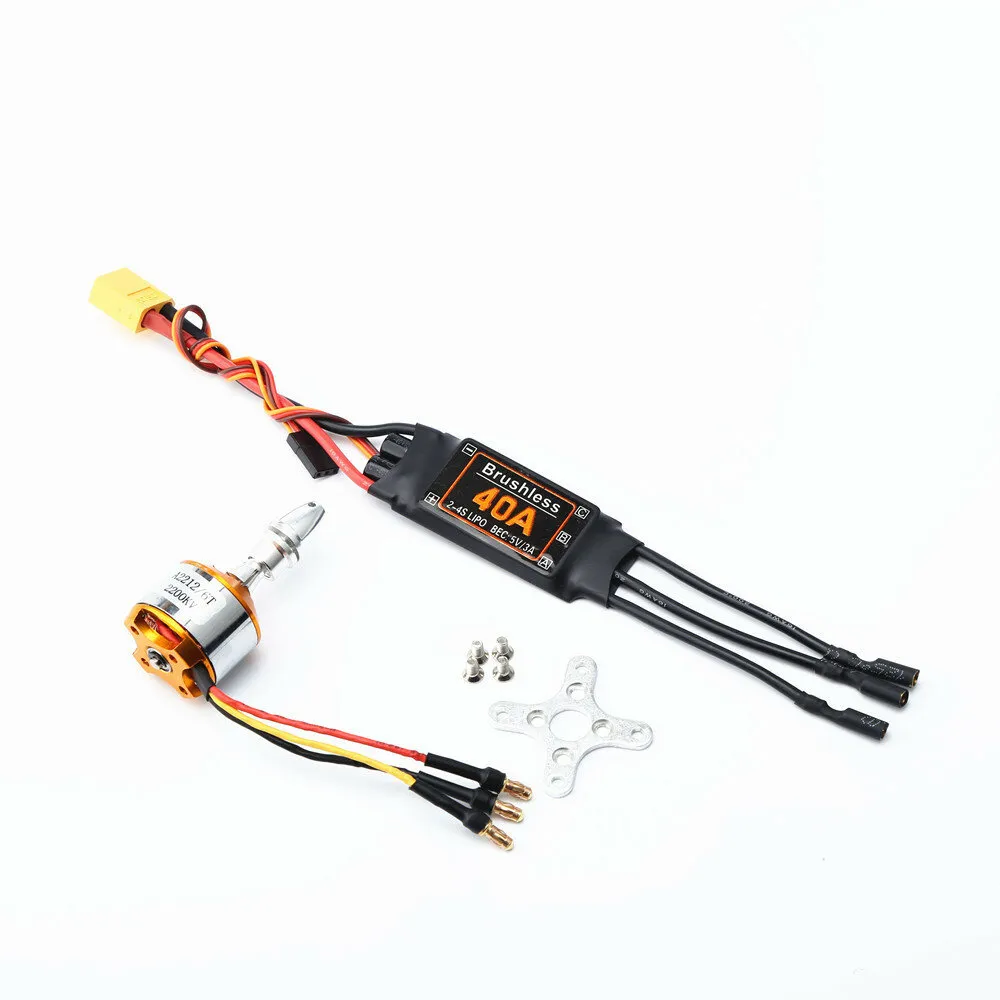

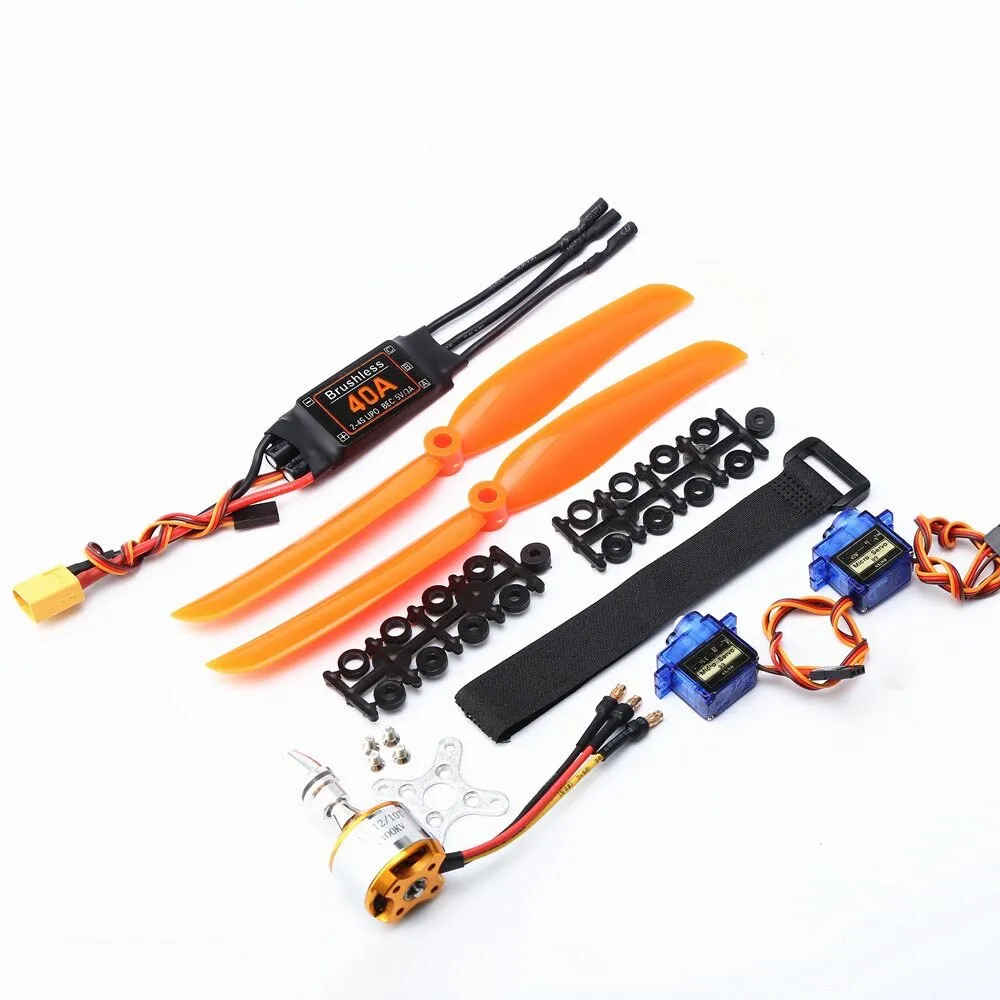

Item: RC Power Combo System

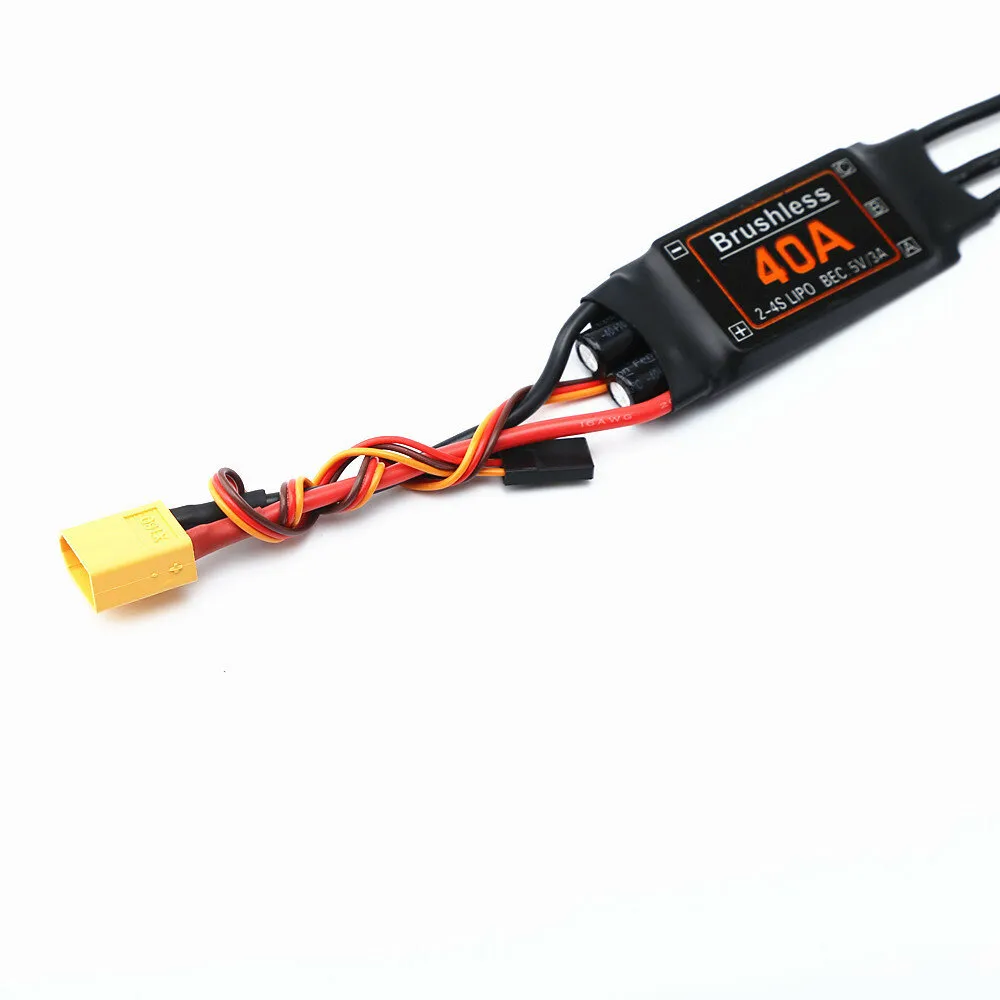

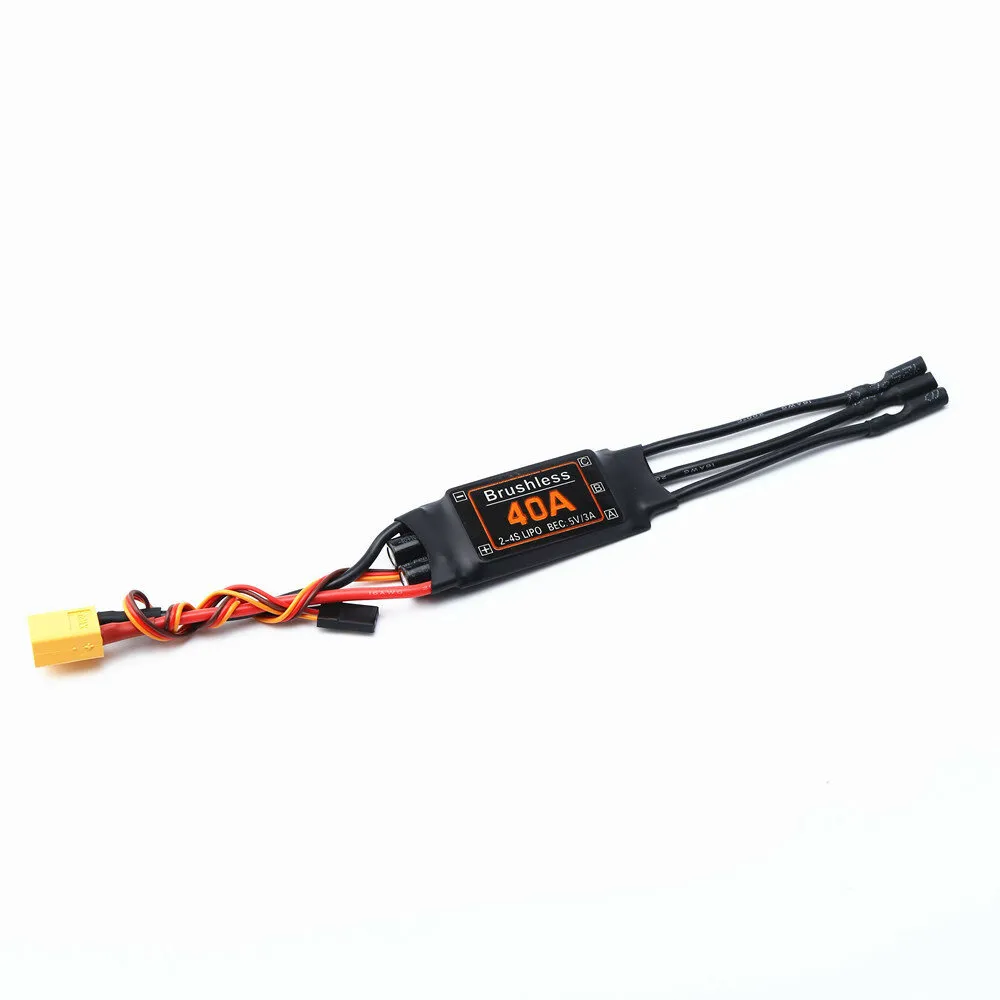

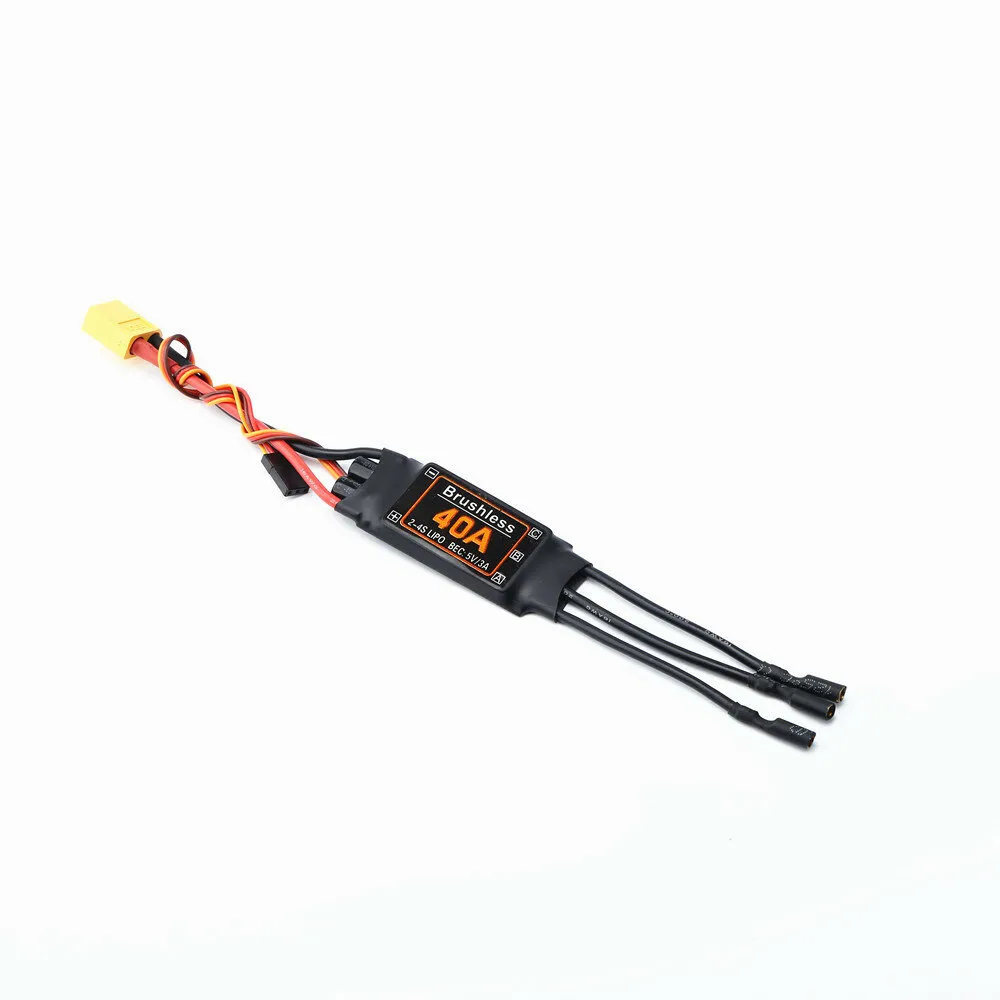

40A brushless ESC Specification:

Type: long, short

Current: 40A

Output capacity: continuous current 40A, short-term current 55A (not less than 10 seconds)

Power input: 2-4 lithium batteries (not included)

BEC output: 5V@3A (linear regulator mode-linear mode)

Maximum speed: 210000 rpm for 2-pole motors, 7000 rpm for 6-pole motors, 35000 rpm for 12-pole motors

Size: (approximately) 68x25x8mm

Features:

* Safety protection function: Regardless of the position of the throttle lever, the motor will not rotate after connecting the battery.

* Throttle valve calibration function: The throttle valve range can be calibrated to be compatible with different transmitters.

* User programmable.

* Support a variety of program methods: launch stick, LED program card. It is easy to carry out electronic stability control at home or in the flight field.

* Compatible with Lipo and NiMH batteries.

* The timing can be changed to suit different brushless motors.

* Full protection: low pressure cut-off protection/overheat protection/throttle signal loss protection.

Note:

1. Due to the difference of light and screen, the color of the item may be slightly different from the picture.

2. Due to manual measurement, please allow a difference of 0.5-2 cm.

SG90 9G Servo:

This is the most popular micro servo. Only 1.5 g/kg of torque. In terms of its size, it is quite powerful. Suitable for beam robots.

Size: 21.5mmX11.8mmX22.7mm

Weight: 9 grams

No-load speed: 0.12 seconds/60 degrees (4.8 volts)

Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)

Working temperature: -30～+60 degrees Celsius

Dead zone setting: 5 microseconds

Working voltage: 4.8V-6V

Feature:

• Translucent body

• Lightweight

• Less noise

A2212 2200kv Motor specifications:

KV: 2200

Ri (MΩ): 0.033

Battery: 2-3Li-Po

Maximum power: 342W

Test props: 7x3/7x4

Motor size: 27.5x38mm/1.08 inches x 1.5 inches

Shaft diameter: 3.17mm/0.12"

Pacakge included:

1x RC Power Combo System
