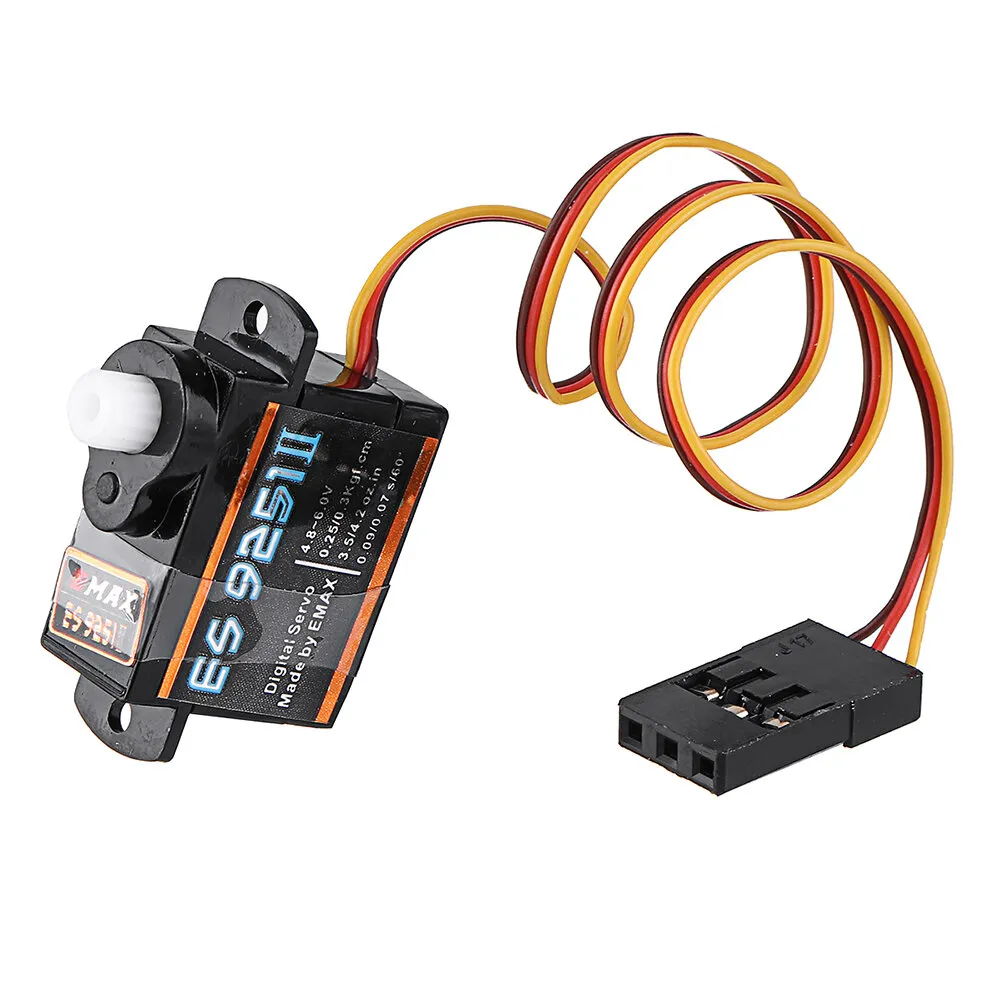

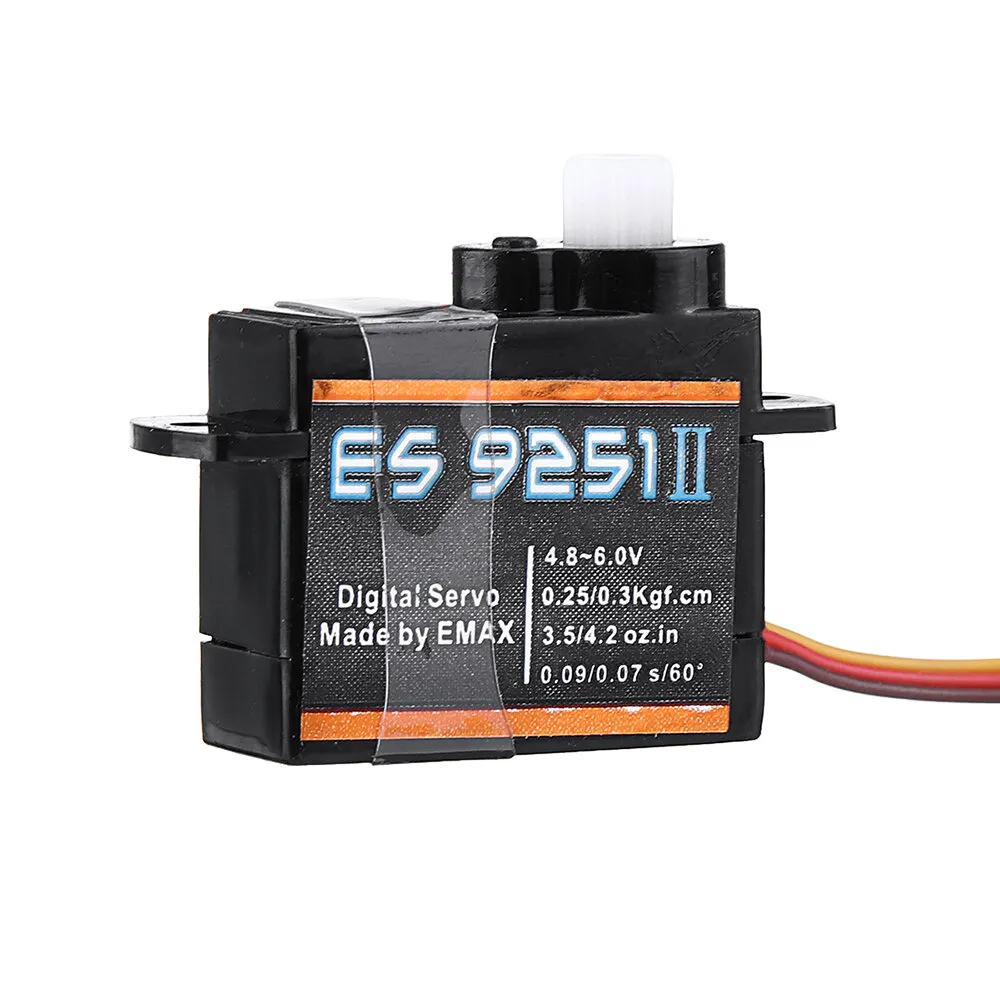

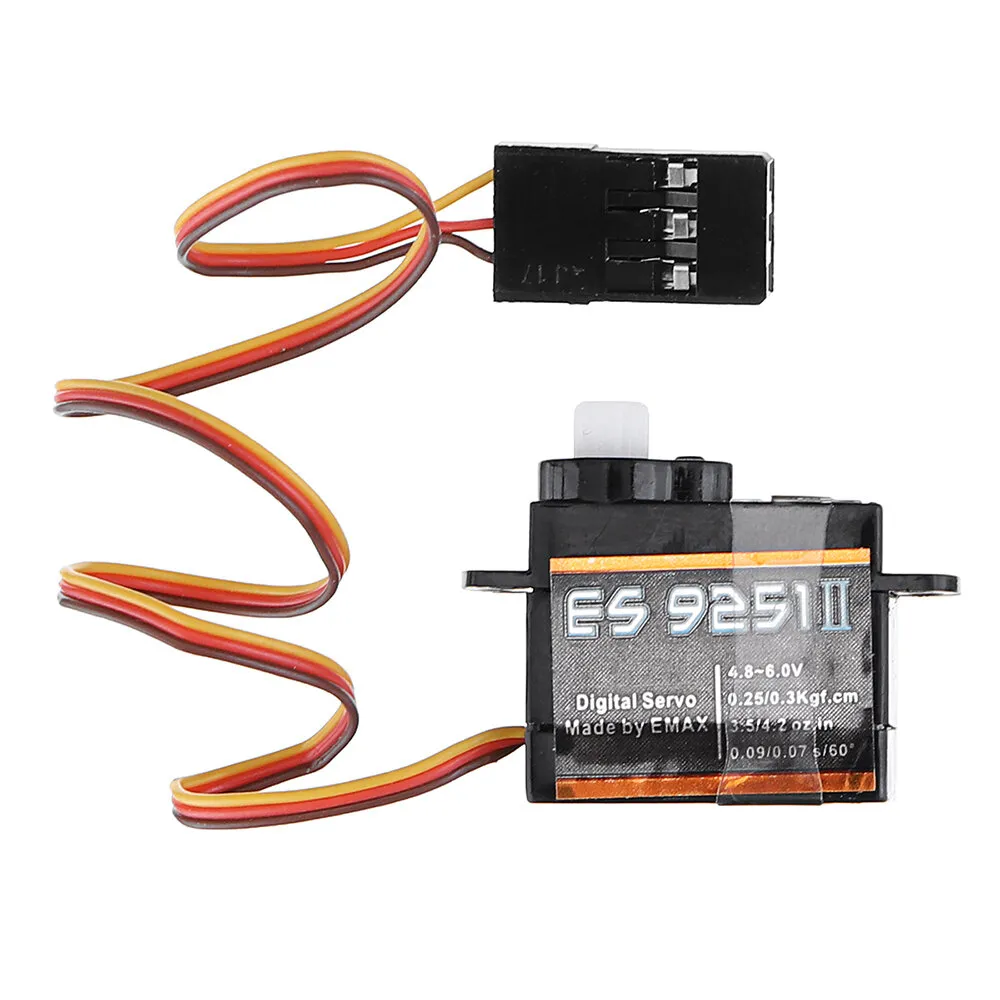

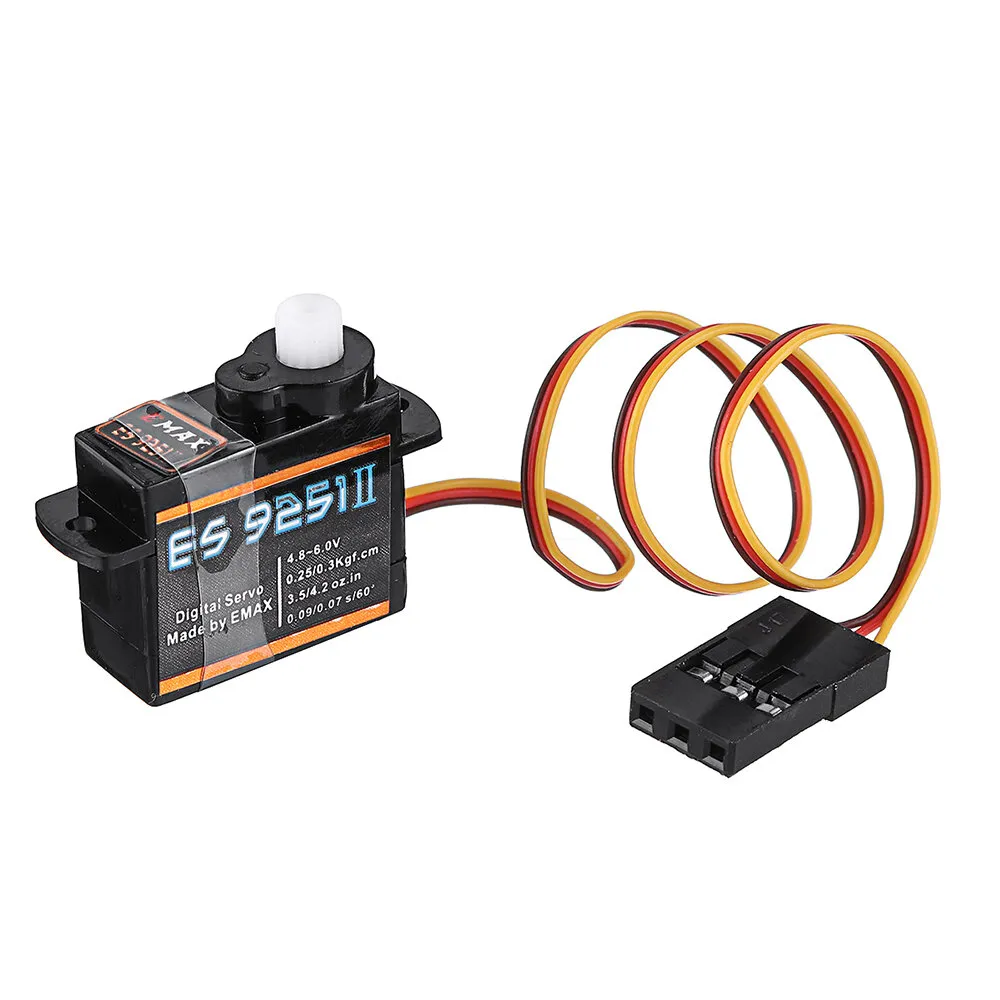

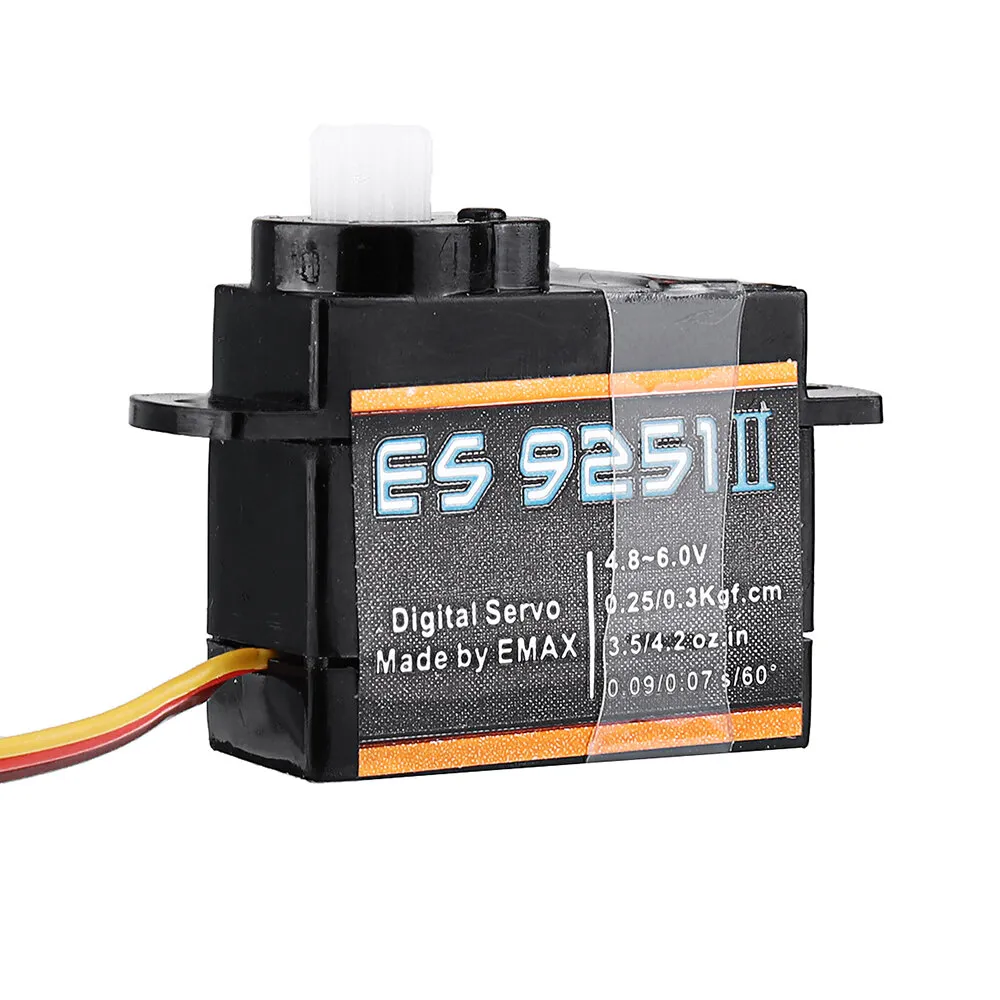

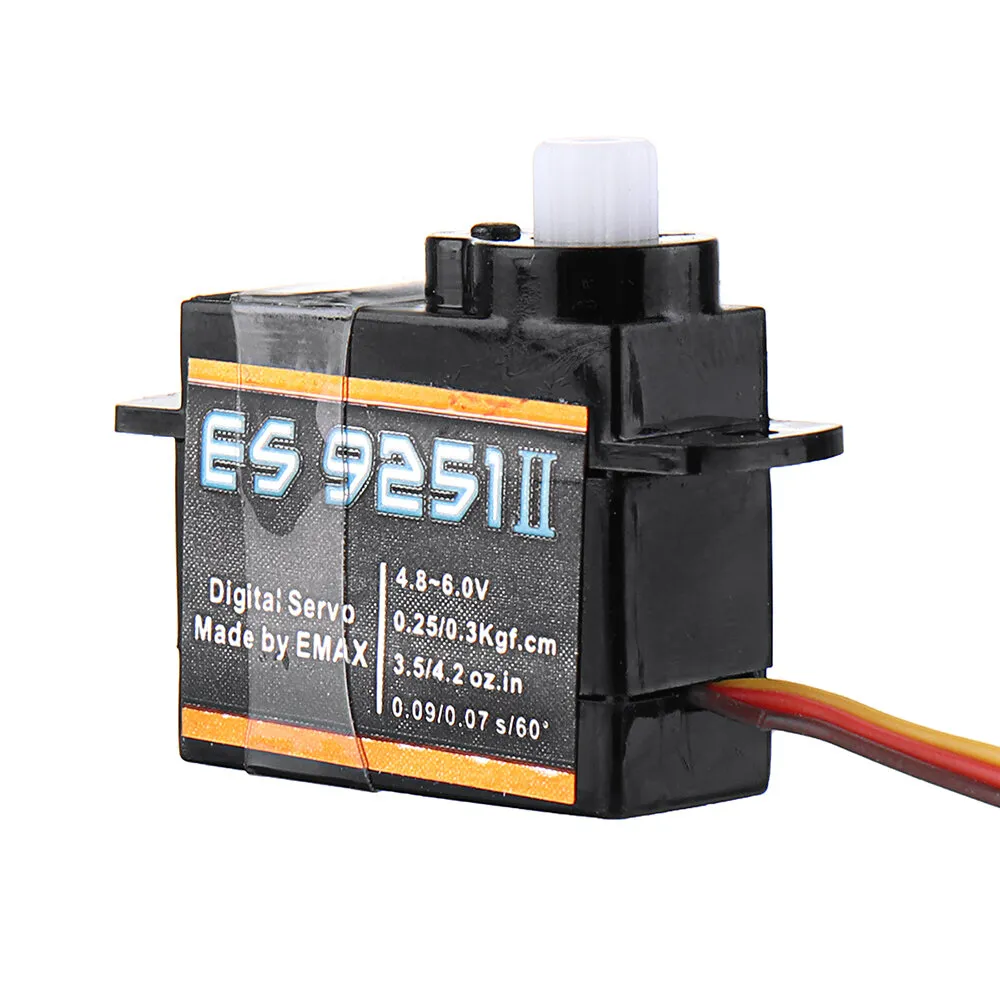

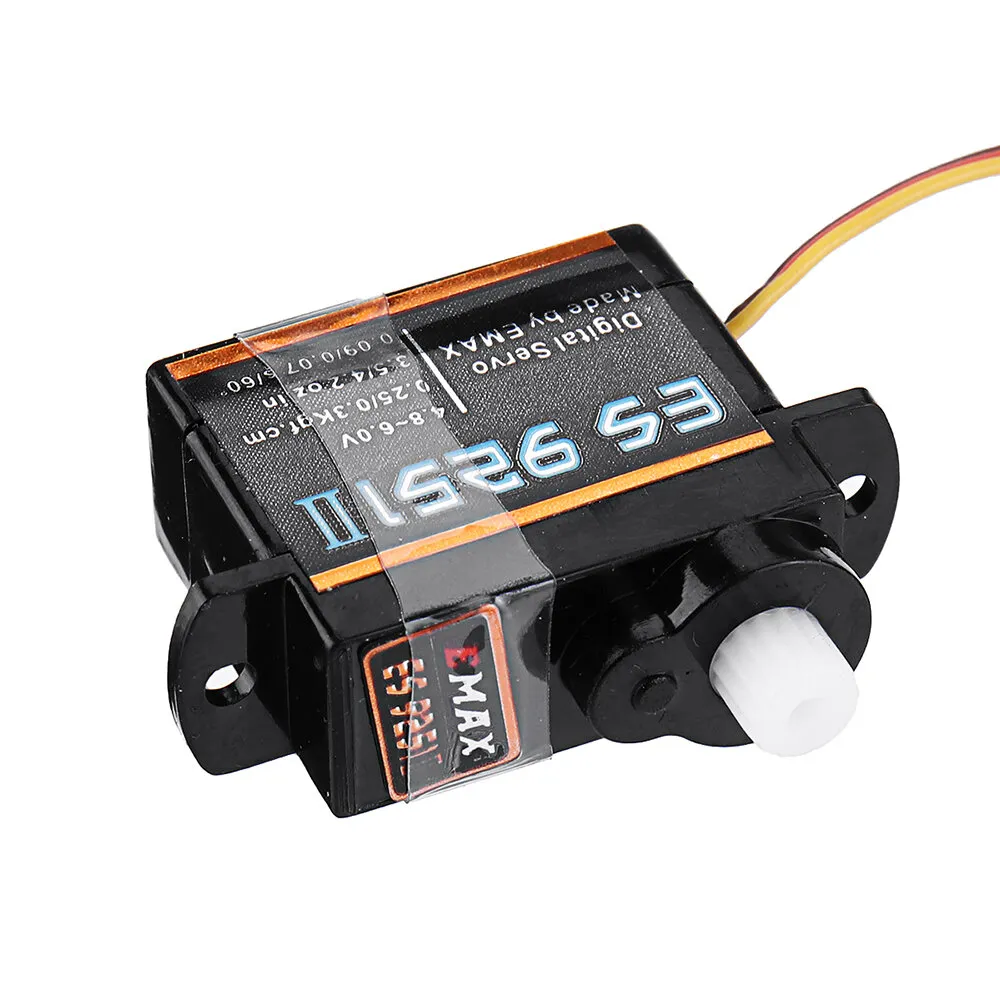

6PCS Emax ES9251 Ⅱ Upgrade Version 3g Plastic Gear Micro Digital Servo For RC Model

6XSKU246920

51 Reviews

USD 52.79

Wholesale Prices :

Qty:	4-7	>=8
Price:	$34.19	$32.29

Qty:

In stock

30-day Return Policy, Learn More

Description

weight: 485 g

Description:
Brand: Emax
Item: ES9251II Digital Servo
Operating Voltage: 4.8V~6.0V

Operating Speed (at no load): 0.09 sec/60°(4.8v), 0.08 sec/60°(6.0v)

Running Current (at no load):25mA Max(4.8v), 315mA Max(6.0v)

Stall Torque: 0.25kg.cm Max(4.8v), 0.3kg.cm Max(6.0v)

Maximum Current: 120mA Max(4.8v),140mA Max(6.0v)

Idle Current: 2.2mA

Storage Temperature Range: -20 C~70'C

Operating Temperature Range: -10C~60C

Size: 25.49*8.25*20.25mm

Weight: 3.0±0.5g

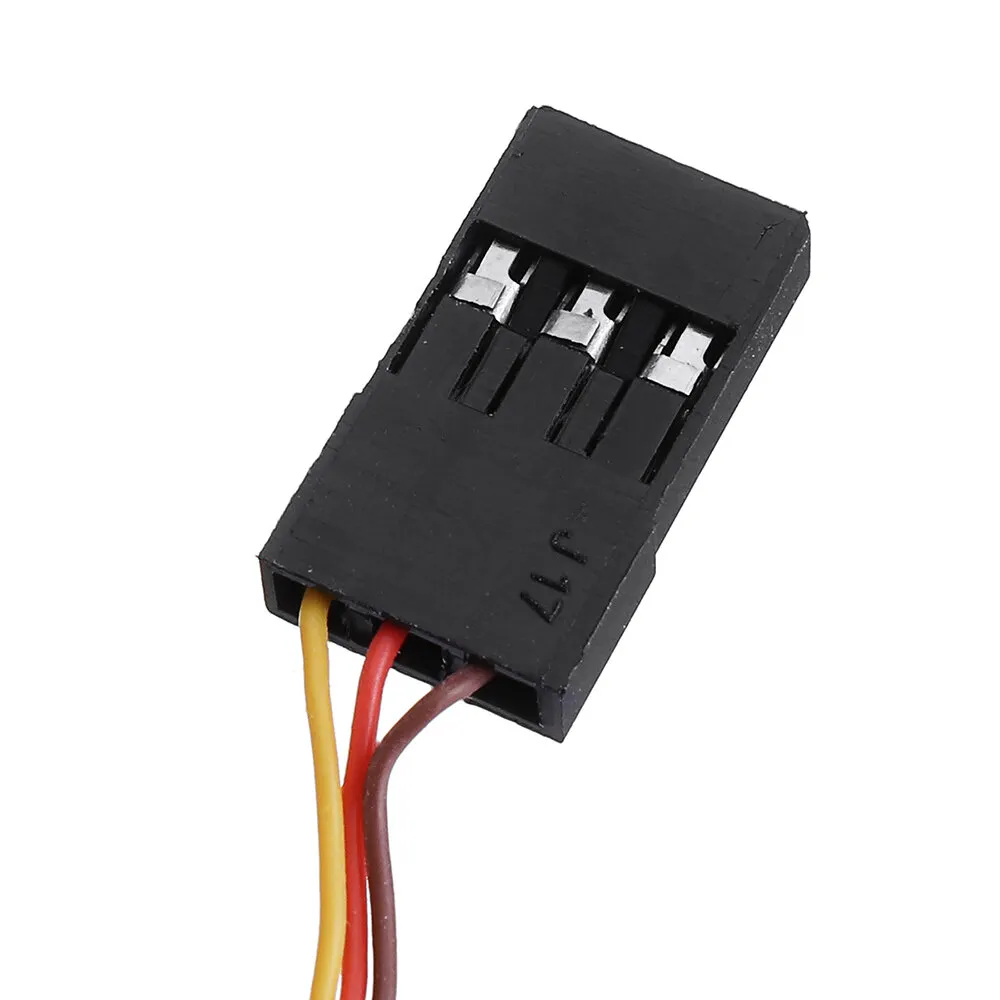

Connector Wire Gauge: JR

Connector Wire Length: 180±8mm

Flower Head: 15T

Bearing: NO

Gear Type: 1 metal gear + 5 plastic gear

Extreme Angle: 360°

Control System:PWM

Operating Travel: 90°±10° (when 1000-2000 μsec)

Neutral Position: 1500 μ sec

Rotating Direction: Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec

Pulse Width Range: 700- 2300 μ sec

Maximum Travel: 145°±10° (700-2300μ sec )

Usage:For RC Airplane,RC Aircraft, RC Helicopter

English Manual, Click Here

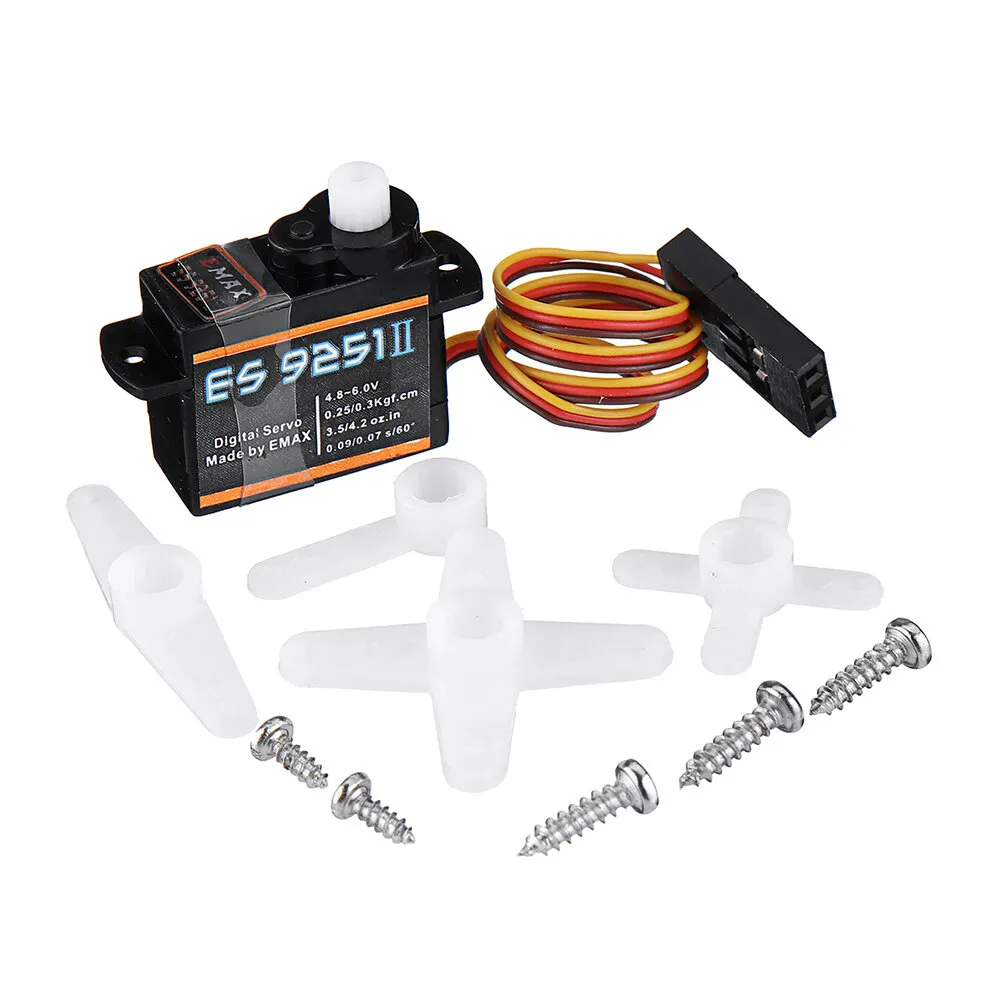

Package Included:
6 x ES9251II Digital Servo

6PCS Emax ES9251 Ⅱ Upgrade Version 3g Plastic Gear Micro Digital Servo For RC Model

More Details

customers reviews ( 51 )

0 / 5.0

5 stars 0%

4 stars 0%

3 stars 0%

2 stars 0%

1 stars 0%

View All Reviews (51)

By manfred

2 Von 6 waren defekt.

2022-05-20 00:00:00

By devildiddi

Great item for the price

2021-04-21 00:00:00

By hans

just what i needed to use on my Spoilers. RES plane.

2021-04-08 00:00:00

By devildiddi

Great

2021-03-20 00:00:00

By nick789

nice servo,s as always from emax

2021-02-20 00:00:00

By devildiddi

Great item for the price

2021-02-20 00:00:00

By GroundControlRC

I have a lot of these Emax 2.5g Servos and they have performed very well. I have used these in my last (2) Micro Planes as well as a recent Conversion. I have also used these in our latest GFS Plane that us nearly ready for Test Flights ;-) See you in the Air! Ground Control RC

2020-12-28 00:00:00

By BG182553114

good servo

2020-12-17 00:00:00

By e-flyer

Top small Servos, I bought them a several times. Very fast shipping to Germany, about one week . The price is not bad too. Higly recommended.

2020-12-05 00:00:00

By Pibe

los micro servos digitales trabajan muy bien en mis aeromodelos de pequeña escala además a muy buen precio.

2020-10-06 00:00:00
