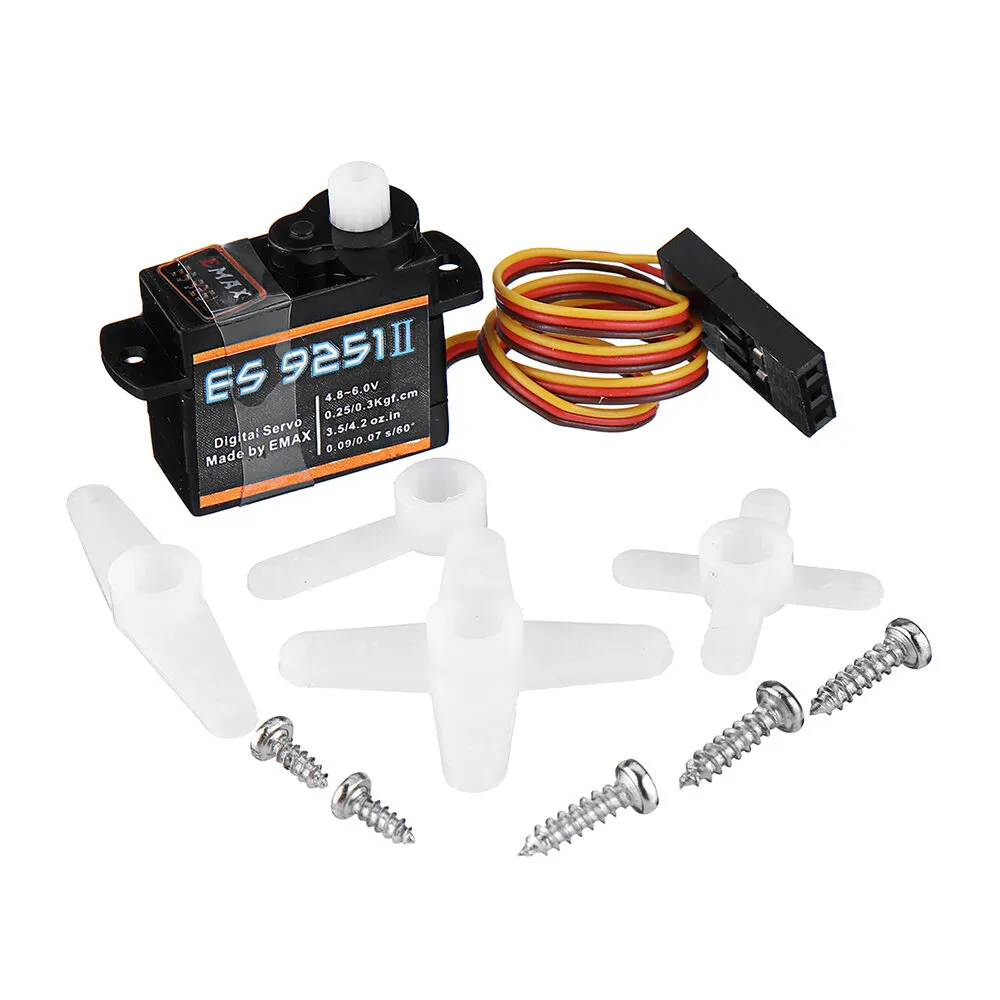

4PCS Emax ES9251 II Upgrade Version 3g Plastic Gear Micro Digital Servo For RC Model

4XSKU246920

85 Reviews

USD 37.19

Wholesale Prices :

Qty:	4-7	>=8
Price:	$24.29	$22.94

Qty:

In stock

30-day Return Policy, Learn More

Description

weight: 485 g

Description:
Brand: Emax

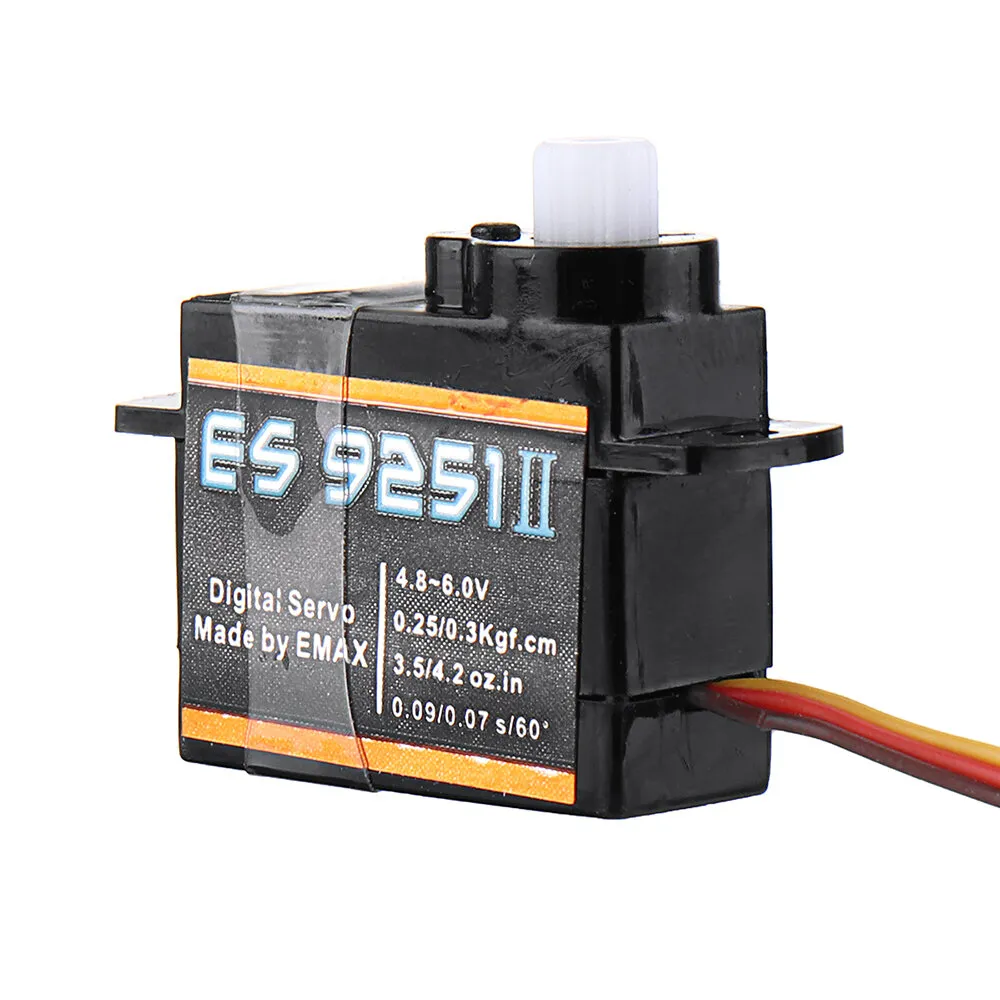

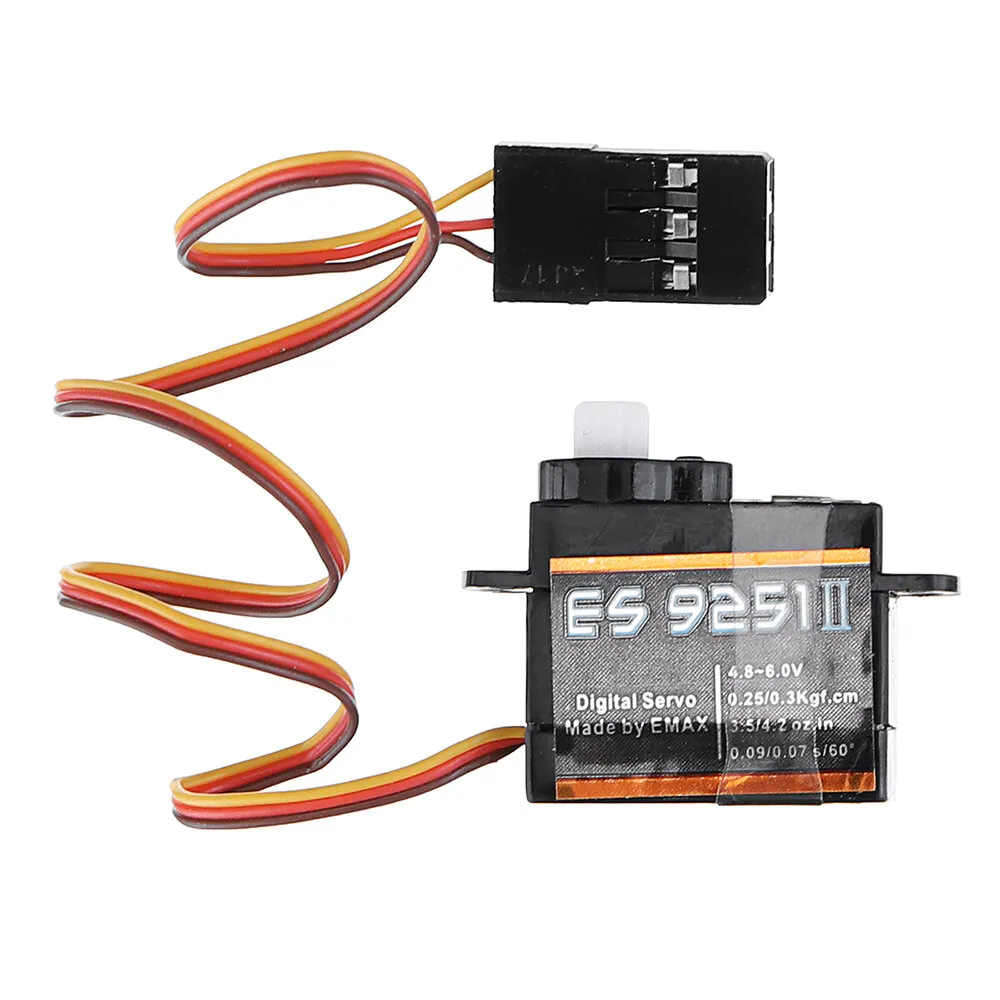

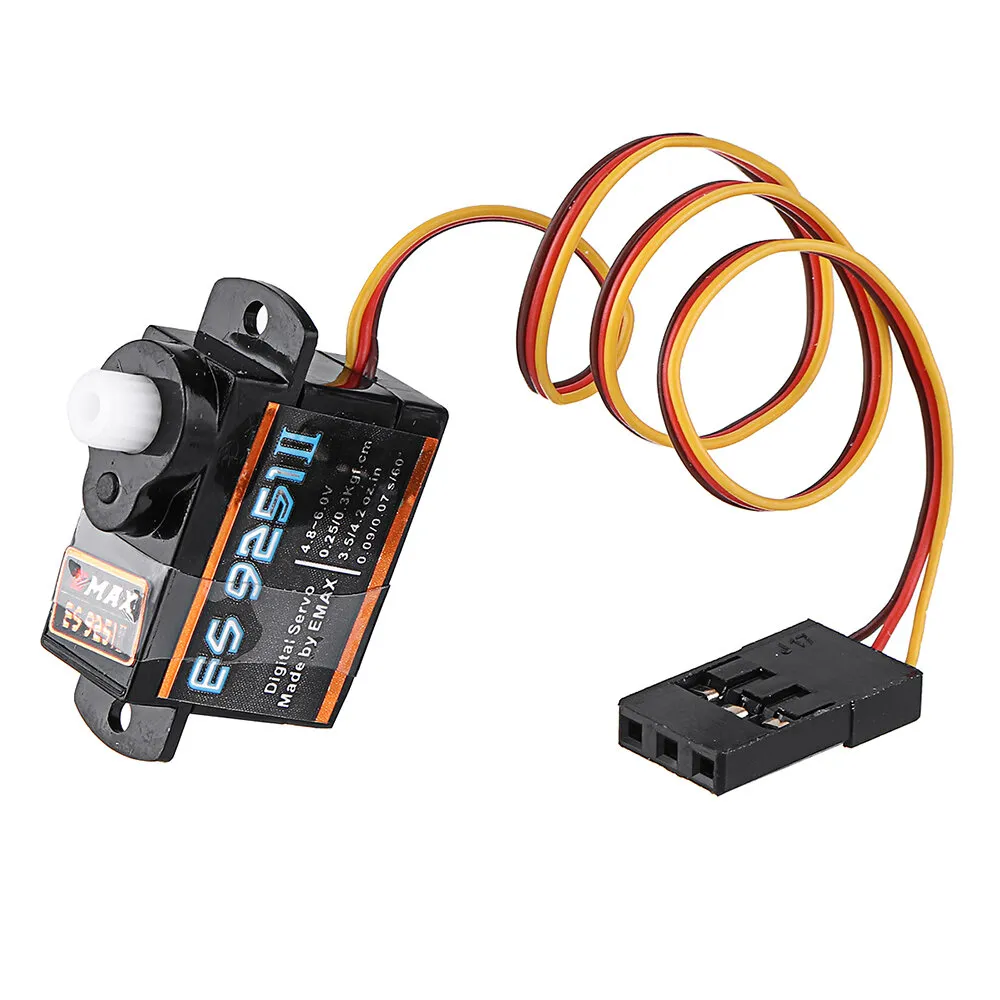

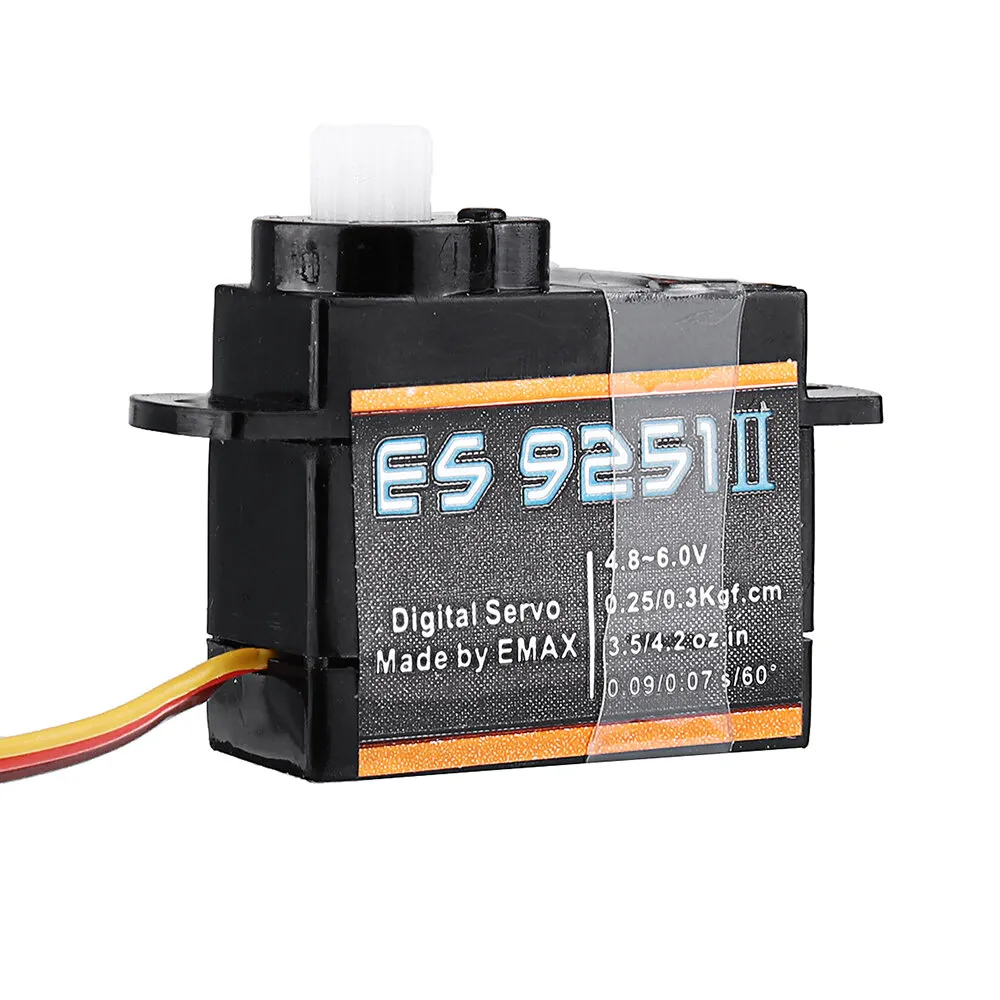

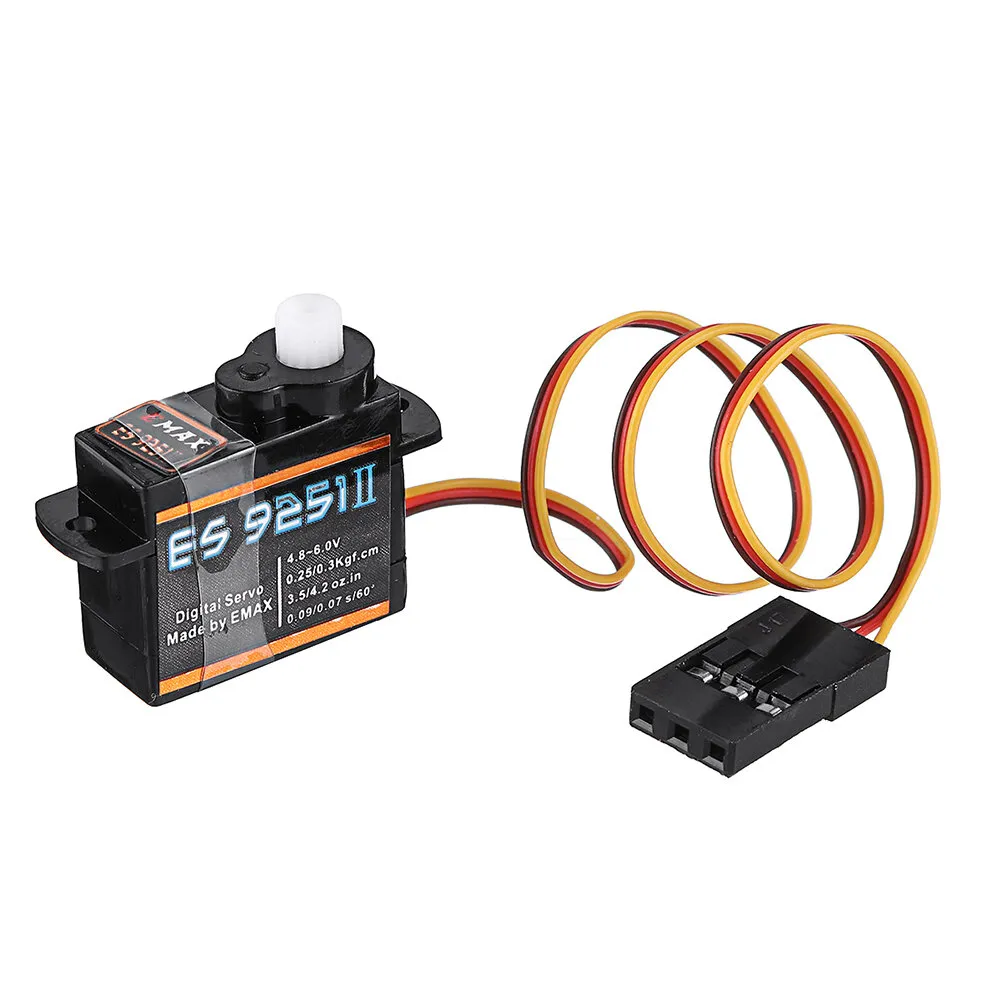

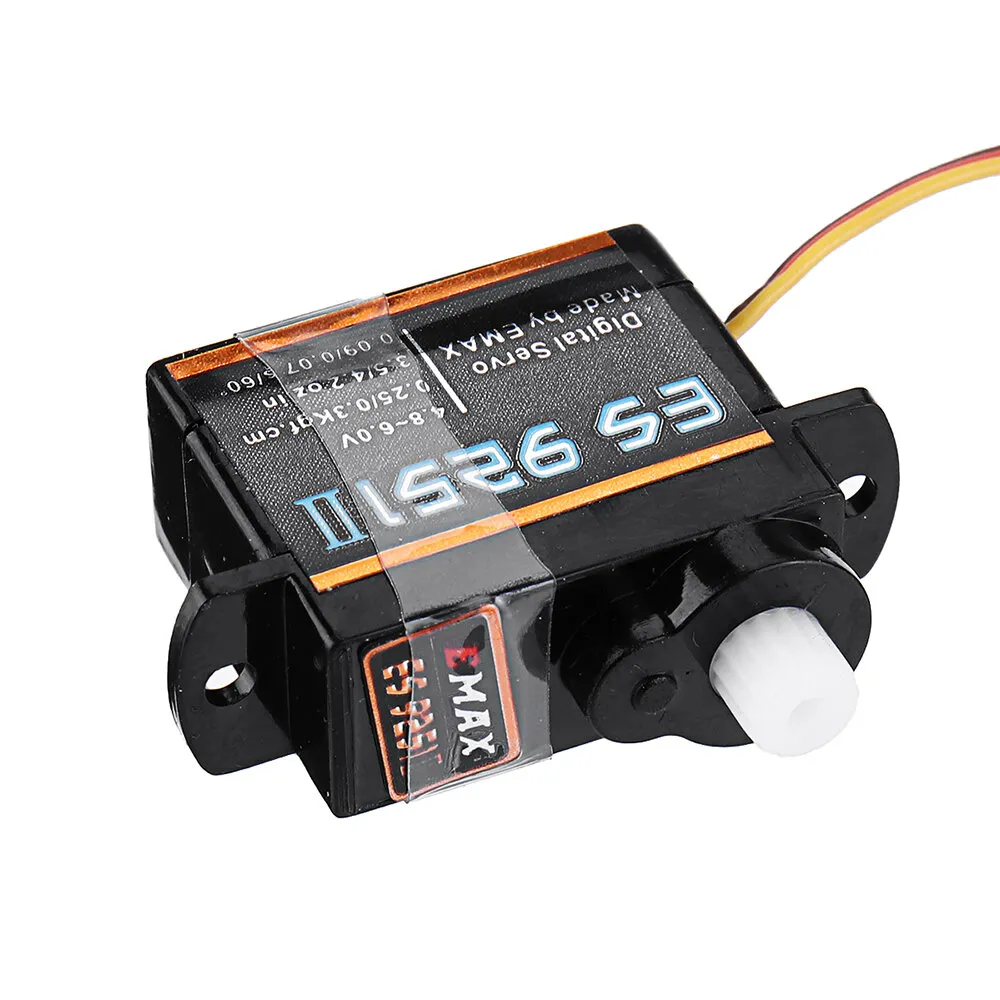

Item: ES9251 II Digital Servo
Operating Voltage: 4.8V~6.0V

Operating Speed (at no load): 0.09 sec/60°(4.8v), 0.08 sec/60°(6.0v)

Running Current (at no load):25mA Max(4.8v), 315mA Max(6.0v)

Stall Torque: 0.25kg.cm Max(4.8v), 0.3kg.cm Max(6.0v)

Maximum Current: 120mA Max(4.8v),140mA Max(6.0v)

Idle Current: 2.2mA

Storage Temperature Range: -20 C~70'C

Operating Temperature Range: -10C~60C

Size: 25.49*8.25*20.25mm

Weight: 3.0±0.5g

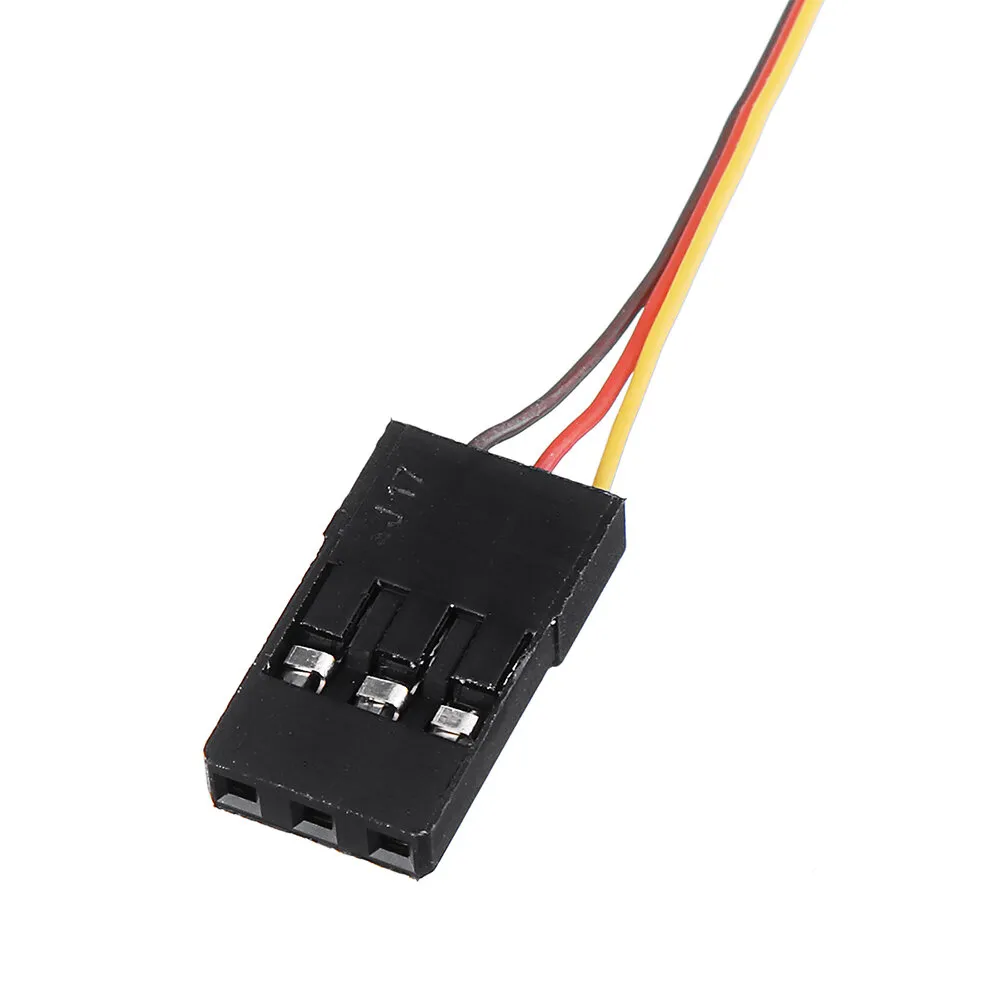

Connector Wire Gauge: JR

Connector Wire Length: 180±8mm

Flower Head: 15T

Bearing: NO

Gear Type: 1 metal gear + 5 plastic gear

Extreme Angle: 360°

Control System:PWM

Operating Travel: 90°±10° (when 1000-2000 μsec)

Neutral Position: 1500 μ sec

Rotating Direction: Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec

Pulse Width Range: 700- 2300 μ sec

Maximum Travel: 145°±10° (700-2300μ sec )

Usage:For RC Airplane,RC Aircraft, RC Helicopter

English Manual, Click Here

Package Included:

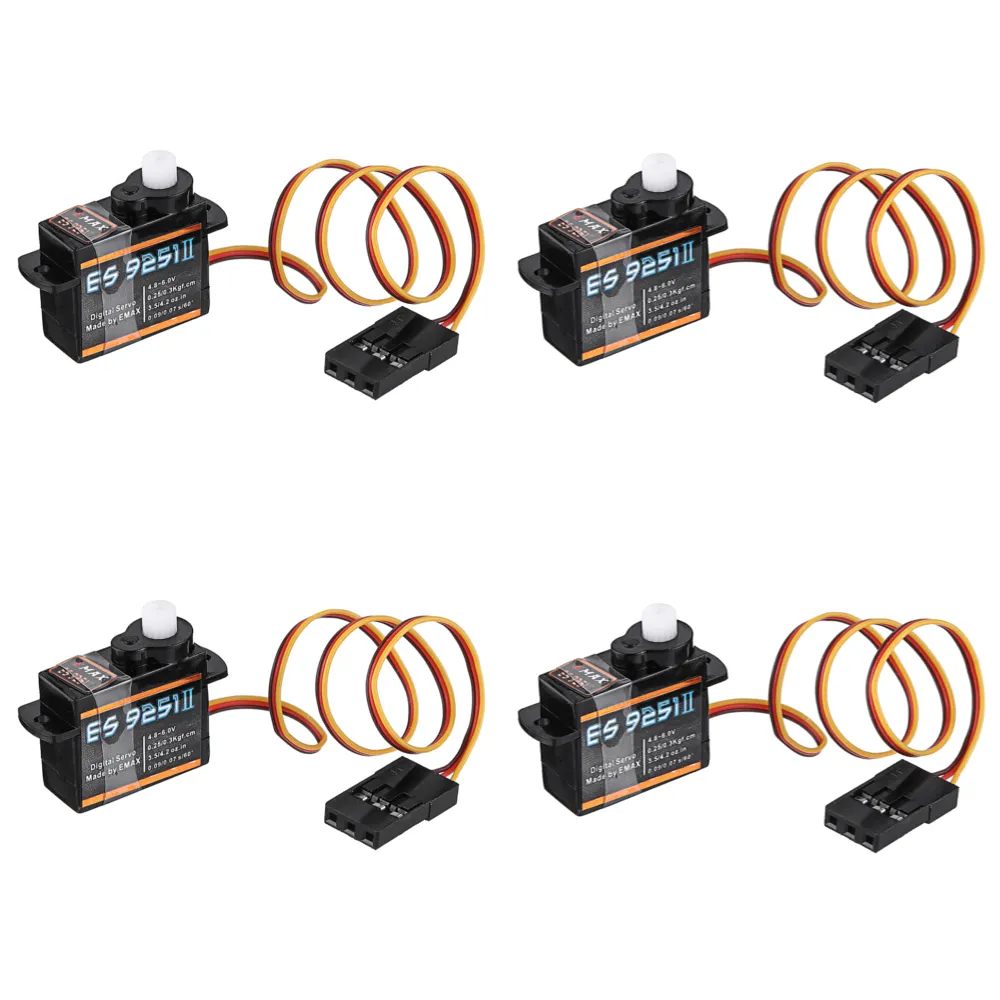

4 x ES9251II Digital Servo

4PCS Emax ES9251 II Upgrade Version 3g Plastic Gear Micro Digital Servo For RC Model

More Details

customers reviews ( 85 )

5 / 5.0

5 stars 100%

4 stars 0%

3 stars 0%

2 stars 0%

1 stars 0%

View All Reviews (85)

By pobear

Sweet tiny servos

2023-12-14 00:00:00

By Tony

Exactly what it says on the box but be careful 3gm servos are quite fragile.

2023-08-11 00:00:00

By BG341831711

thanks

2022-10-11 00:00:00

By daledoe

Excellent service and great servos. Worth the extra money.

2022-06-17 00:00:00

By kentooly

very light servo for my aileron mod

2021-10-03 00:00:00

By devildiddi

very good item for the price

2021-08-26 00:00:00

By facelessTT

отличные микро серво. под пенолет самое то. доставка 2 недели до мск.

2021-06-07 00:00:00

By BG448838633

It was very lightweight and easy to use. It will take some more time to evaluate the durability.

2021-06-05 00:00:00

By BG339111338

alles gut

2021-06-04 00:00:00

By pol67

servi ordinati due volte e due volte sbagliati cosa sta succedendo?

2021-04-01 00:00:00
