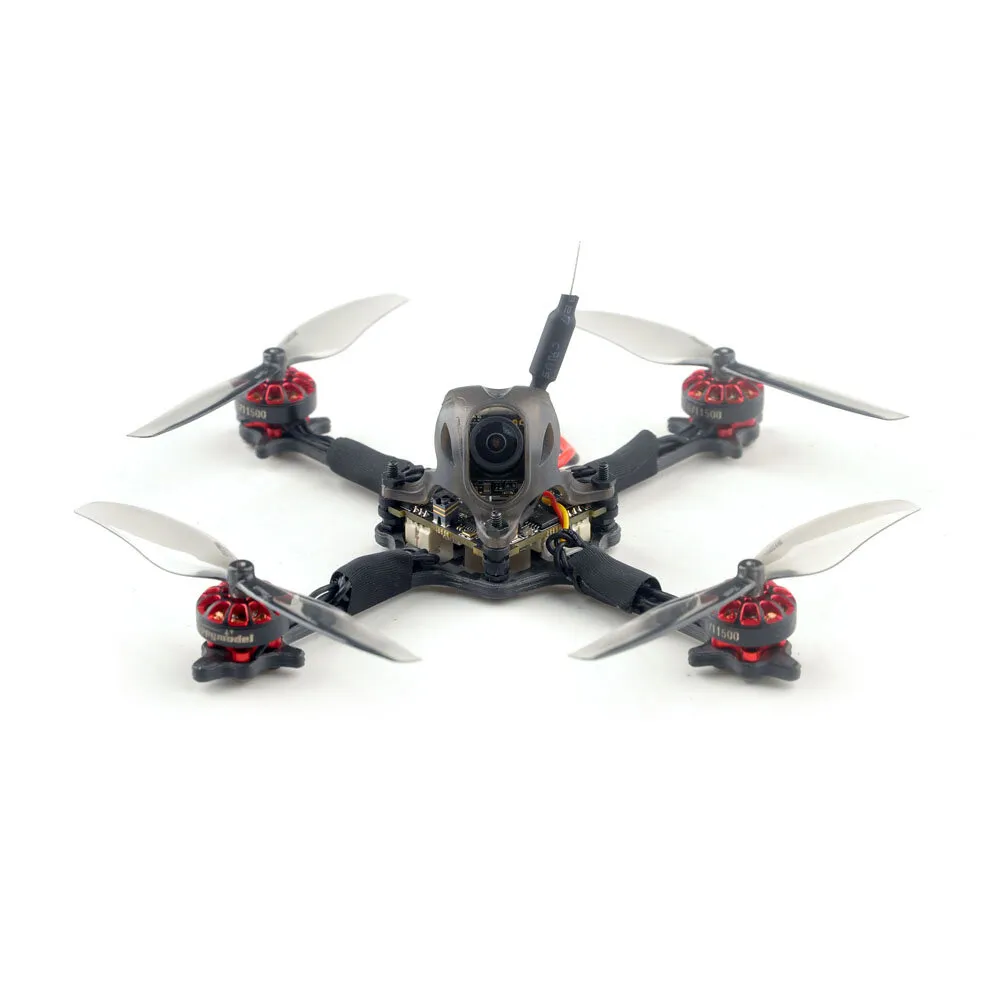

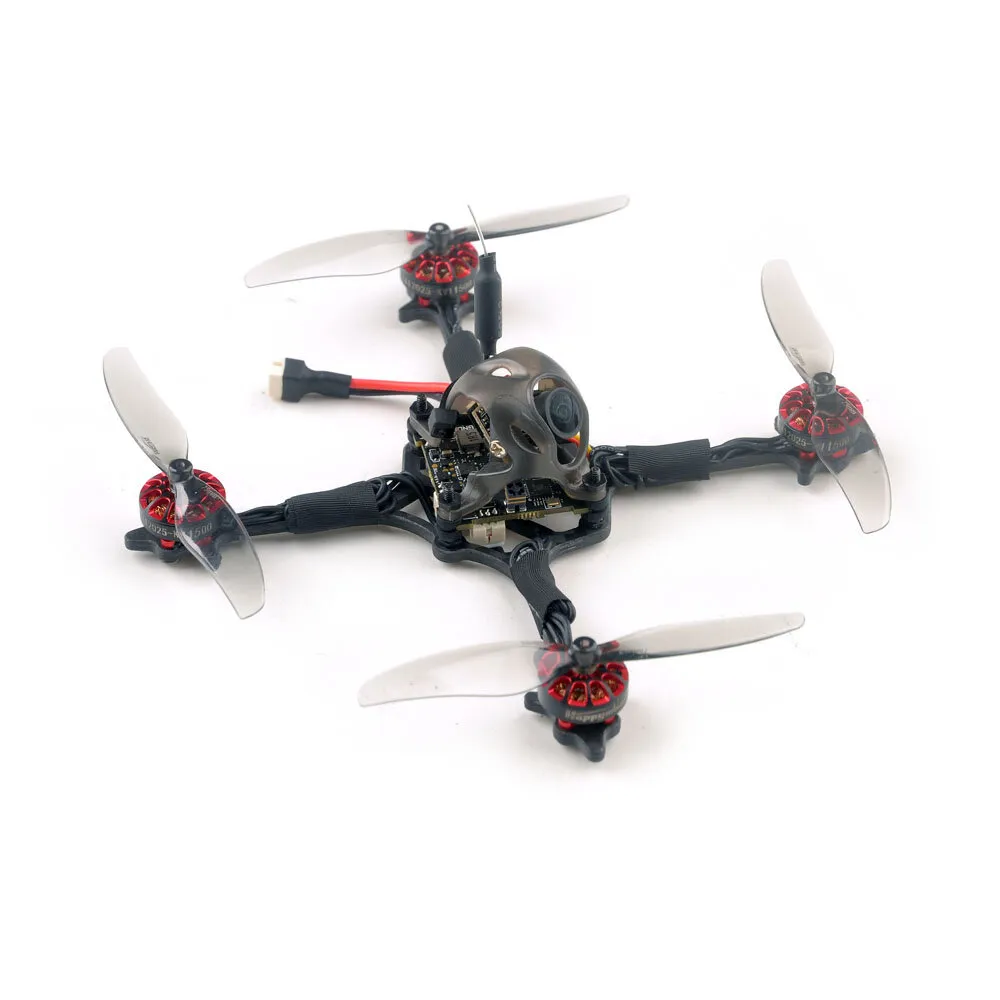

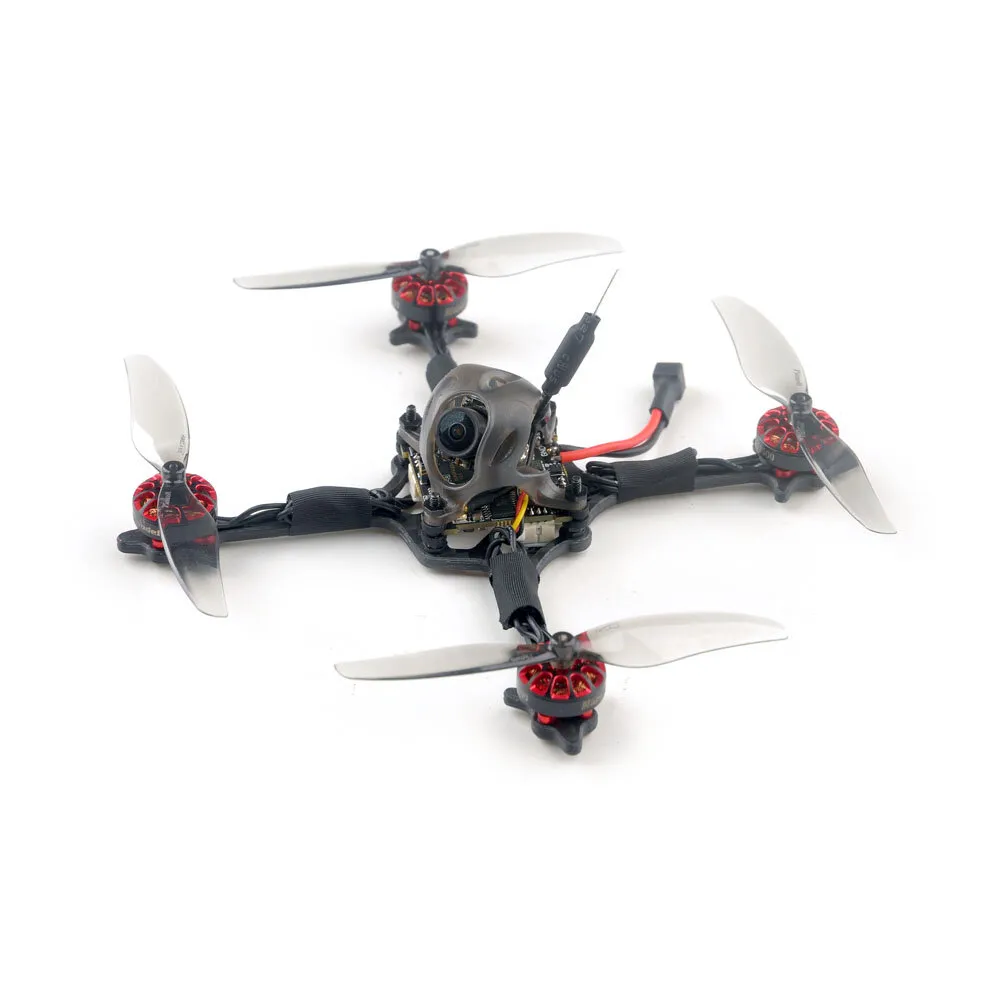

40g Happymodel Crux3 1S ELRS 115mm Wheelbase 3 Inch F4 Toothpick FPV Racing Drone BNF w/ 5.8G 25-200mW VTX Caddx ANT 1200TVL Camera

SKUI60249

14 Reviews

USD 127.99

Wholesale Prices :

Qty:	4-7	>=8
Price:	$104.39	$98.59

Qty:

In stock

30-day Return Policy, Learn More

Description

weight: 485 g

Notice: Because the MPU6000 is out of production, the flight controller and related Drone will gradually be replaced by ICM20689 or BMI270.

Update log: The Crux3 1S ELRS v2.0 version comes with ELRS F4 2G4 V3.1 which was built-in OPENVTX could support max 400mw output. Please use following vtxtable

# VTX Table
# SMARTAUDIO
# vtxtable
vtxtable bands 6
vtxtable channels 8
vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E FACTORY 5705 5685 5665 0 5885 5905 0 0
vtxtable band 4 FATSHARK F FACTORY 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R FACTORY 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 LOWRACE L FACTORY 5333 5373 5413 5453 5493 5533 5573 5613
vtxtable powerlevels 5
vtxtable powervalues 1 2 14 20 26
vtxtable powerlabels 0 RCE 25 100 400
save

Features:

- 40gram 1s brushless Toothpick drone

- AIO Flight controller with ELRS Receiver and 5.8G VTX

- CADDX ANT 1200TVL Camera

- New 1202.5 KV11500 brushless motor

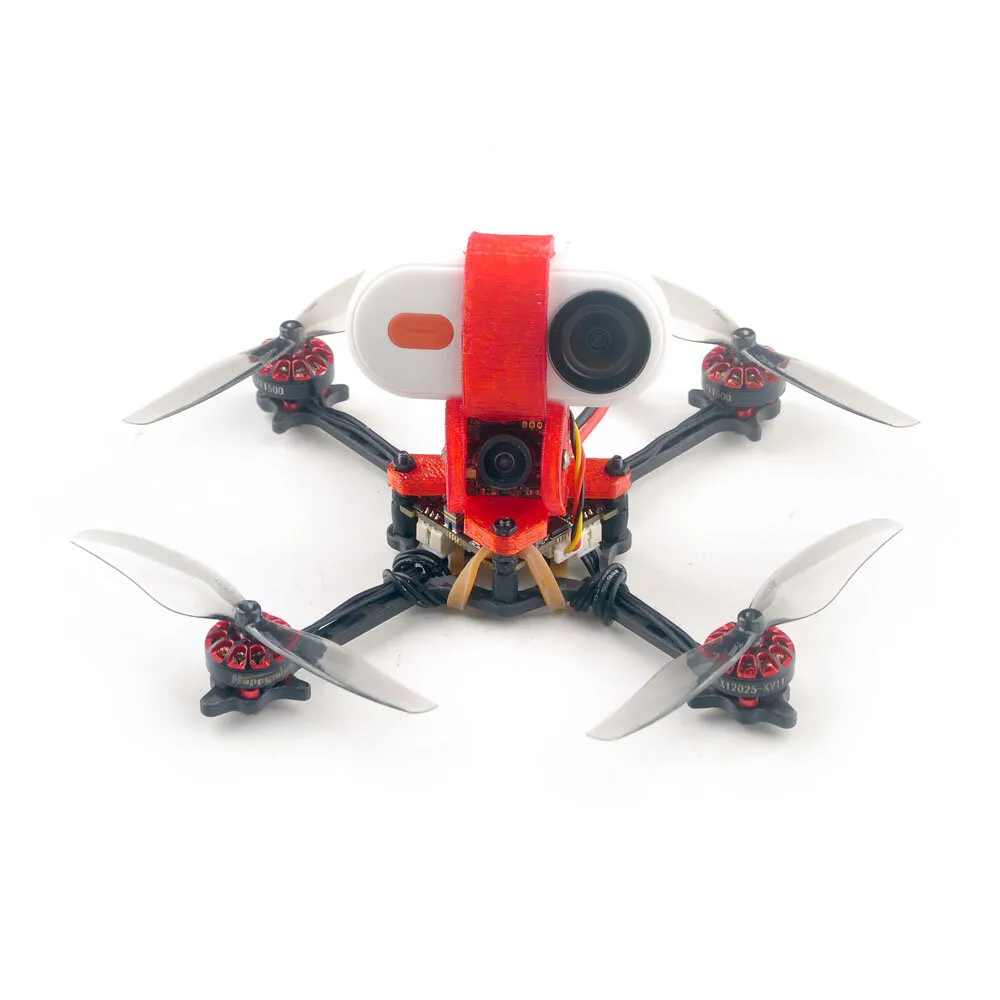

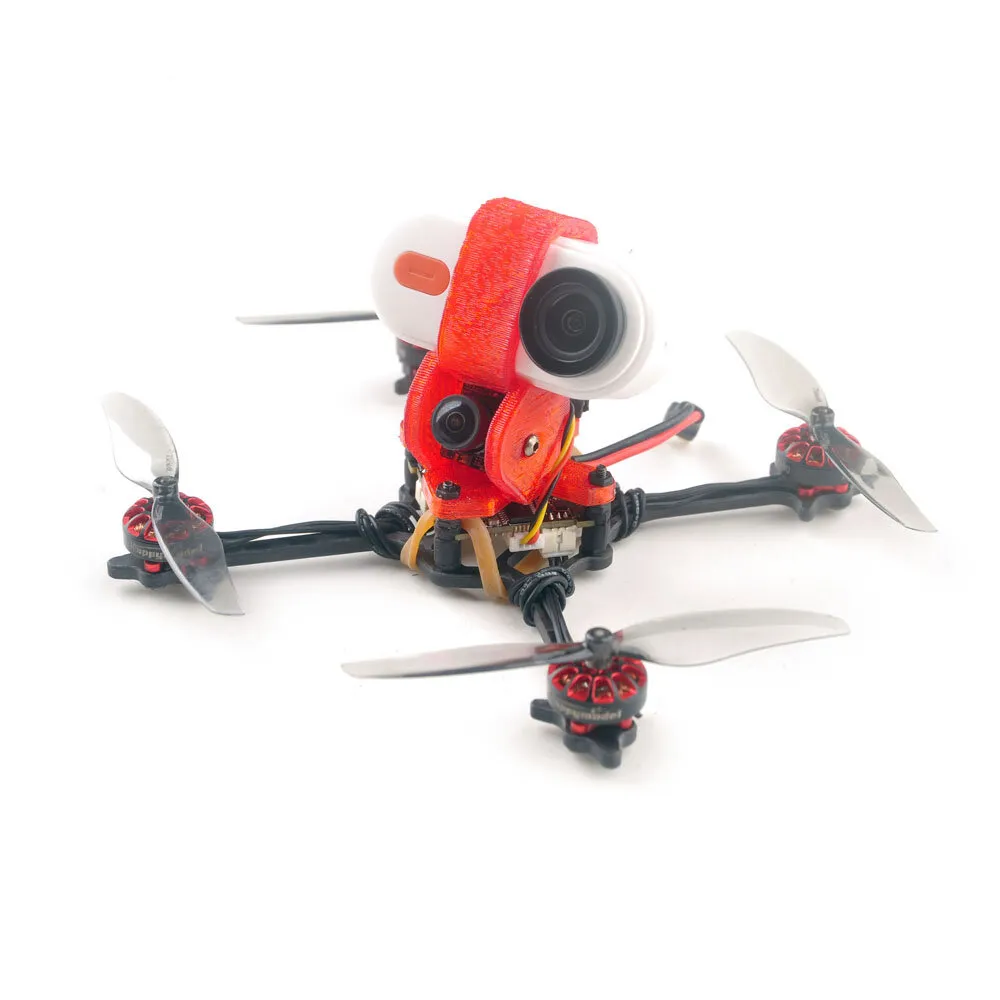

- Compatible with CaddxFPV Peanut and Insta360 GO2 ( NOT Included)

- Carrying Caddxfpv peanut Got 4.5 minutes flying time with 1s 650mah battery

Specifications： ( Manual)

Brand Name: Happymodel
Model: Crux3 1S ELRS

Item Name: 115mm F4 1S Toothpick FPV Racing Drone BNF

Wheelbase: 115mm
Size: 97mmx97mmx35mm (without propellers)

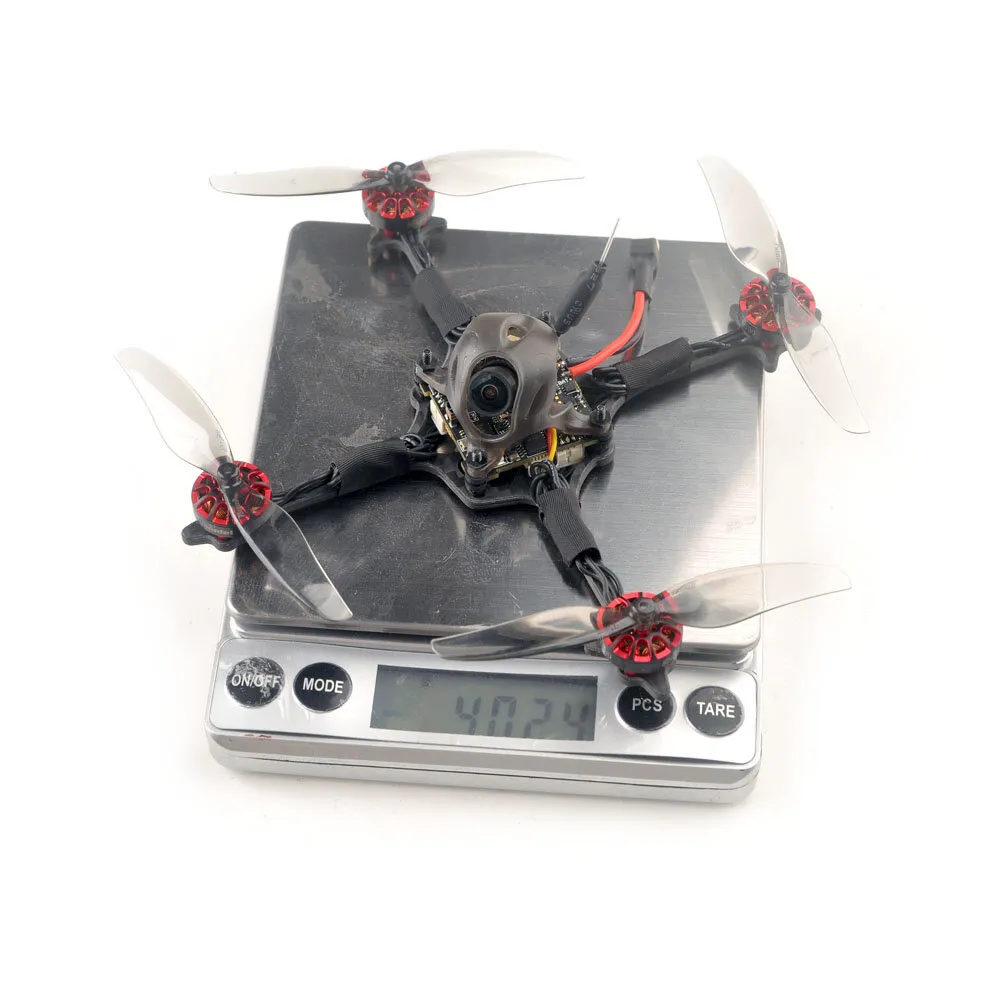

Weight: 40g(without battery)

Motor	Mode: EX1202.5 KV11500 Configu-ration:9N12P Stator Diamter:12mm Stator Length:2.5mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.Len):Φ14mm14.5mm Weight(g):4.4g No.of Cells(Lipo):1S
Propellers	Gemfan 75mm Center Thickness:5mm Prop Diameter:75mm Center Hole diameter:1.5mm Pitch:0.9in
Flight controller	MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU6000 / ICM20689 or BMI270 (SPI connection) Original whoop size compatible Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in SPI ExpressLRS 2.4GHz receiver Built-in 5V 1A BECFlight controller firmware target: CRAZYBEEF4SX1280
Onboard 4in1 ESC	MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_7.HEX Default protocol: DSHOT300
Onboard SPI ExpressLRS 2.4GHz Receiver	Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Antenna : SMD antenna Telemetry output Power: <12dBm Receiver protocol to flight controller: CRSF Could bind with All ExpressLRS 2.4GHz TX module , ExpressLRS firmware need 1.0.0 or latest
Onboard 5.8g VTX	Output power: 25mw~200mw switchable Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Frequency: 5.8GHz 5bands 40 channels With Race band Smartaudio ready
Caddx ANT 1200tvl camera	Image Sensor: 1/3" CMOS Sensor Horizontal Resolution: 1200 TVL TV System: NTSC or PAL IMAGE: 16:9 or 4:3 Synchronization: Internal Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio : >52dB (AGC OFF) Video Output: CVBS Lens: 1.8mm Min. Illumination: 0.001Lux@F1.2 Auto Gain Control: YES BLC: YES WDR: Global WDR DNR: 3D DNR Dimensions: 1414mm(with bracket to 1919mm) Wide Power Input: DC 3.7-18V Work Temperature: -20℃~+60℃ Weight: 2g (N.W.)

Recommend Lipo Battery: ( NOT Included)

1S 450mah / 650mah / 660mah / 720mah battery PH2.0 Plug

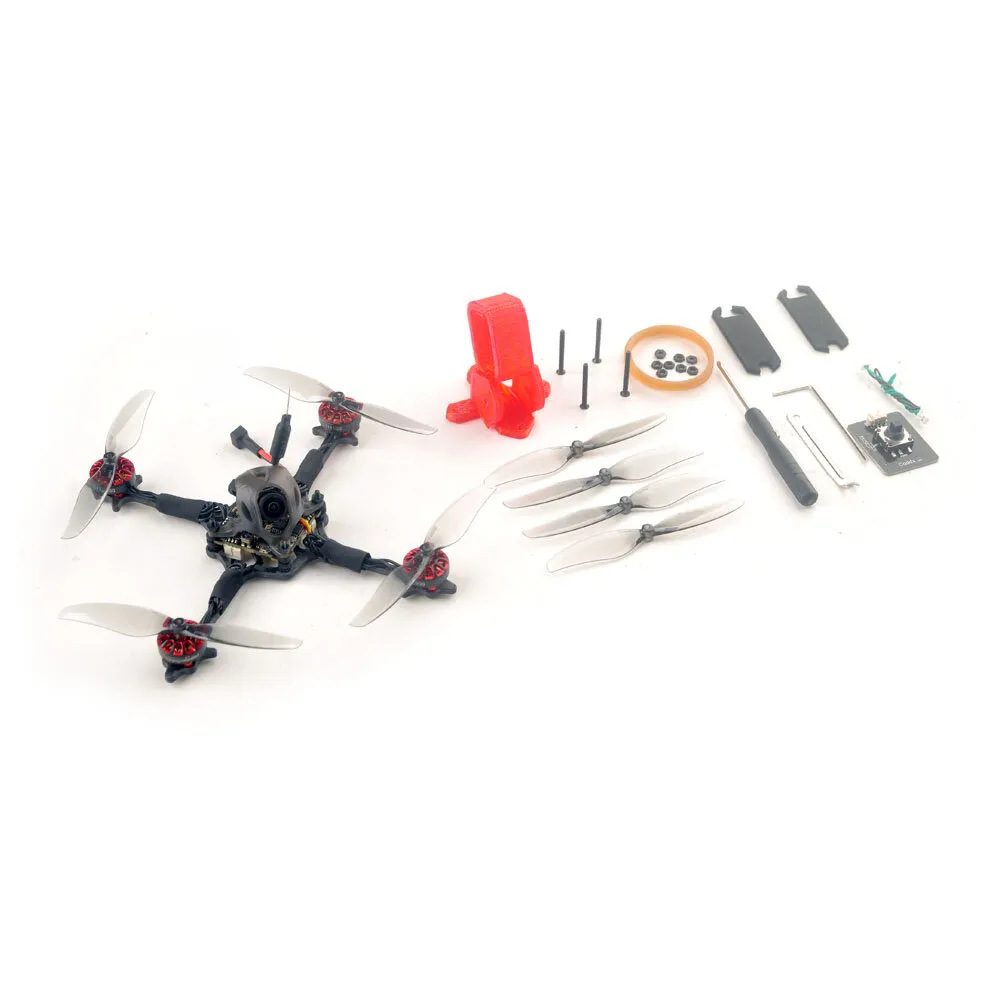

Package Included:

1x Crux3 Frame and canopy

1x ELRS F4 2G4 flight controller built-in SPI ExpressLRS 2.4G receiver

4x Happymodel EX1202.5 KV11500 brushless motor

1x Gemfan 75mm bi-blade Propellers(4cw+4ccw)

1x Caddx Ant 1200TVL Global WDR with OSD 2g Ultra Light Nano FPV Camera

1x 5.8G 25mw~200mw 40ch vtx (Flight controller built-in)

1x Screw Driver

1x Propeller disassemble tool

3D Printed canopy for Insta360 GO2 and CaddxFPV Peanut

1x Happymodel Handbag
