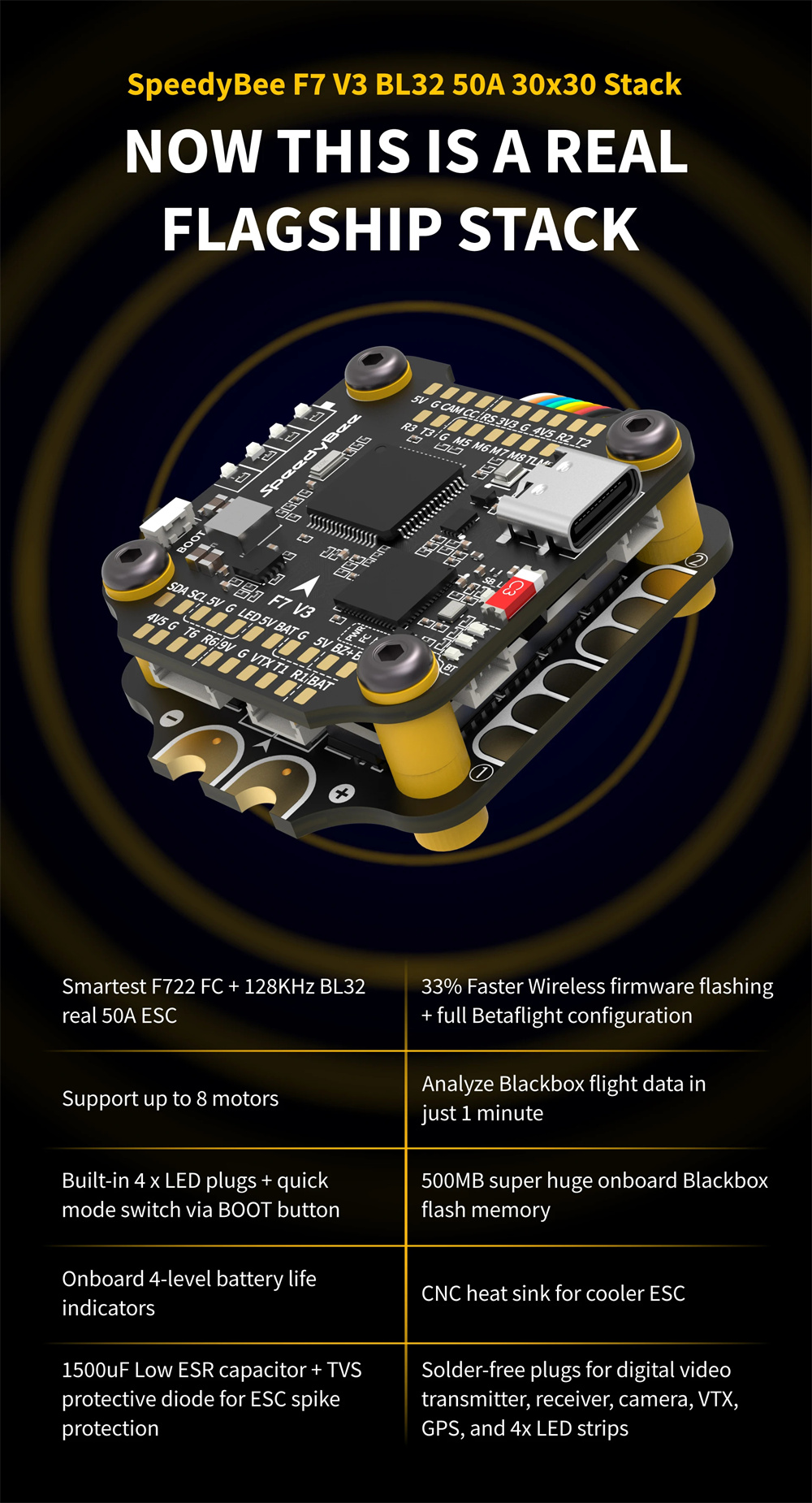

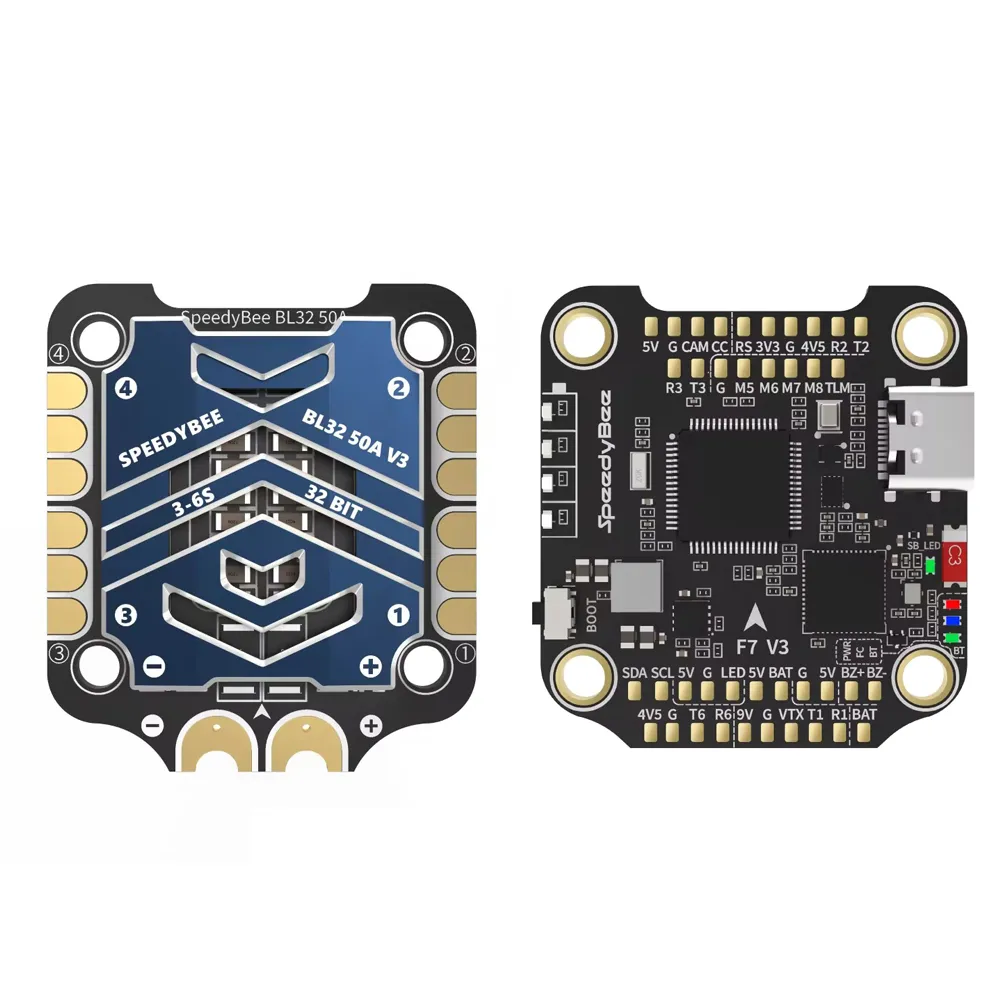

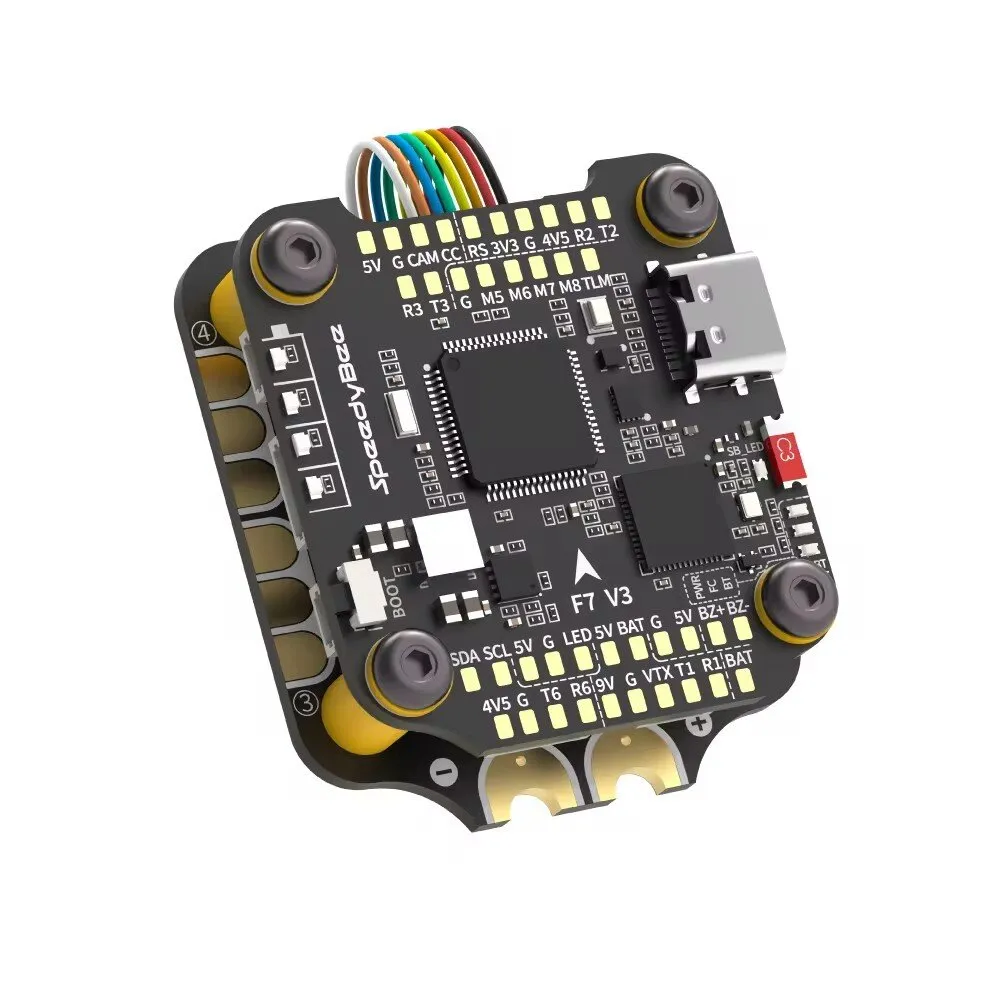

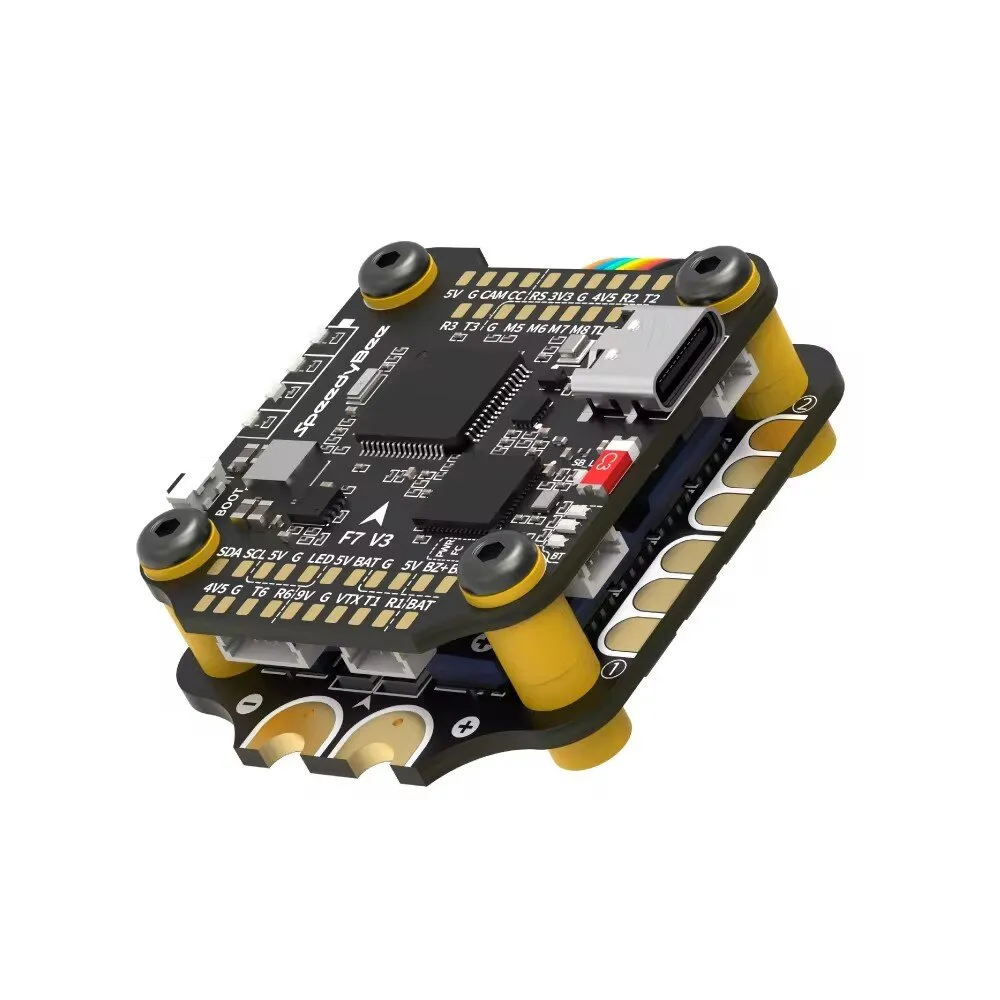

30.5x30.5mm SpeedyBee F7 V3 Flight Controller BL32 50A 4in1 ESC 3-6S Stack for FPV Racing RC Drone
| Qty: | 4-7 | >=8 |
| Price: | $38.12 | $36.00 |
- weight: 485 g

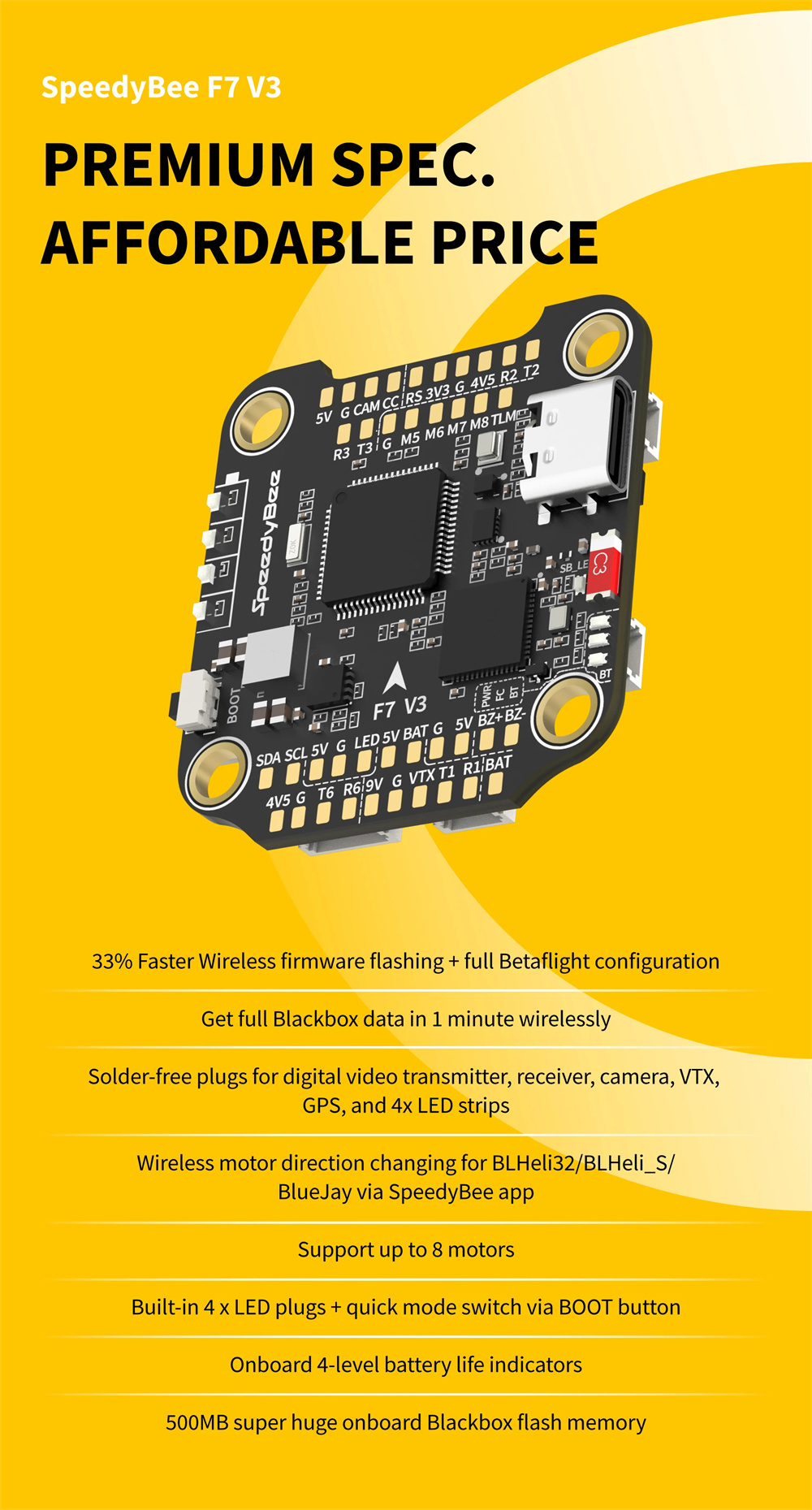

Features:
1. Advanced Processor and ESC Integration: Includes the powerful F722 FC and 128KHz BL32 50A ESCs, providing exceptional performance and control for all types of drones. This stack is engineered to support up to 8 motors, ensuring smooth and precise operations even in demanding environments.

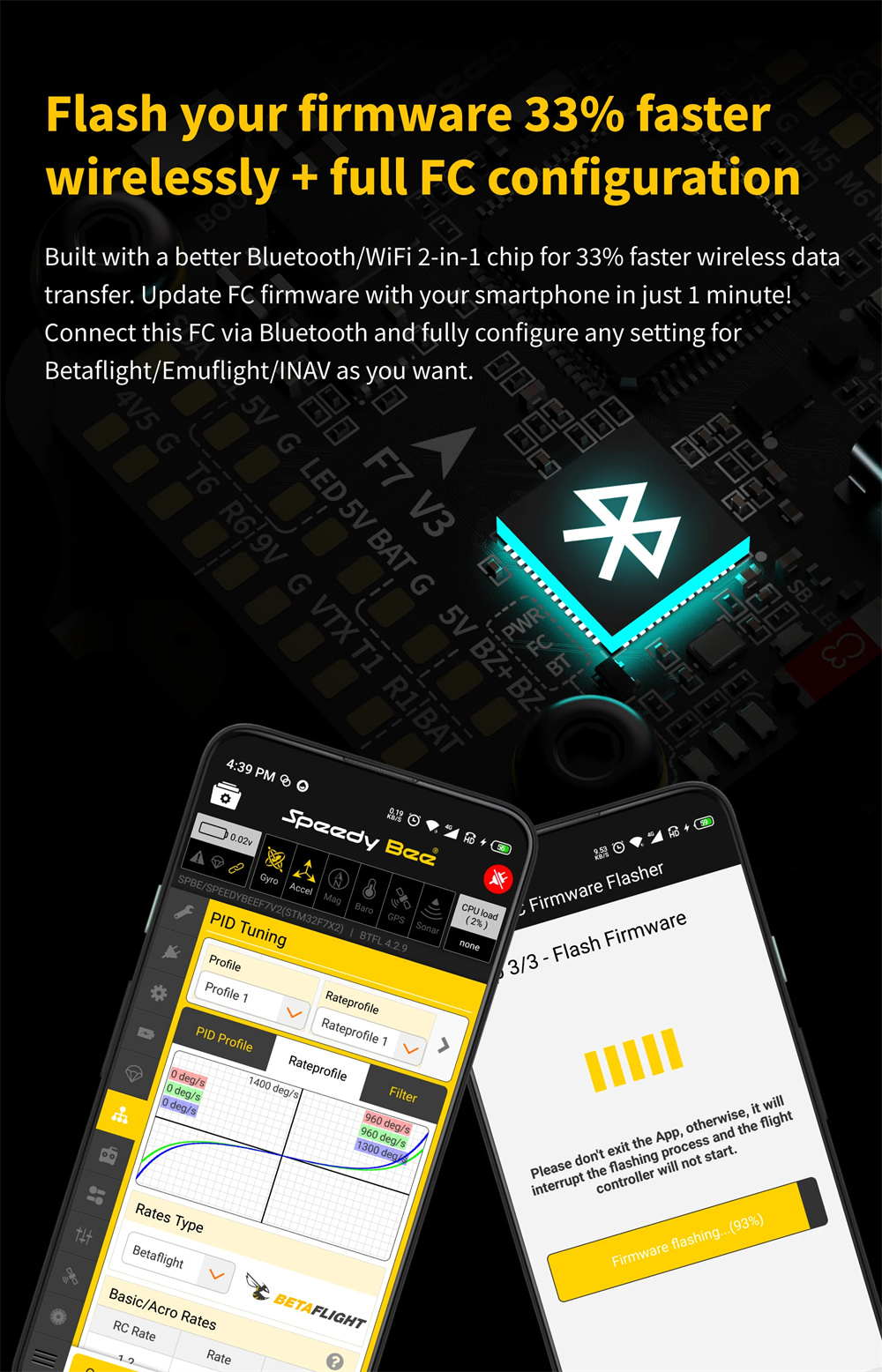

2. Faster Wireless Firmware Flashing: Integrated Bluetooth/WiFi chip allows for wireless firmware flashing, making updates 33% faster compared to traditional methods. Fully compatible with Betaflight configurations, this allows seamless operation and swift adjustments using a smartphone.

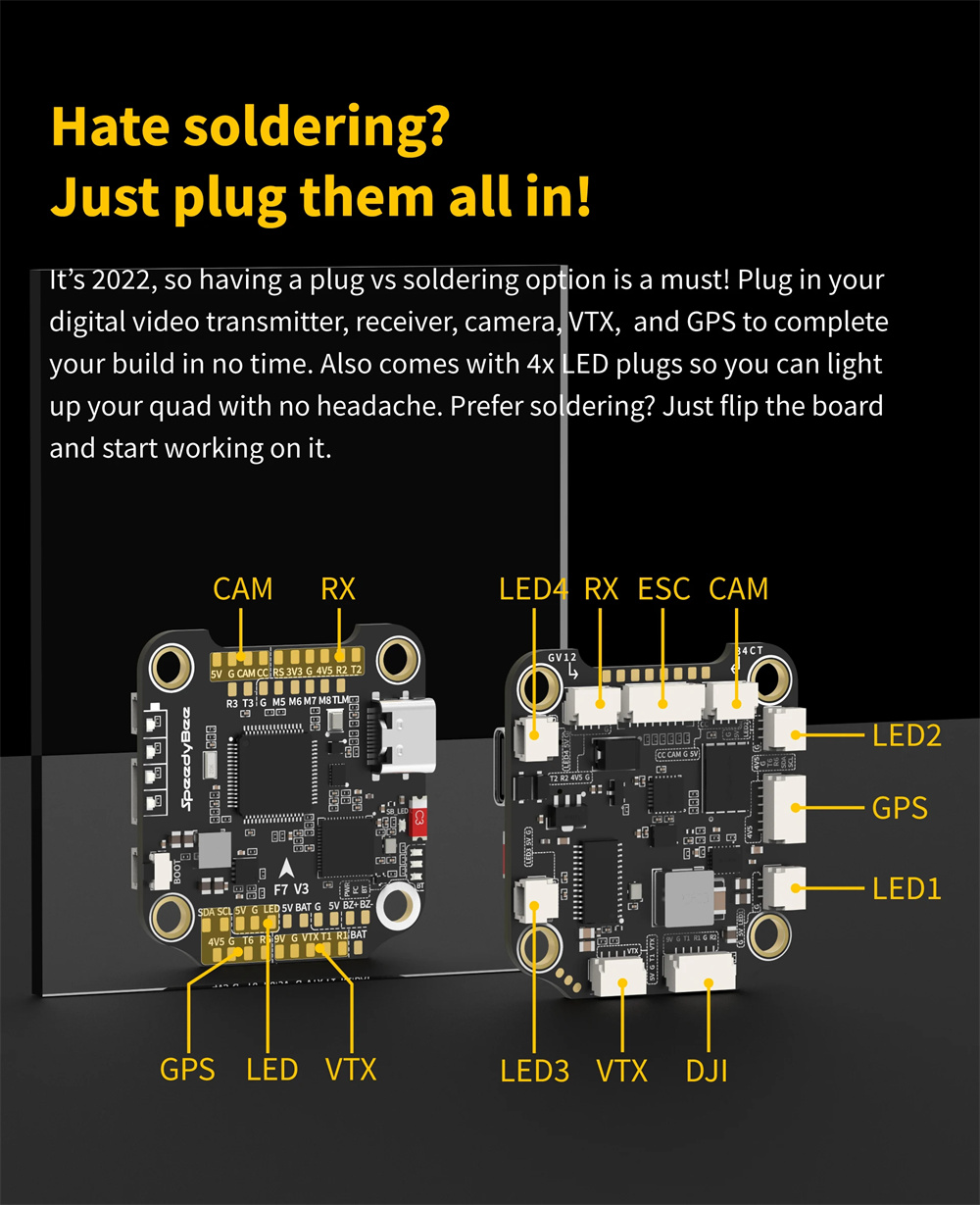

3. Comprehensive Connectivity: Equipped with solder-free plugs for digital video transmitters, receivers, cameras, VTX, GPS, and LED strips, simplifying the build process and reducing setup time. Just plug and play to get your drone operational in no time.

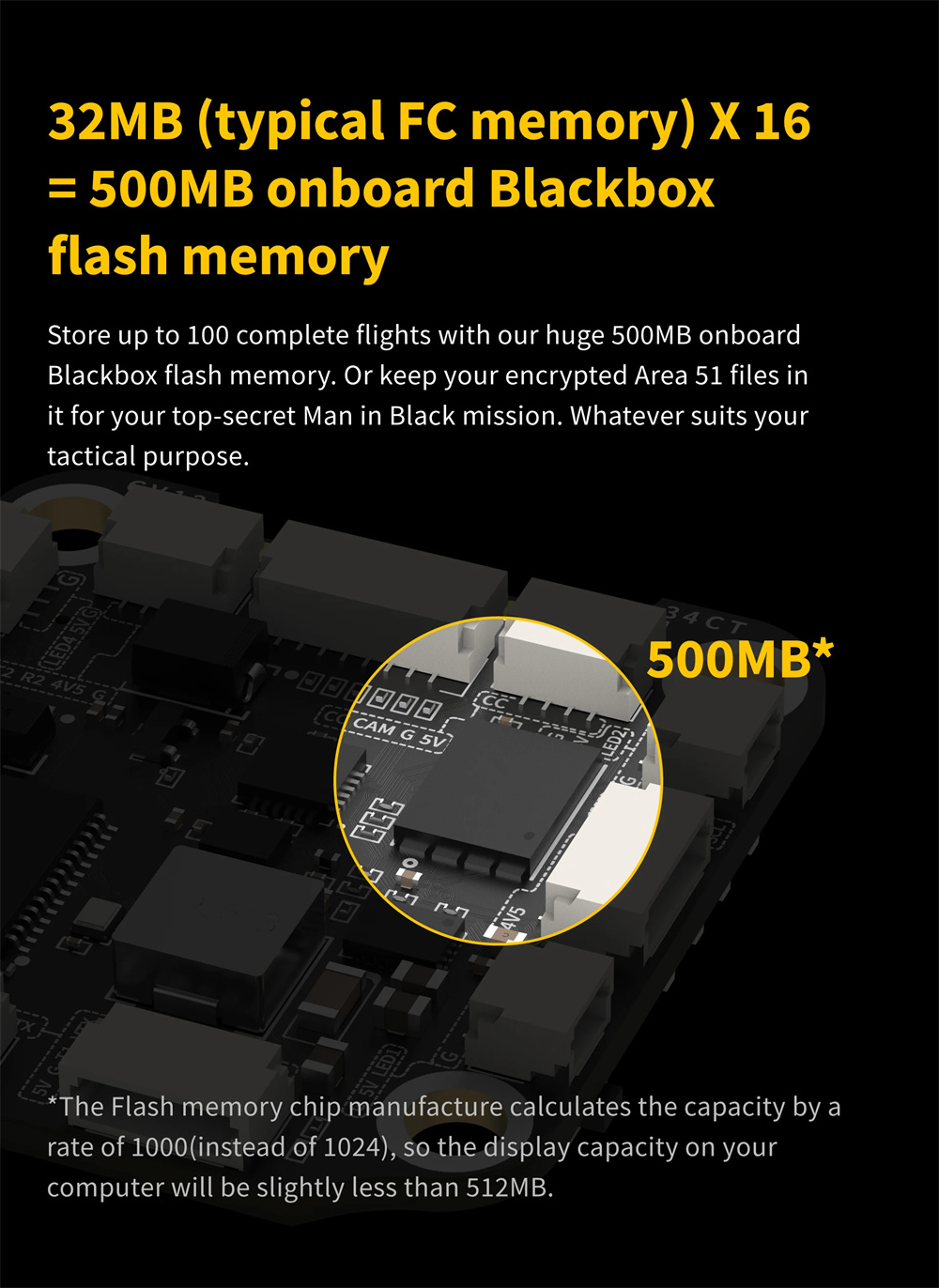

4. Enhanced Onboard Data Storage: This unit comes with a massive 500MB Blackbox flash memory, capable of storing extensive flight data. Easily retrieve comprehensive flight logs wirelessly in just one minute, aiding in thorough analysis and optimization.

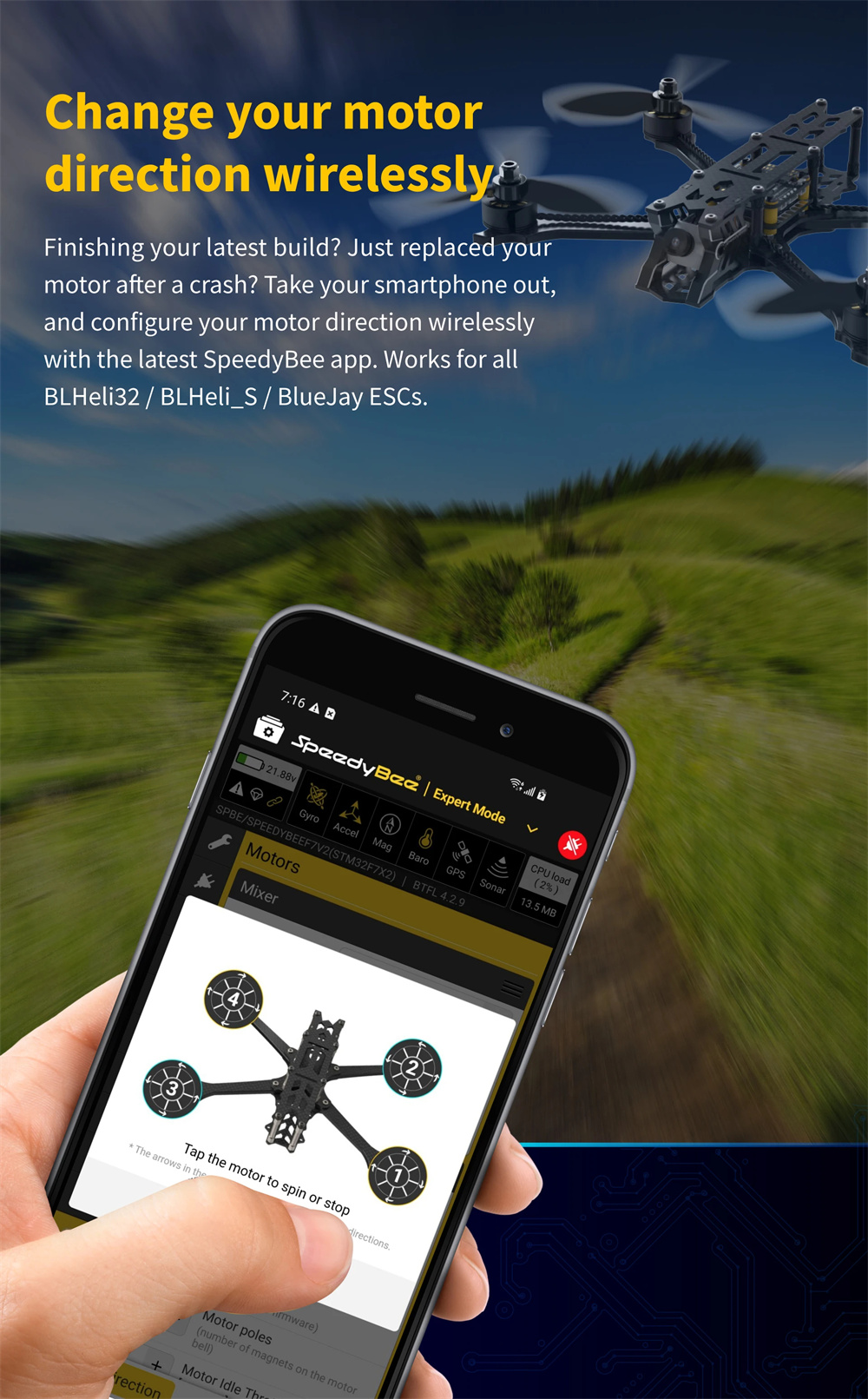

5. Advanced Motor and Light Control: Provides wireless motor direction changes for BLHeli32/BLHeli_S/BlueJay ESCs via the SpeedyBee app, allowing users to fine-tune motor configurations effortlessly. The board includes 4-level battery life indicators and built-in LED plugs with quick mode switching via a boot button.
Specifications:

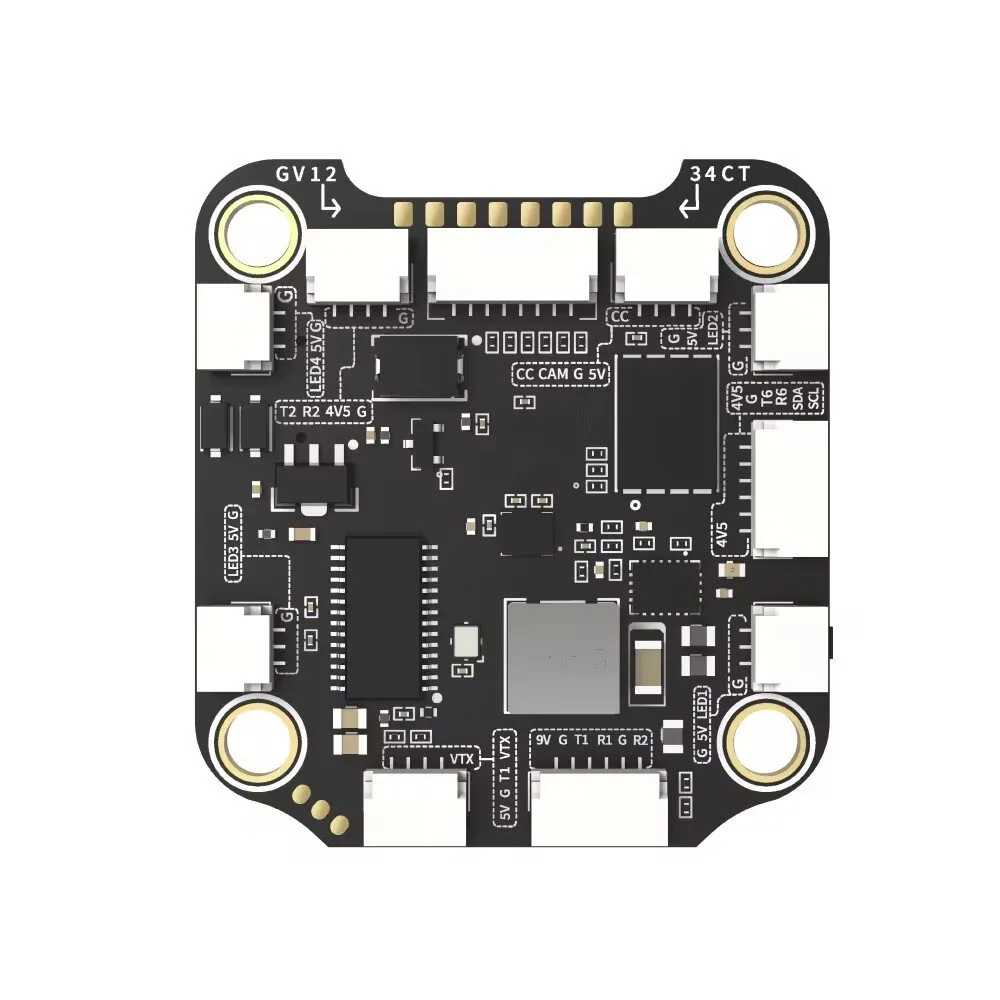

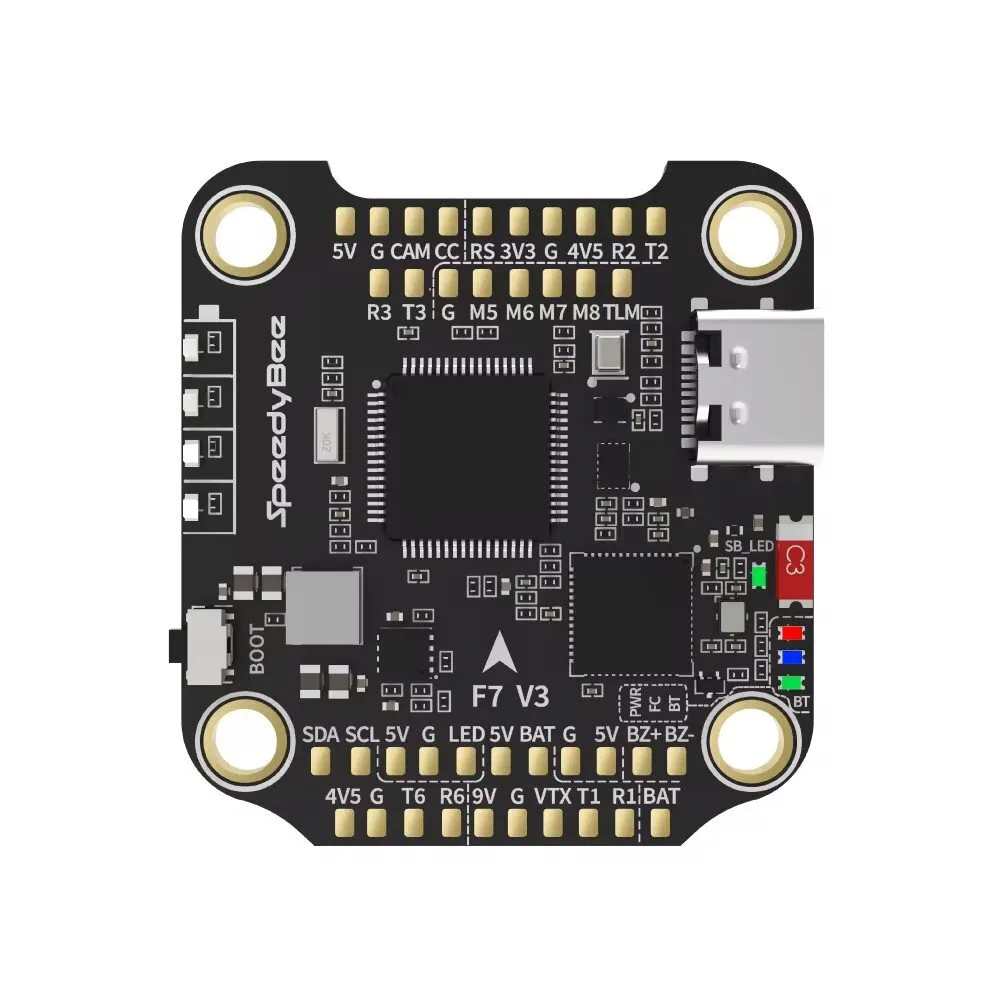

Product Name | SpeedyBee F7V3 Flight Controller |
MCU | STM32F722 |
IMU(Gyro) | BMI270 |
USB Port Type | Type-C |
Barometer | BMP280 |
OSD Chip | AT7456E chip |
BLE Bluetooth | Supported. Used for Flight Controller configuration,built-in a single 2.4 GHz Wi-Fi-and-Bluetooth combo chip |
Flash FC Firmware Wirelessly | Supported. Please enter MENU{>} FC Firmware Flasher |
Download/Analyze Blackbox | Supported.Please enter MENU {>}Blackbox Analyzer |

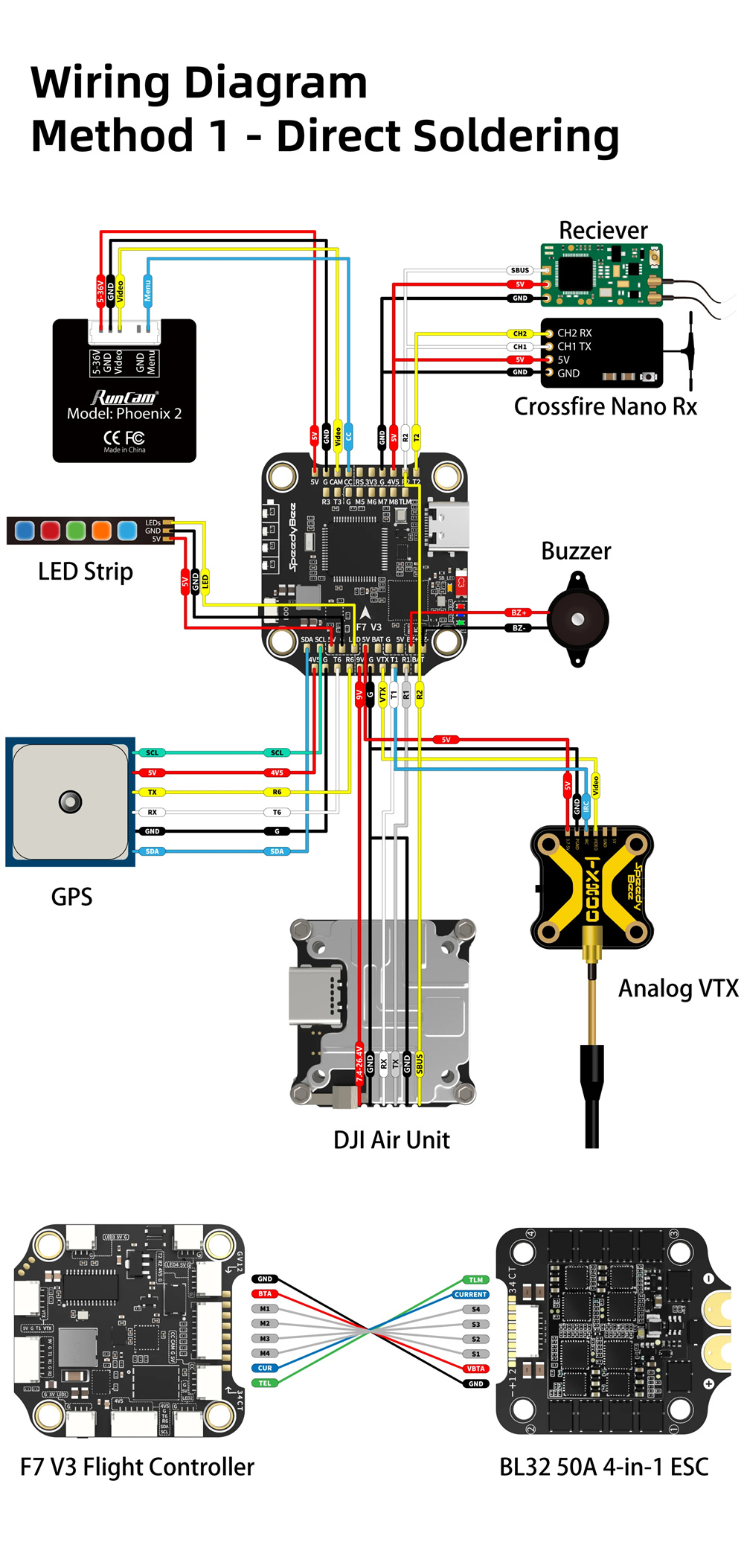

DJI Air Unit Connection Way | Two ways supported: 6-pin connector or direct soldering. |
6-pin DJI Air Unit Plug | Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed. |
Flash(for BlackBox) | 500MB |
BetaFlight Camera Control Pad | Yes(CC pad on the front side) |
Power Input | 3S - 6S Lipo |

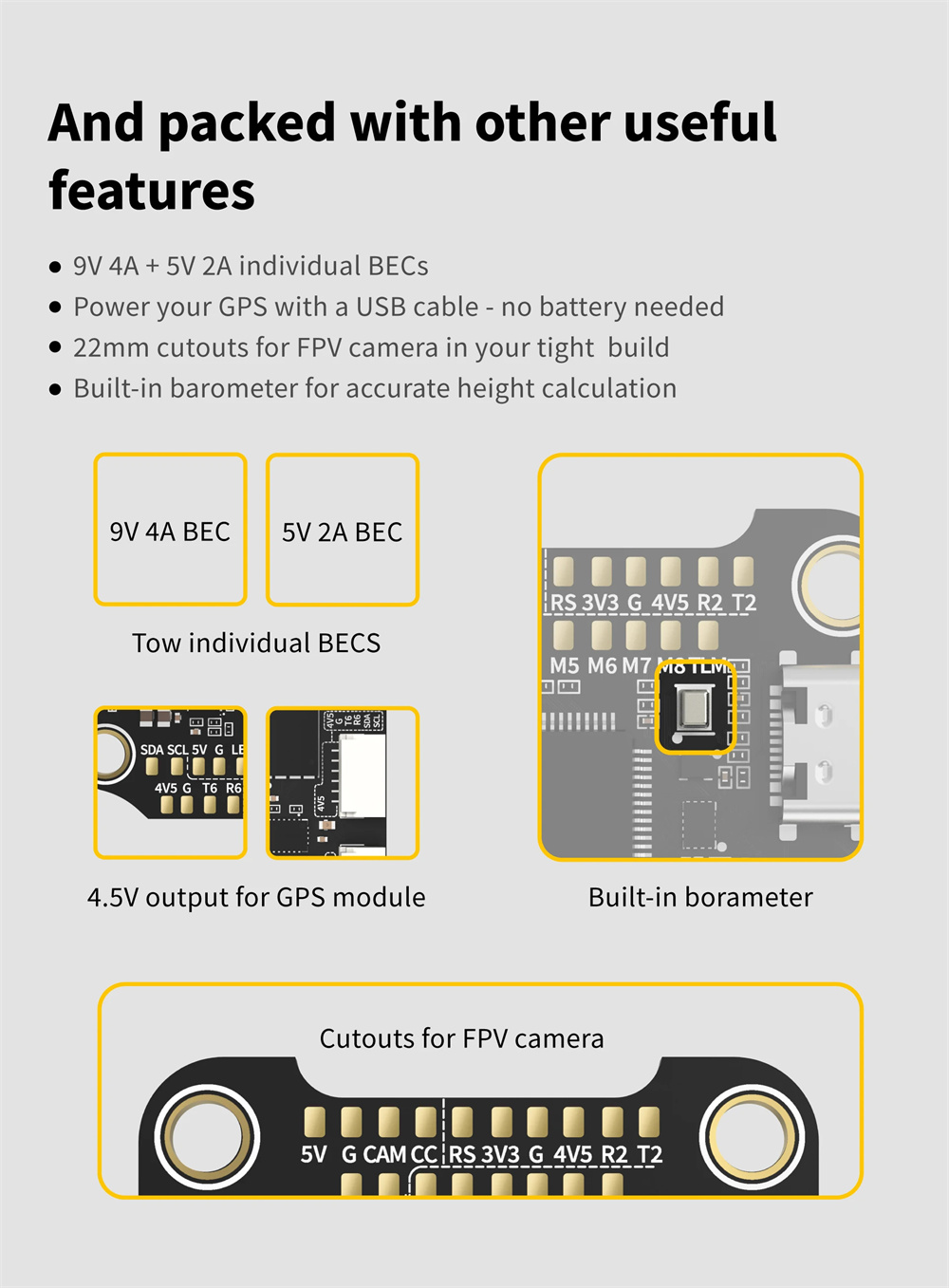

5V Output | 10 groups of 5V output, three +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 6 +5V output included in the connectors on bottom side. The total current load is 2A. |
9V Output | 2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 4A. |
3.3V Output | Supported. Designed for 3.3V-input receivers. Up to 500mA current load. |
4.5V Output | Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load. |

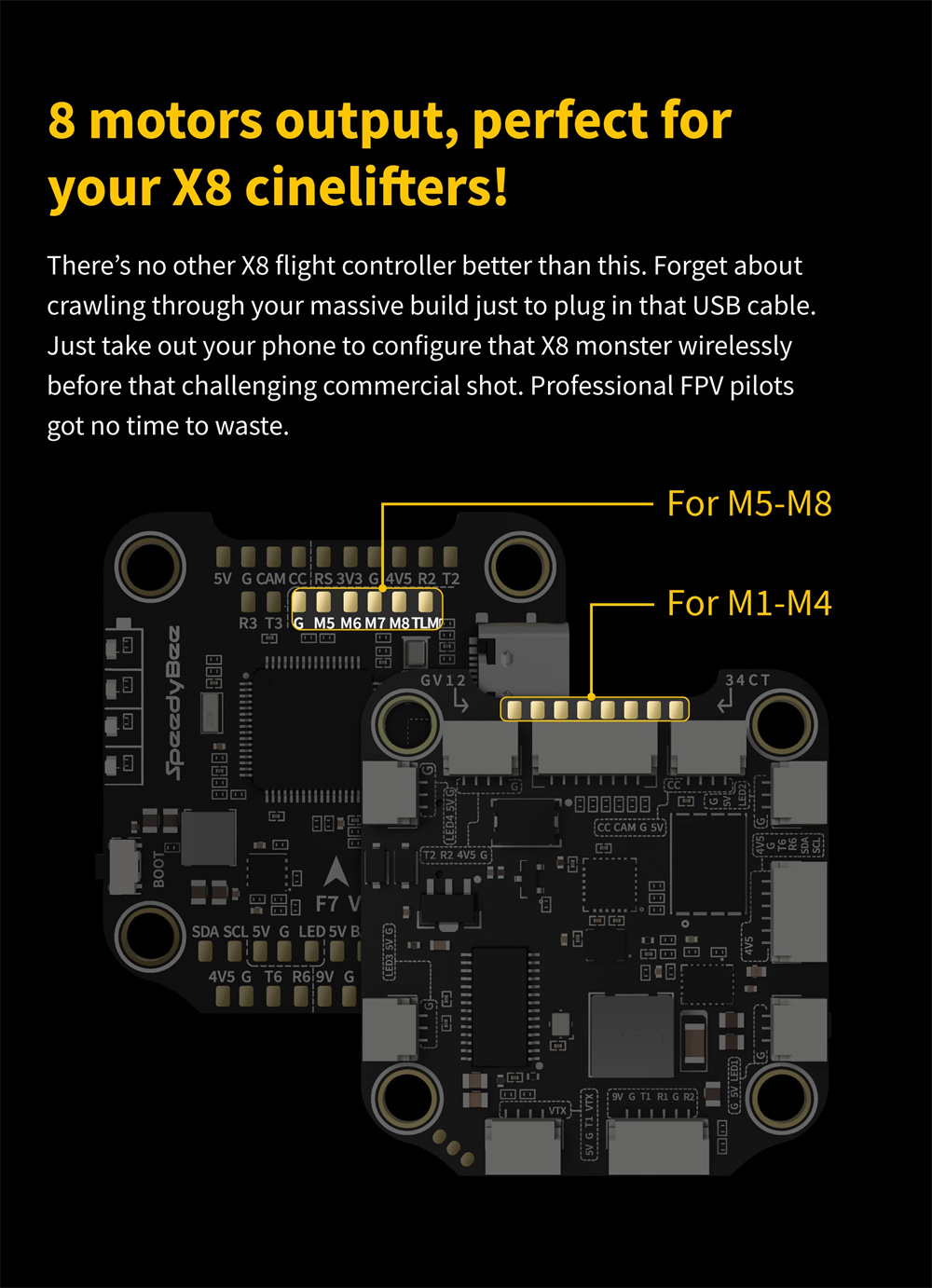

ESC Signal Pads | M1 - M4 on bottom side and M5-M8 on front side. |
UART | 5 sets(UART1, UART2, UART3, UART4(For ESC Telemetry), UART6) |
ESC Telemetry UART | R4(UART4) |
I2C | Supported.SDA & SCL pads on front side. Used for magnetometer, sonar, etc. |
LED Pad | Used for WS2812 LED controlled by Betaflight firmware. |
Buzzer | BZ+ and BZ- pad used for 5V Buzzer |
BOOT Button | Supported. [A]. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked. [B]. When the FC is powered on and in standby mode, the BOOT button can be used to controller the LED strips connected to LED1-LED4 connectors on the bottom side.By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware. |
RSSI Input | Supported. Named as RS on the front side. |
SmartPort | Use any TX pad of UART for the SmartPort feature. |
Supported Flight Controller Firmware | BetaFlight(Default),INAV |
Firmware Target Name | SPEEDYBEEF7V3 |
Mounting | 30.5x30.5mm( 4mm hole diameter) |

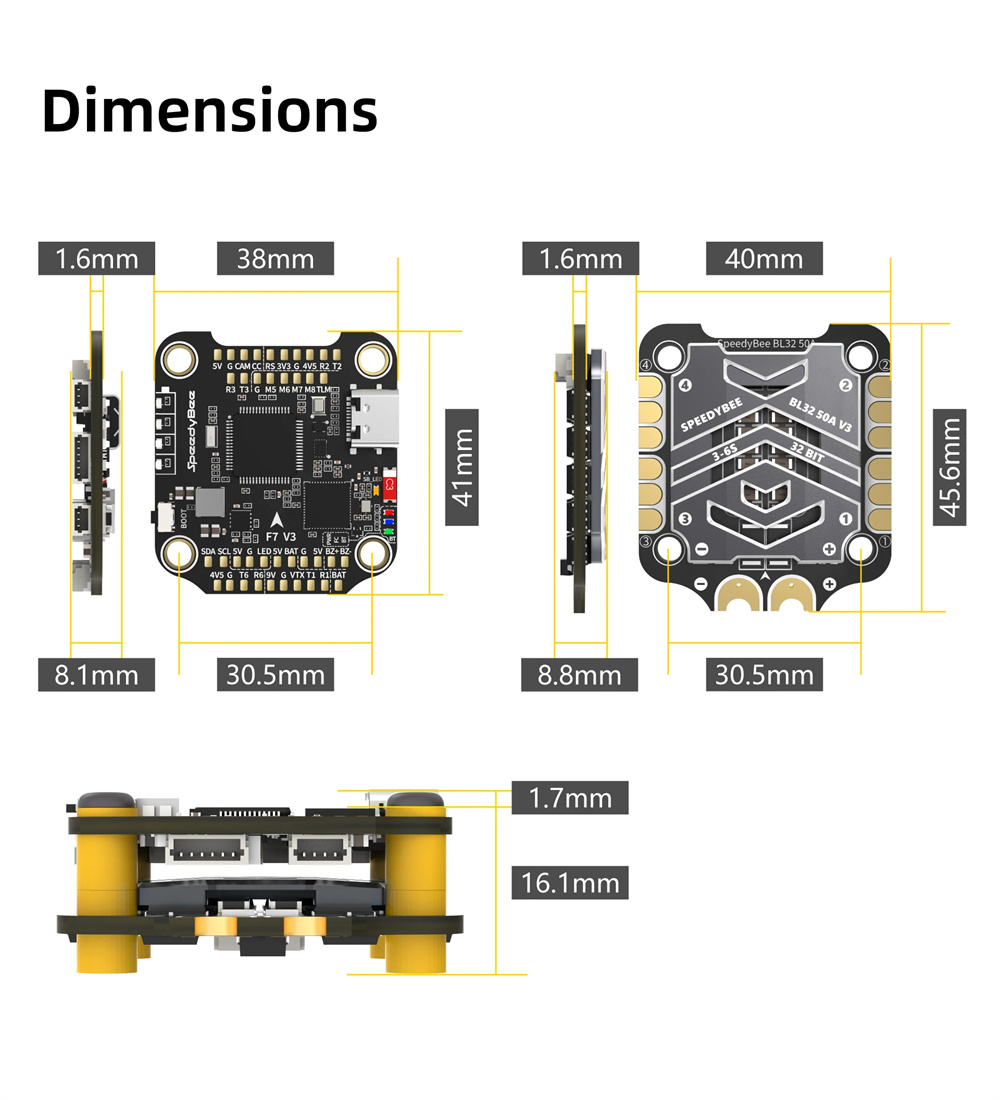

Dimension | 41(L) x 38(W) x 8.1(H)mm |
Weight | 10.7g |

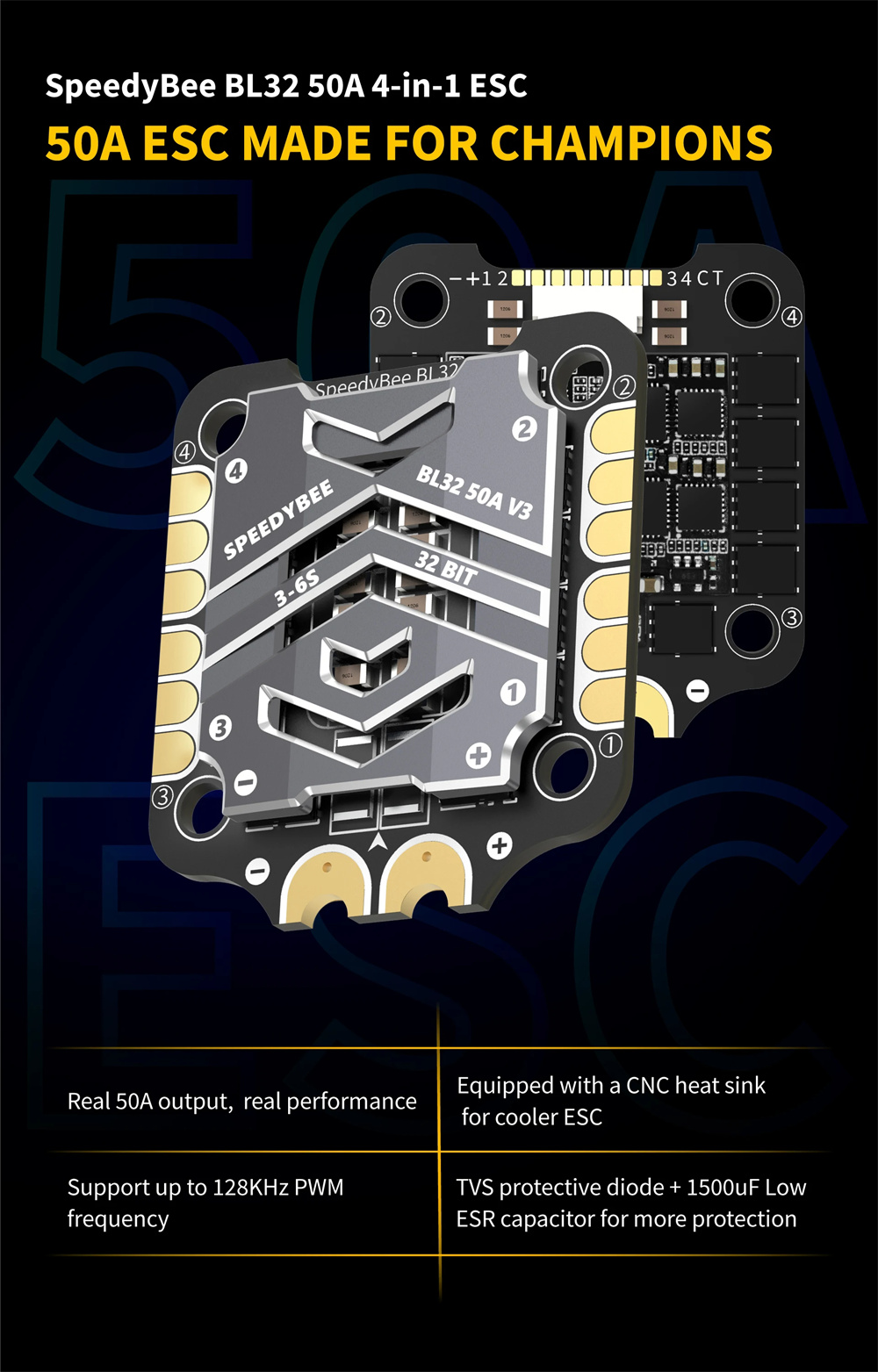

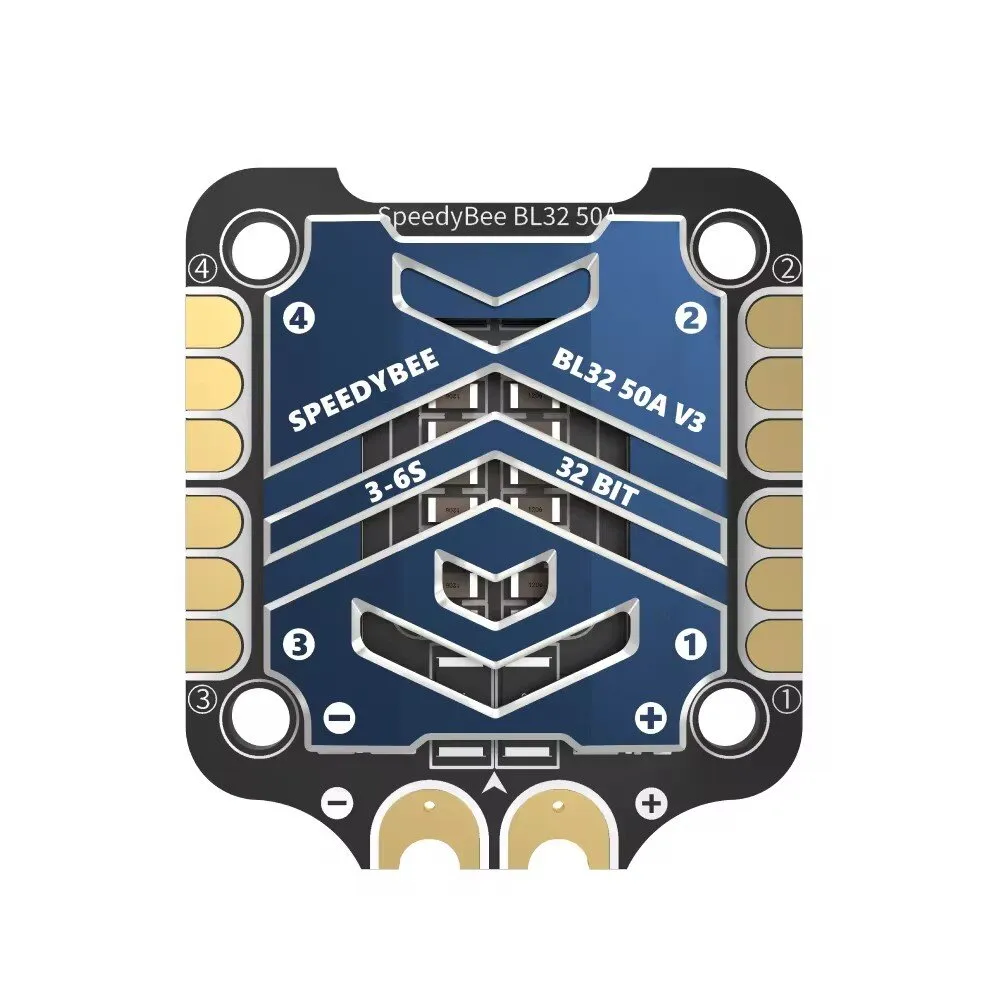

Product Name | SpeedyBee BL32 50A 4-in-1 ESC |
Firmware | J-H-50 |
Configurator Download Link | http://github.com/bitdump/BLHeli/releases |

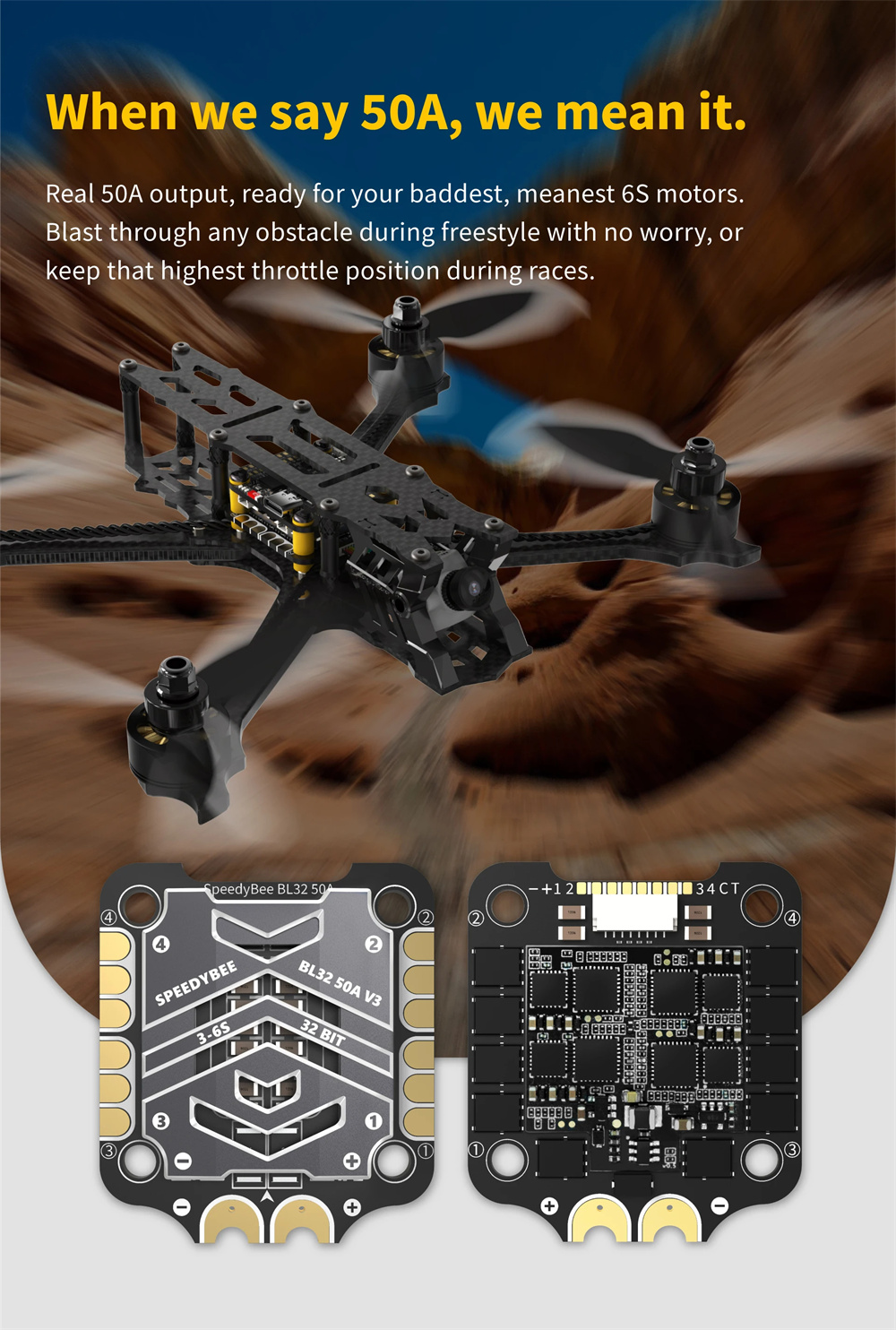

Continuous Current | 50A*4 |
Burst Current | 55A(5seconds) |

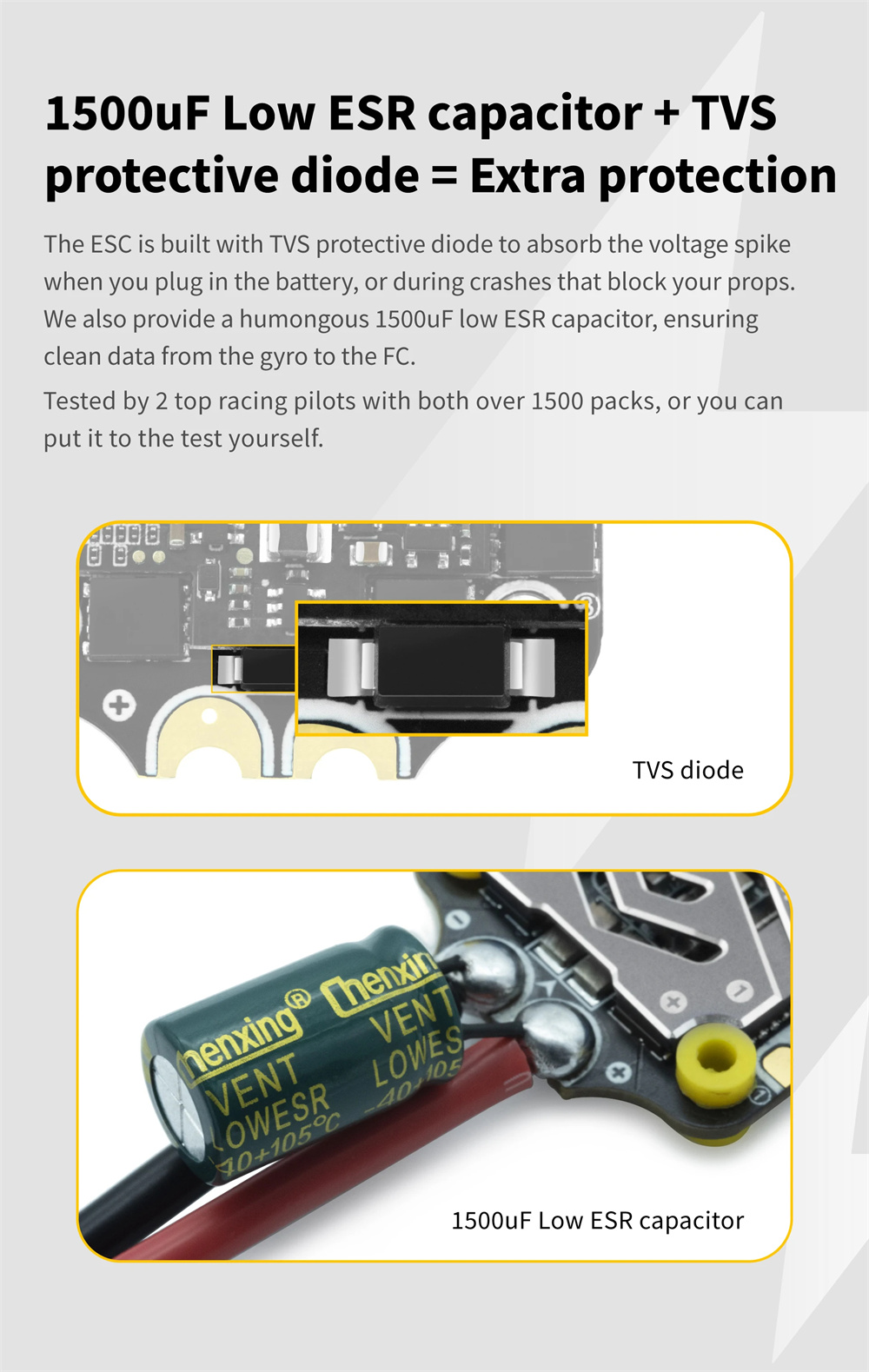

TVS Protective diode | Yes |
Heat Sink | Yes |
External Capacitor | 1000uF Low ESR Capacitor(In the package) |
ESC Protocol | DSHOT300/600 |

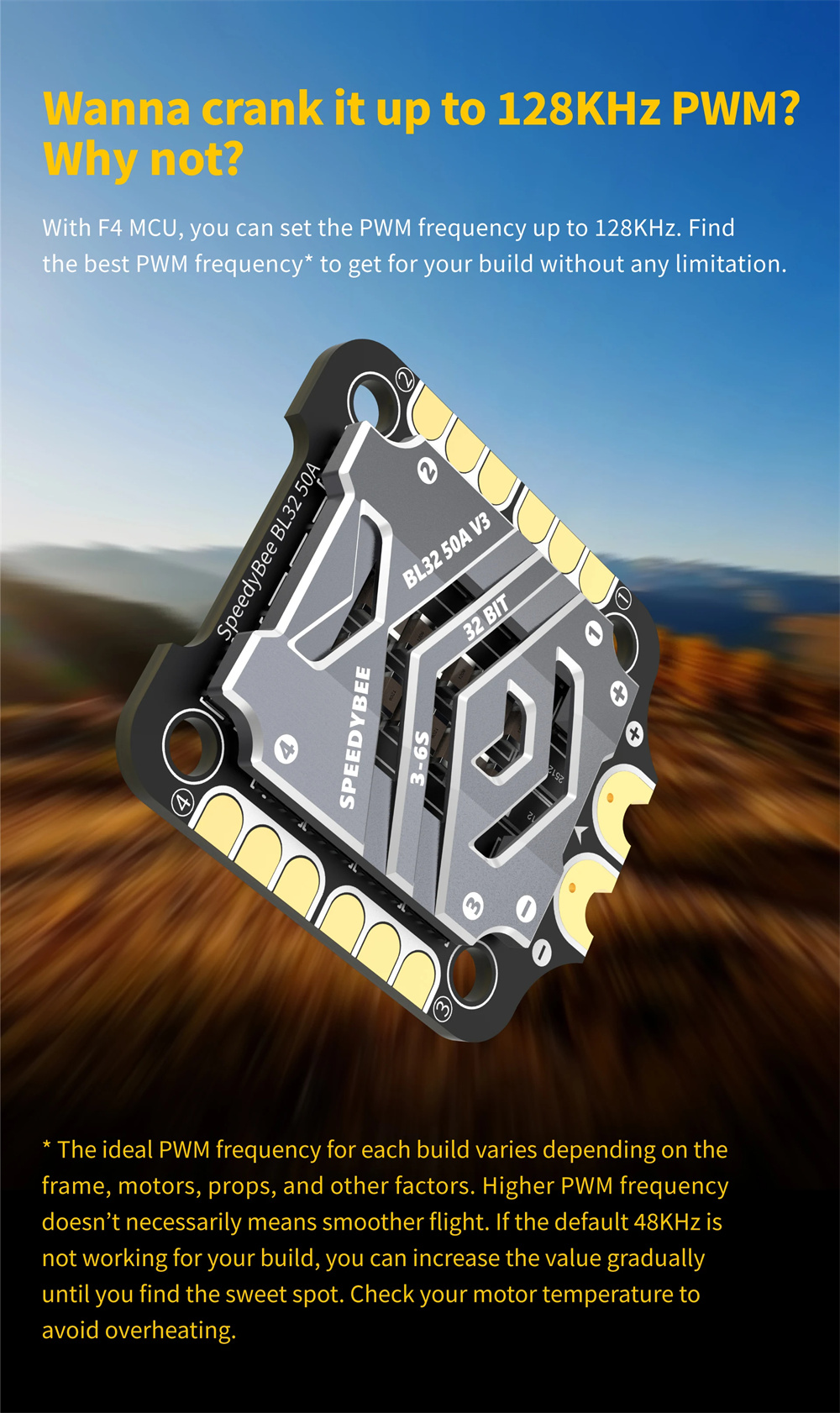

PWM Frequency Range | 16KHz-128KHz |
Power Input | 3-6S LiPo |
Power Output | VBAT |
Current Sensor | Support(Scale=490 Offset=0) |
ESC Telemetry | supported |
Mounting | 30.5x 30.5mm( 4mm hole diameter) |
Dimension | 45.6(L) * 40(W) * 8.8mm(H) |
Weight | 19.2g with heat sink |

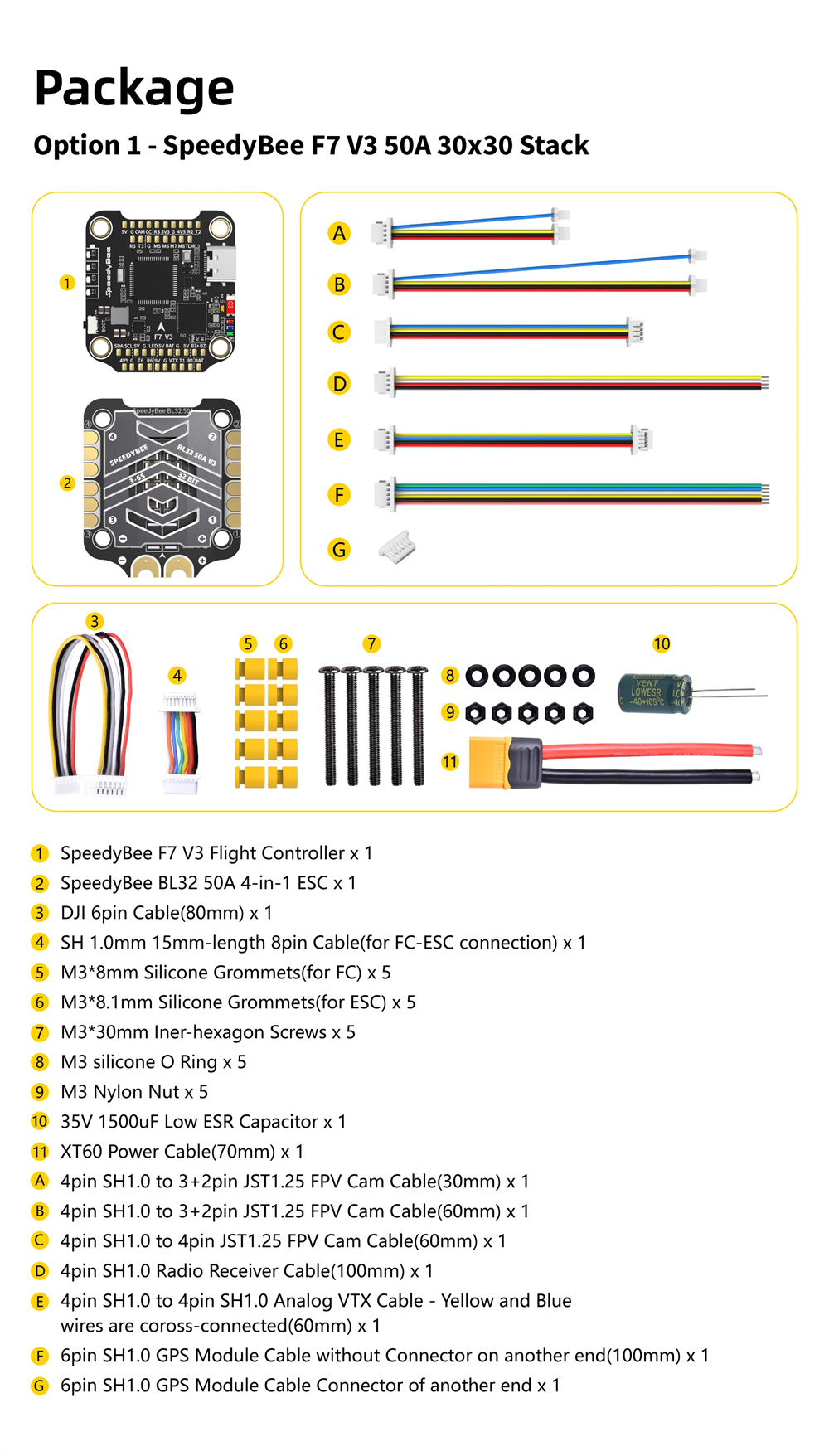

Package included:
| Flight Controller Module Version | 1x SpeedyBee F7 V3 Flight Controller 1x DJl 6pin Cable(80mm) 1x SH 1.0mm 30mm-length 8pin Cable(for FC-ESC connection) 5x M3*8mm Silicone Grommets(for FC) 1x 4pin SH1.0 to 3+2pin JST1.25 FPV Cam Cable(30mm) 1x 4pin SH1.0 to 3+2pin JST1.25 FPV Cam Cable(60mm) 1x 4pin SH1.0 to 4pin JST1.25 FPV Cam Cable(60mm) 1x 4pin SH1.0 Radio Receiver Cable(100mm) 1x 4pin SH1.0 to 4pin SH1.0 Analog VTX Cable - Yellow and Blue wires are coross-connected(60mm) 1 x 6pin SH1.0 GPS Module Cable without Connector on another end(100mm) 1 x 6pin SH1.0 GPS Module Cable Connector of another end |
| 50A ESC Version | 1x SpeedyBee BL32 50A 4in1 ESC 1x 35V 1500uF Low ESR Capacitor 5x M3 silicone O Ring 1x XT60 Power Cable(70mm) |
| FC + ESC Version | 1 x SpeedyBee F7 V3 Flight Controller 1 x SpeedyBee BL32 50A 4in1 ESC 1 x DJl 6pin Cable(80mm) 1 x SH 1.0mm 15mm-length 8pin Cable(for FC-ESC connection) 5 x M3*8mm Silicone Grommets(for FC) 5 x M3*8.1mm Silicone Grommets(for ESC) 5 x M3*30mm Iner-hexagon Screws 5 x M3 silicone O Ring 5 x M3 Nylon Nut 1 x 35V 1500uF Low ESR Capacitor 1 x XT60 Power Cable(70mm) 1 x 4pin SH1.0 to 3+2pin JST1.25 FPV Cam Cable(30mm) 1 x 4pin SH1.0 to 3+2pin JST1.25 FPV Cam Cable(60mm) 1 x 4pin SH1.0 to 4pin JST1.25 FPV Cam Cable(60mm) 1 x 4pin SH1.0 Radio Receiver Cable(100mm) 1 x 4pin SH1.0 to 4pin SH1.0 Analog VTX Cable - Yellow and Blue wires are coross-connected(60mm) 1 x 6pin SH1.0 GPS Module Cable without Connector on another end(100mm) 1 x 6pin SH1.0 GPS Module Cable Connector of another end |
