30.5x30.5mm GEPRC GEP F405 HD V2 F4 OSD Flight Controller 3-6S with 5V 9V BEC Output Support DJI O3 Air Unit for FPV RC Racing Drone

• weight: 485 g

Specifications:
Brand: Geprc

Model: F405 HD V2
MCU：STM32F405
IMU：ICM42688-P(SPI)
Air Unit Connection：Direct plugging into DJI Air Unit
Black Box：16M onboard
USB Interface：Type-C
OSD：BetaFlight OSD w/ AT7456E chip
BEC：5V@3A,9V@2.5A dual BEC
Firmware Target：GEPRCF405
Size：36.8×36.8mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
Input Voltage：3-6S LiPo
UART：6
Power Filter：Integrated LC filter

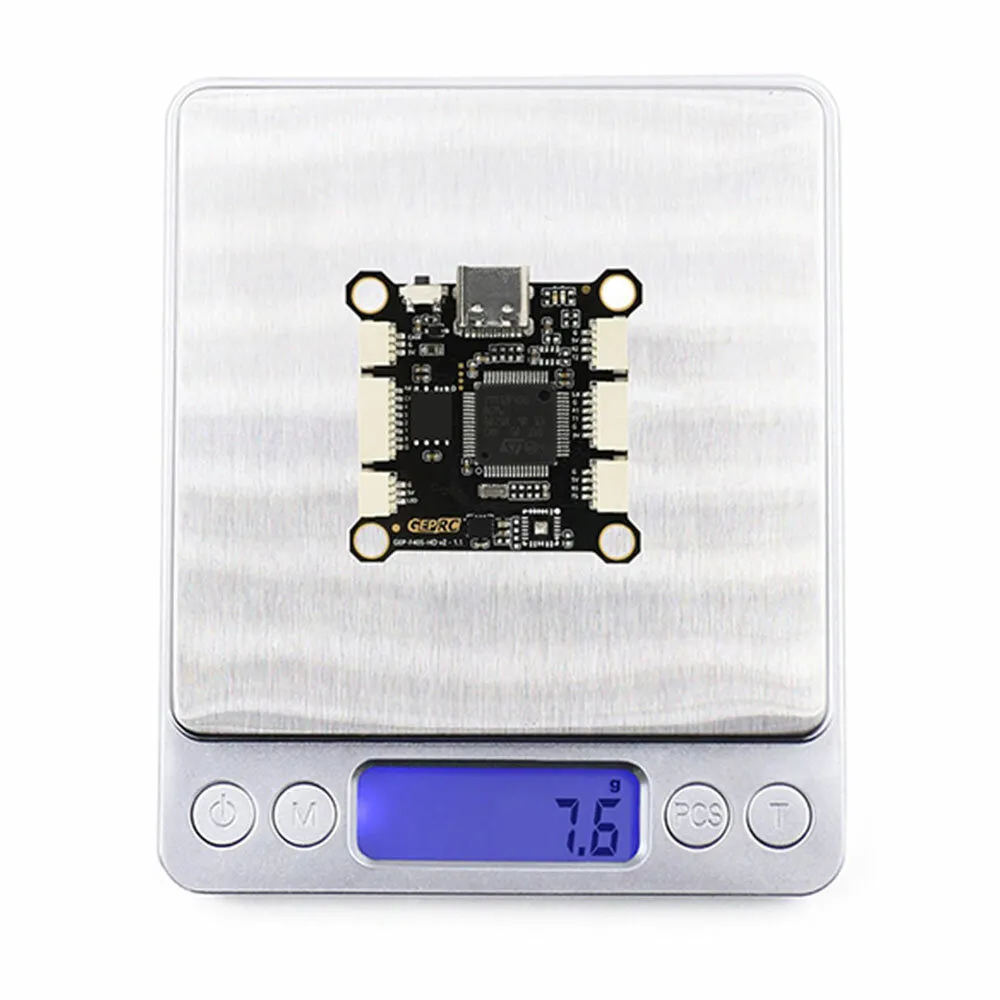

Weight：7.7g

Features:
-Use mainstream STM32F405 chip
-Equipped with the latest 42688-P gyroscope
-16M black box storage
-Integrated LC filter
-Upgrade type-C USB interface
-Directly plugged into the DJI Air Unit
-Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
-9V 2.5A + 5V 3A dual independent BEC

Includes:
1 x Flight Controller
1 x DJI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
4 x Nylon nuts
4 x Silicone grommets
2 x sh1.0 4pinsilicone cable
1 x Camera connection cable
