2PCS Flywoo GOKU GM10 Nano V3 GPS Module M10050 Latest Chip with Compass Support Betaflight INAV for RC Airplane FPV Racing Drone Quadcopter

• weight: 485 g

Introduction.

With the latest M10050 GNSS chip, it offers ultra-accurate positioning and faster star search speeds than the previous GM8 V2.

The GOKU GM10 Nano V3 GPS with compass is designed for convenience, featuring a plug-and-play setup without the need for soldering.

Experience cutting-edge technology for precise navigation. Whether you're an outdoor enthusiast or a professional, GOKU ensures
reliability, accuracy, and effortless usability. Upgrade to the GOKU GM10 V3 GPS series and elevate your navigation experience.

-Note: The chip of GOKU GM10 V3 GPS is M1005. Only BF4.3x version firmware can use Ublox protocol. BF4.2x and earlier firmware can only use NMEA protocol But there is no difference in performance between the two protocols
-BETAFLIGHT: Use firmware above 4.3.0

- INAV: Use the latest 6.0.0 configurator, the latest firmware above 5.0.0

Description:
Brand: FLYWOO
Model: GM10 NANO V3 GPS w/compass

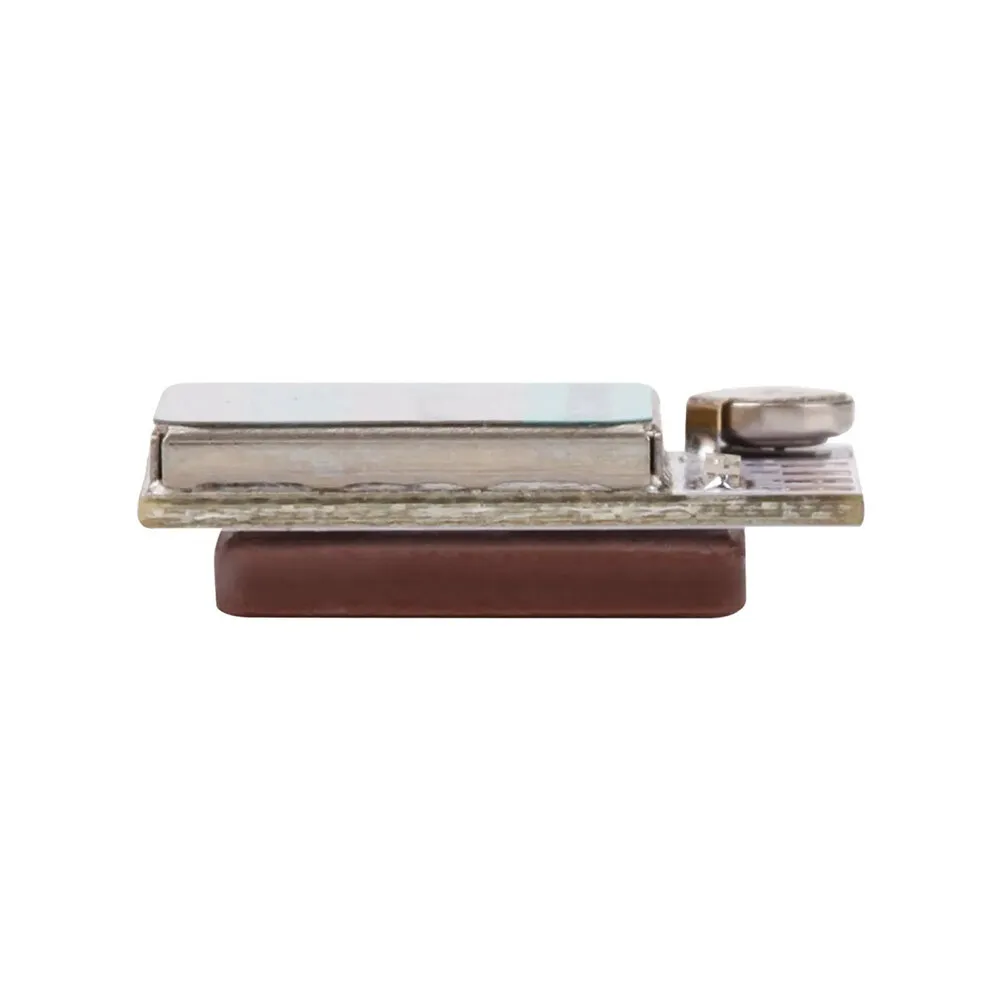

Dimension :12x17x5mm

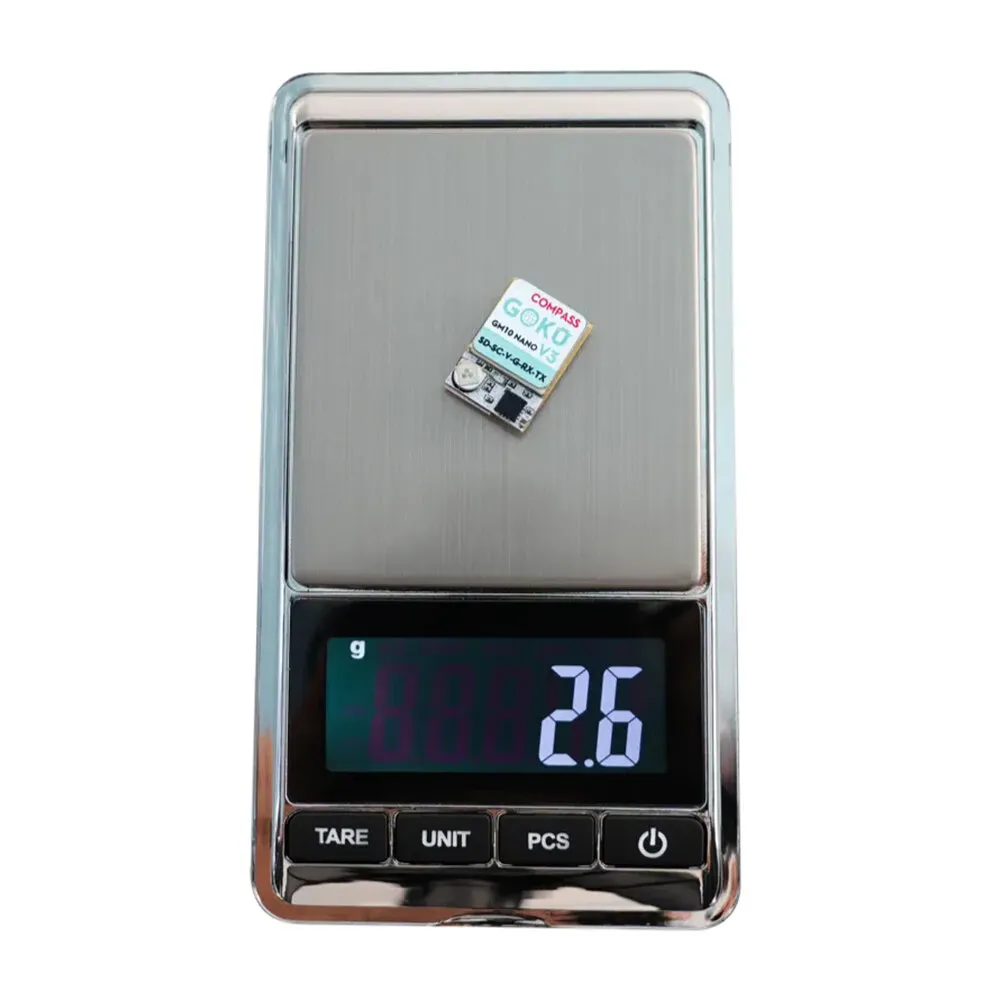

Weight : 2.6g
Connector : 4pins Pad

Features:
1. GPS Module. Three Modules.
2. 4pins Pad, ultra light weight
3. With a compass and a plug.
4. Plug and play, no need for soldering.

Specification:
Electrical Characteristics
Chipset : M10050(Tenth Generation Chip)
Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Default Protocol : GPS,Galileo,BeiDou
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels : 72 Searching Channel

Sensitivity:
Tracking: -162dBm
Reacquisition: -160dBm

Data and Update Rate:
Support Rate: 4800bps to 921600bps,Default 115200bps
Data Level: TTL or RS-232,Default TTL level
Data Protocol: BF4.3.X(UBLOX)/BF4.2.X(NMEA)
Output frequency: 1Hz-10Hz，Default 10Hz

Operational Limits:
Altitude: 50,000m Max
Velocty: 500m/s Max
Acceleration: Less than 4g

Power consumption:
VCC : DC Voltage: 3.3-5V
Operating temp:　-40 °C ~ +85°C
Storage Temp: -40°C ~ +105°C

Indicator:
PPS LED: Yellow. PPS LED not bright when GPS not fixed, flashing when fixed.

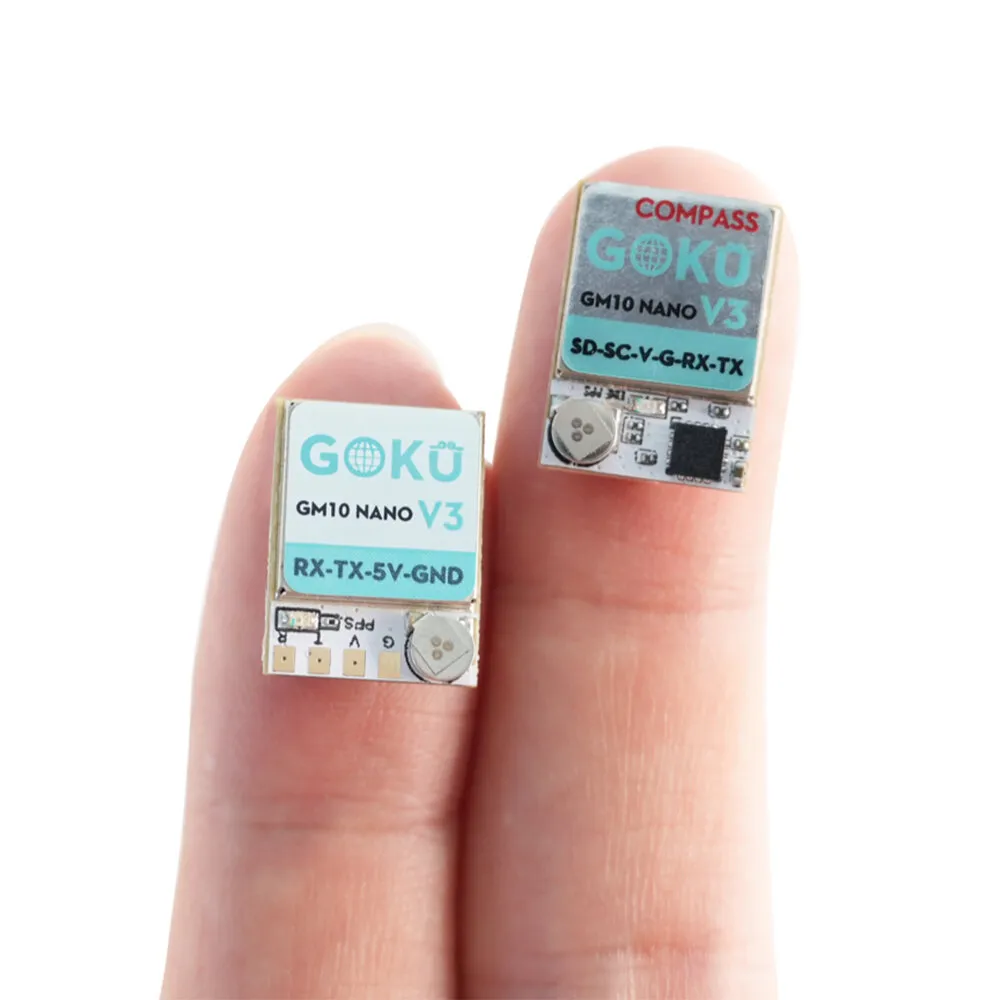

The Module's Pins: RX TX 3.3-5V GND

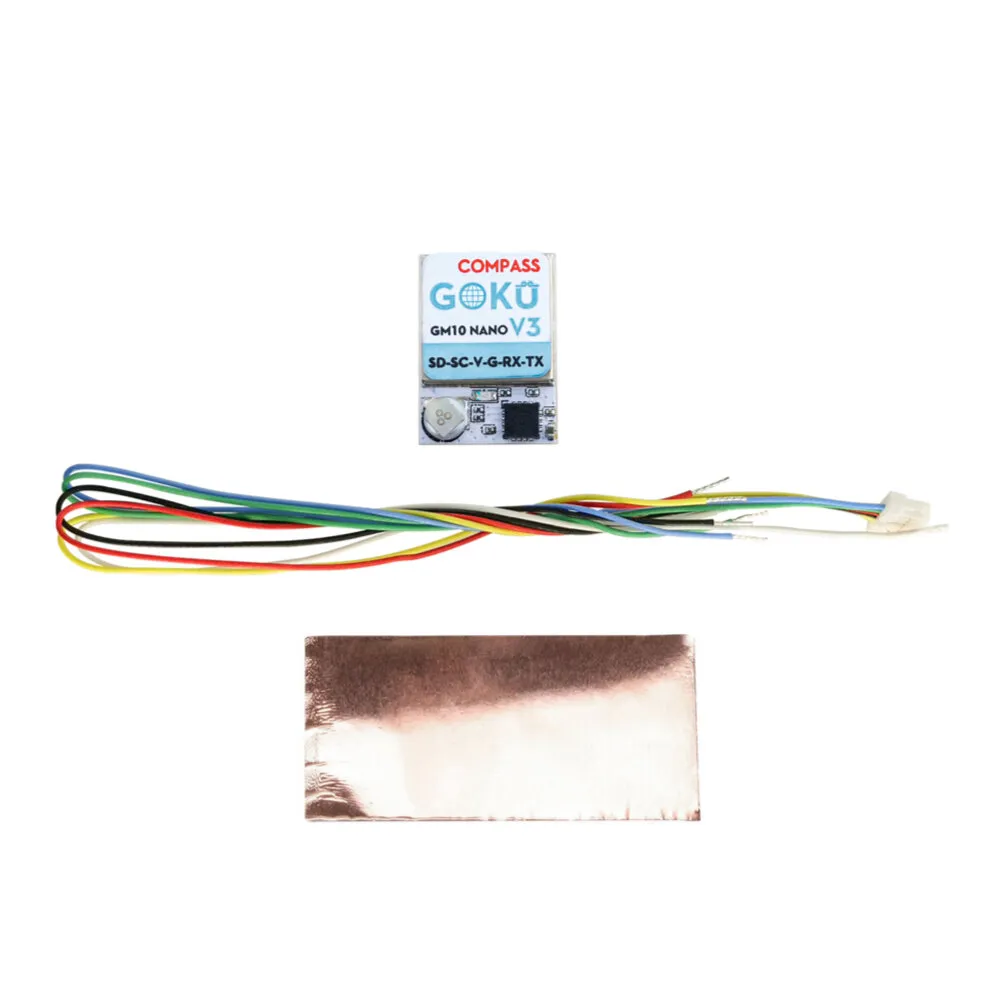

Includes:
1x GM10 NANO V3 GPS w/compass
1x 100mm Cable
1x Copper Foil
