25.5x25.5mm GEPRC TAKER F411 8Bit 12A AIO F4 OSD Flight Controller Built-in 12A 2-4S 4in1 ESC for RC Drone FPV Racing

• weight: 485 g

Specifications:
Brand: Geprc
Model: TAKER F411 8Bit 12A AIO

Item Name: F4 Flight Controller Built-in 12A 4in1 ESC

Optional Version: ELRS 2.4G ( Built-in ELRS 2.4G Receiver) / Without Receiver ( Don't have receiver)
MCU: STM32F411
IMU: ICM42688P
Firmware target: GEPRC_F411_SX1280
OSD: BetaFlight OSD w/ AT7456E chip
UART Ports: R1 T1R2 T2
Reverse Port: NR2
Buzzer: YES
LED: YES
USB Port: micro USB
ESC MCU: BB21F16G
Black Box: 16Mb onboard flash memory
Continuous Current: 12A
Peak Current: 13A
Input: 2-4S
ESC Protocol: Dshot300,Oneshot,Multishot
Current Meter: 210
ESC Firmware: G-H-30 – Bluejay, 0.16, 48kH
Size: 31.2×31.2mm Board
Mounting holes: 25.5mm*25.5mm hole, M2 hole

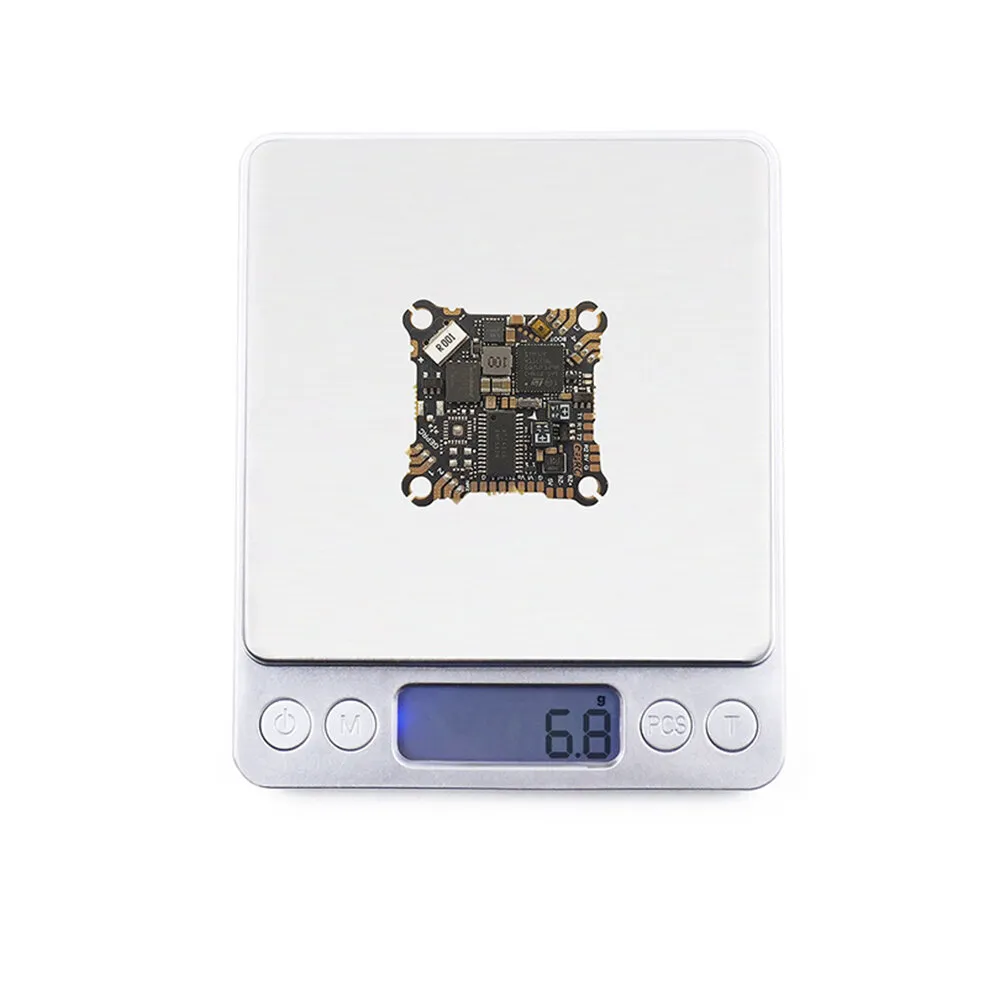

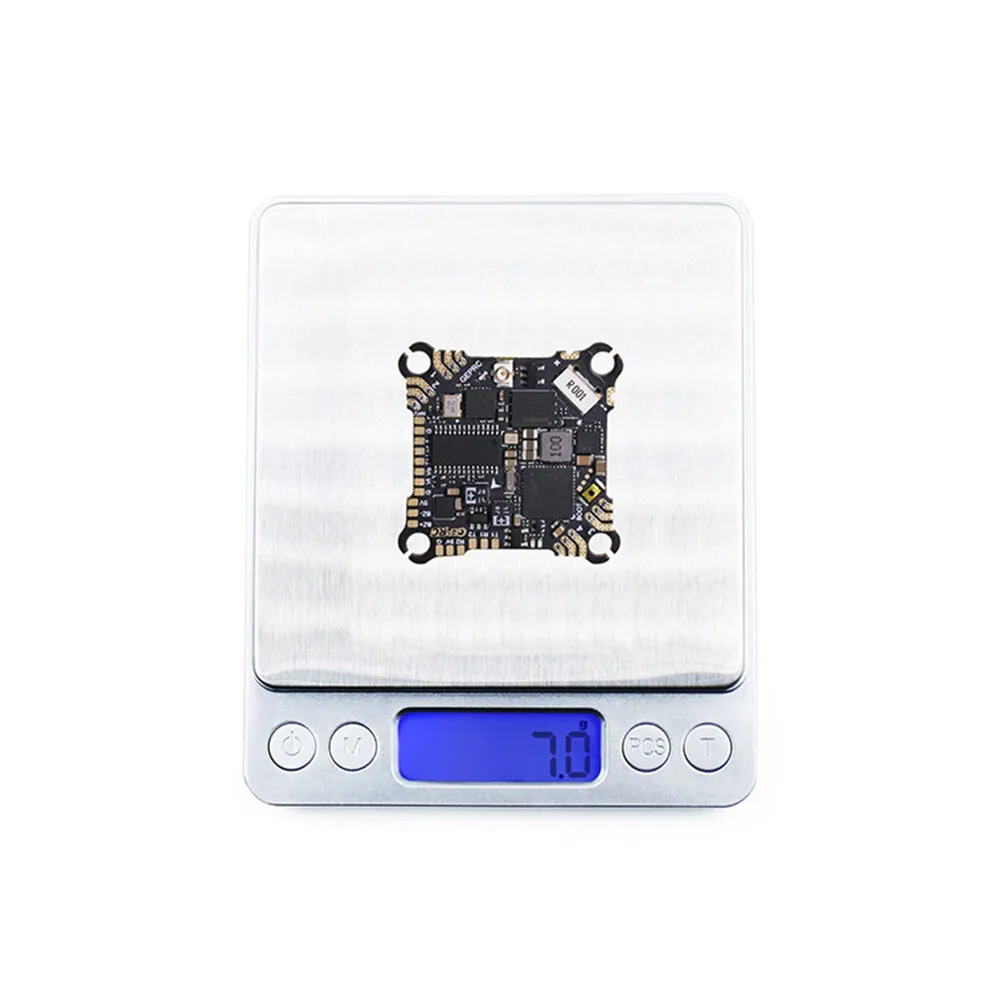

Weight: 7g

Features:

Ultra-Lightweight Design: The TAKER F411 8Bit 12A AIO is incredibly lightweight, with the integrated board weighing only 7 grams. This lightweight design enhances the overall feel of small FPV drones and improves their performance.

Precise and Smooth Flying: The AIO board features the ICM-42688-P gyro, which provides precise and smooth touch control. Whether you're racing or performing freestyle maneuvers, this gyro ensures an exceptional flying experience.

Powerful ESC Support: The ESC supports up to 12A and is compatible with 2-4S batteries. It provides a continuous current of 12A and a peak current of 13A, delivering the power needed for dynamic flight maneuvers.

Versatile Functionality: The TAKER F411 8Bit 12A AIO supports buzzer and LED light functions, adding customization options and improving flight visibility and awareness.

Easy Installation: With 25.5mm x 25.5mm mounting holes, this AIO board is designed for easy installation in various small FPV drones. It offers convenience and compatibility for different build setups.

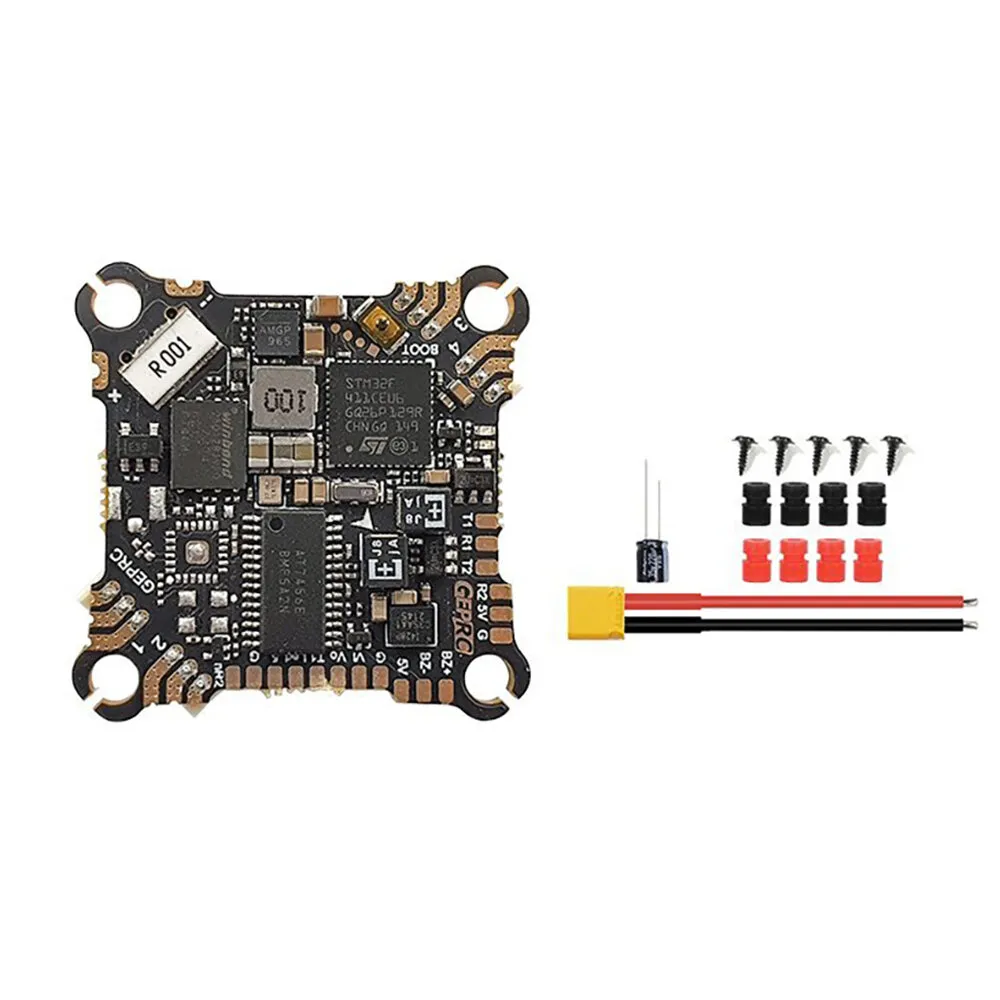

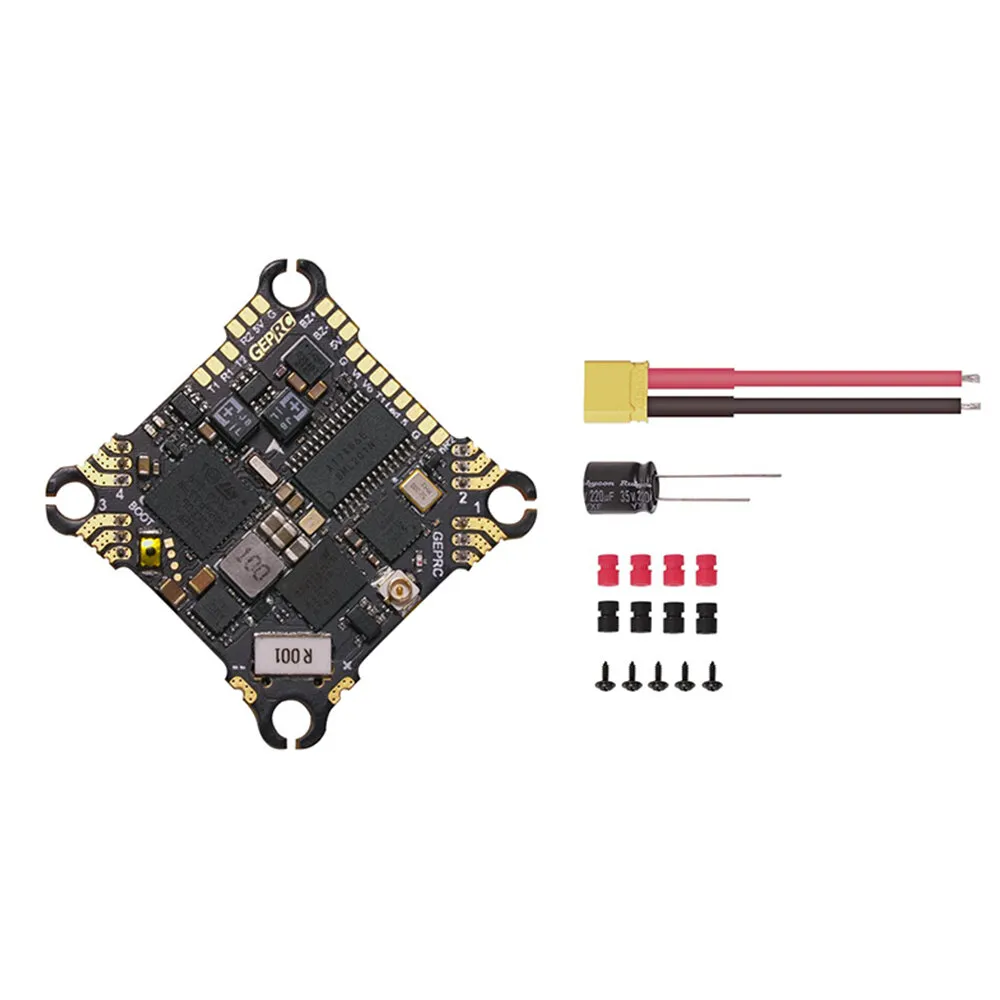

Product Includes:
1 x TAKER F41112A AIO Board (built-in ELRS receiver Version Or NO Receiver)

1 x XT30-5.5CM-20AWG power cable
8 x M2*6.5mm FC damping balls (4 each in red/black)
1 x 35V220UF capacitor
5 x Self-tapping screws (M1.4X5)
1 x Instruction manual
1 x Aluminum foil bag
