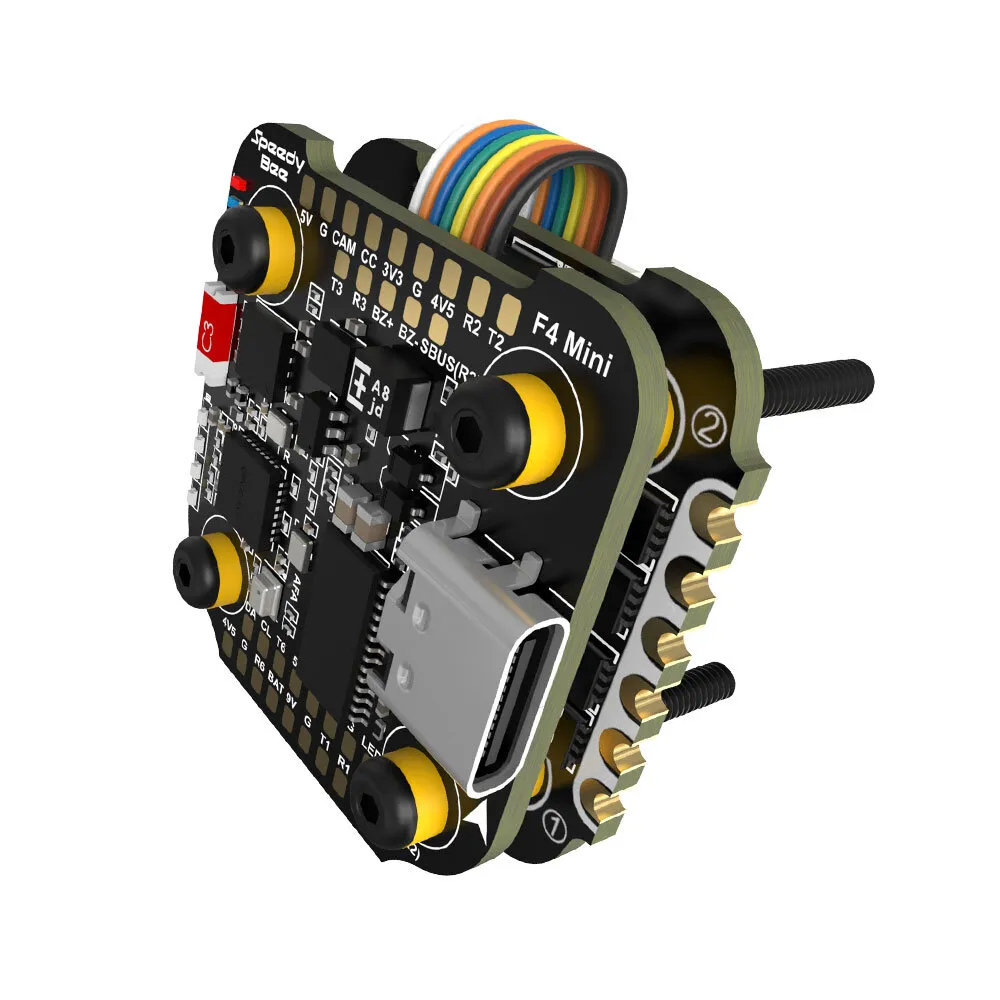

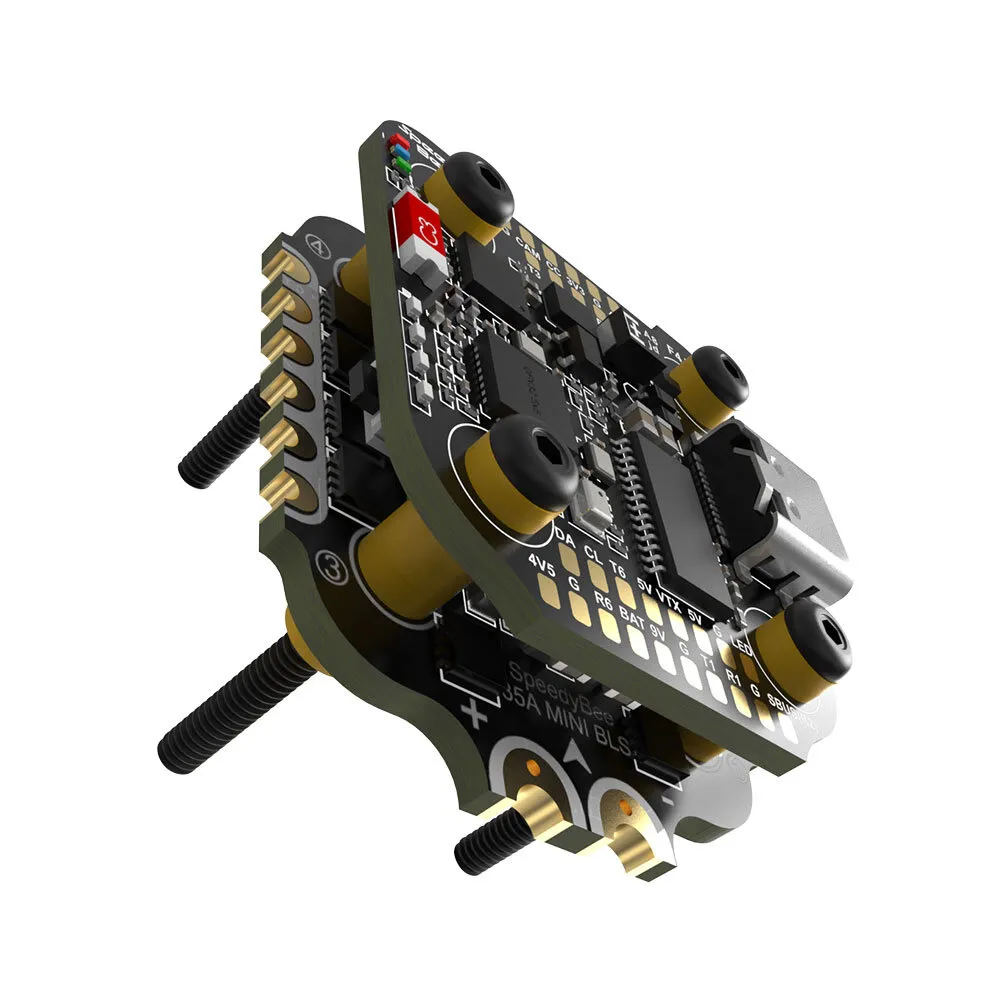

20x20mm SpeedyBee F405 Mini F4 Flight Controller with 5V 9V BEC Output & 35A BL_S 4IN1 ESC Stack Support DJI O3 Vista for FPV Racing Drone
| Qty: | 4-7 | >=8 |
| Price: | $28.88 | $27.28 |
- weight: 485 g
| Product Name | SpeedyBee F405 Mini BLS 35A 20x20 Stack |

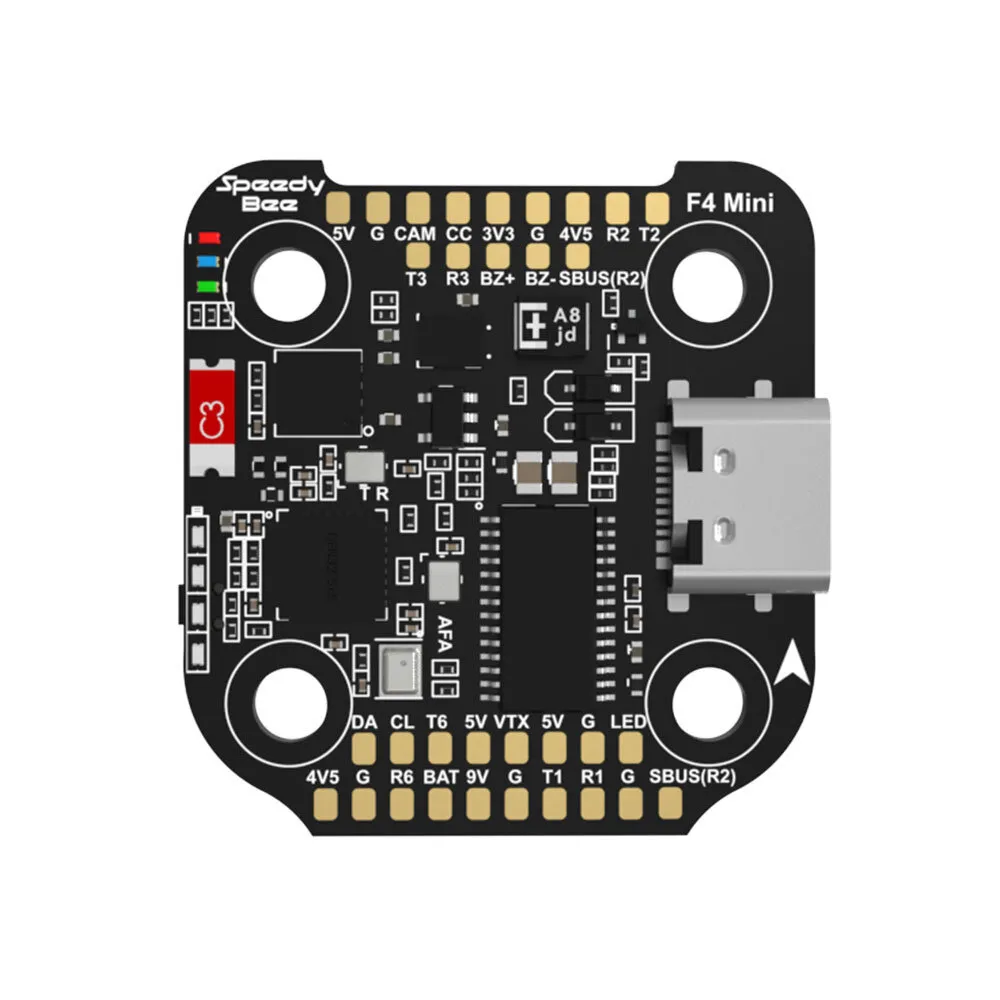

| Flight Controller | SpeedyBee F405 Min |
| ESC | SpeedyBee BLS 35A Mini V2 4-in-1 ESC |
| Bluetooth | Supported. Used to connect with the SpeedyBee App for flight controller and ESC parameter configuration. Please make sure the MSP switch on UART 4 is turned on and set to a baud rate of 115200, otherwise Bluetooth functionality will not be available. |
| WiFi | NOT Supported |
| Wireless FC Firmware Flashing | NOT Supported |
| Wireless Blackbox Dwonload & Analysis | NOT Supported |
| Power Input | 3-6S LiPo |
| Mounting | 20 x 20mm 3.5mm hole size，Compatible with M2 and M3 screws/Silicone grommets |
| Dimension | 32mm(L) x 35mm(W) x 14.2mm(H) |
| Weight | 13.5g |

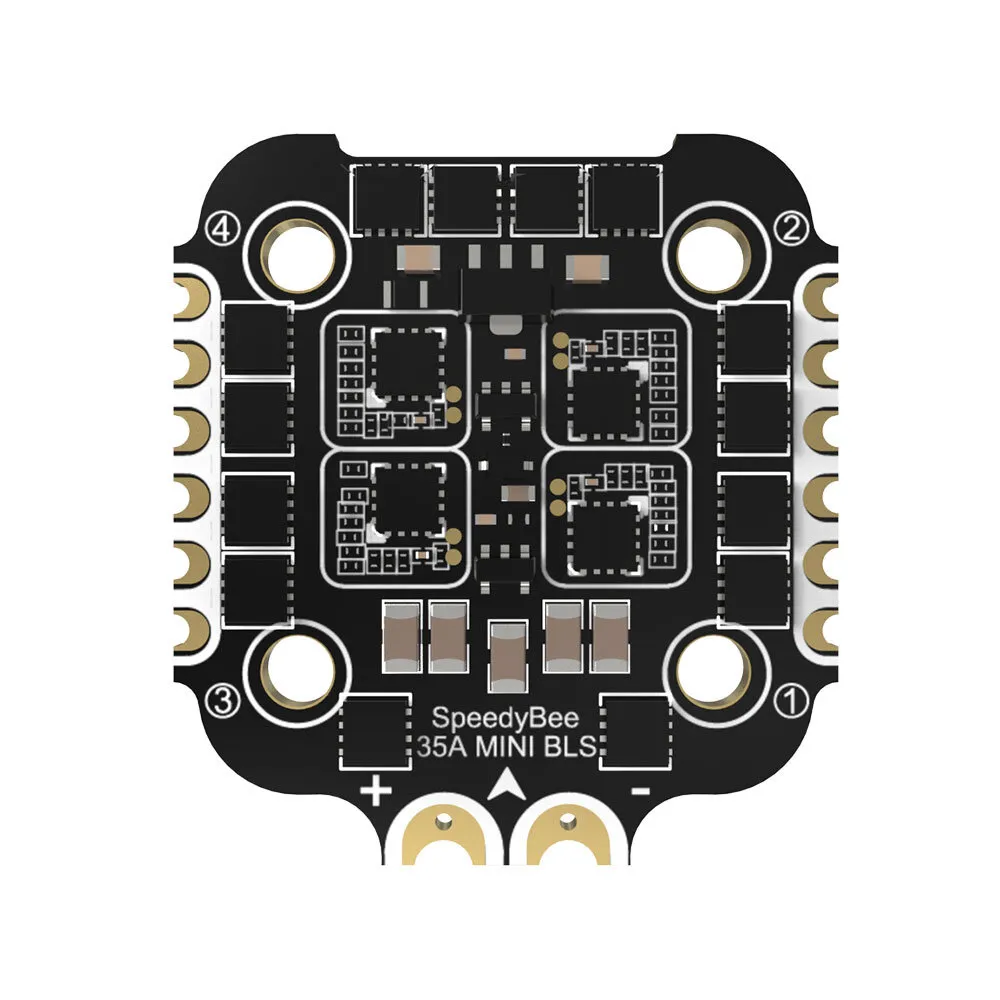

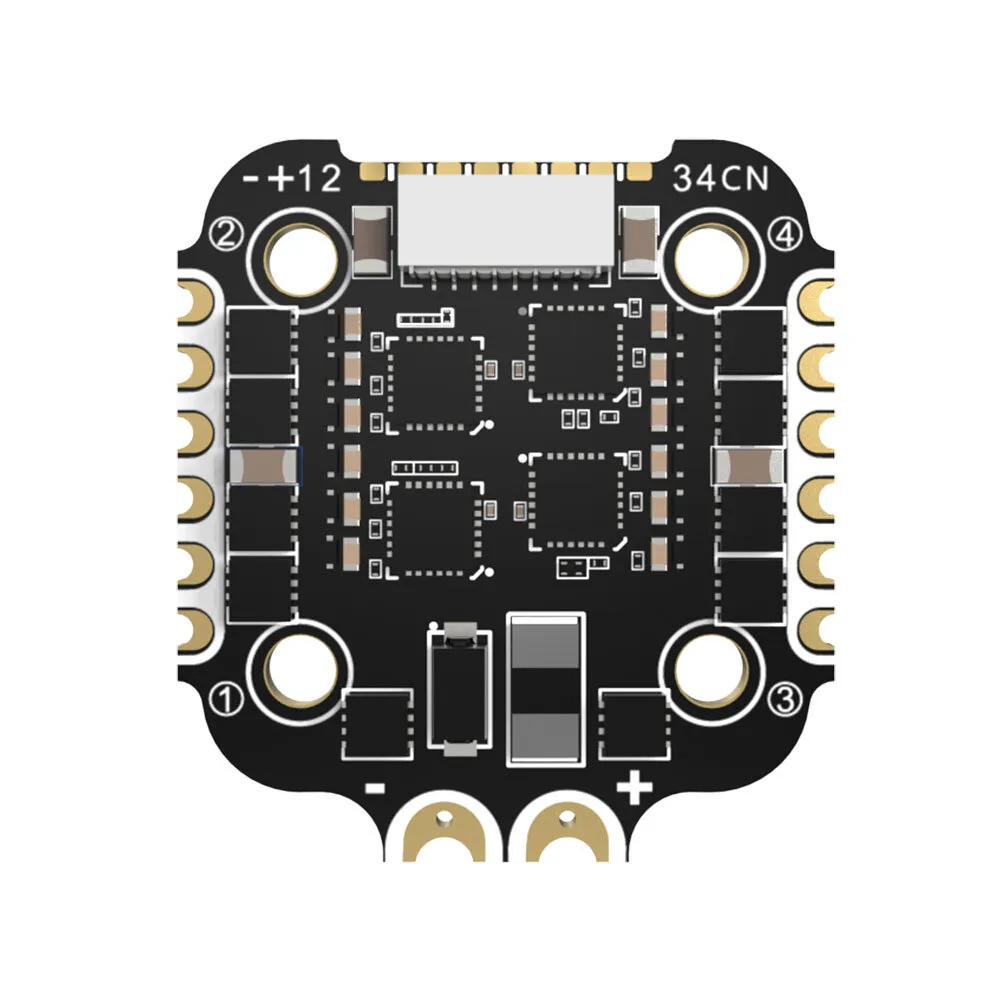

| ProductName | SpeedyBee 35A BLHeli_S Mini V2 4-in-1 ESC |
| Firmware | BLHeli_S J-H-40 |
| Continuous Current | 35A * 4 |
| Burst Current | 45A(5seconds) |
| ESC Protocol | DSHOT300/600 |
| Power Input | 3-6S LiPo |
| Power Output | VBAT(Battery voltage, used to power the flight controller) |
| Current Sensor | Support (Scale=250 Offset=-500) |
| Mounting | 20x20mm ∅3.5mm hole size，compatible with M2 and M3 screws/Silicone grommets. |
| Dimension | 35x35x5.5mm |
| Weight | 7.2g |
