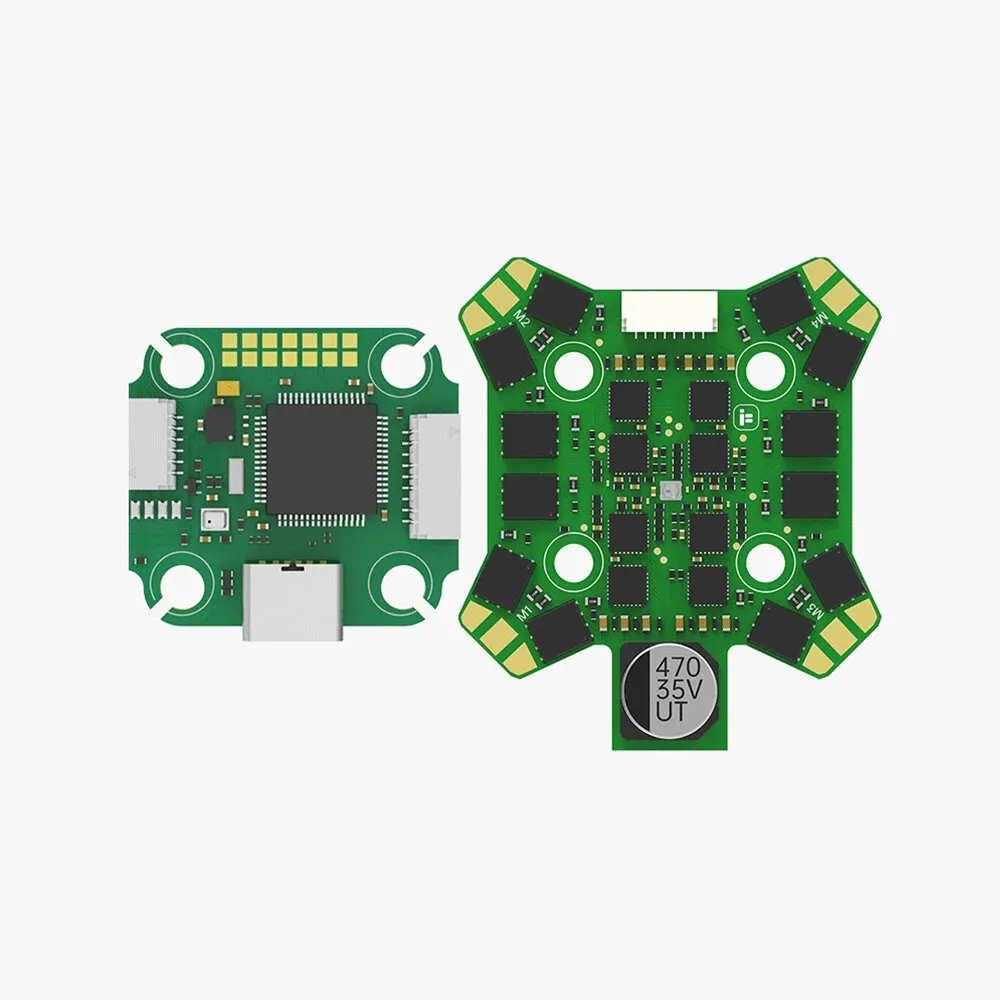

20x20mm iFlight BLITZ Mini F7 V1.1 Flight Controller & E55R 55A 2-6S BL_S 4in1 Brushless ESC Stack for RC Drone FPV Racing
| Qty: | 4-7 | >=8 |
| Price: | $52.72 | $49.79 |
- weight: 485 g
Specifications:

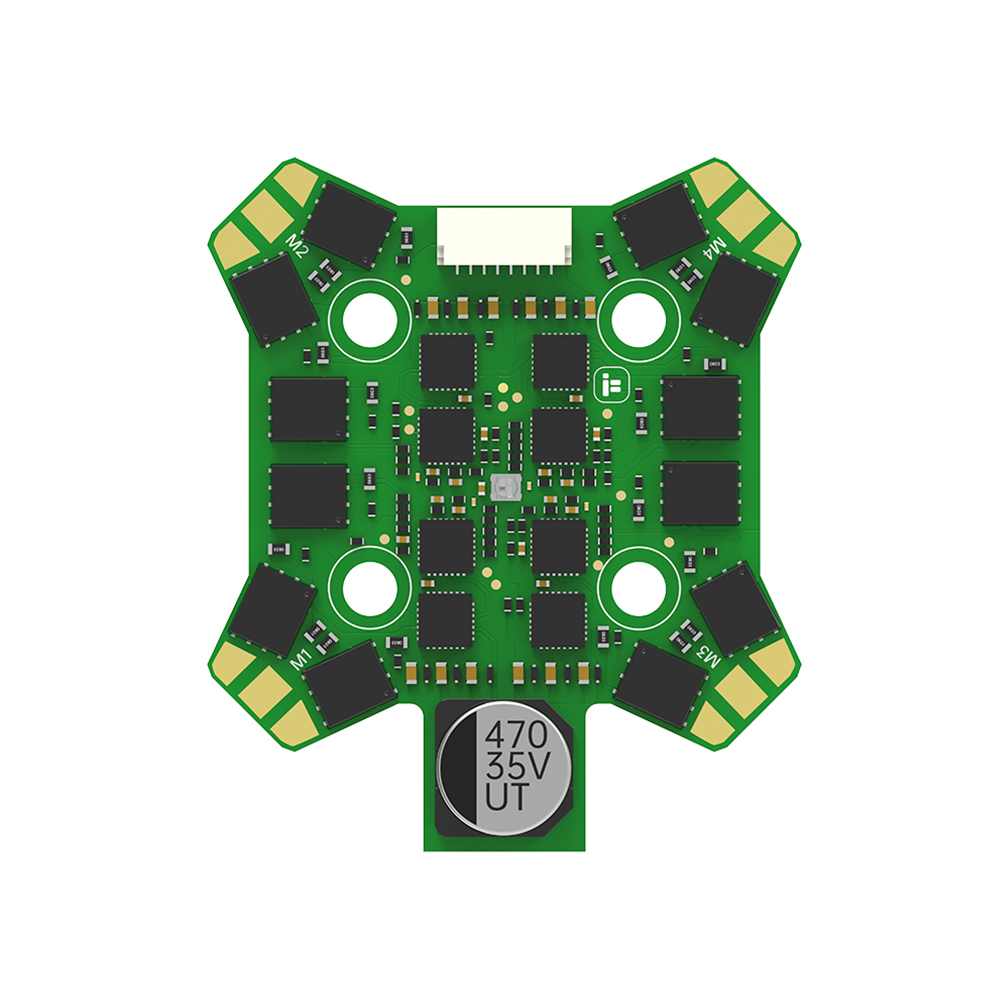

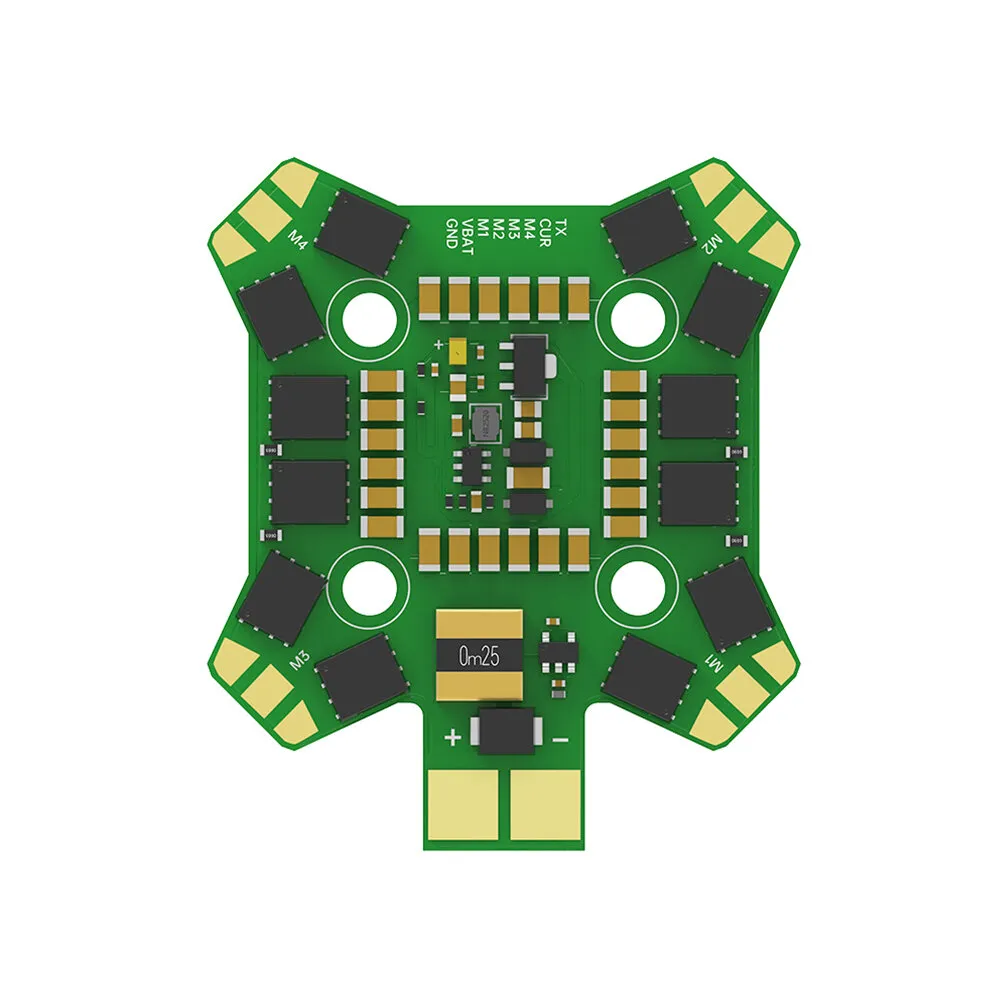

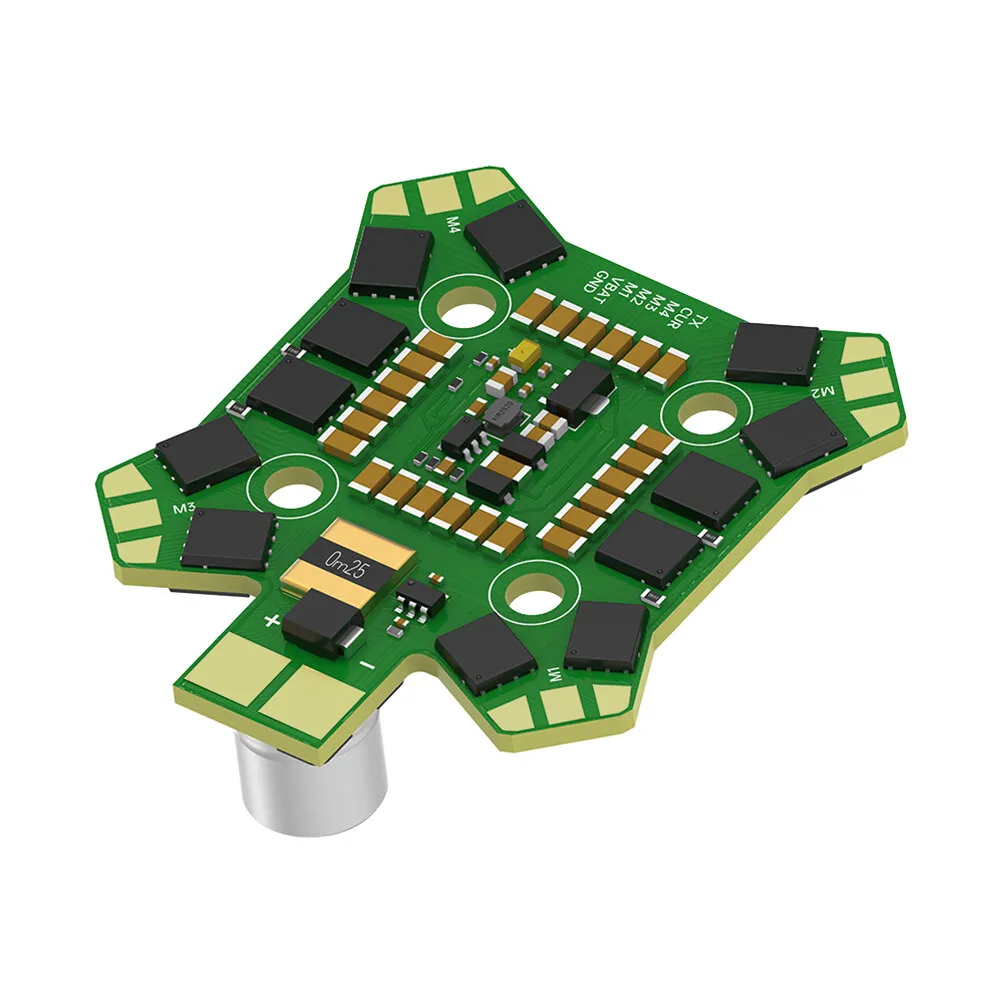

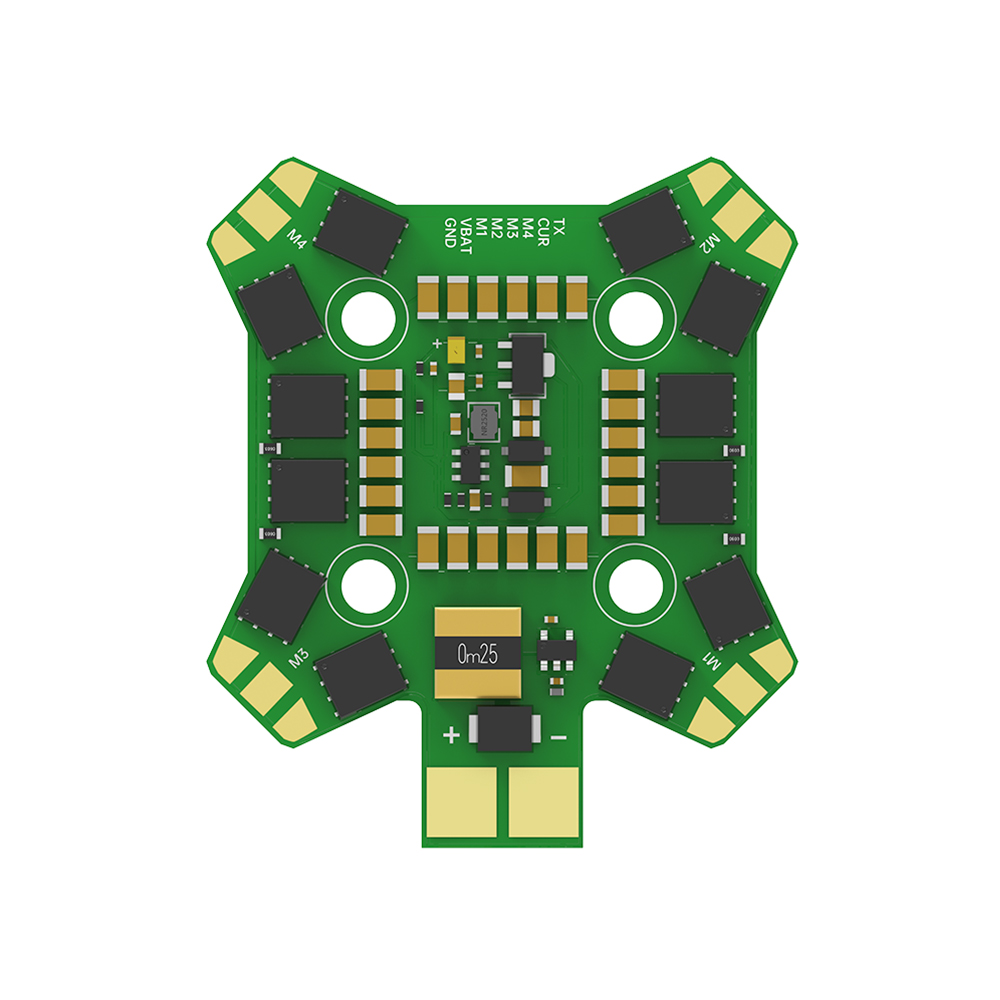

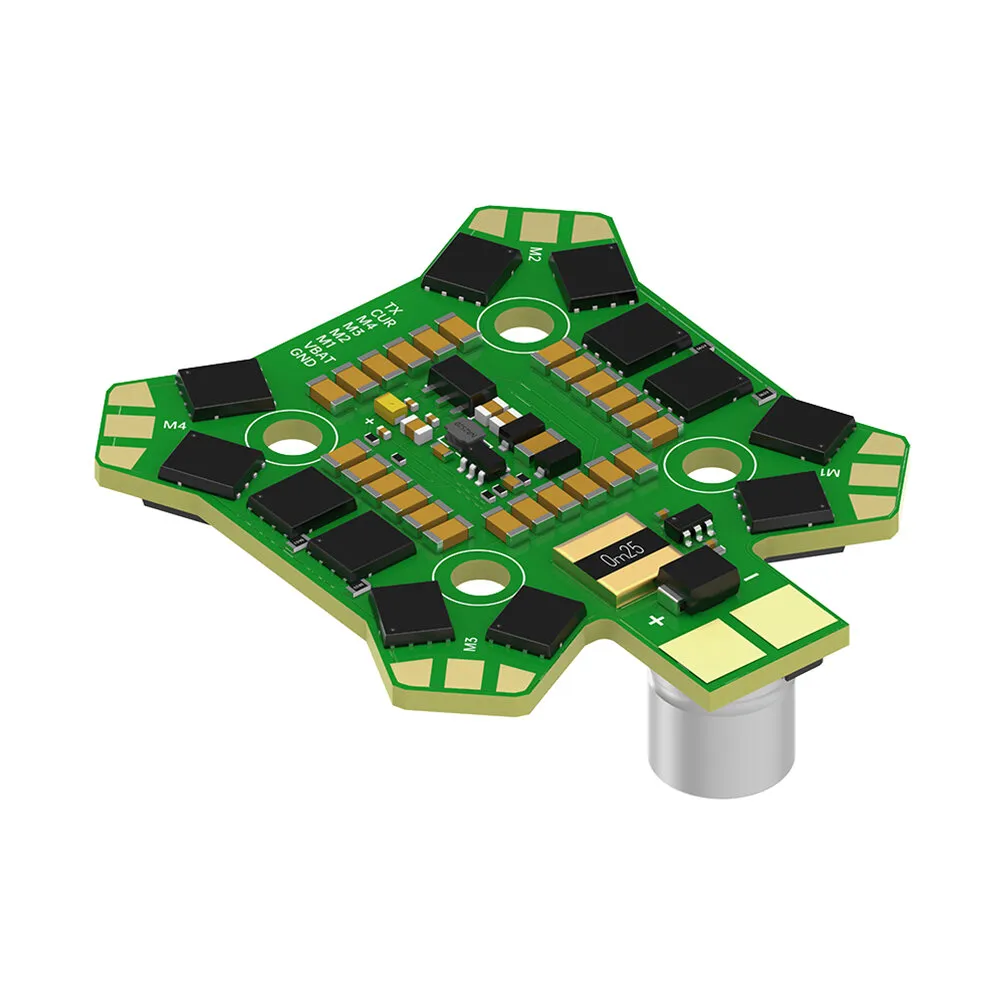

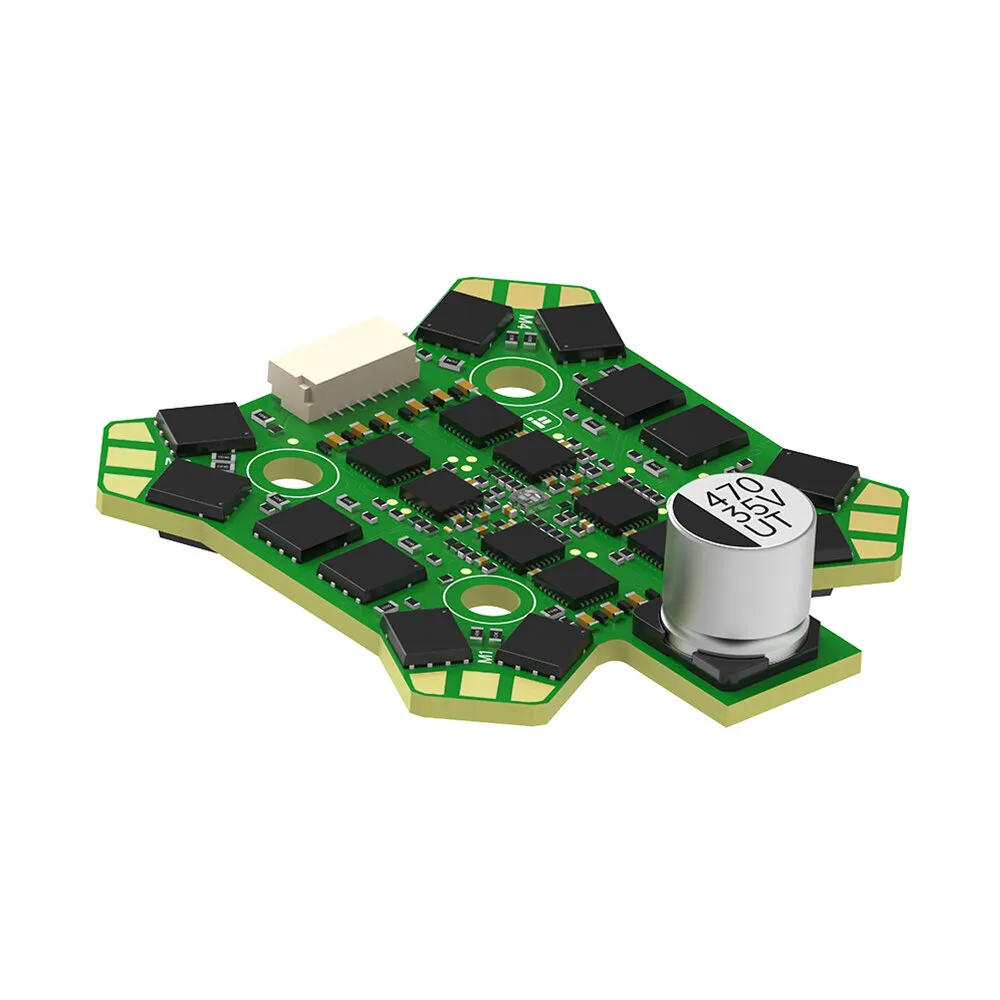

Product Name | BLITZ E55R 4-IN-1 ESC (G2) |
Input Voltage | 2-6S |
Max. Continuous Current | 55A |
Max. Burst Current | 65A |
MCU | G071 |
BEC | No |
Firmware | BLHeli32 |
Current Sensor | Yes |
Current rate | 200 |
Telemetry | Supported |
Target | IFLIGHT_BLITZ_G2 |
Mounting Holes | 20 x20 mm/Φ4mm |
Weight | 11.3g |
Protocol | Supports DShot150/300/600/MultiShot/ OneShot etc. |

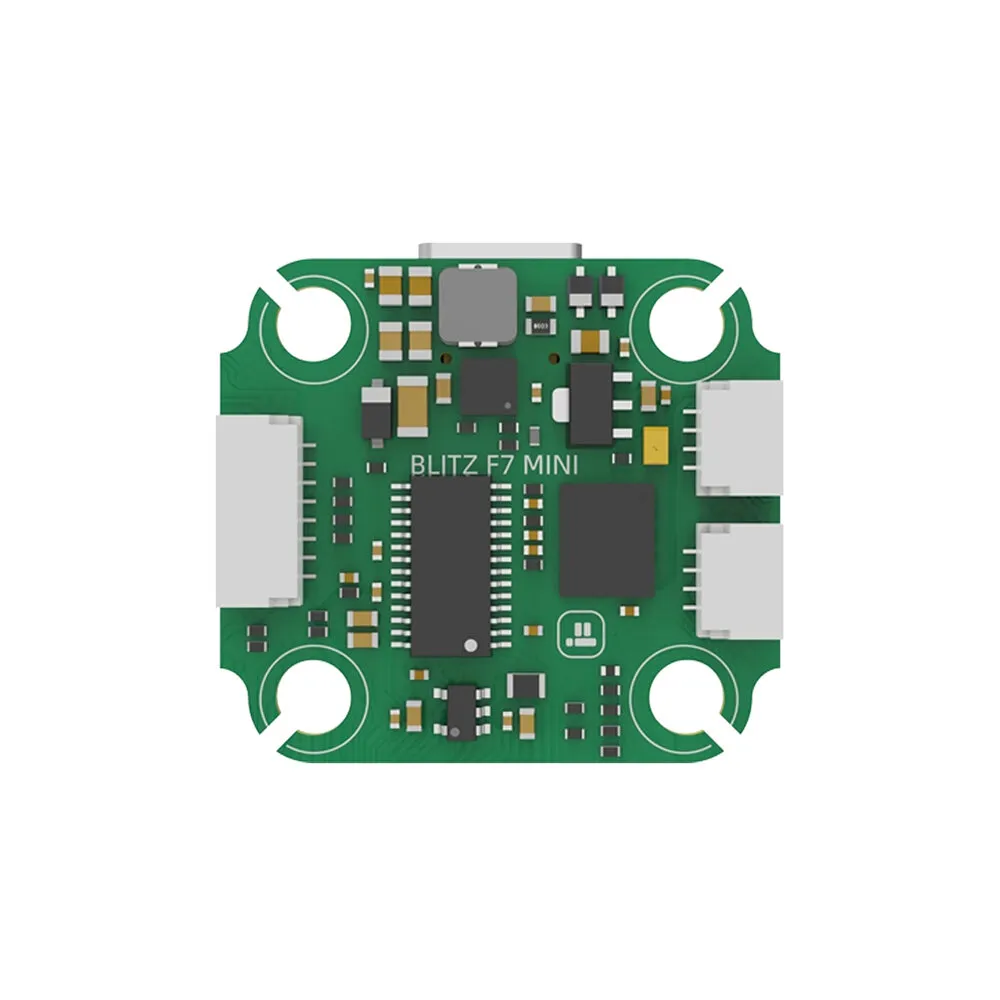

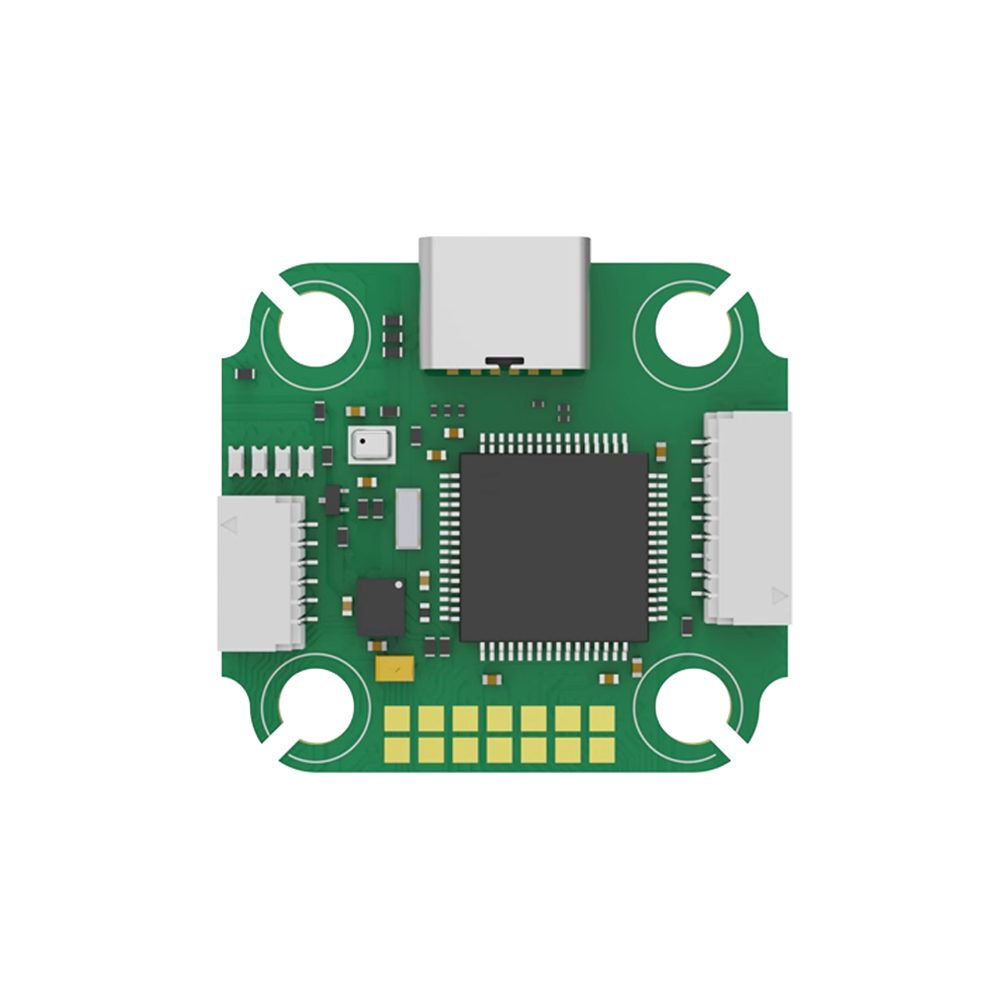

Product Name | BLITZ Mini F7 V1.1 Flight Controller |
MCU | STM32 F722 |
Gyro | BMI270 |
Barometer | DPS310 |
OSD Chip | AT7456 |
Flash | 16MB (Blackbox flash) |
UARTS | 6 |
Motor outputs | 4x (SH1.0 connector) |
I2C serial | SDA / SLA pads Smartaudio / IRC Tramp VTX protocol supported |
LED controller | Yes |
Beeper pad | Yes |
Firmware target | IFRC-IFLIGHT_BLITZ_F722 |
Mount pattern | 20x20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws |
Dimensions | 30.5x27 mm |
Weight | 5g |
Features:
Improved circuit design, better components and lower electrical noise!
DJI HD VTX Connector (Plug-and-Play / No soldering required)
FC indicator LEDs for visual debugging
BLITZ Mini F7 V1.1 Flight Controller Wiring Suggestion:
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemetry
Package Included:
| Flight Controller | 1 x BLITZ Mini F7 V1.1 Flight Controller 1 x FC connectors 1 x Silicon grommets |
| Brushless ESC | 1 x BLITZ E55R 4-IN-1 2-6S ESC 1 x Power cables & ESC signal wires |
| FC & ESC Stack | 1 x BLITZ Mini F7 V1.1 Flight Controller 1 x FC connectors 1 x Silicon grommets 1 x BLITZ E55R 4-IN-1 2-6S ESC 1 x Power cables & ESC signal wires |
