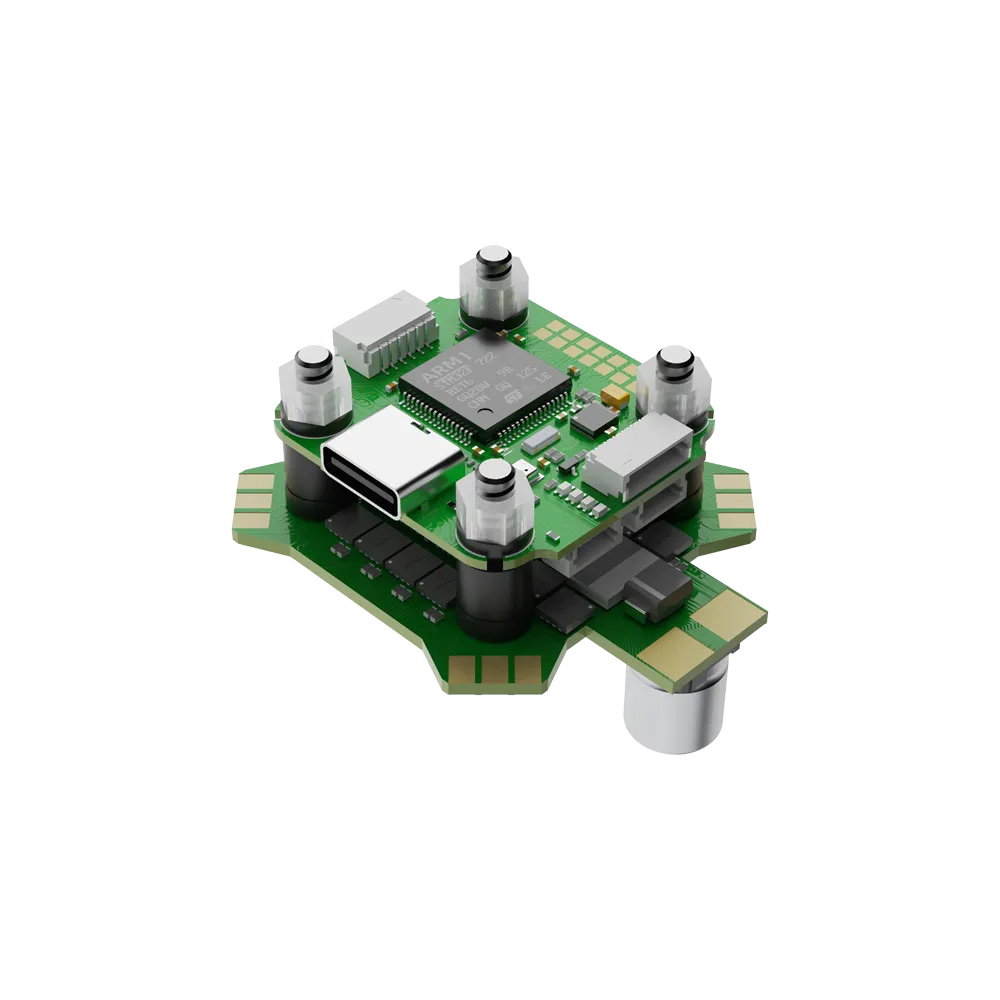

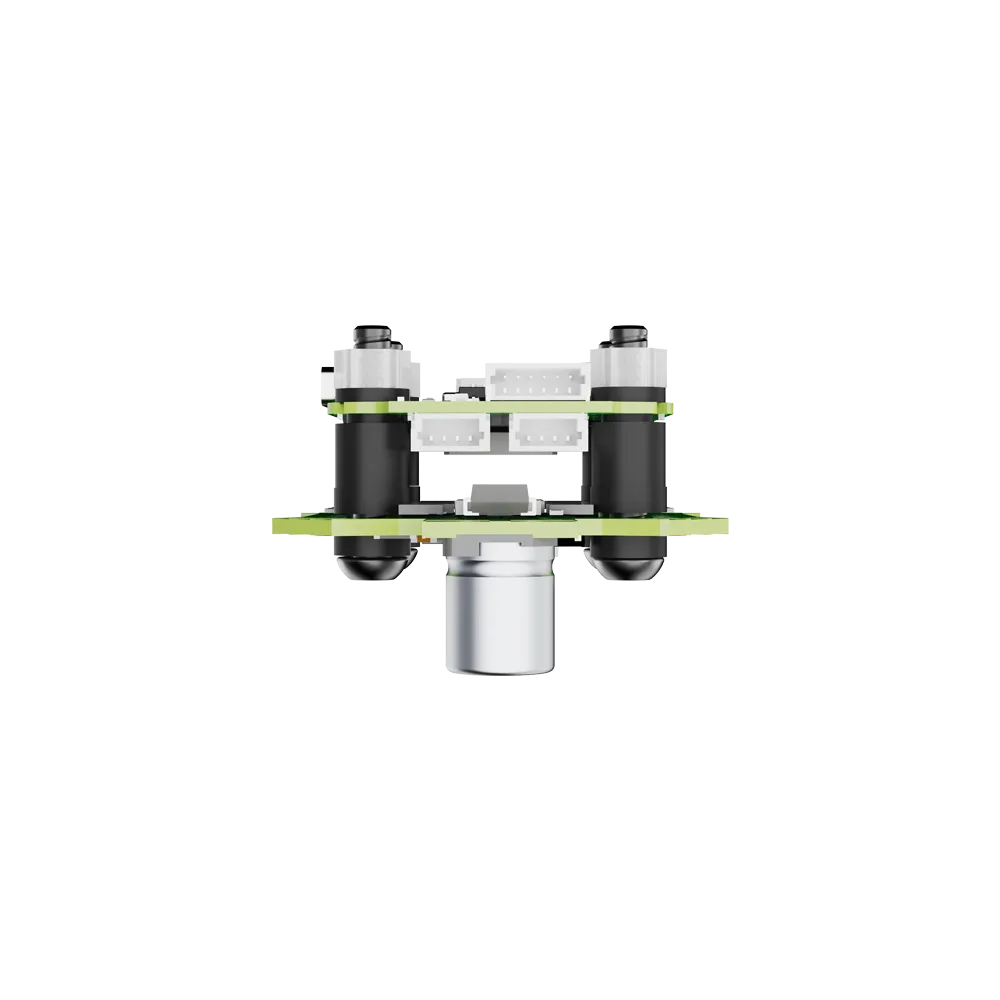

20x20mm iFlight BLITZ Mini F7 Flight Controller / BLITZ Mini E55 4in1 ESC BL_32 for Nazgul5 Evoque F5D / F5X RC Drone FPV Racing

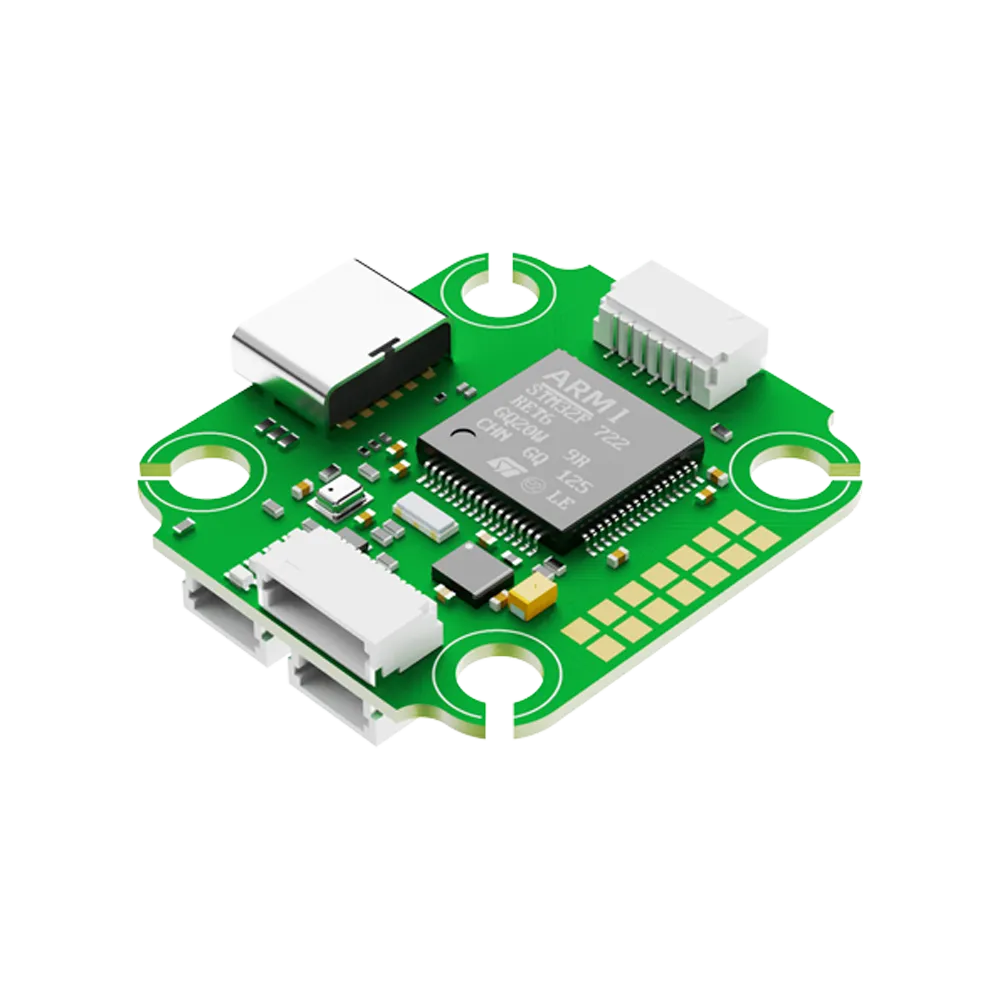

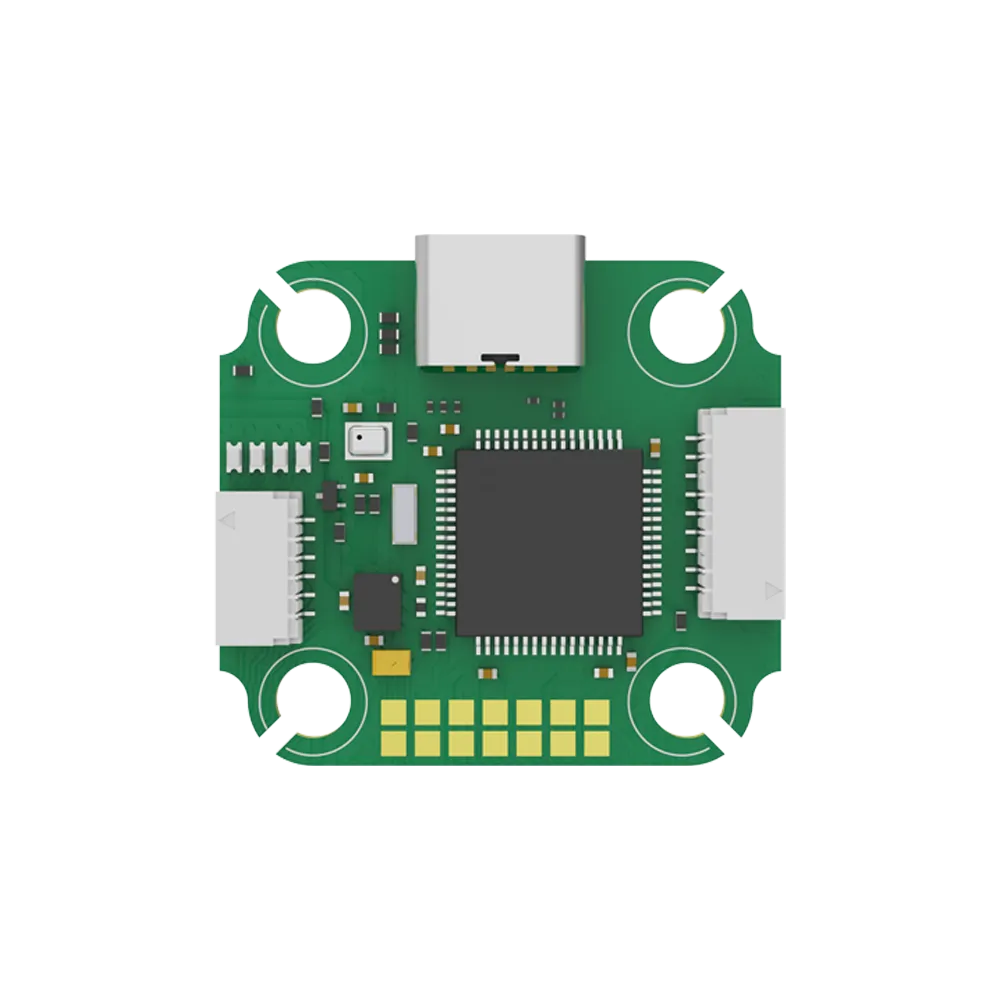

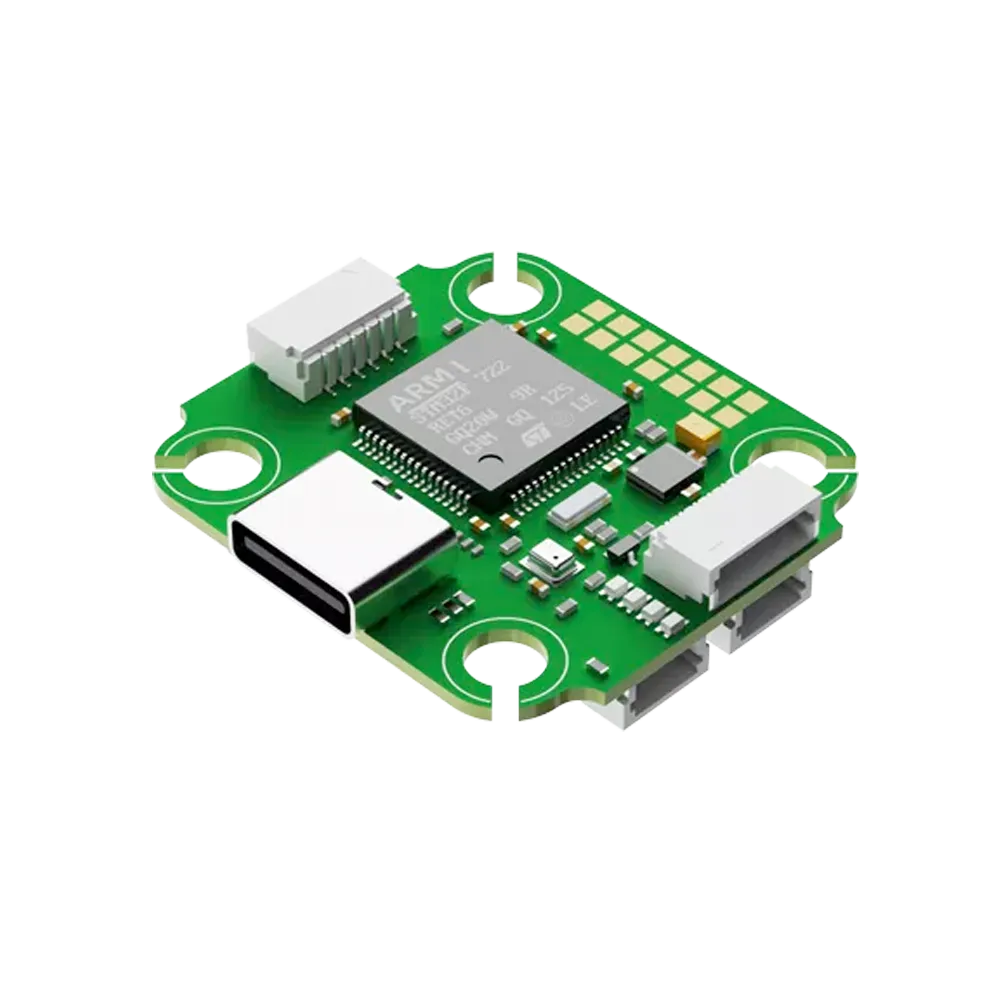

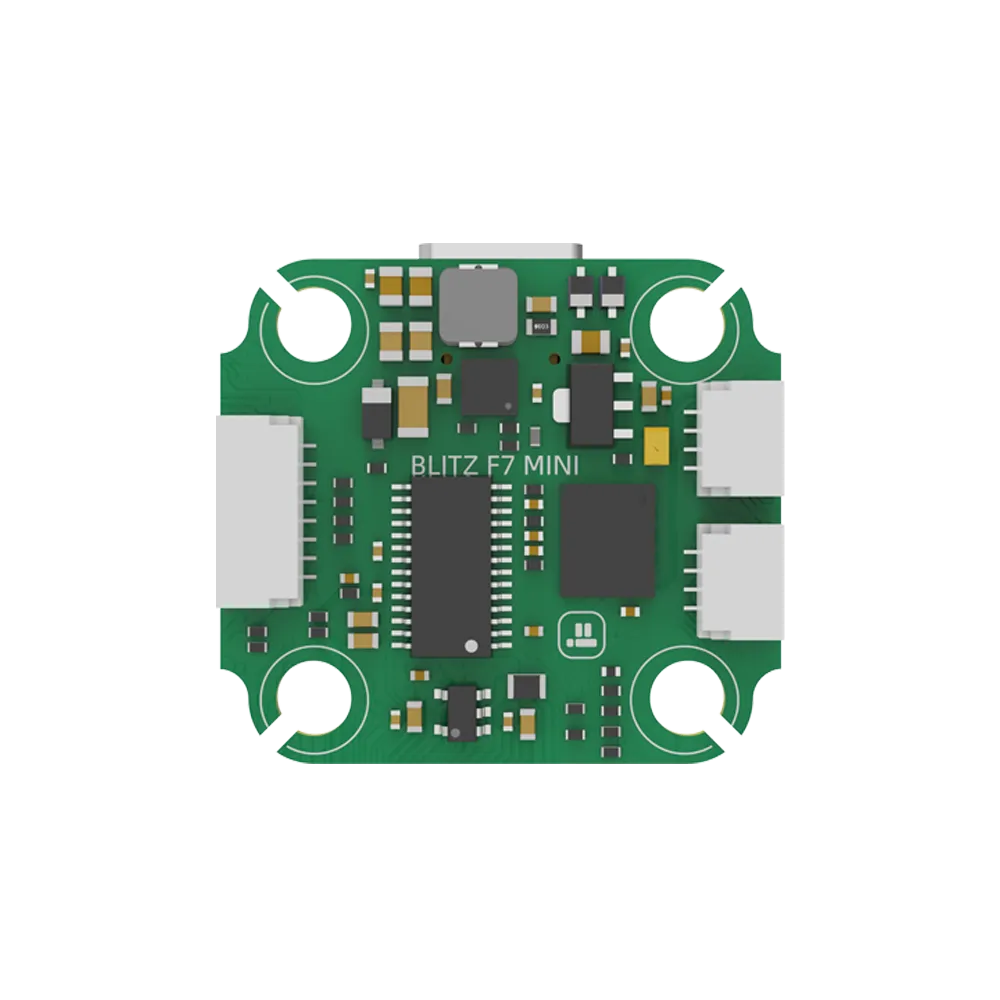

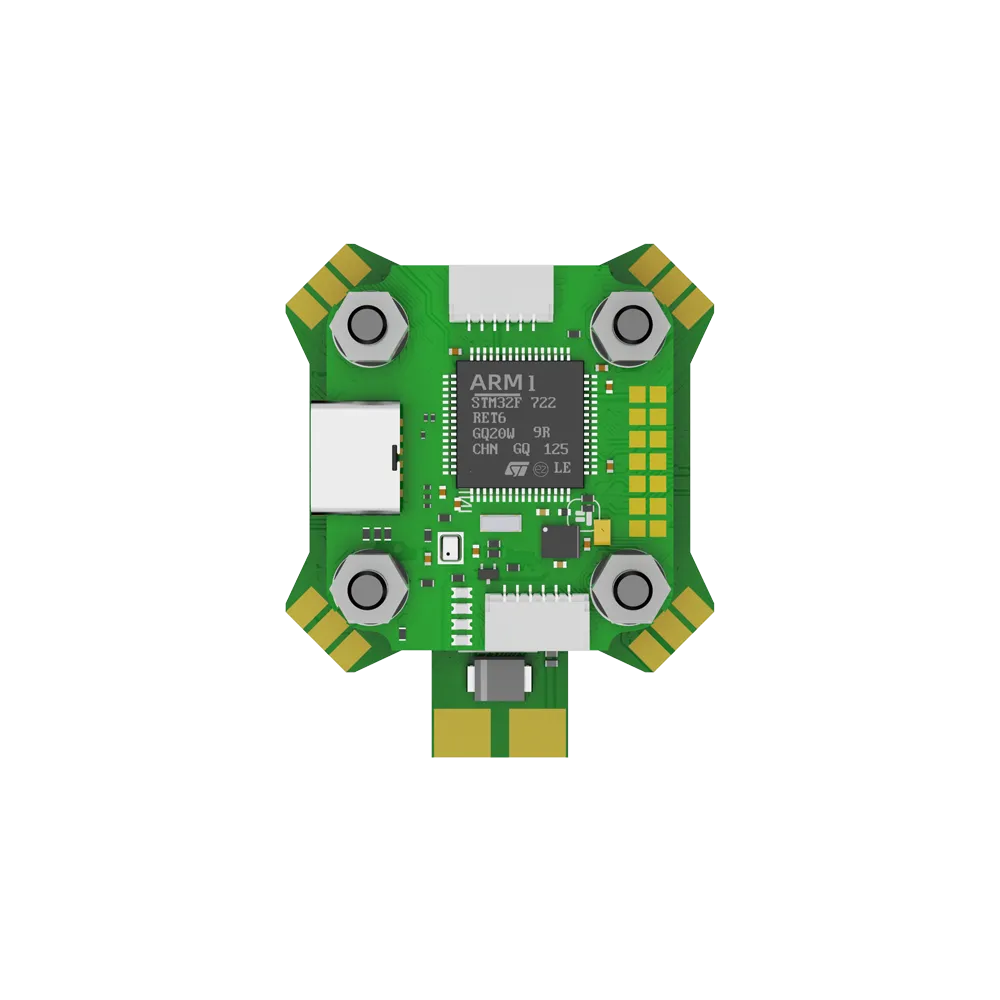

BLITZ Mini F7 Flight Controller

( Diagram Picture)

MCU: STM32 F722
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 20x20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
Dimensions: 30.5x27 mm
Weight: 5g

Wiring suggestion:
- UART 1 for VTX HD / Analog
- UART 2 for a Receiver
- UART 3/4/5 for GPS or other sensors that require a serial port
- UART 6 for ESC Telemetry

Top Features:
- Improved circuit design, better components and lower electrical noise!
- DJI HD VTX Connector (Plug-and-Play / No soldering required)
- FC indicator LEDs for visual debugging

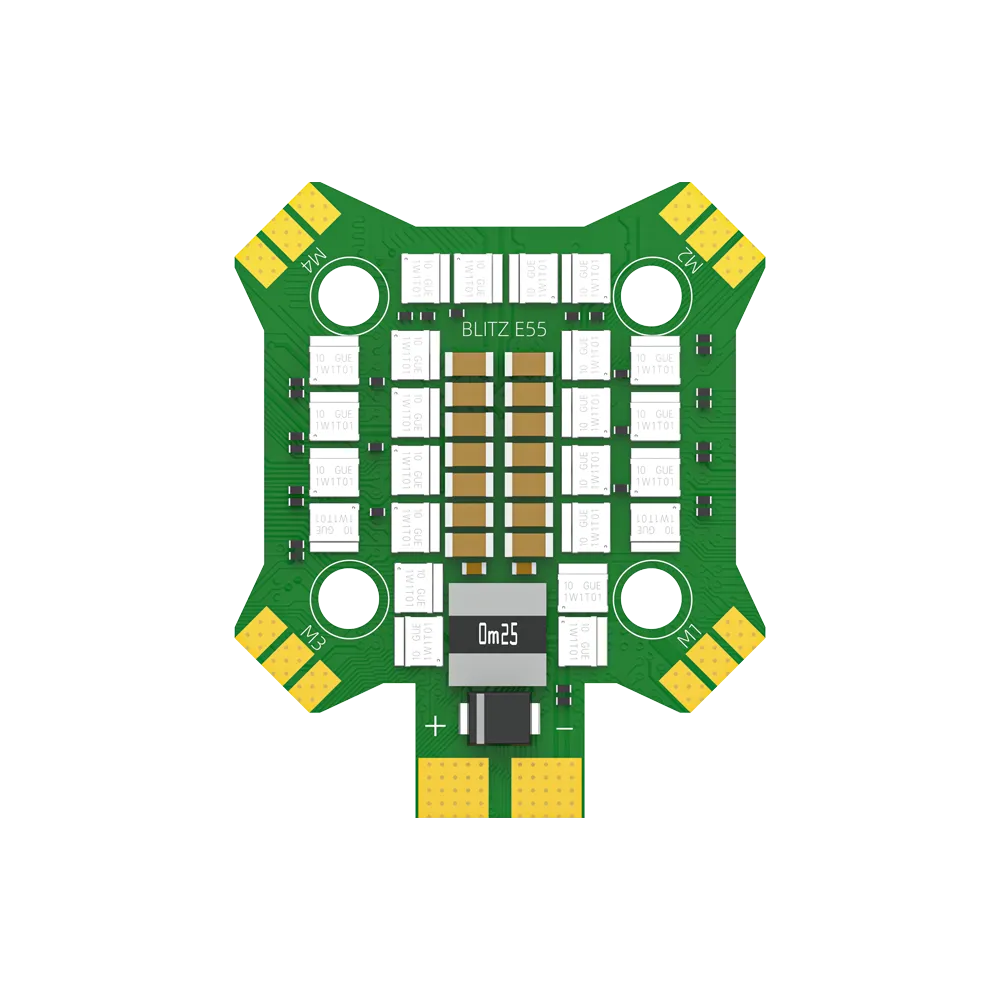

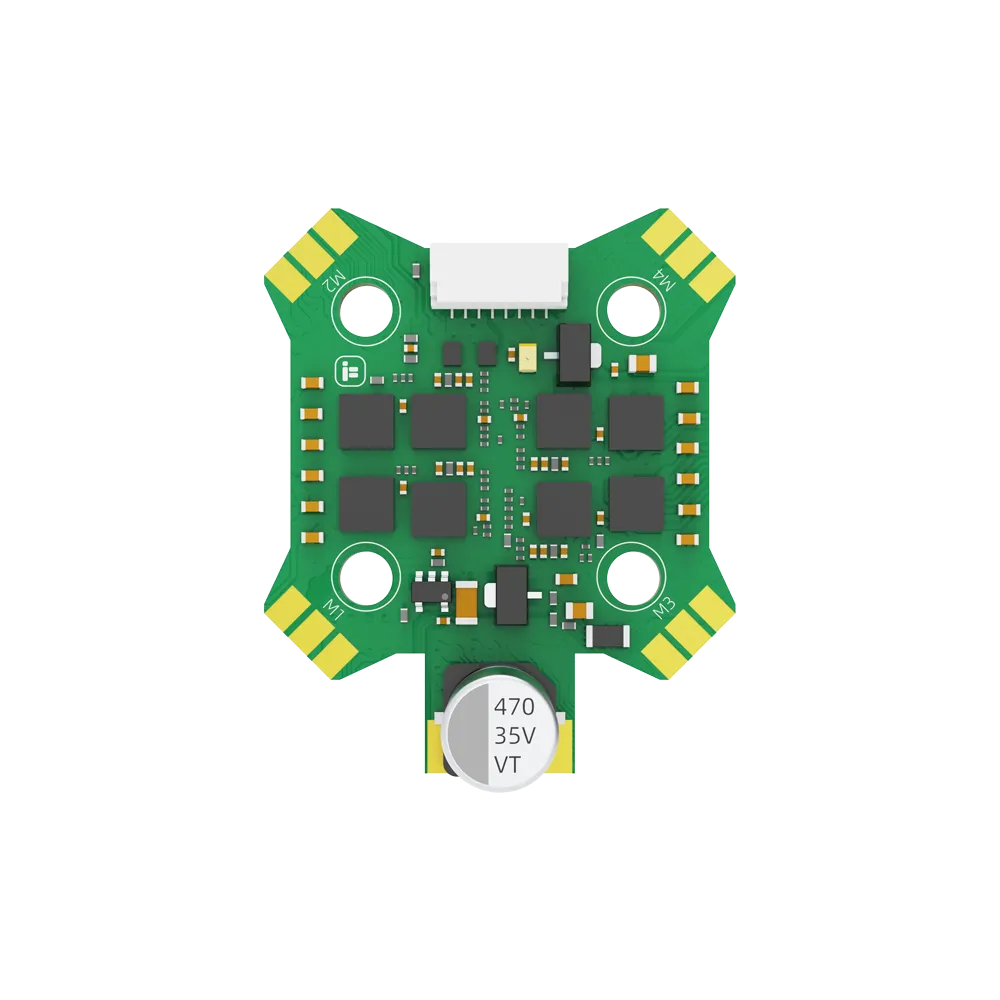

New BLITZ MINI E55 4IN1 55A 2-6S ESC

( Diagram Picture)

1x BLITZ Mini F7 V1.1 Flight Controller
1 set of FC connectors

1 set silicon grommets

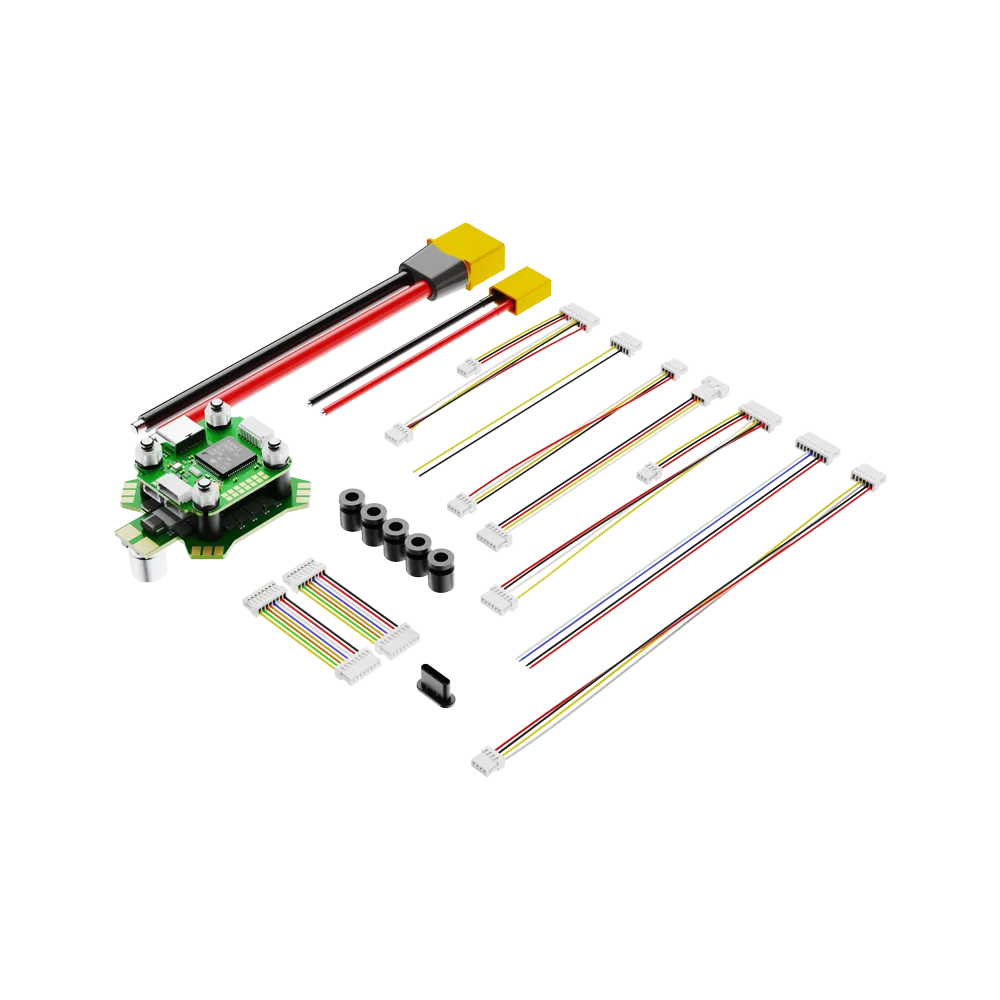

1x BLITZ Mini F7 V1.1 Flight Controller

1x BLITZ Mini E55 4IN1 ESC

1set x silicon grommets

1set x wire harness for F7 FC
