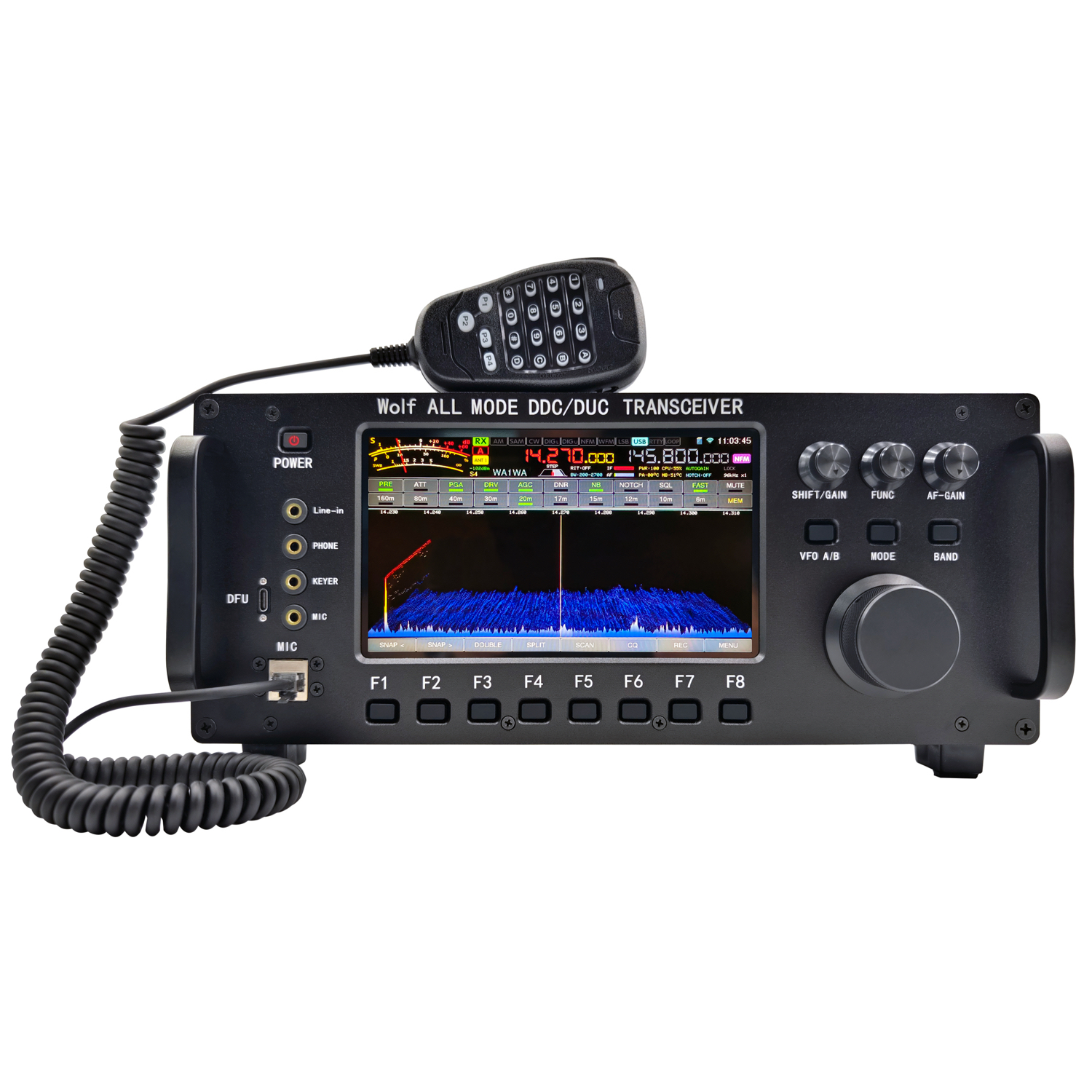

20W 0-750MHz Wolf All Mode DDC/DUC Transceiver Mobile Radio LF/HF/6M/VHF/UHF Transceiver for UA3REO with WIFI

• weight: 485 g

Features:
1. DDC/DUC technology and 0-750MHz full mode reception.
2. The most powerful FPGA! 3D spectrum and waterfall chart.
3. Large 7-inch capacitive touch screen enables multi-point touch. Support display in sunlight!
4. Built-in CW decoding and FT8 codec (no other equipment required).
5. Built-in wifi! Online radio display available after networking!
6. Built-in 16G TF card ! Multiple recordings and playback! Record and call. 5 recordings in CW mode.
7. OTA online upgrade! Or flash and upgrade via TF card.
8. Multi-scene mode selection! Fully open source software and hardware can be modified as needed.
9. Built-in USB sound card makes it convenient to connect.
10. All aluminum shell anodized.
11. With wifi, no tuner

Specifications:
- Receiving frequency: 0MHz-750MHz
- Transmission frequency: 0MHz-200MHz (amateur transmission) and 360Mhz-480Mhz (frequency multiplier)
- Transmit power (QRP++DB5AT version): 20W (shortwave) and 7W (VHF)
- Antenna type: Support two antennas to input
- Modulation type (TX/RX): CW, LSB, USB, AM, FM, WFM and DIGI
- Low noise amplifier (LNA)
- Adjustable attenuator: 0-31dB
- Band-pass filter
- ADC dynamic range (16-bit): ~100dB
- Supply Voltage: 13.8V (with over-voltage and reverse polarity protection)
- Receiving current: ~0.7A (3'2 QRP) and 0.9A (7' BIG)
- Transmitting current: ~2.5A+ (QRP) and 15A+ (BIG)

Package Included:
1 x Transceiver
1 x Handheld Mh-48 Microphone

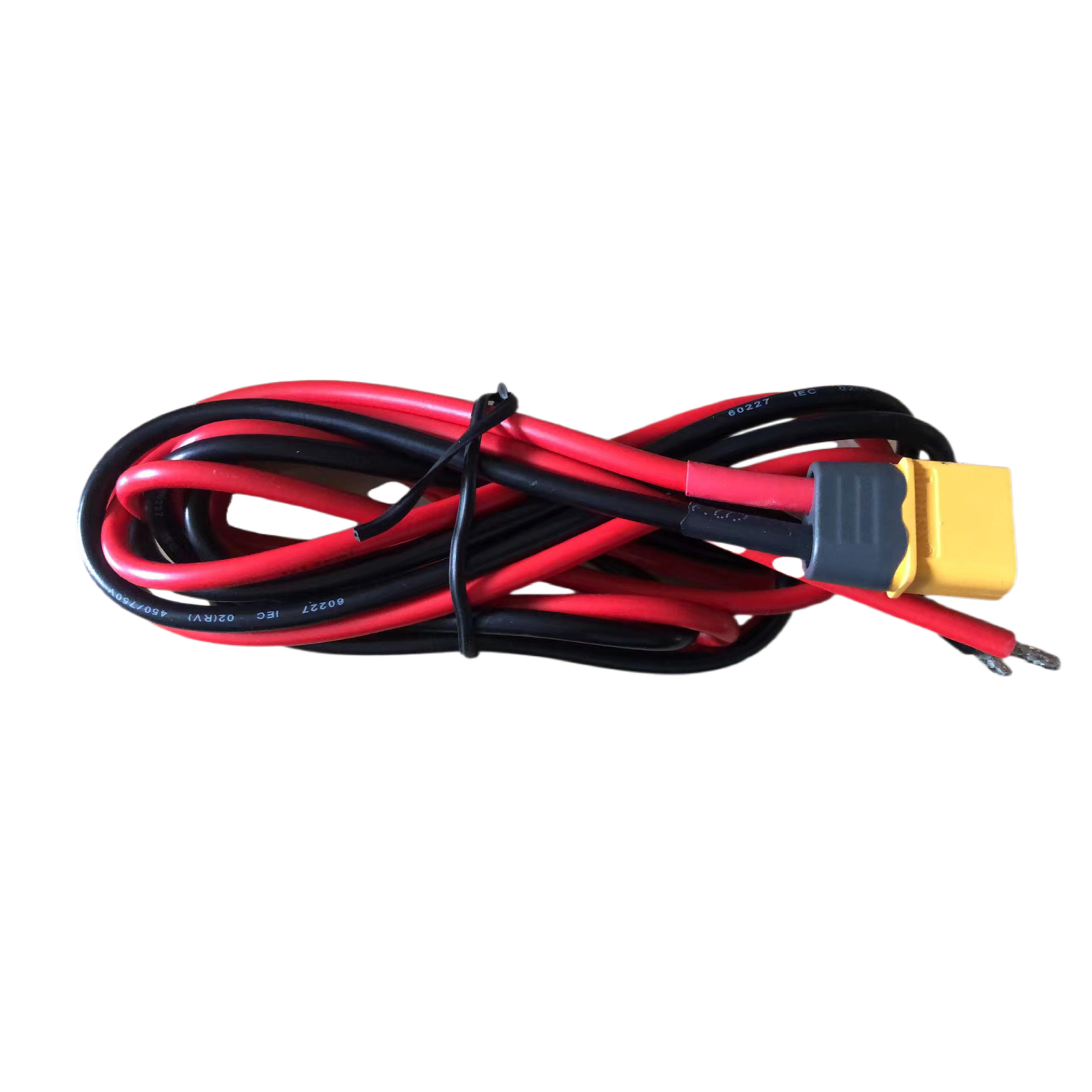

1 x Power Cable
