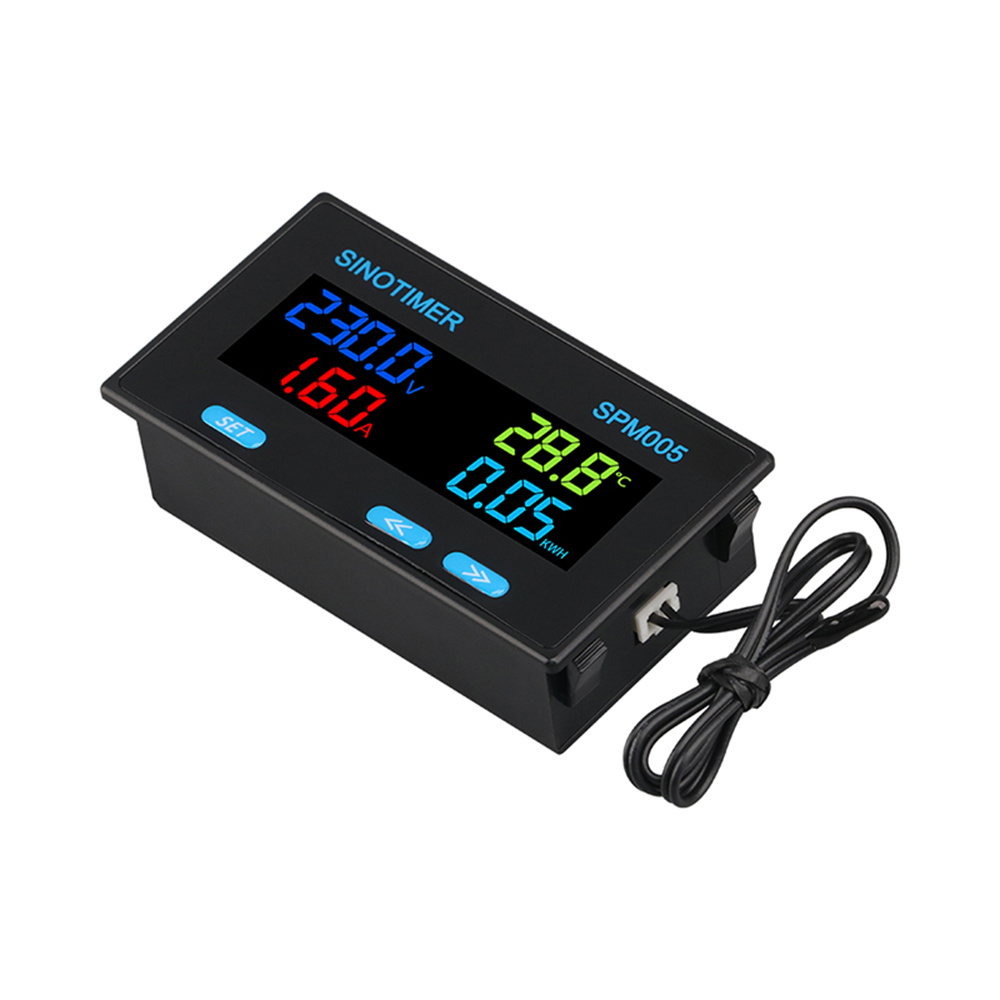

SINOTIMER SPM005 Multifunctional Power Meter High Accuracy LCD Display Measures Voltage Current Temperature Power 32-bit Operation

• weight: 485 g

Features:

Multi-Functional: The SPM005 is a comprehensive power instrument displaying eight crucial power parameters, including Voltage, Current, Temperature, Power, Power Factor, Operate Time, Frequency, and Electric Energy.

High-Resolution Display: It features a color LCD screen for a clear and comprehensive display of the power parameters.

High Accuracy: The instrument is designed to provide high precision readings. The multiple display modes allow for easy and convenient switches according to different needs.

Powerful Operation: Operated by a 32-bit single-chip computer, this instrument offers quick responses and accurate performance.

Specifications:

Brand: SINOTIMER

Operating Voltage: AC60.0-300.0V

Display Screen Size: 60*19mm

Refresh Rate: Three times per second

Voltage Scale: AC60-300V

Current Scale: 0-20.00A; 0-100.0A; 0-200.0A

Temperature Scale: -50.0℃ to + 200.0°C

Power Scale: 0.01W- 99999KW

Frequency Accuracy: 0.01Hz

Electric Energy Scale: 0.01KWH-99999 KWH

Timer Scale: 0.01H(hour)- 9999D(day)

Data Memory: Ten years

Ambient Temperature: -10℃~ +60℃

Humidity: Up to 85%RH (No condensation)

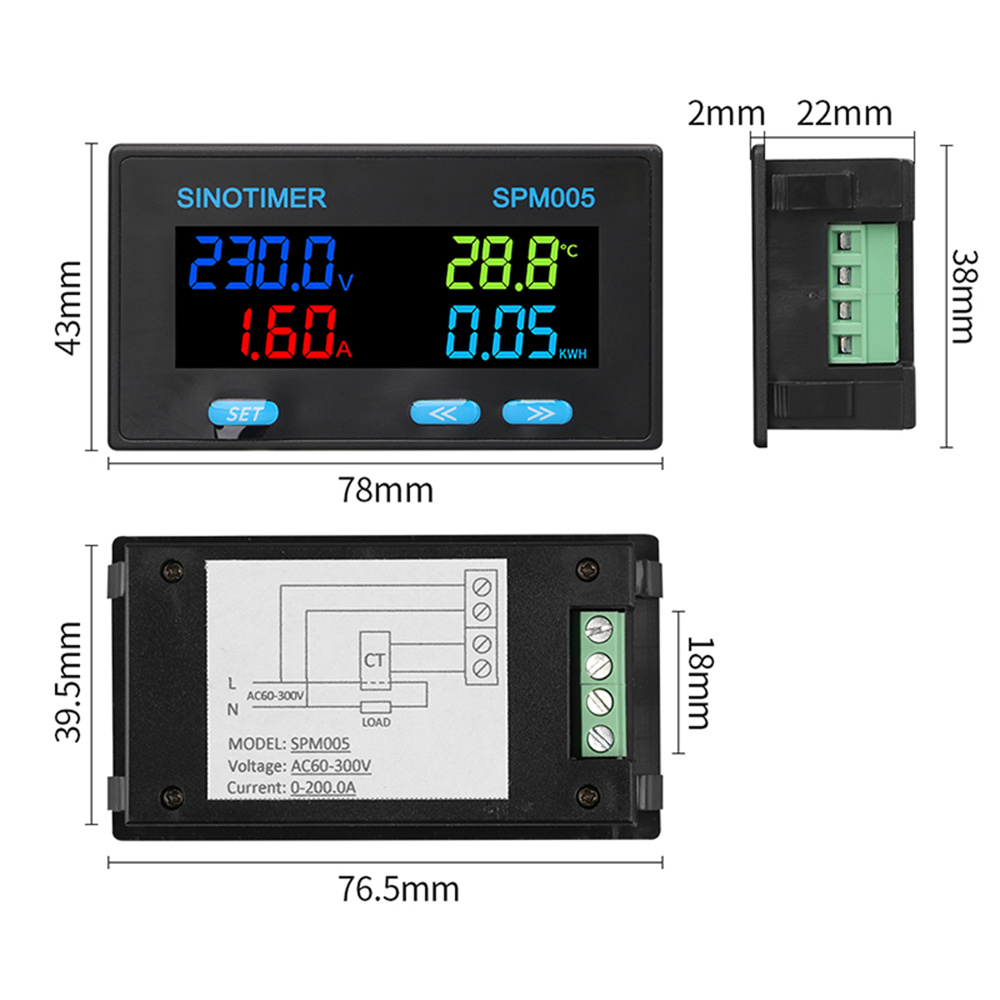

Size: 784323mm (rectangle)

Opening Size: 76.5*39.5mm (rectangle)

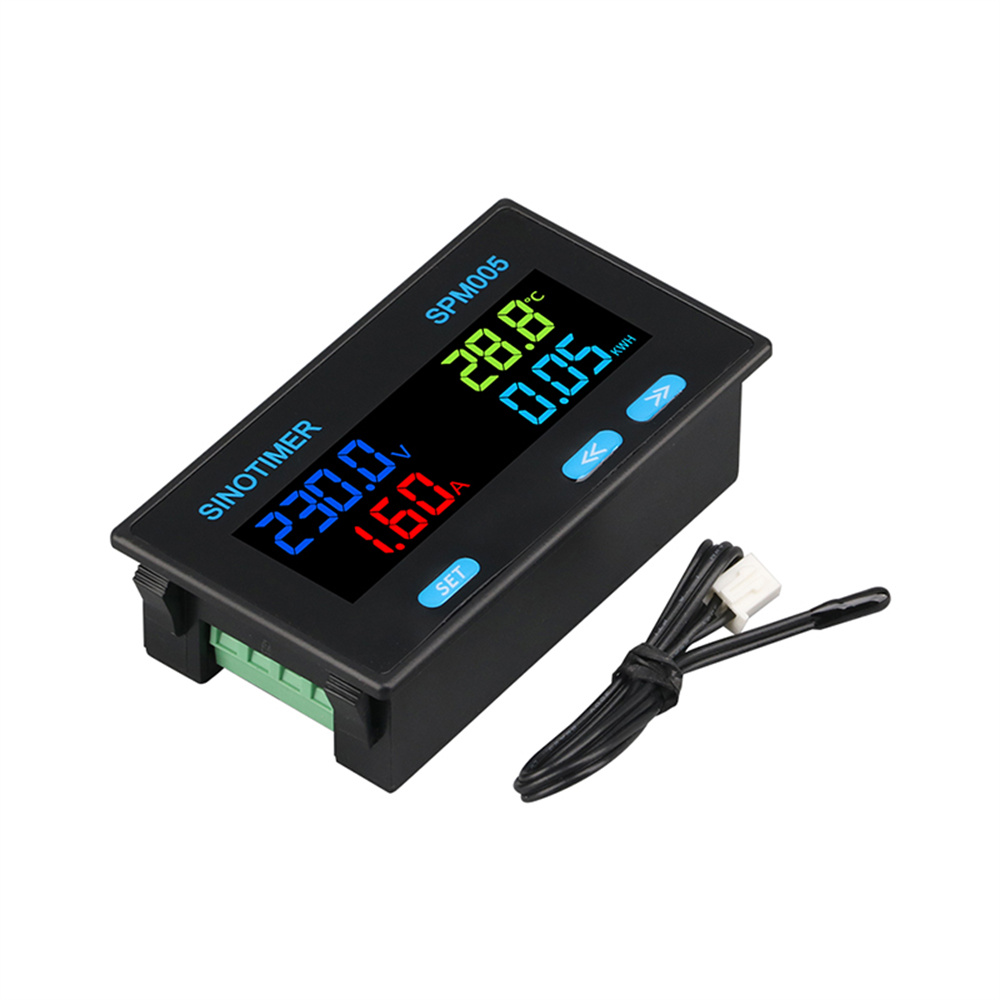

Sensor Length: 30cm

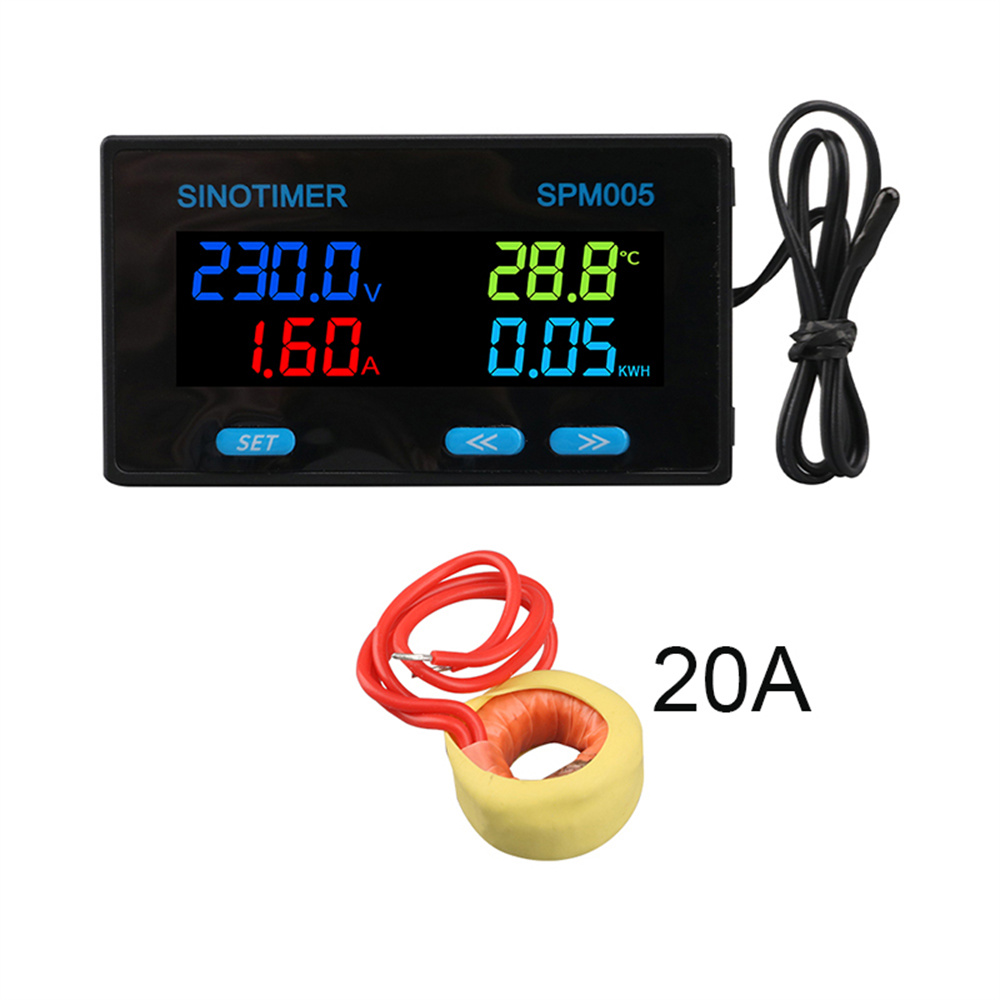

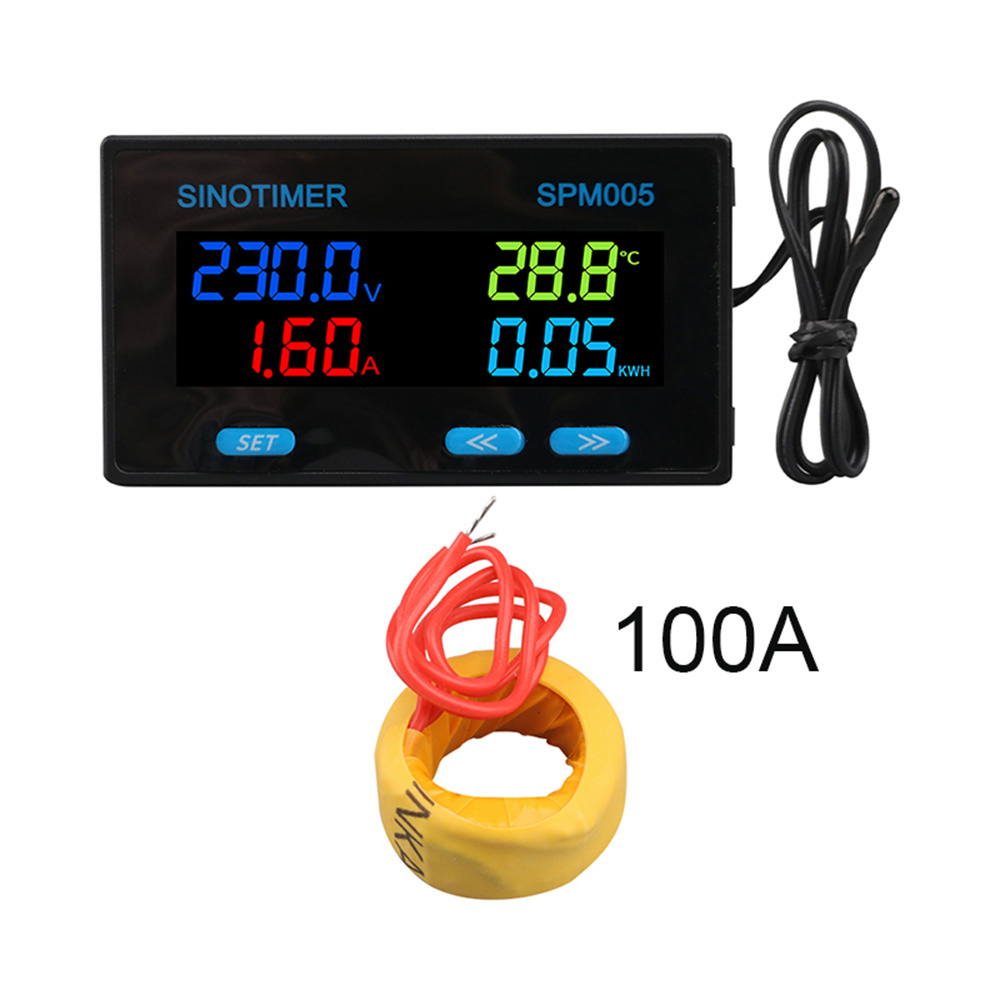

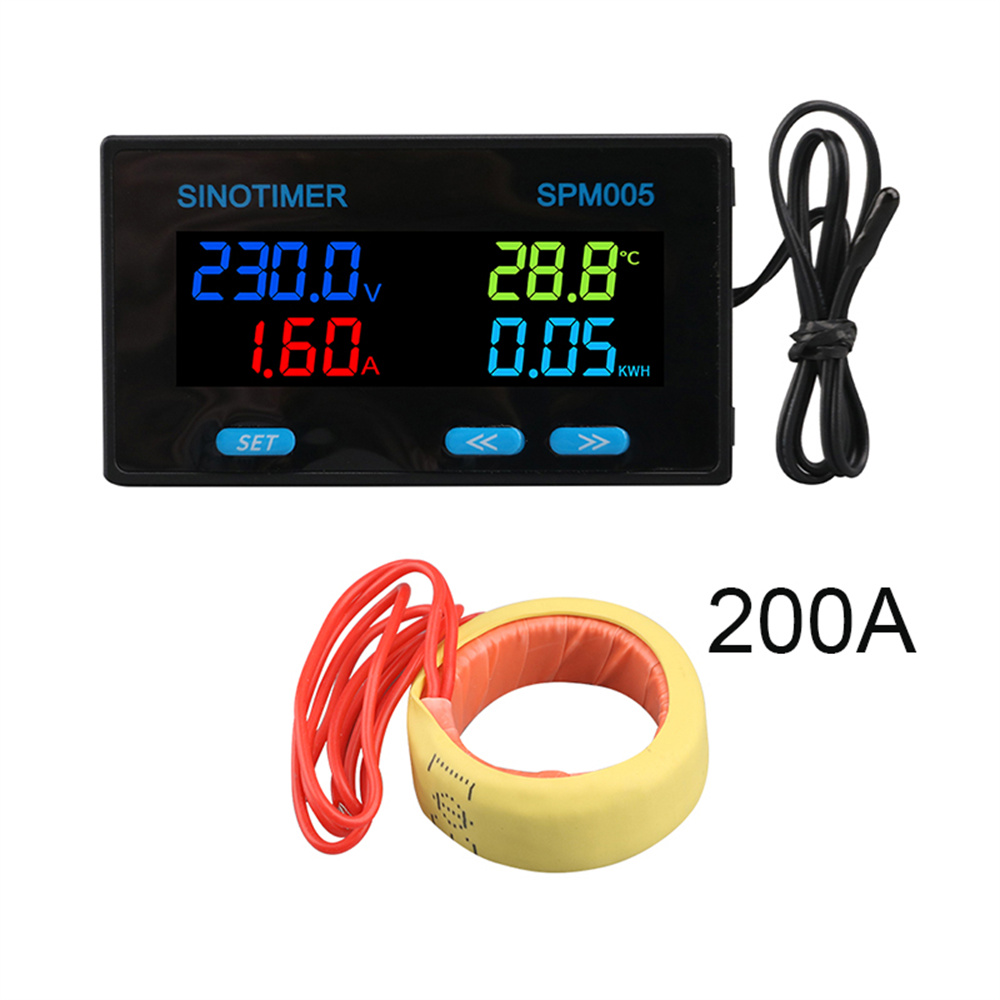

Optional Current: 20A / 100A / 200A

Package Includes:

1 x SPM005 Meter (Current as your choice)

1 x Current Transformer

1 x English Instruction Manual

Note:

Due to manual measurements, please allow slight measurement deviations. The actual color may vary slightly from the online image due to monitor color settings. If you have any issues or need further assistance, feel free to contact customer service.
