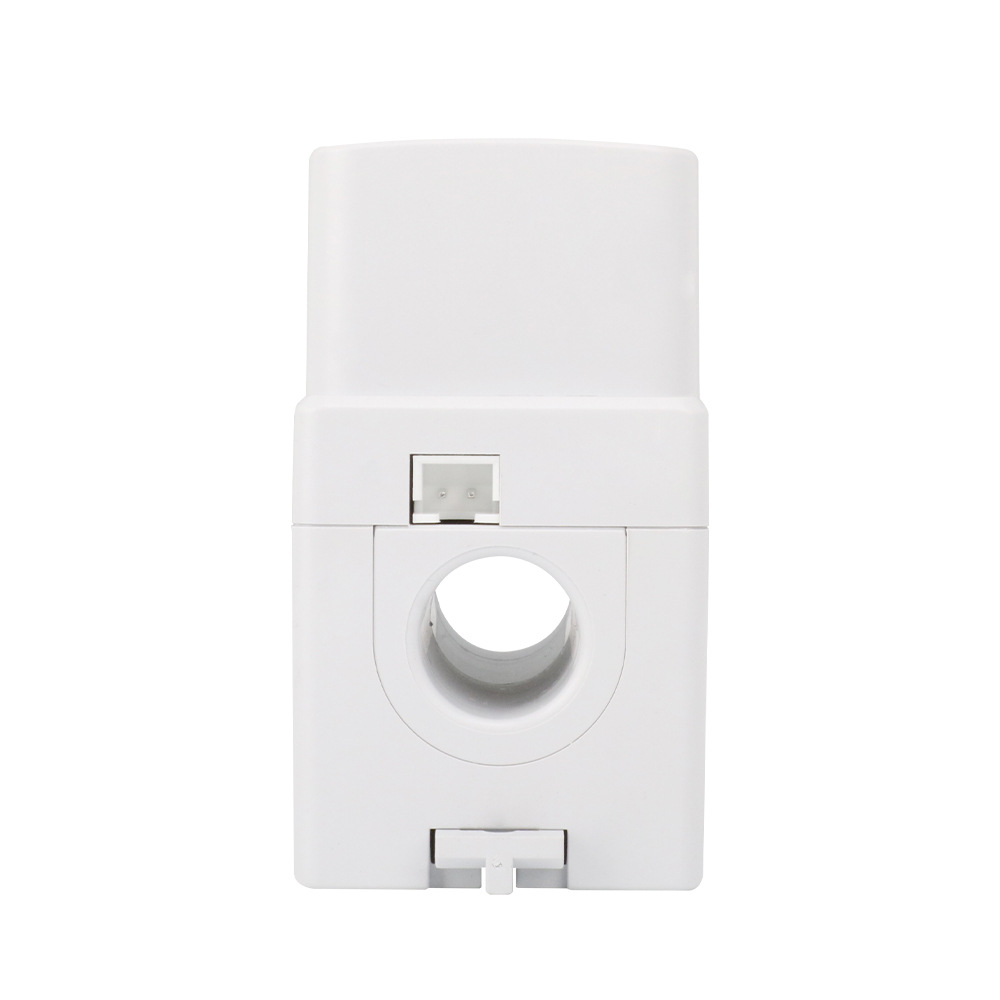

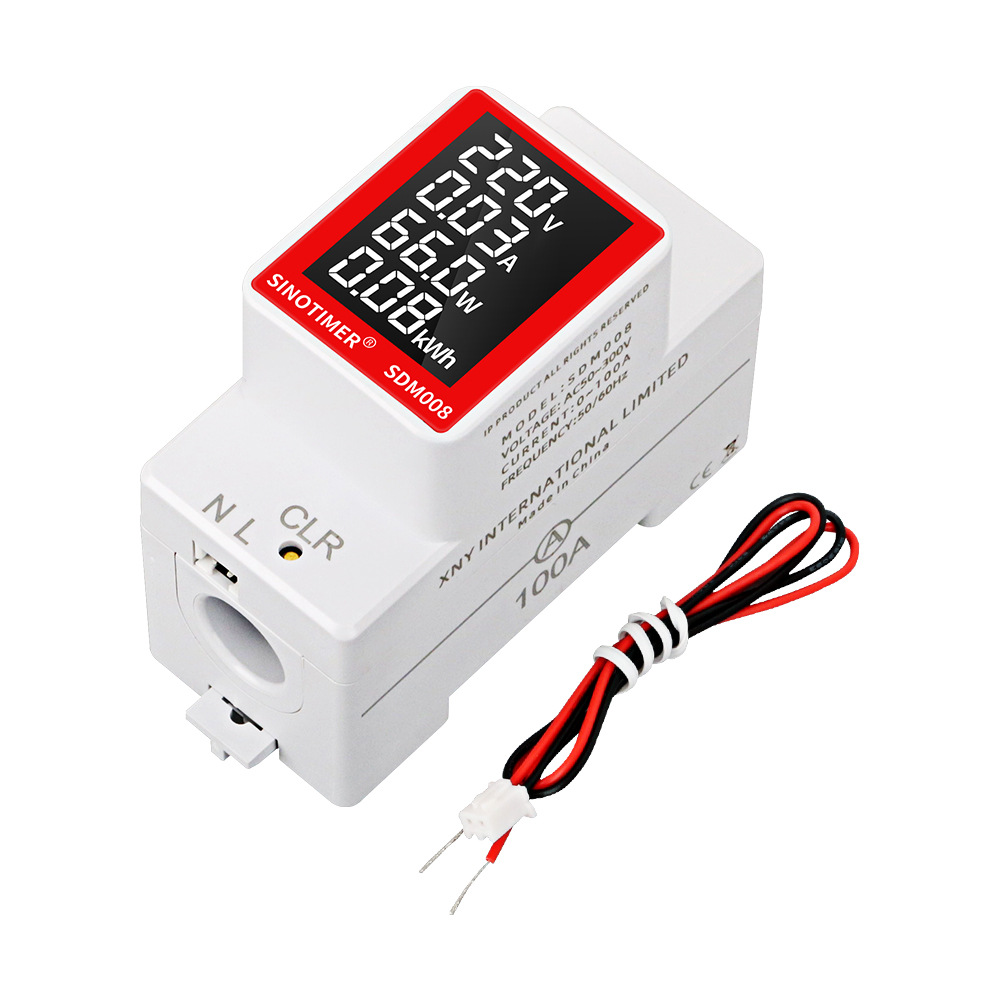

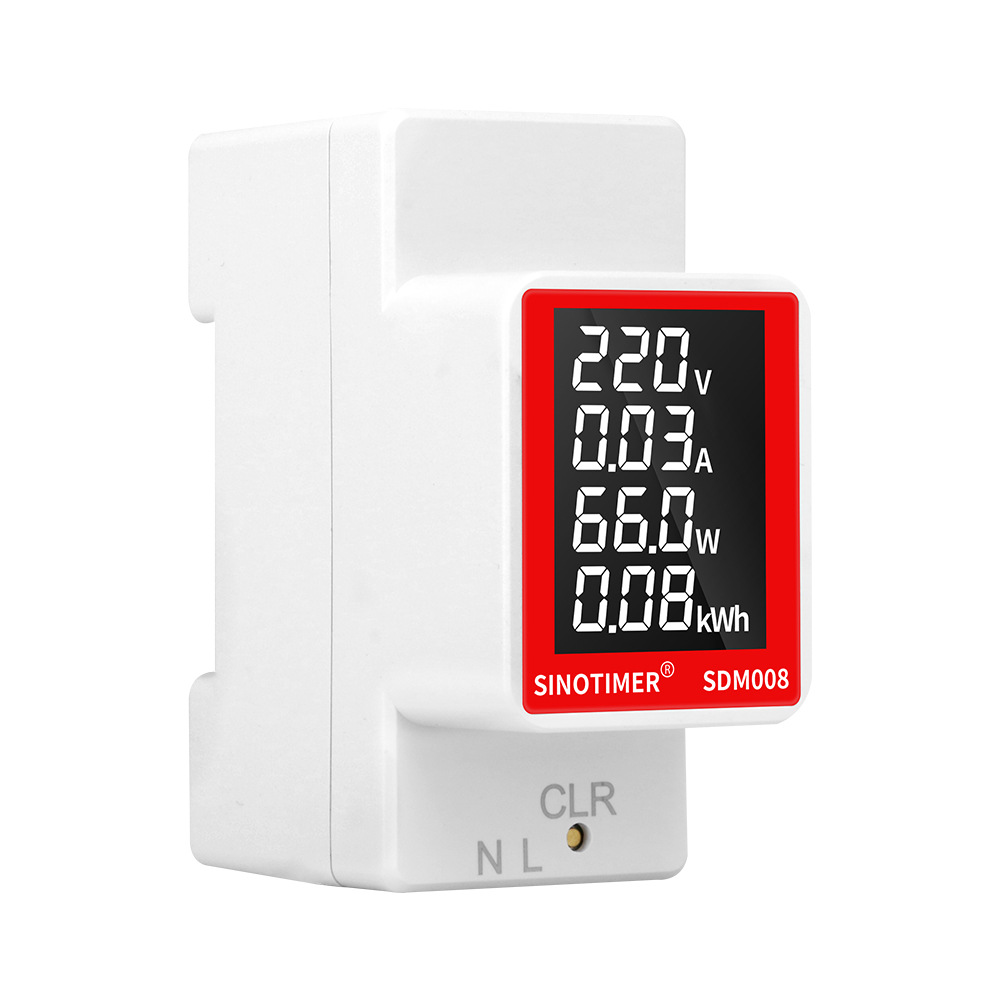

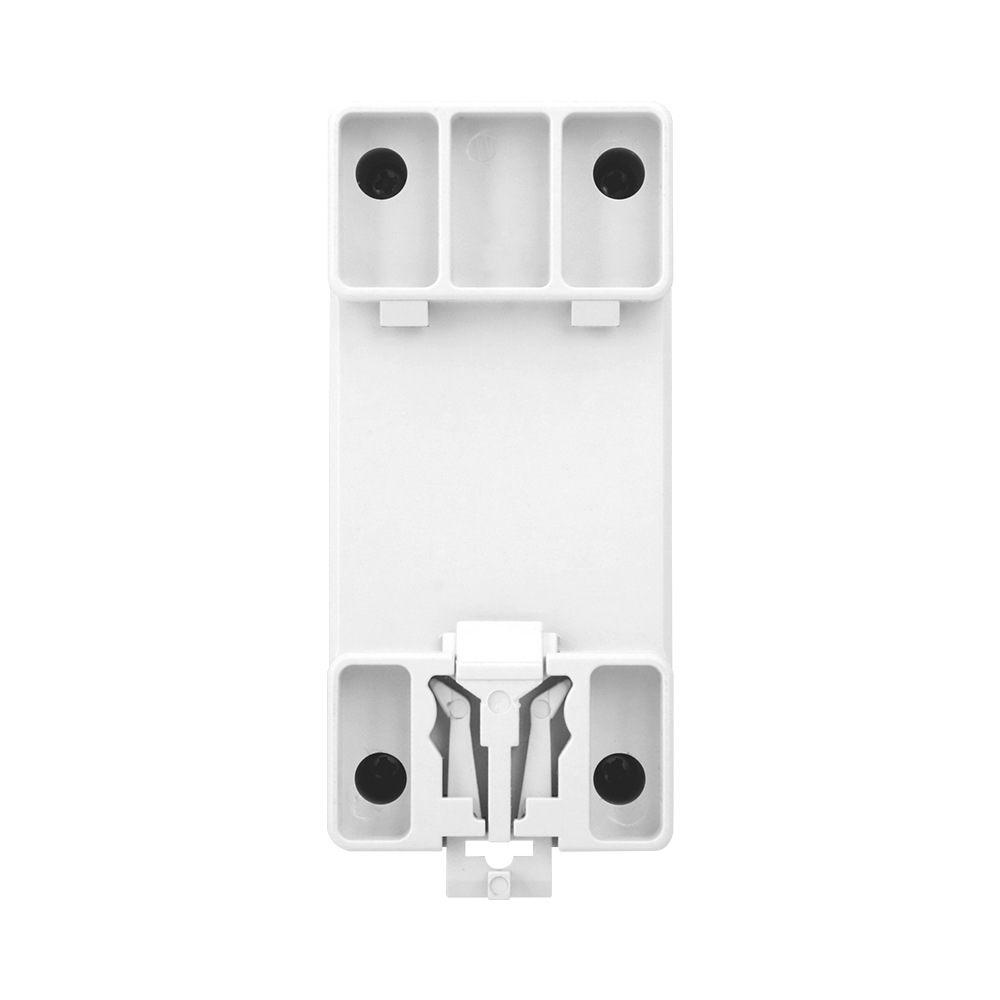

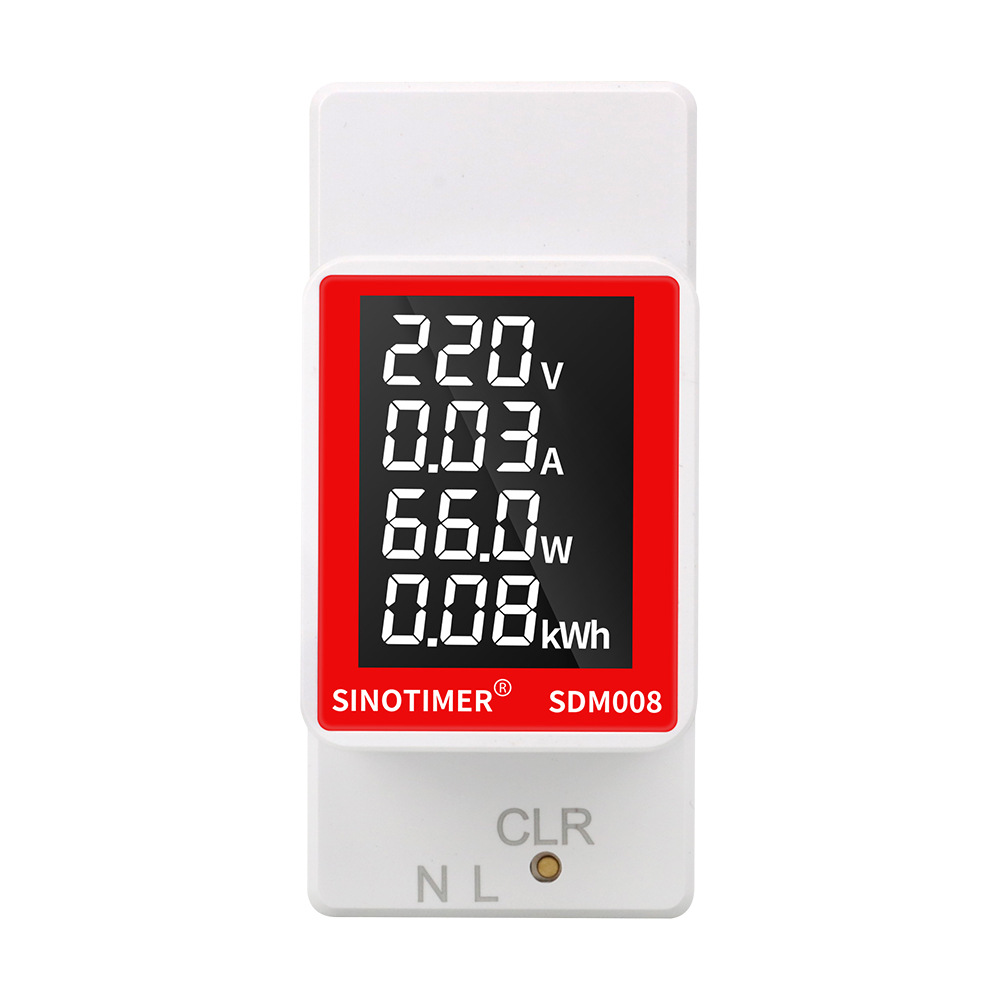

SINOTIMER SDM008 AC Din Rail Multifunctional Meter with LCD Display Measures AC Power Voltage (50-300V) Current (0-100A) Active Power (0-30kw) Energy Consumption (0-1999kwh) Ideal for Effective Energy Management and Consumption Monitoring

• weight: 485 g

Features:

Multifunctional Meter: The SDM008 Din Rail multifunctional meter provides accurate measurements of AC Power Voltage, Current, Active Power, and Energy consumption (kWh).



LCD Display: The device comes equipped with an LCD display for easy viewing of measurements.



Backlight Control: Backlight can be turned on or off as required, enhancing visibility in various lighting conditions.



Reset Energy Function: Easily reset energy readings with a simple long press of the key.



Data Storage: Don't lose your data during power off. The device saves energy data and backlight status when power is disconnected.



Specifications:

Voltage Measurement: Range: AC 50-300V, Starting test voltage: 50V, Accuracy: +/- 1%

Current Measurement: Range: 0-100A, Starting test current: 0.02A, Accuracy: +/- 1%

Active Power Measurement: Range: 0-30kw, Starting test power: 0.5w, Accuracy: +/- 1%

Energy Measurement: Range: 0-1999kwh, Accuracy: +/- 1%

Note: Display format and measurement accuracy varies as per the range of each parameter.



Package Included:

1 x AC Din Rail Multifunctional Meter

1 x 2-pin Cable

1 x User Manual
