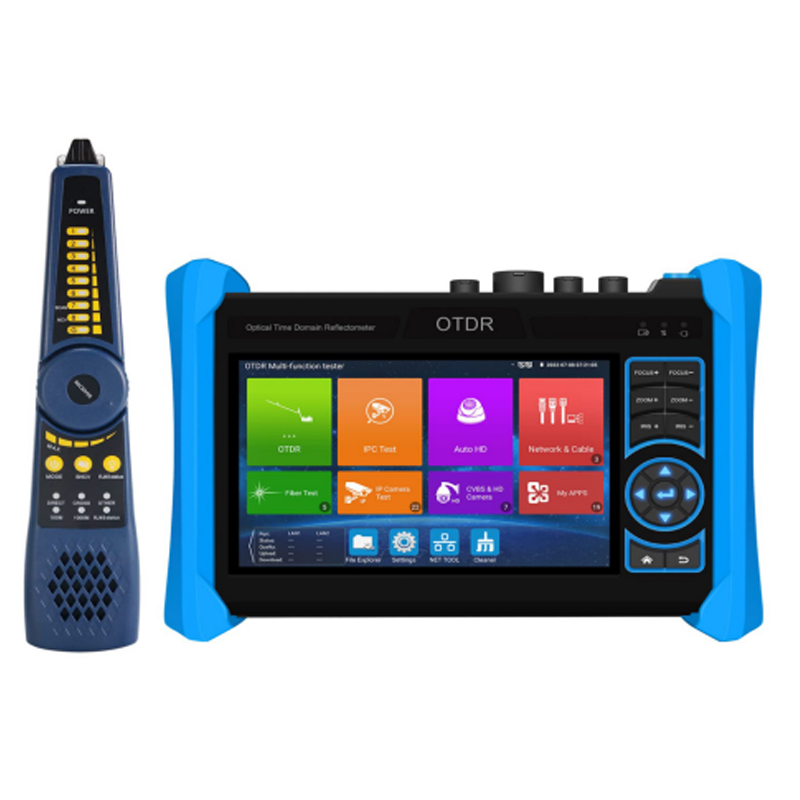

NetMaster MT6810 OTDR Network Coaxial Cable Tester with Fiber Optic Fault Locator Efficiently Locate Cable Breaks and Obstructions
| Qty: | 4-7 | >=8 |
| Price: | 0.00 | 0.00 |
- weight: 485 g
Features:
5.4 inch IPS touch screen display with 1920 x 1152 resolution

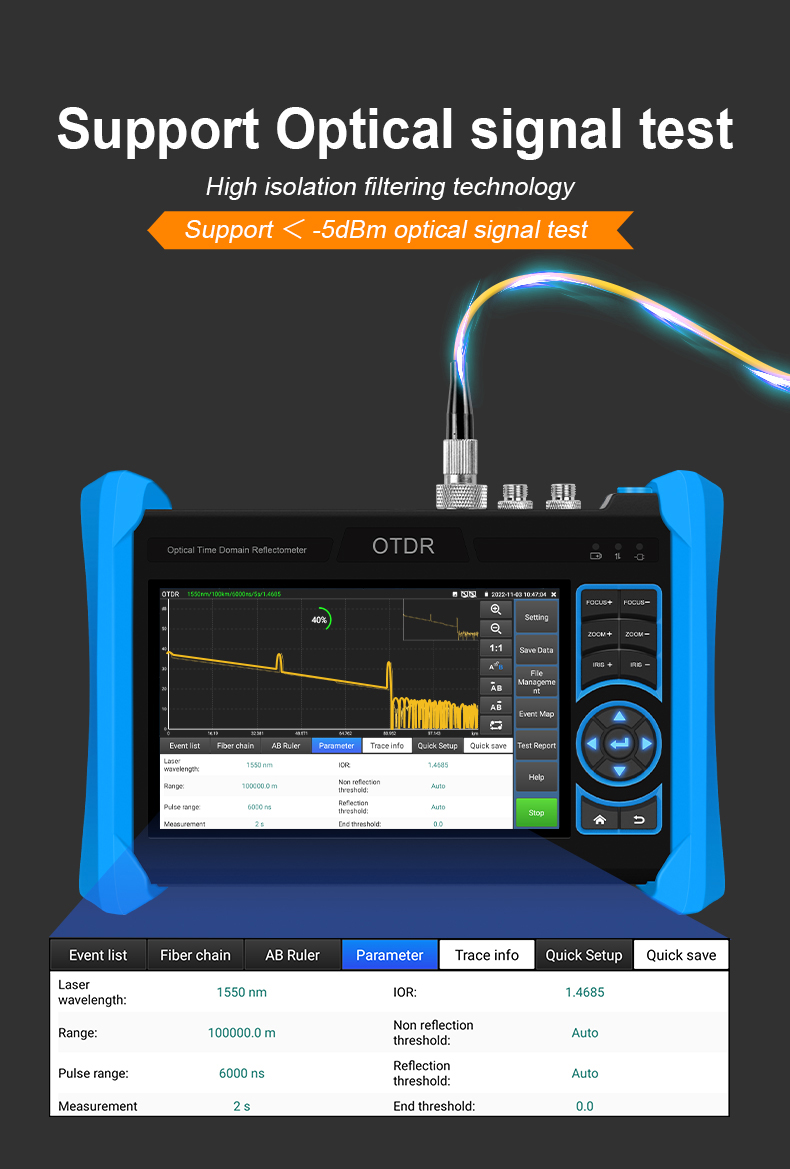

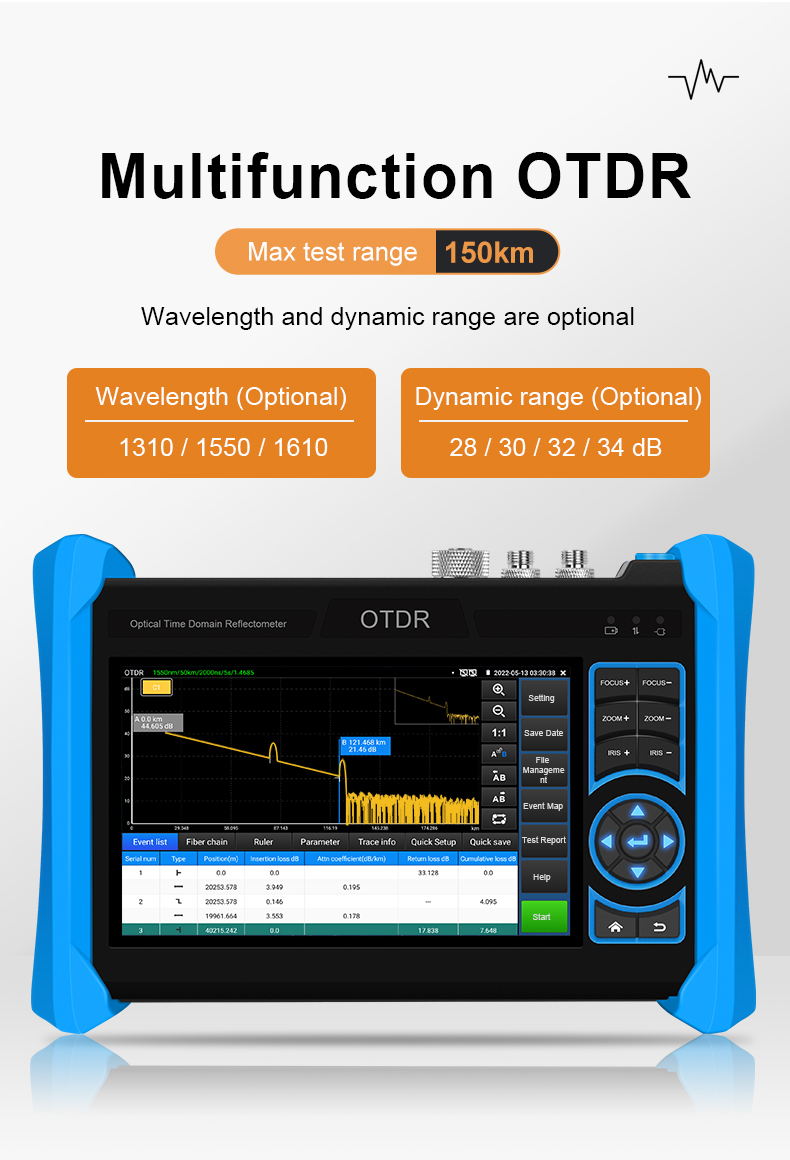

OTDR functionality for fiber length, loss, attenuation parameters, and event mapping
Supports wavelength options of 1310/1550 (Model 1) or 1610 (Model 2)
Dynamic range of 28/26dB (Model 1) or 28dB (Model 2) with a maximum test range of 150 km
Stable laser source with CW/270/330/1000/2000Hz support

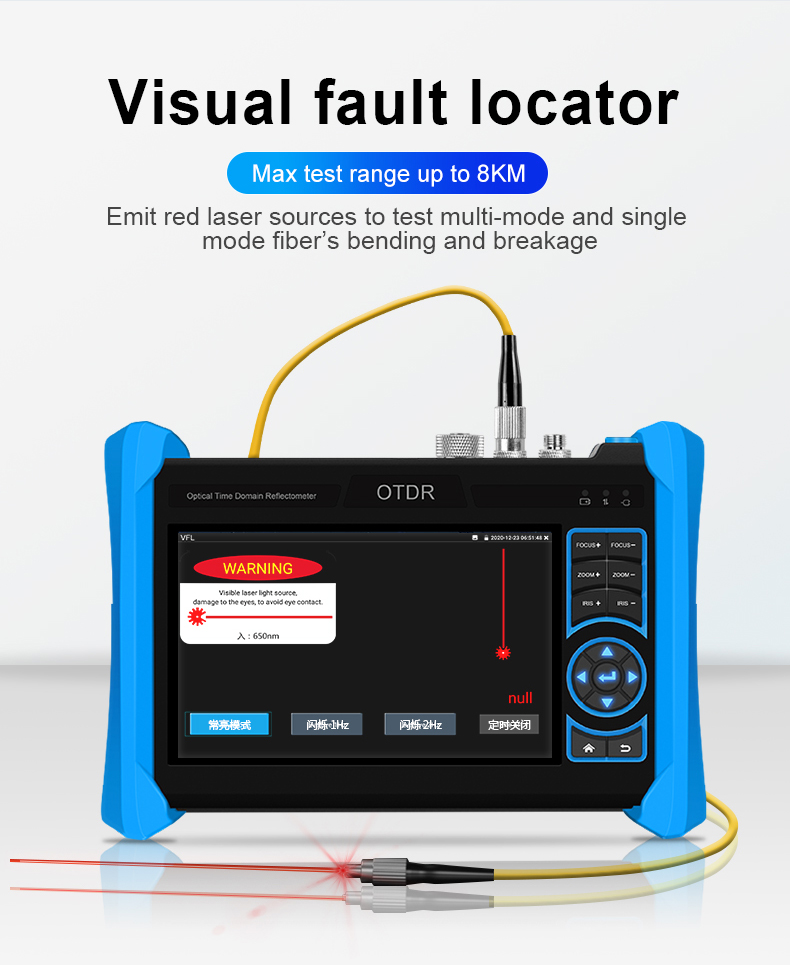

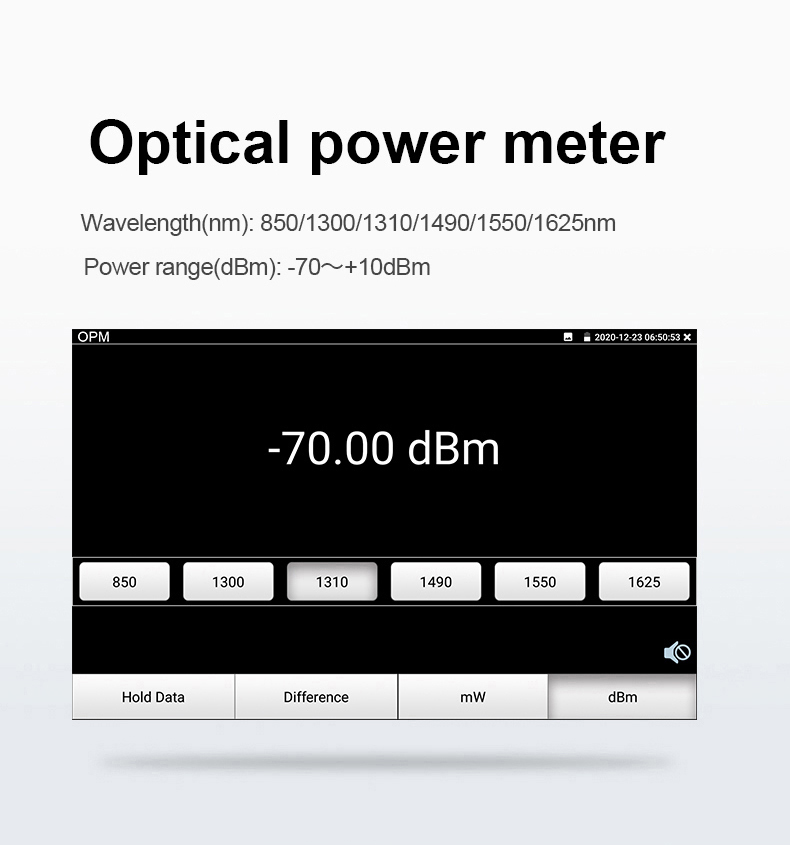

Optical power meter and visual fault locator included
Automatic analysis of various linkers/fusion points for easy event analysis
Testing curves can be saved, viewed, zoomed, and moved with support for viewing details
Curves storage capacity of ≥30,000 pcs
Create testing reports in EXCEL, PDF, or screenshots format, including curve trajectory graphs, parameter settings, fiber event information, and fiber link information

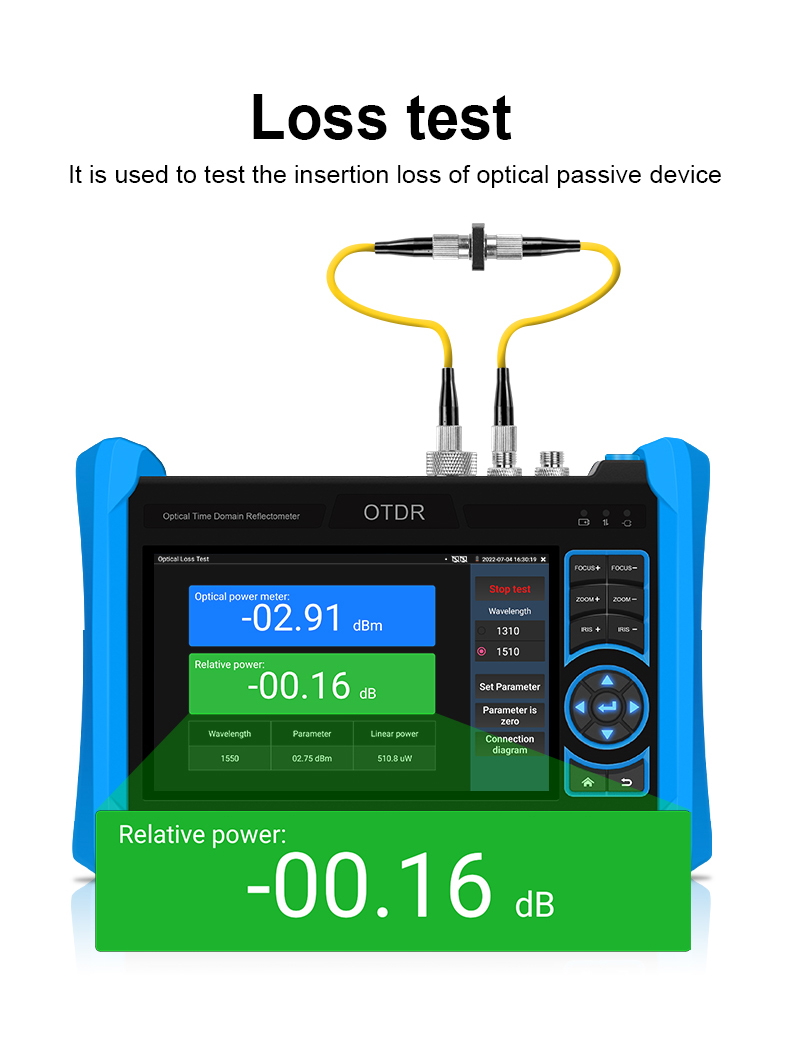

Loss test feature to detect optical or optical component loss value
Camera testing capabilities for various formats (TVI, AHD, CVI) with support for audio testing
Supports 8K H.265 video display, 4K 60FPS HDMI input, 4K 30 FPS HDMI output, and VGA input
IPC TEST PRO app for easier operation
Rapid ONVIF for quick camera setup and testing
Compatibility with AXIS, Hikvision, and non-ONVIF cameras
Chrome browser support for testing and setting Axis cameras

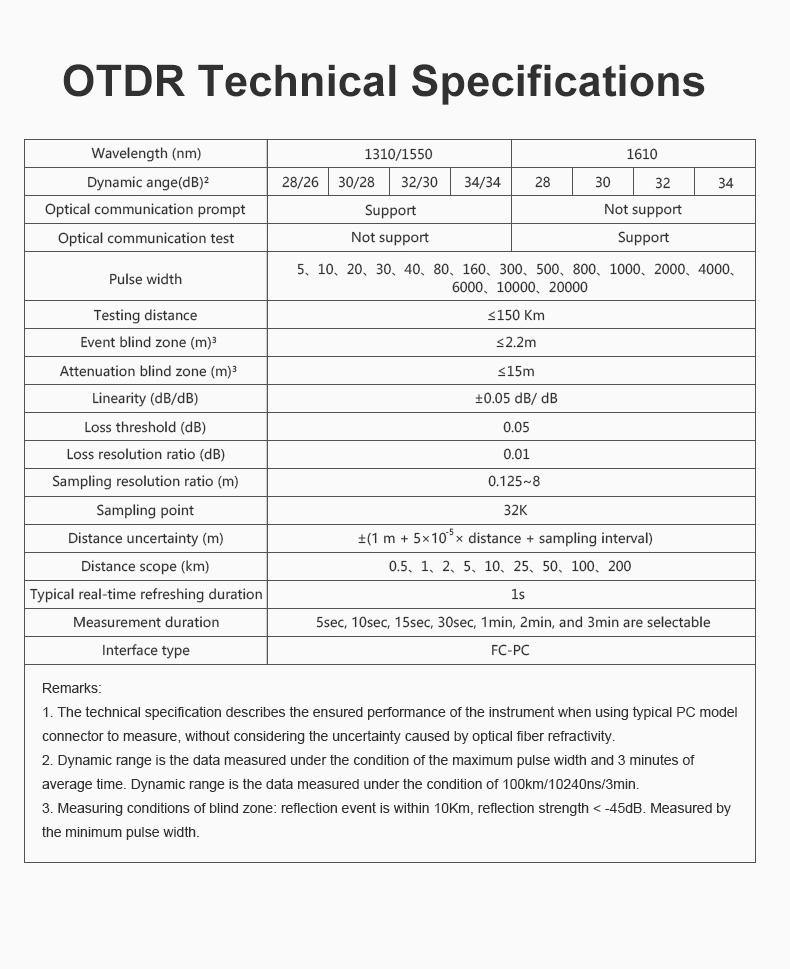

Specifications:
Specification | Model 1310/1550 | Model 1610 |
OTDR Display | 5.4 inch IPS touchscreen display | 5.4 inch IPS touchscreen display |
OTDR Resolution | 1920 x 1152 | 1920 x 1152 |
OTDR Wavelength | 1310/1550 | 1610 |
OTDR Dynamic Range | 28/26 dB | 28 dB |
OTDR Max Test Range | 150 km | 150 km |
Laser Source | Stable laser source | Stable laser source |
Laser Source Support | CW/270/330/1000/2000Hz | CW/270/330/1000/2000Hz |
Optical Power Meter | Included | Included |
Visual Fault Locator | Included | Included |
Fiber Testing | Length, loss, attenuation parameters, event map | Length, loss, attenuation parameters, event map |
Fiber Location | Connection point/fusion point | Connection point/fusion point |
Automatic Analysis | Included | Included |
Testing Curves | Save and view curves, support zoom and move | Save and view curves, support zoom and move |
Curve Storage Capacity | ≥30,000 pcs | ≥30,000 pcs |
Testing Report | Create report with curve trajectory graphs, parameter settings, fiber event information, and fiber link information | Create report with curve trajectory graphs, parameter settings, fiber event information, and fiber link information |
Report Formats | EXCEL, PDF, screenshots, etc. | EXCEL, PDF, screenshots, etc. |
Loss Test | Included | Included |
Camera Test Features | 8K H.265 video display, 8MP TVI test (3840 x 2160P, 15 fps, 4x zoom), 8MP AHD test (3840 x 2160P, 12.5/15 fps, 4x zoom), 8MP CVI test (3840 x 2160P, 12.5/15 fps, 4x zoom), TVI 5.0 audio testing, 4K 60FPS HDMI input, 4K 30 FPS HDMI output, VGA input, IPC TEST PRO app, Rapid ONVIF, Chrome browser test and set Axis camera, AXIS, Hikvision camera test, IPC TEST (Non-ONVIF test) | 8K H.265 video display, 8MP TVI test (3840 x 2160P, 15 fps, 4x zoom), 8MP AHD test (3840 x 2160P, 12.5/15 fps, 4x zoom), 8MP CVI test (3840 x 2160P, 12.5/15 fps, 4x zoom), TVI 5.0 audio testing, 4K 60FPS HDMI input, 4K 30 FPS HDMI output, VGA input, IPC TEST PRO app, Rapid ONVIF, Chrome browser test and set Axis camera, AXIS, Hikvision camera test, IPC TEST (Non-ONVIF test) |
Long Battery Life: The 7.4V 5200mA Li-ion battery provides up to 11 hours of working time after a 2.5-hour charging period.
Package included:
1 x Optic Tester (Model as your choice)
1 x Optical Power Meter
1 x Visual Fault Locator
1 x Charger
1 x USB Cable
1 x User Manual
