Kaemeasu KM-DM03A Professional High Precision Digital Multimeter DC & AC Voltage Current Measurement Resistance Capacitance Frequency Temperature Duty Cycle Ideal for Electrical Maintenance and Auto Repair

• weight: 485 g

Features:

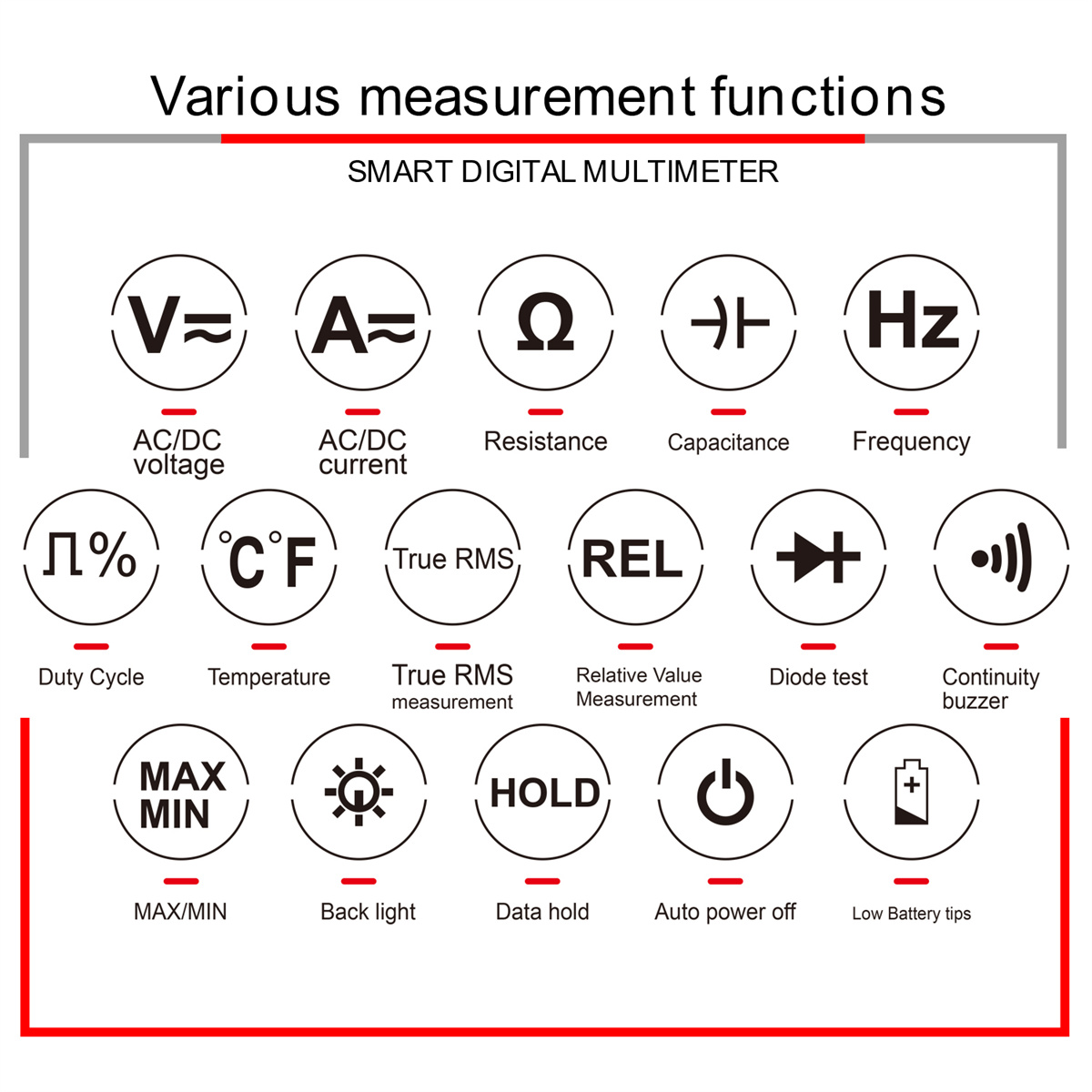

Our Kaemeasu KM-DM03A Digital Multimeter brings precision, versatility, and safety to your fingertips. This multi-functional tool is designed with high accuracy to measure DC and AC voltage, DC and AC current, resistance, capacitance, frequency, duty cycle, and temperature - all critical to automotive repair and electrical maintenance tasks.

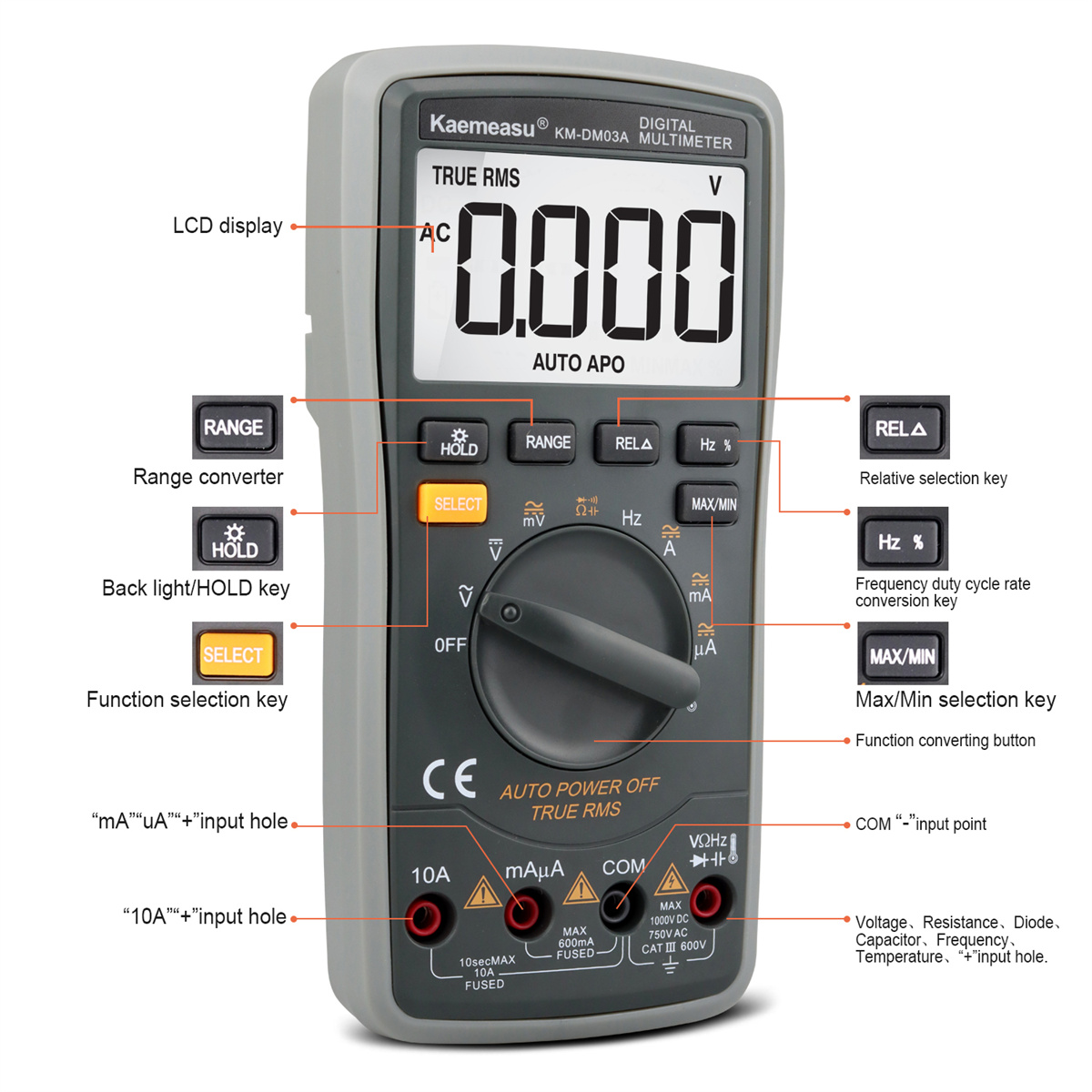

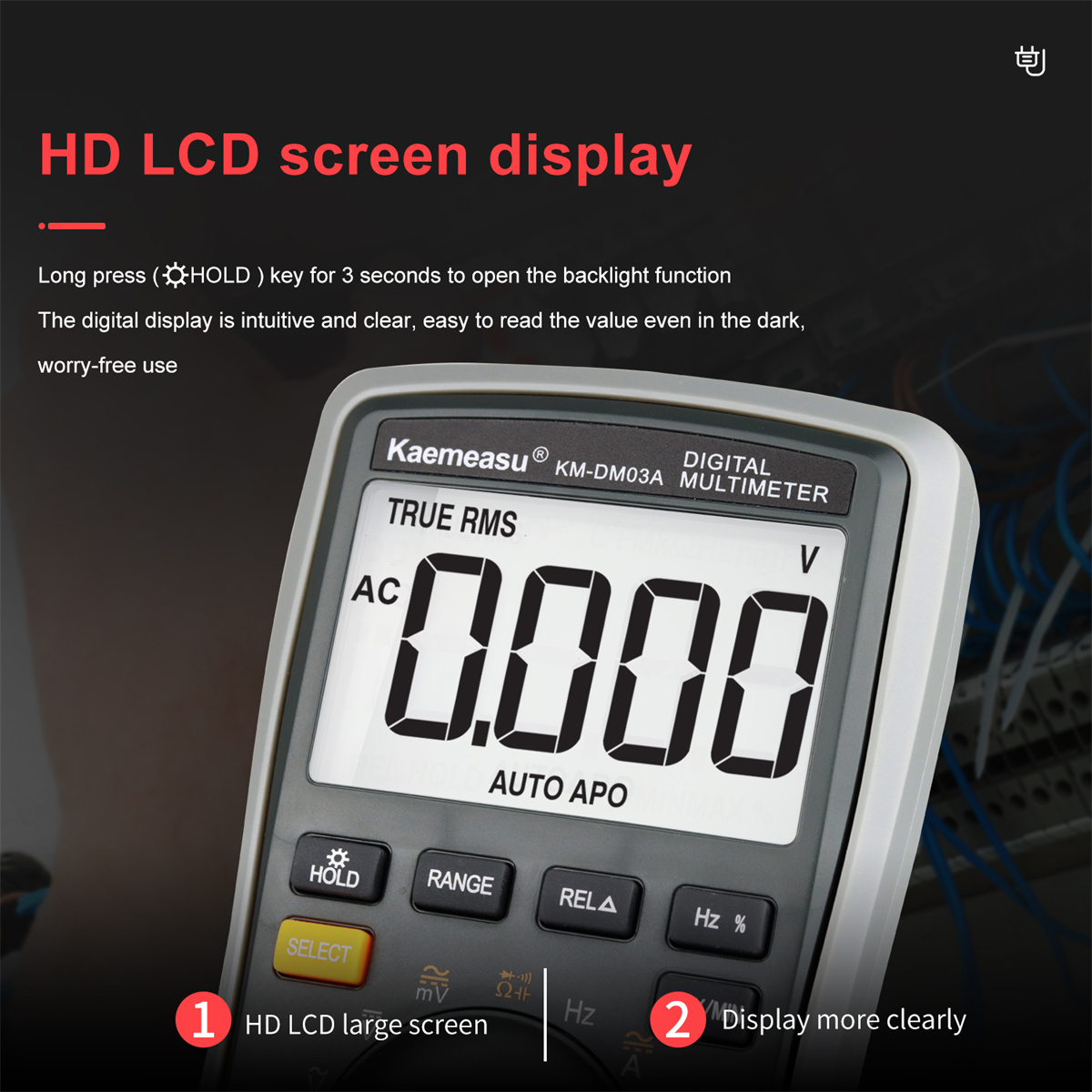

Equipped with a large, clear liquid crystal display (LCD) with automatic polarity display and max reading of 5999 (5 5/6) bits, our multimeter ensures you'll have no problem interpreting your measurements.

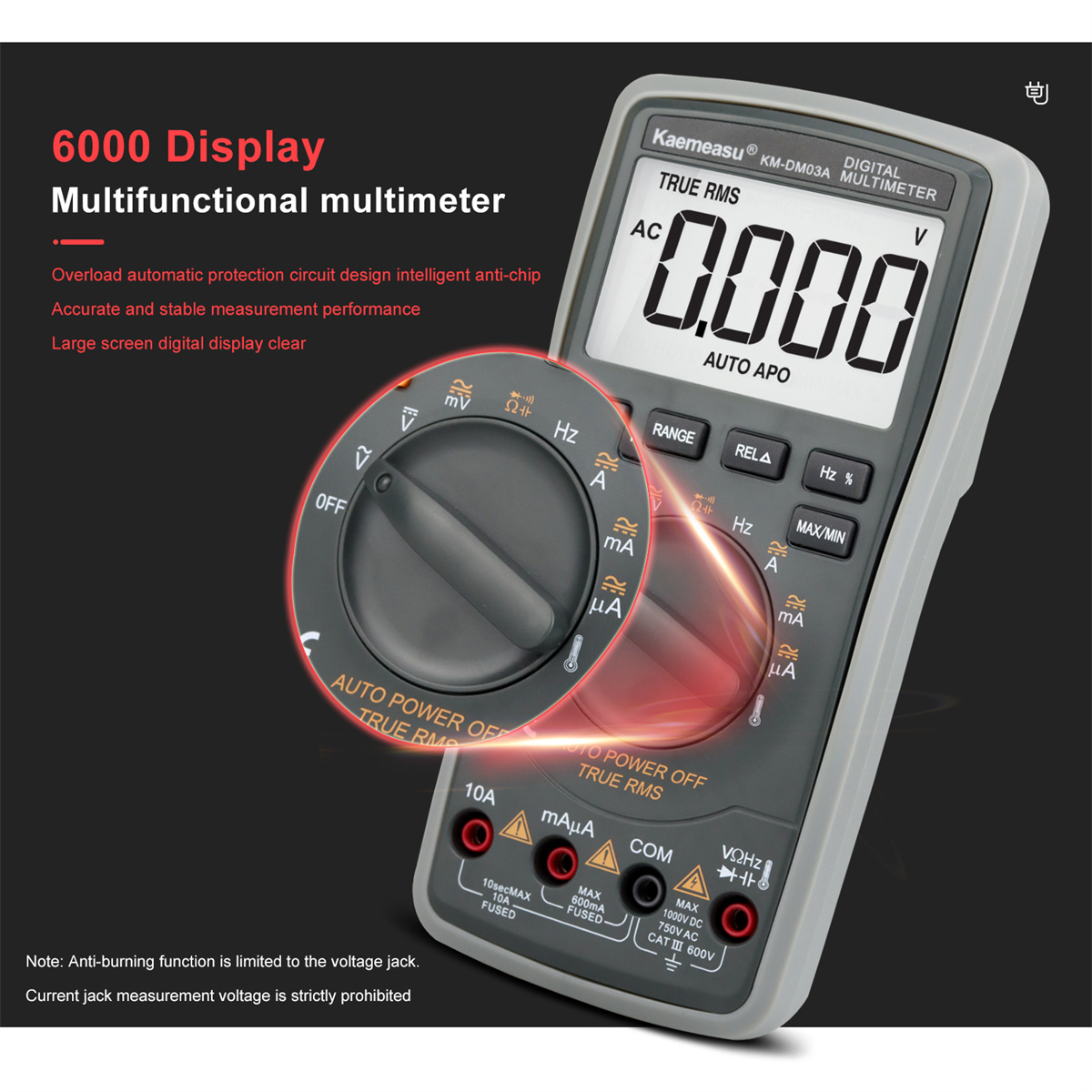

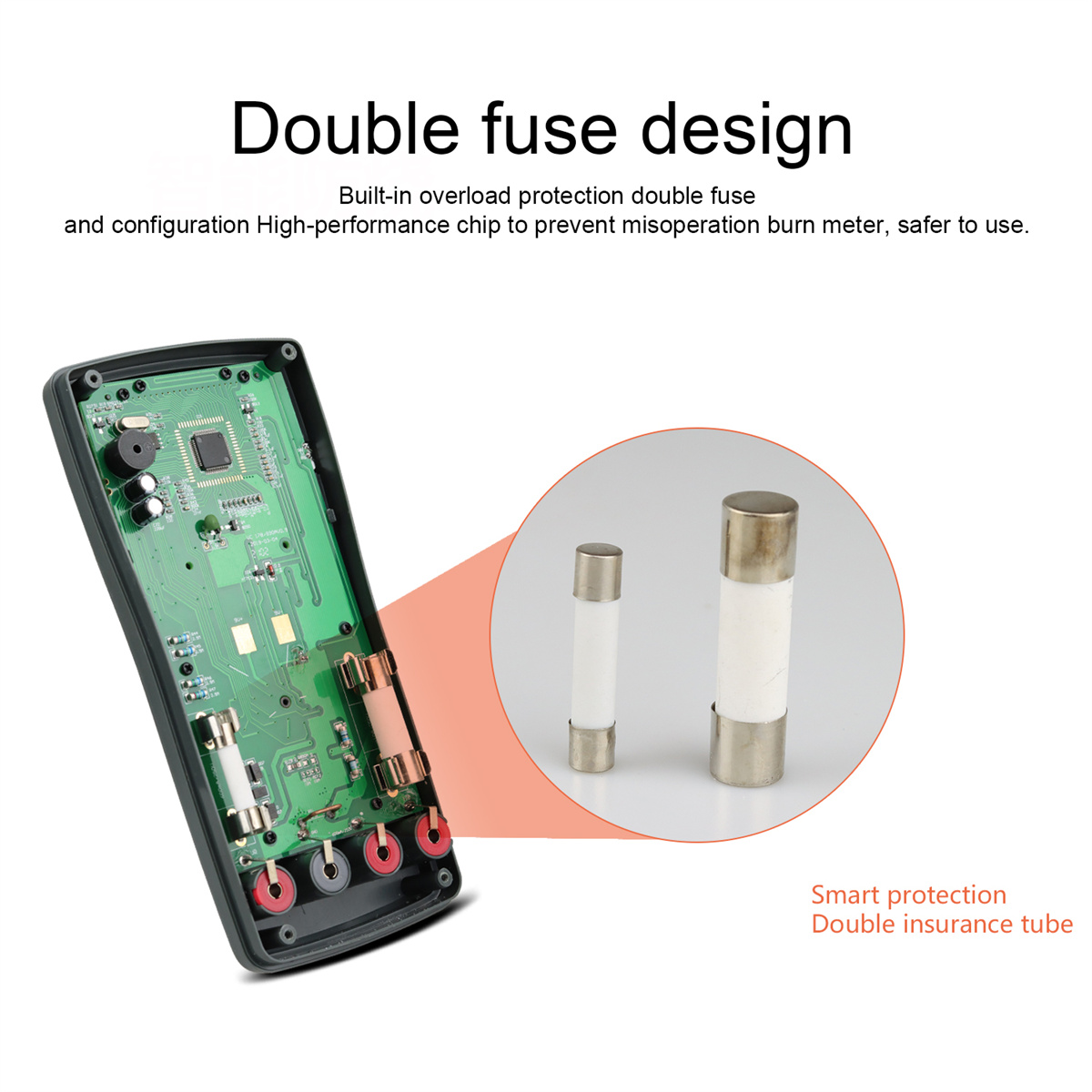

Thanks to its double integral A/D conversion and sampling rate of about three times per second, you can rely on fast, accurate data. Its overrange display feature prevents potential damage from excessive input with a "0L" notification for overloaded signals.

For ultimate user convenience, this device comes with a MAX/MIN function to capture the extreme values from your measurements.

Specifications:

Brand: Kaemeasu

Model: KM-DM03A

DC Voltage: 600mV/6V/60V/600V/1000V

AC Voltage: 600mV/6V/60V/600V/750V

DC Current: 600uA/6000uA/60mA/600mA/10A

AC Current: 600uA/6000uA/60mA/600mA/10A

Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6mΩ/60mΩ

Capacitance: 60nF/600nF/6uF/60uF/600uF/6000uF

Frequency: 10Hz-20MHz

Duty Cycle: 0.1%-99%

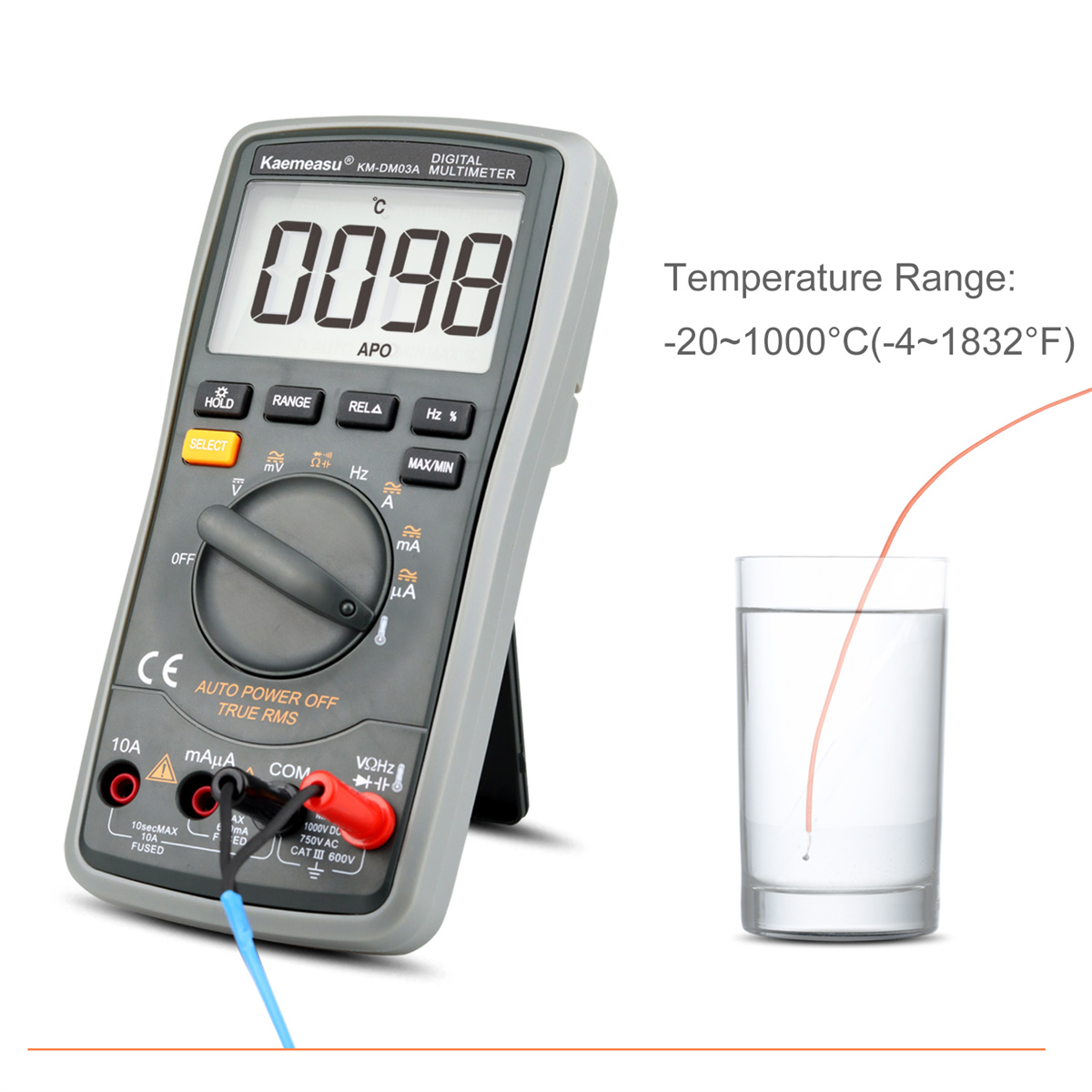

Temperature: -20 -1000℃/-4 -1832F

Working Environment: (0 ~ 40) C, relative humidity <80%

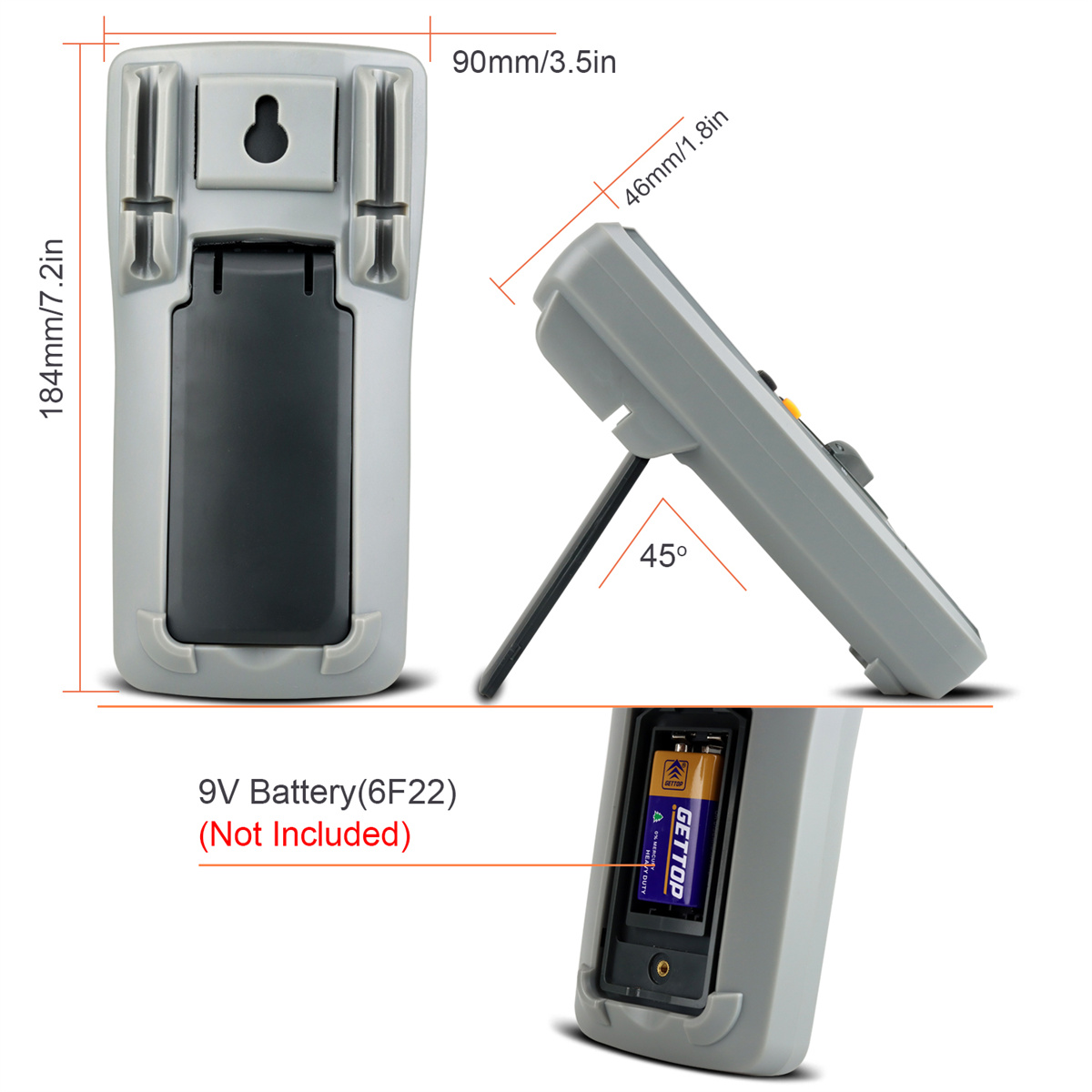

Dimensions: 1849046

Weight: about 250g (not including battery)

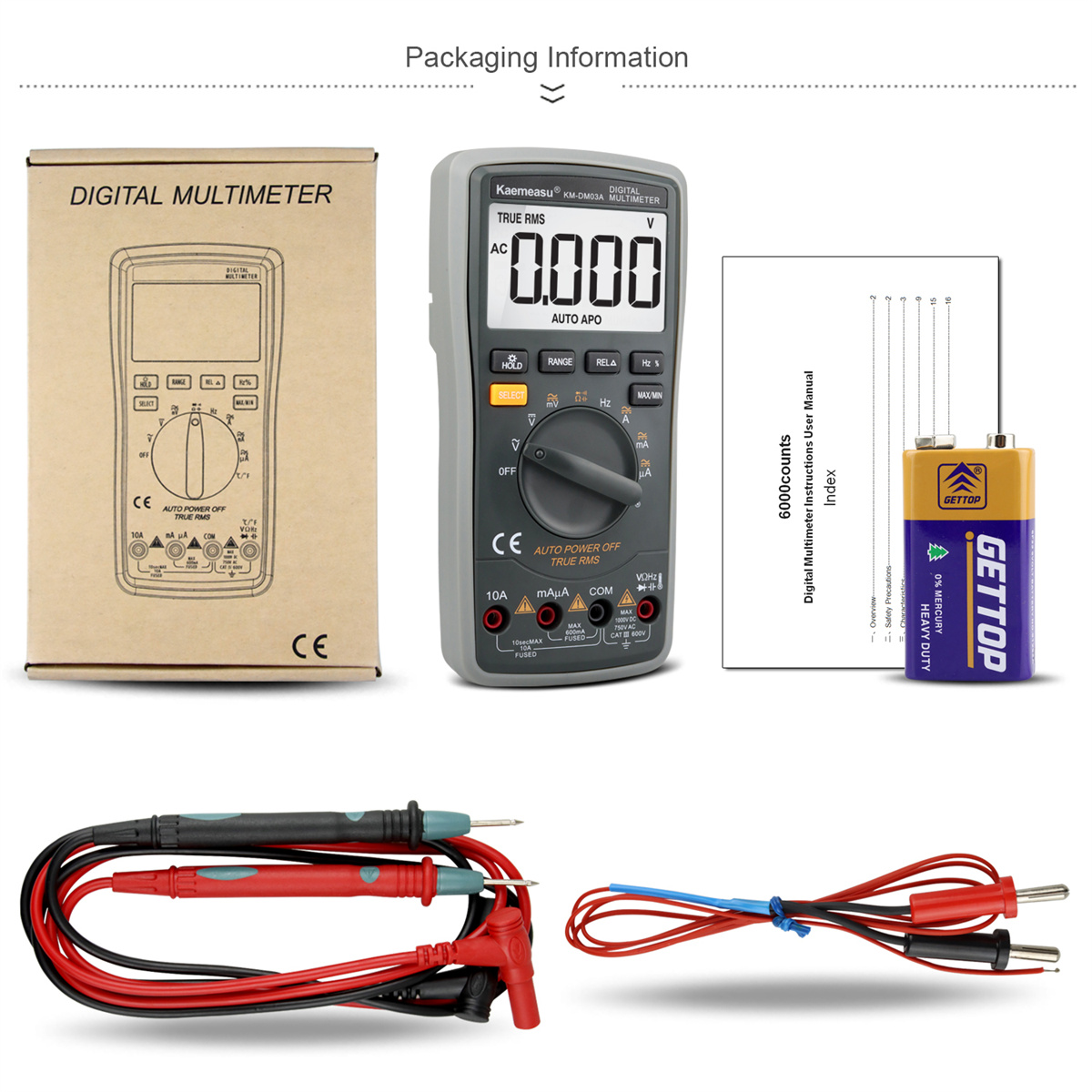

Package Included:

1 x Kaemeasu KM-DM03A Digital Multimeter

1 x English Manual

Please Note: Always remove the battery when the device is not in use to prevent leakage, which could damage the device.
