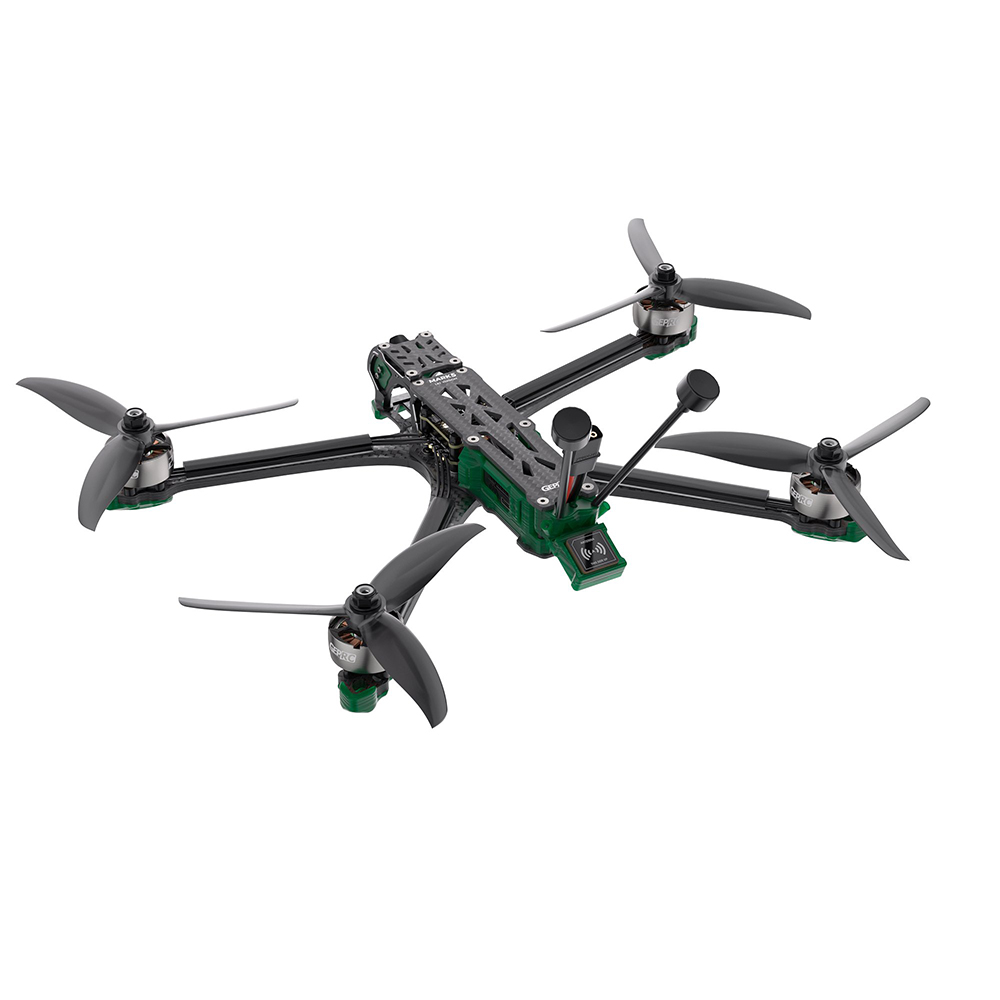

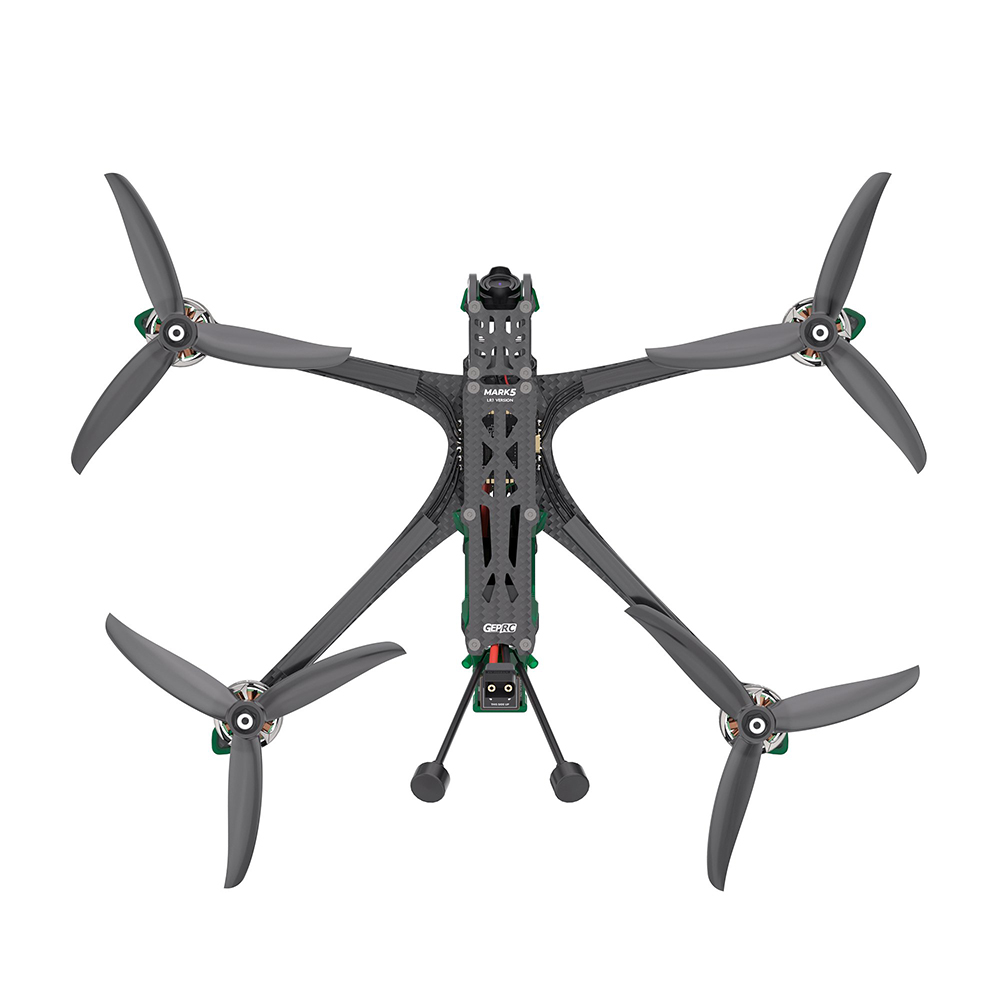

GEPRC MK5D LR7 HD 230mm Wheelbase F7 6S 7 Inch Long Range FPV Racing Drone PNP BNF with DJI O3 Air Unit Digital System

• weight: 485 g

Specification:
Model: MK5D-LR7
Brand: GEPRC
Frame: GEP-MK5D-LR7
Dimensions: 230mm×350mm
Wheelbase: 335mm
Top plate: 2.5mm
Bottom plate: 2.5mm
Arm plate: 6.0mm
FC system: SPAN F722-BT-HD V2
MCU: STM32F722
ICM：42688-P (SPI)
OSD: BetaFlight OSD w/AT7456E chip
ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
Propeller: HQ Prop 7X4X3 three blade propeller
Motor: SPEEDX2 2806.5 1350KV（6S version）
GPS: GEP-M8U
Antenna: Momoda 5.8G LHCP UFL 175mm x 2
Weight: 585.0g (MK5D-LR7 DJI O3 version includes 3D printing parts）
Receiver version: PNP, TBS NanoRX, ELRS 2.4G, ELRS 915
Recommended battery: LiPo 6S 6000mAh（6S version）

Features:

Enhanced Durability and Visual Appeal: The drone features an upgraded lens with an aluminum alloy side plate for increased durability and a visually striking design. Additionally, the strength of the arm is enhanced, ensuring durability without sacrificing the stylish aesthetic.

Wireless Connectivity for Parameter Tuning: The drone is equipped with built-in Bluetooth functionality, allowing for wireless connection with mobile devices for convenient parameter tuning, providing enhanced control over the drone's performance.

High-Quality Video Transmission: The HD version utilizes the new DJI O3 VTX, ensuring clear image capture, a stable signal, and long-distance coverage. It supports up to 4K/120fps recording, delivering top-notch video quality for all your recording needs.

Superior Stability and Safety: The drone incorporates a unique frame shock absorption design, significantly reducing vibration to create a safe and stable operating environment for the electronic system. The inclusion of an independent capacitor and buzzer compartment further stabilizes the drone's operation, eliminating shaking and jitter.

Flexible Camera Mounting and Long Flight Time: The drone is designed with two types of mounting bases, compatible with GoPro 8 Naked, Insta 360 GO2, and Caddx Peanut cameras, ensuring stable and clear shooting. Coupled with a powerful GEP-VTC6-6000mAh battery, the drone can achieve flight times of up to 30 minutes.

Package Includes:
1 x MK5D-LR7
4 x HQ Prop 7X4X3 propeller（pair）
2 x Battery strap M20x250mm
2 x Battery strap M20x300mm
2 x Battery Silicone Pads
1 x 3D printed parts
1 x Action cam mount holder
1 x Set of screws
1 x Set of screwdrivers
1 x Antenna fixed tube
