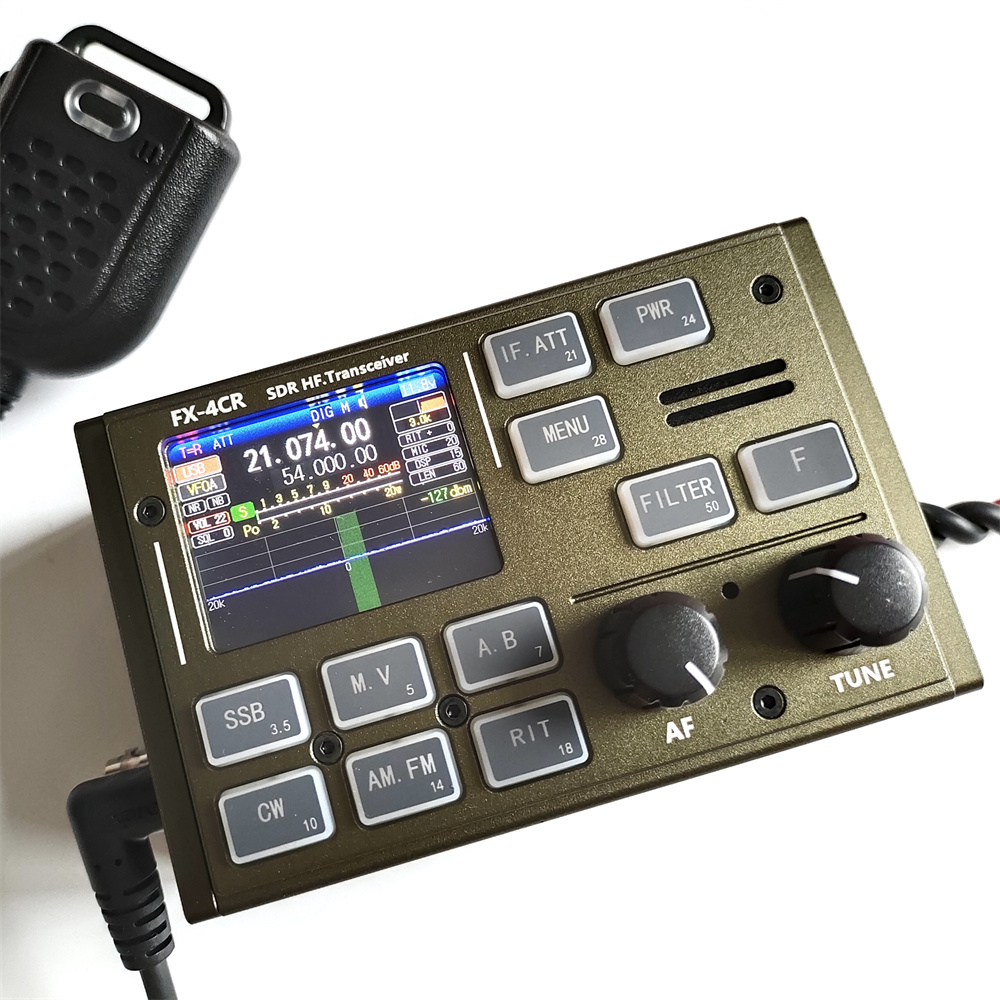

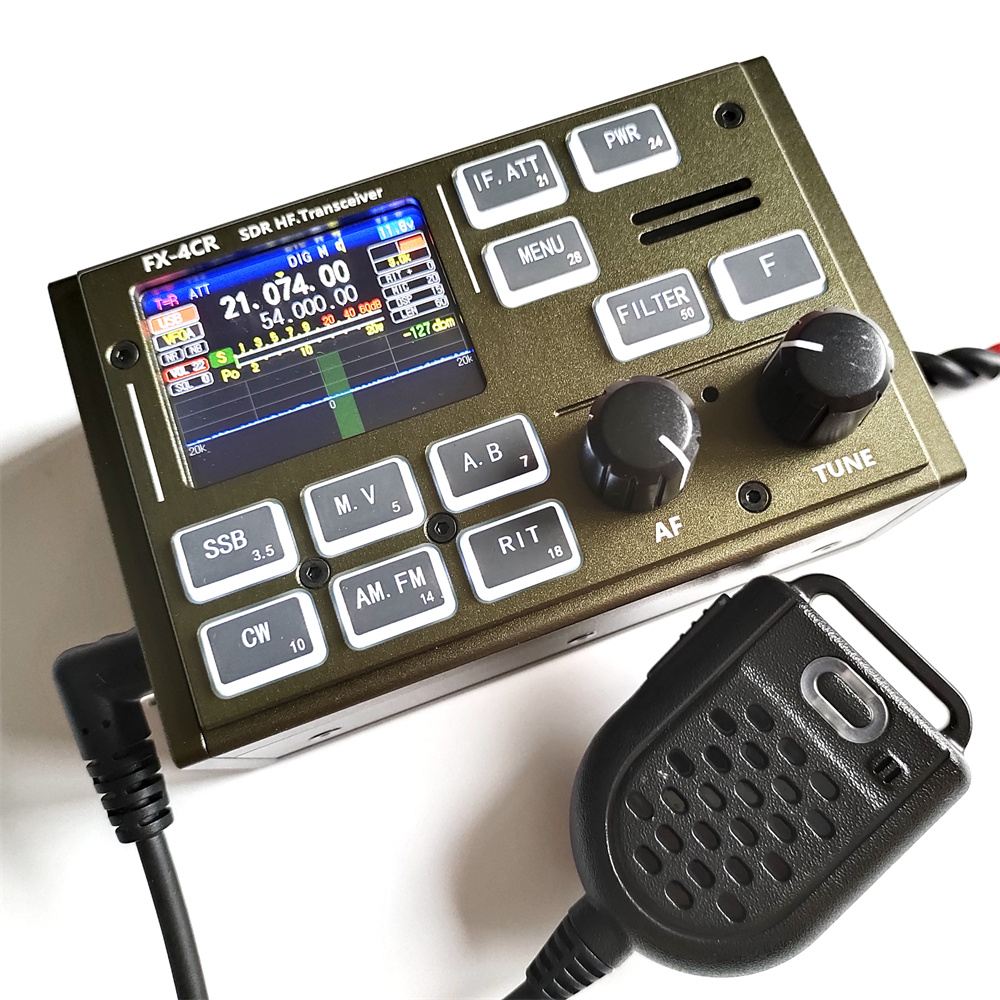

FX-4CR Radio SDR HF Transceiver with 1-20W Continuously Adjustable Power Range Support USB/LSB/CW/AM/FW Modes Short-wave FX4CR

• weight: 485 g

Features:

Wide Transmission and Reception Range: This SDR HF Transceiver is a high-performance device that can transmit and receive on a wide range of frequencies from 3.5MHz to 54MHz. This broad coverage means that you'll be able to connect with numerous amateur radio stations, providing you with countless hours of exploration and enjoyment.

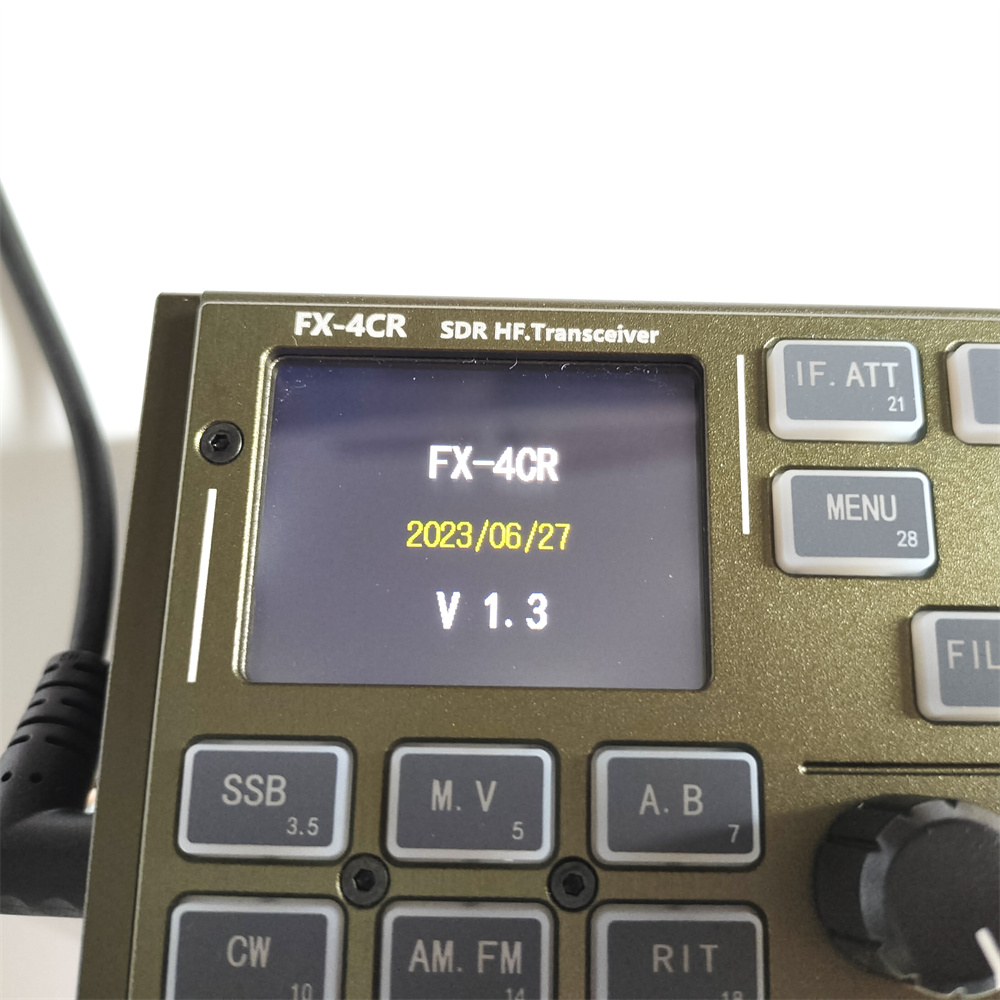

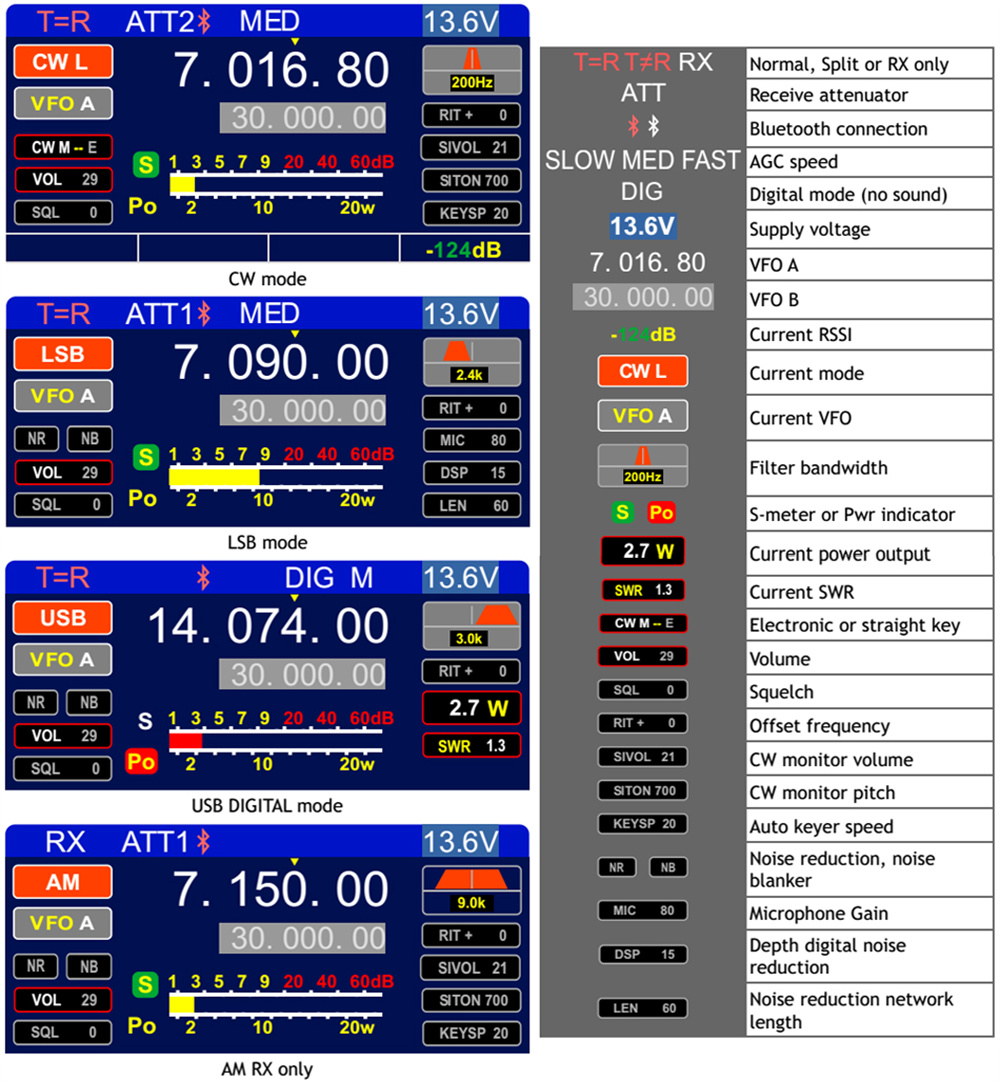

High-Tech Display and Interface: The 2.0'' TFT display screen brings you a clear and vivid viewing experience. Additionally, the spectrum display and 48kHz waterfall plot offer a visual representation of the radio spectrum and signals. Dual VFO operation (VFO A and B) with split mode operation allows you to monitor two frequencies at the same time, expanding your communication capabilities.



Built-In Connectivity and Noise Reduction Features: With an internal USB sound card and built-in Bluetooth, connecting your device for data transfer or pairing with other devices is easily. Furthermore, the adjustable DSP digital noise reduction technology ensures clear sound, minimizing the interference oftens encountered during communication.



Wide Power Input and User-Friendly Design: The Transceiver operates on an ultra-wide input voltage from 9V to 18V, offering flexibility for power sources. Also, the quick switching among various frequency bands enhances your experience, allowing for easy operation.



Precise Frequency Control: With frequency steps ranging from 10Hz to 100kHz, you can tune with precision and find that elusive signal you're hunting for. The excellent frequency stability of +/-0.5PPM and receiving sensitivity of -121dBm ensures you can receive even the weakest of signals clearly.

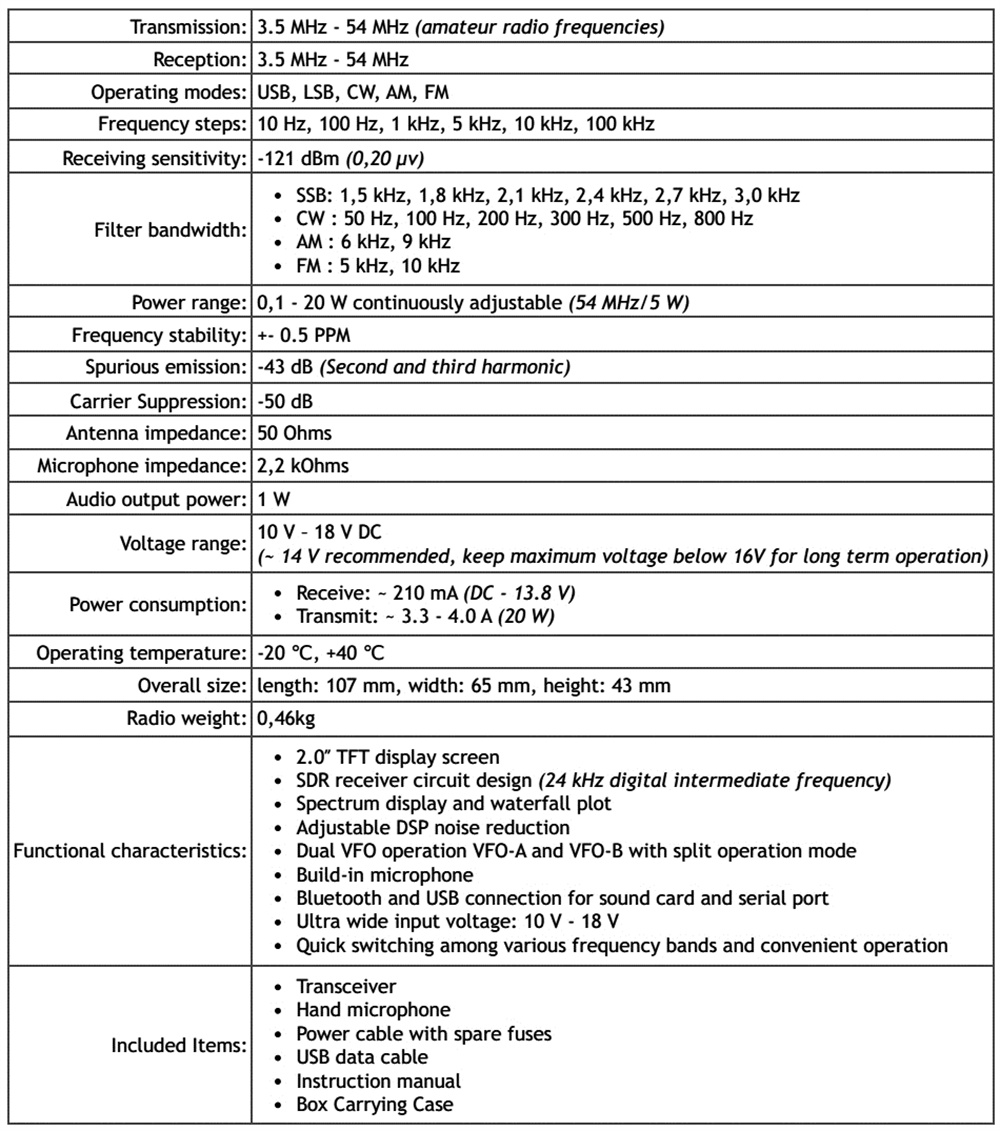

Specifications:

Transmission: 3.5MHz - 54MHz

Reception: 3.5MHz - 54MHz

Operating modes: USB, LSB, CW, AM, FM

Frequency steps: 10Hz, 100Hz, 1kHz, 5kHz, 10kHz, 100kHz

Receiving sensitivity: -121dBm

Frequency stability: +/-0.5PPM

Spurious emission: -43dB

Carrier suppression: -50dB

Antenna impedance: 50ohms

Audio output power: 1W

Voltage range: 10V - 18V DC

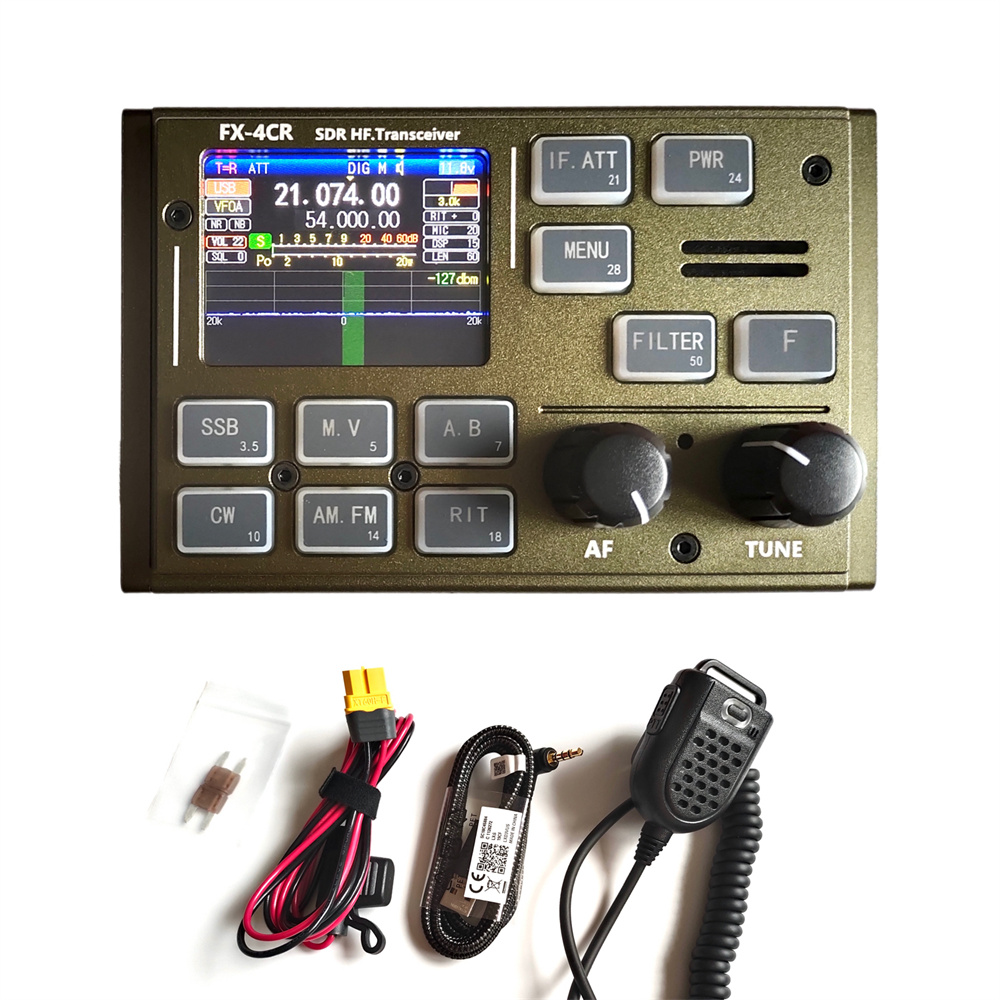

Package Included:

1 x FX-4CR Radio SDR HF Transceiver

1 x Hand Microphone

1 x Power Cable with Spare Fuses

1 x USB Data Cable

1 x Instruction Manual

1 x Box Carrying Case
