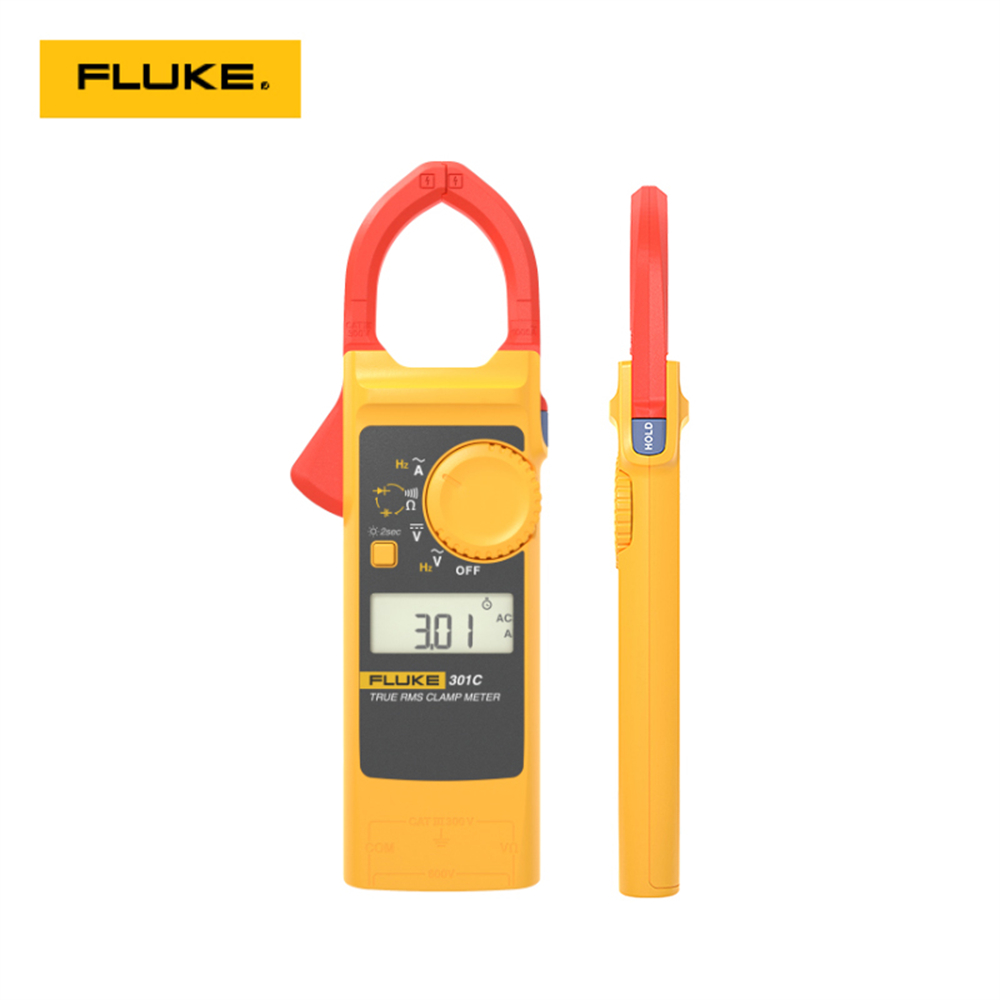

FLUKE 301C Plus Mini Digital AC Current Clamp Meter Voltage Voltmeter 1000A Ammeter Pliers Tester
| Qty: | 4-7 | >=8 |
| Price: | 0.00 | 0.00 |
- weight: 485 g
Features:
The body weighs only 132g and is 16mm thick, which is light and portable and can be fitted into a pocket

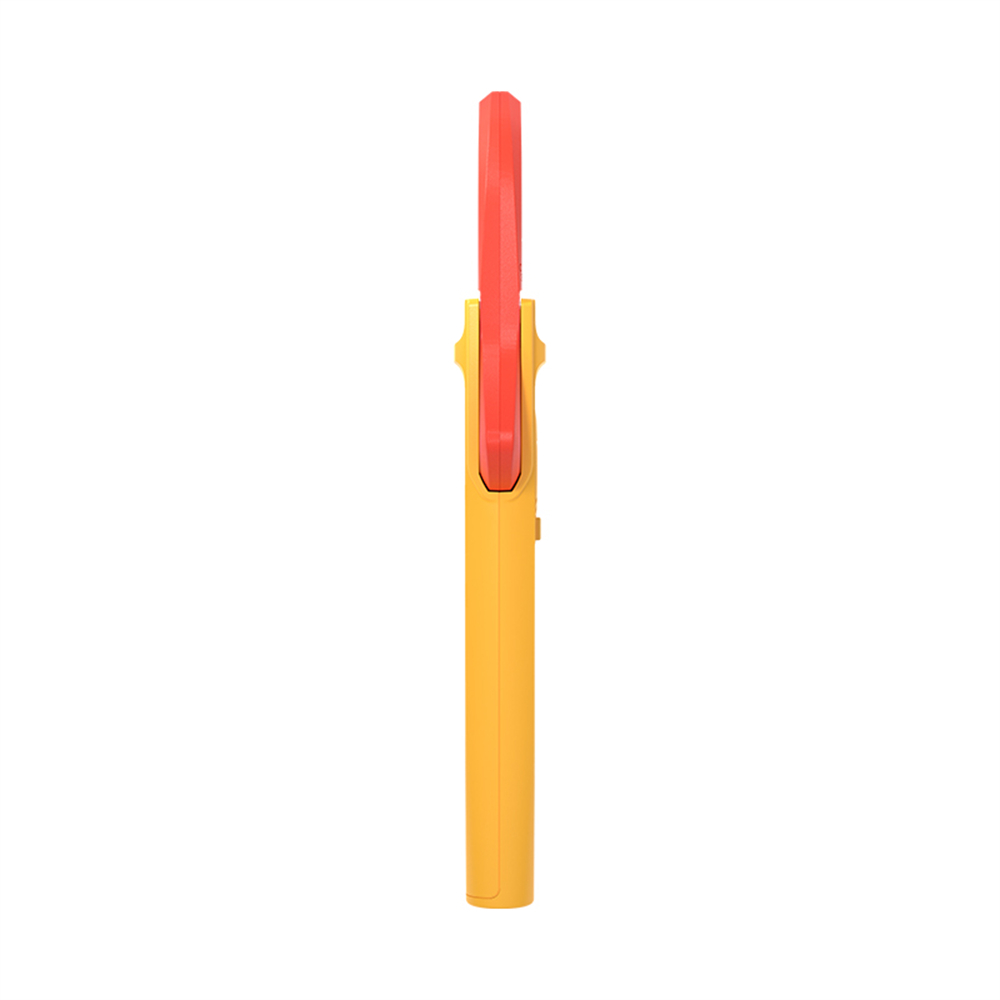

The slim and thin jaw of only 10mm can easily clamp onto tightly packed wires
Tests AC voltage and current with the True-rms function.
1000A AC range, 0.01A high resolution
Tests voltage, resistance and continuity
Tests current frequency and voltage frequency
Tests capacitance and diodes
Backlight

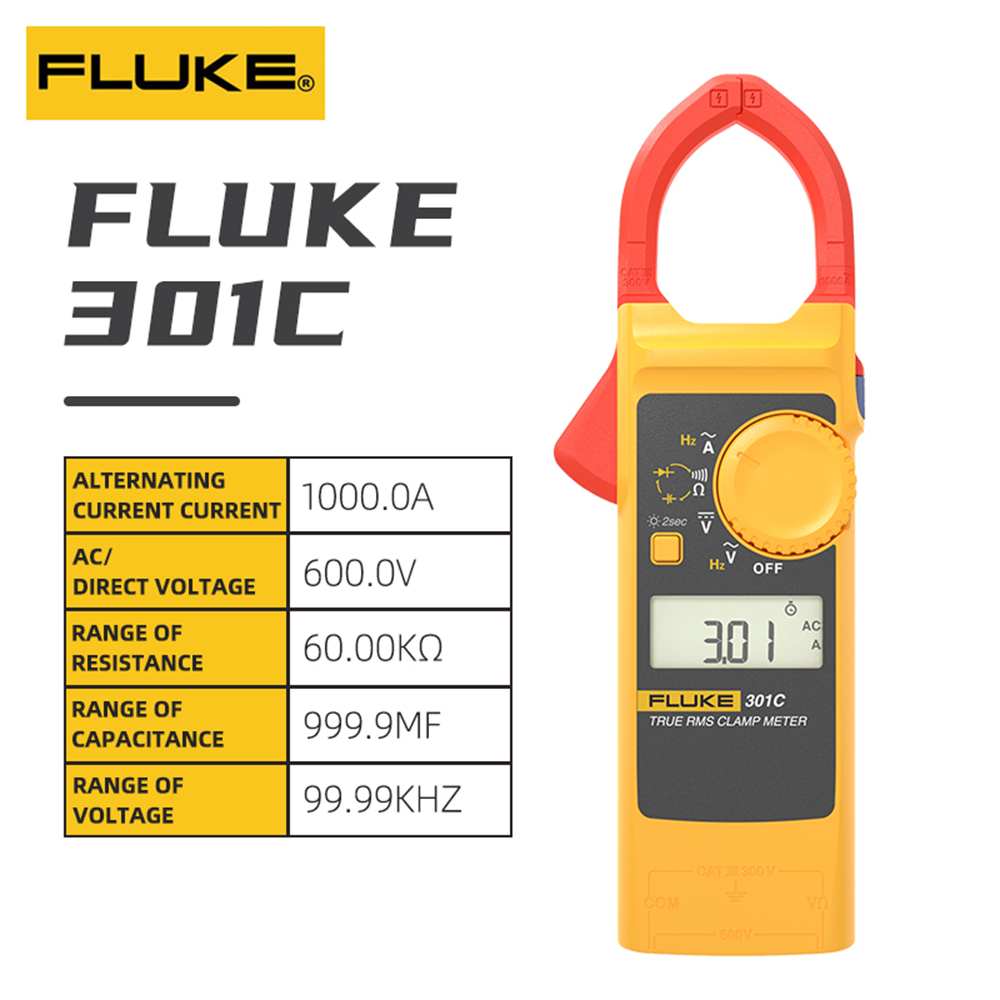

Specifications:
Models | 301C | ||||
AC Current (45 to 400 Hz) | Range | 60.00 A | 600.0 A | 1000 A | |
Resolution | 0.01 A | 0.1 A | 1 A | ||
Accuracy | 2 % + 10 | 2 % + 5 | 2 % + 5 | ||
AC Voltage (45 to 400 Hz) | Range | 600.0 V | |||
Resolution | 0.1V | ||||
Accuracy | 1.5% + 5 | ||||
DC Voltage | Range | 600.0 V | |||
Resolution | 0.1 V | ||||
Accuracy | 1% + 5 | ||||
Resistance | Range | 600.0 Ω | |||
Accuracy | 1% + 5 | ||||
Voltage Frequency | Range | 9.999 Hz | |||
Accuracy | 0.1% + 3 | ||||
Current Frequency | Range | 45.0 to 400.0 Hz | |||
Accuracy | 0.1% + 3 | ||||
Capacitance | Range | 9.999 uF | 99.99 uF 999.9 uF | ||
Accuracy | 2 % + 5 | 5% + 5 | |||
Diode | Range | 3.000 V | |||
Accuracy | 10% | ||||
T-rms Value | ● | ||||
Continuity | ● | ||||
Hold | ● | ||||
Backlight | ● | ||||
Safety rating | CAT III 300V | ||||
Weight | 132 g | ||||
Size | 190 mm x 52 mm x 16 mm | ||||
Jaw Opening | 34 mm | ||||
Clamp Arm Size | 10 mm X 10 mm | ||||
Battery | (2) AAA Batteries （not included） | ||||

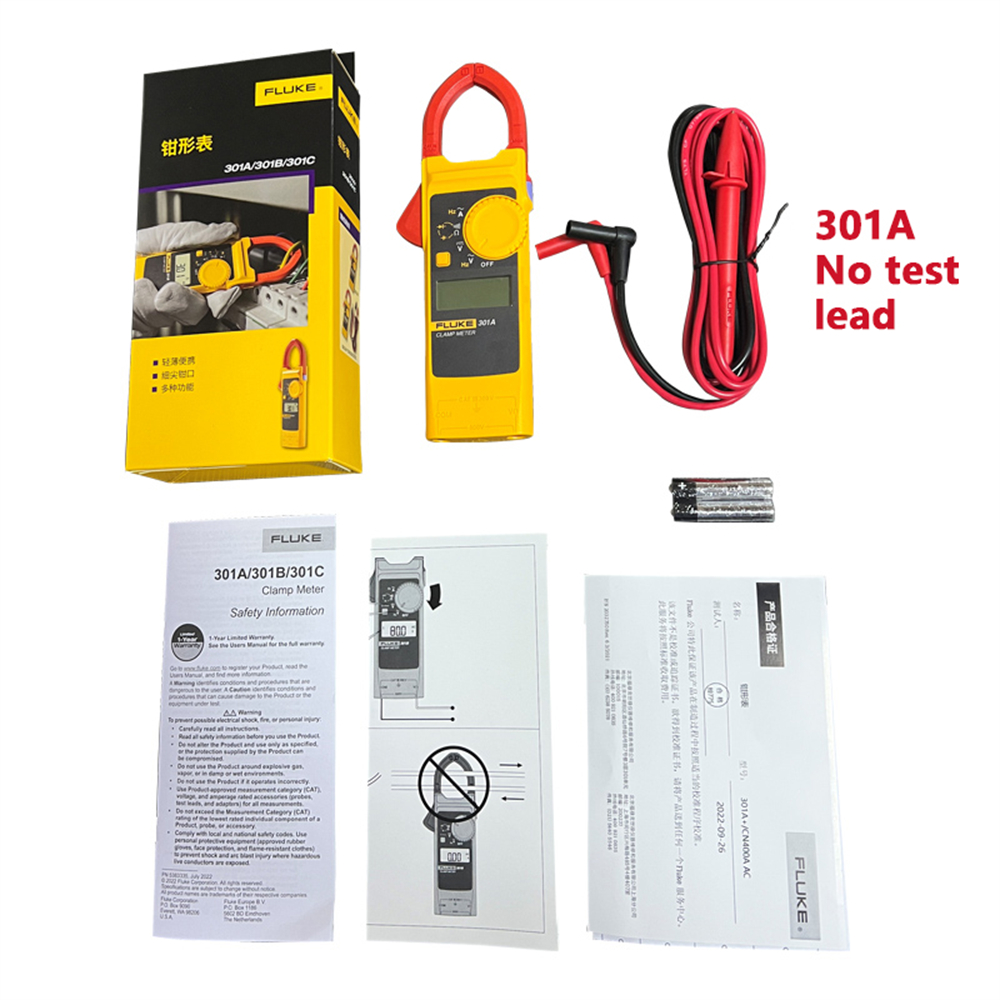

Package included:
1 x Fluke 301C （Batteries are not included）
1 x Test Leads
