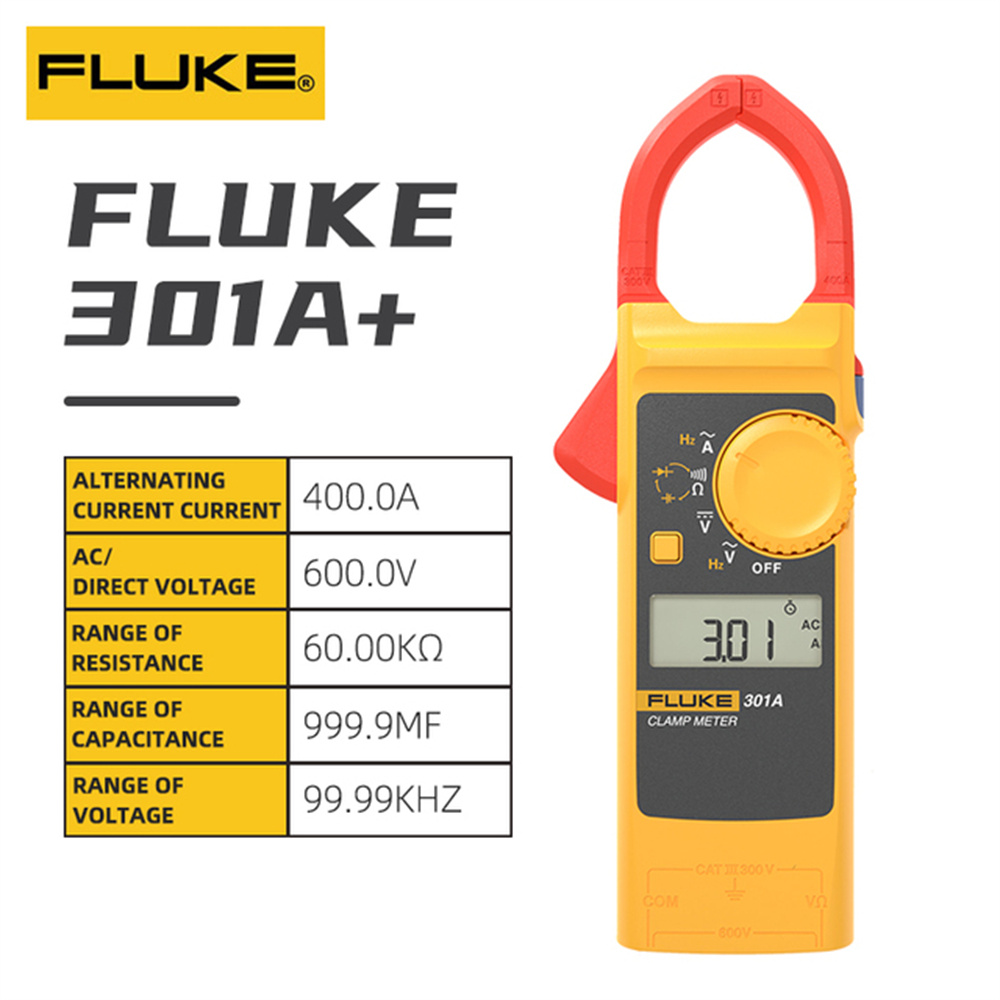

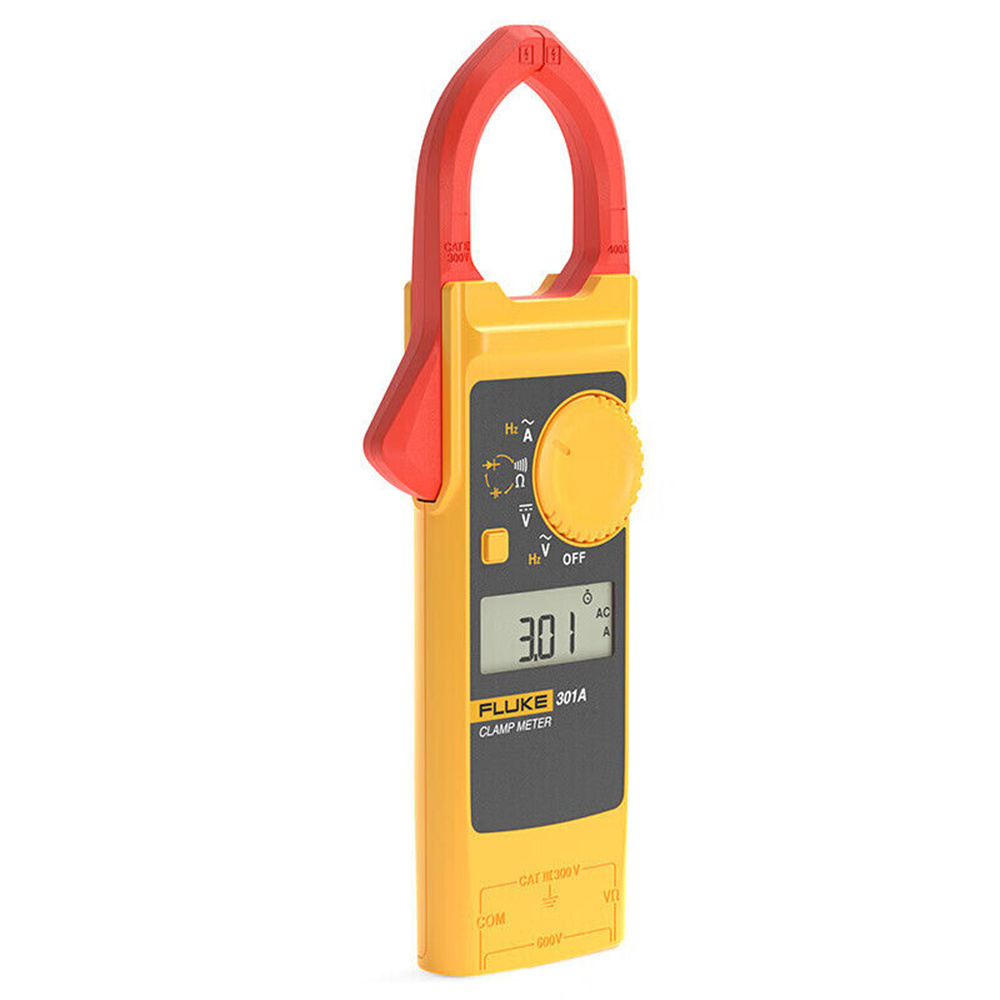

FLUKE 301A Plus Mini Digital AC Current Clamp Meter Voltage Voltmeter 1000A Ammeter Pliers Tester
| Qty: | 4-7 | >=8 |
| Price: | 0.00 | 0.00 |
- weight: 485 g
Features:
The body weighs only 132g and is 16mm thick, which is light and portable and can be fitted into a pocket
The slim and thin jaw of only 10mm can easily clamp onto tightly packed wires
400A AC range, 0.01A high resolution
Tests voltage, resistance and continuity
Tests current frequency and voltage frequency
Tests capacitance and diodes
Specifications:
Models | 301A/301A+ | |||
AC Current (45 to 400 Hz) | Range | 40.00 A | 400.0 A | |
Resolution | 0.01 A | 0.1 A | ||
Accuracy | 2 % + 10 | 2 % + 5 | ||
AC Voltage (45 to 400 Hz) | Range | 600.0 V | ||
Resolution | 0.1 V | |||
Accuracy | 1.5% + 5 | |||
DC Voltage | Range | 600.0 V | ||
Resolution | 0.1 V | |||
Accuracy | 1% + 5 | |||
Resistance | Range | 600.0 Ω | ||
Accuracy | 1% + 5 | |||
Voltage Frequency | Range | 9.999 Hz | ||
Accuracy | 0.1% + 3 | |||
Current Frequency | Range | 45.0 to 400.0 Hz | ||
Accuracy | 0.1% + 3 | |||
Capacitance | Range | 9.999 uF | 99.99 uF 999.9 uF | |
Accuracy | 2 % + 5 | 5% + 5 | ||
Diode | Range | 3.000 V | ||
Accuracy | 10% | |||
T-rms Value | - | |||
Continuity | ● | |||
Hold | ● | |||
Backlight | - | |||
Safety rating | CAT III 300V | |||
Weight | 132 g | |||

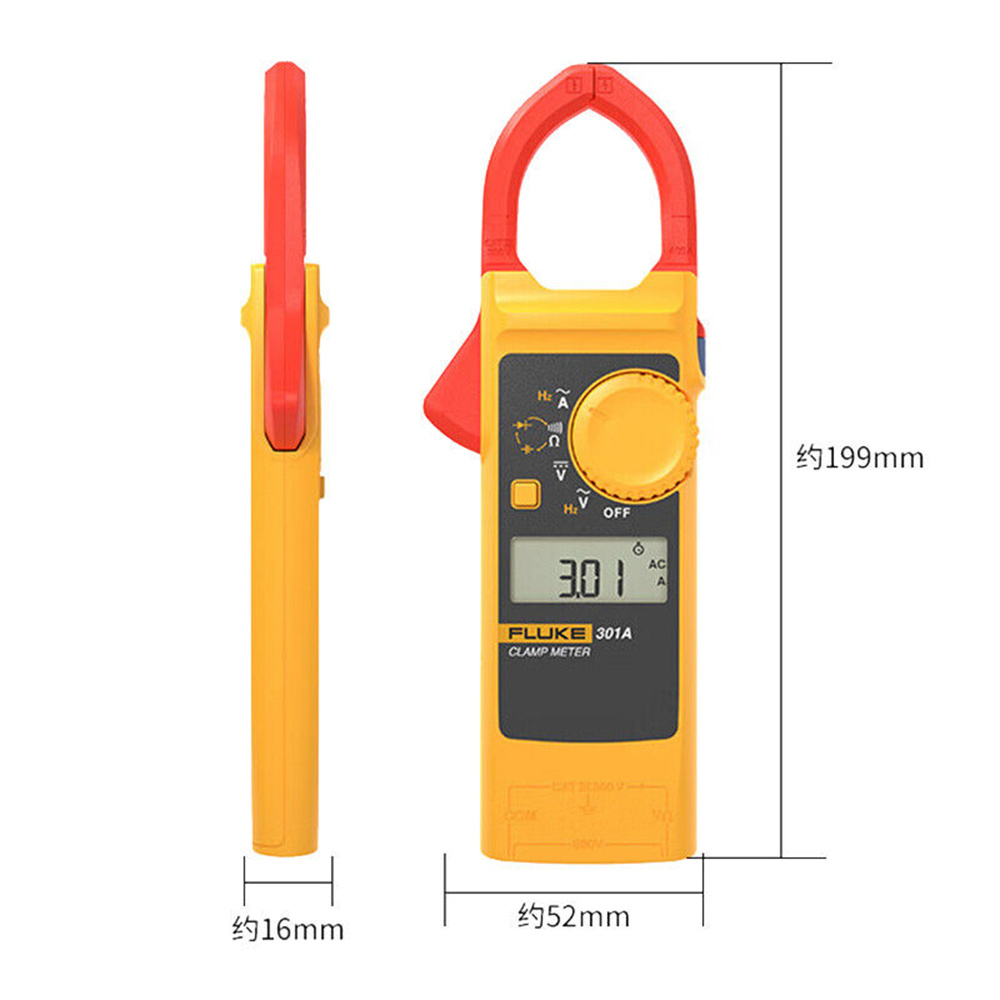

Size | 190 mm x 52 mm x 16 mm | |||
Jaw Opening | 34 mm | |||
Clamp Arm Size | 10 mm X 10 mm | |||
Battery | (2) AAA Batteries （not included） | |||
Package included:
1 x Fluke 301A+ Plus (Battery not included)
1 x Test Leads
