8in1 Power Meter Color Screen 2P Multi-function AC Energy Meter 170-270V/63A Voltage and Current Meter Standard Rail Mounting

• weight: 485 g

Features:

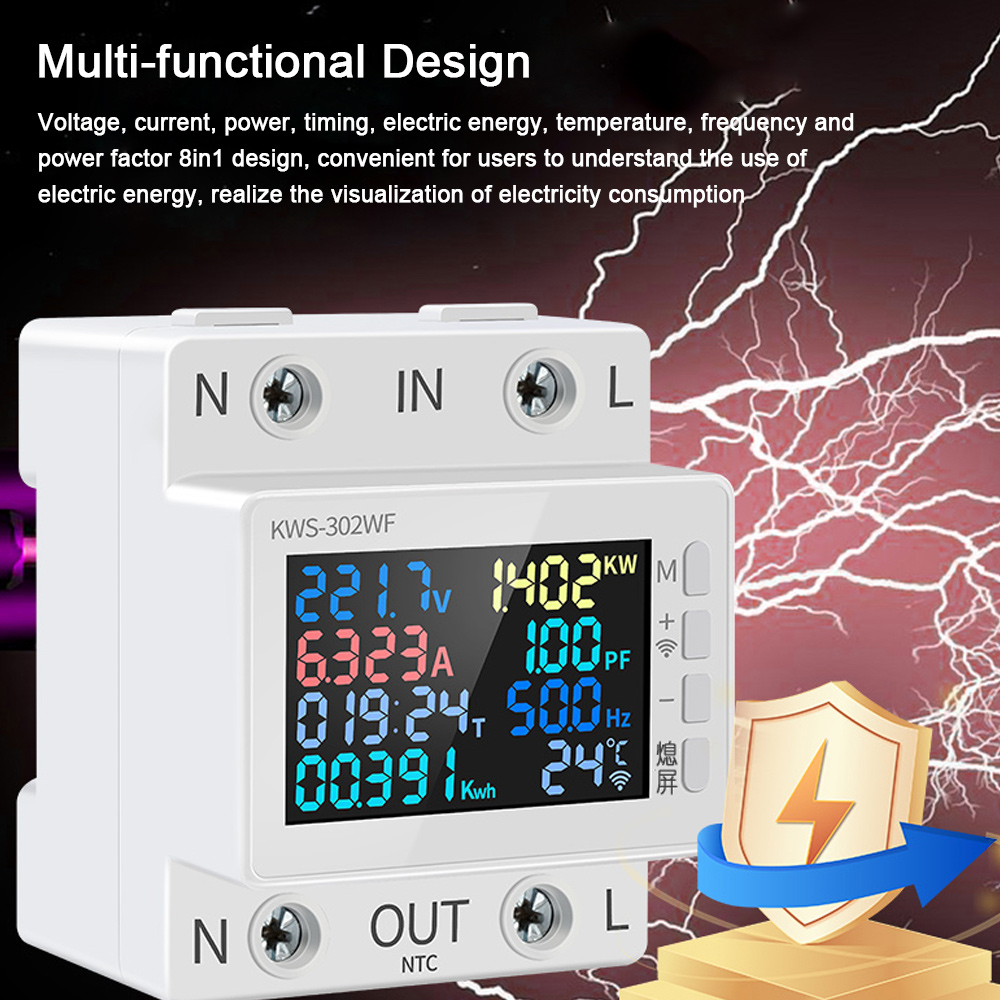

Versatile Measurement: The 8in1 Energy Meter provides a wide range of measurements, including voltage, current, power, timing, electricity, temperature, and frequency. This allows you to have a comprehensive understanding of your energy usage.

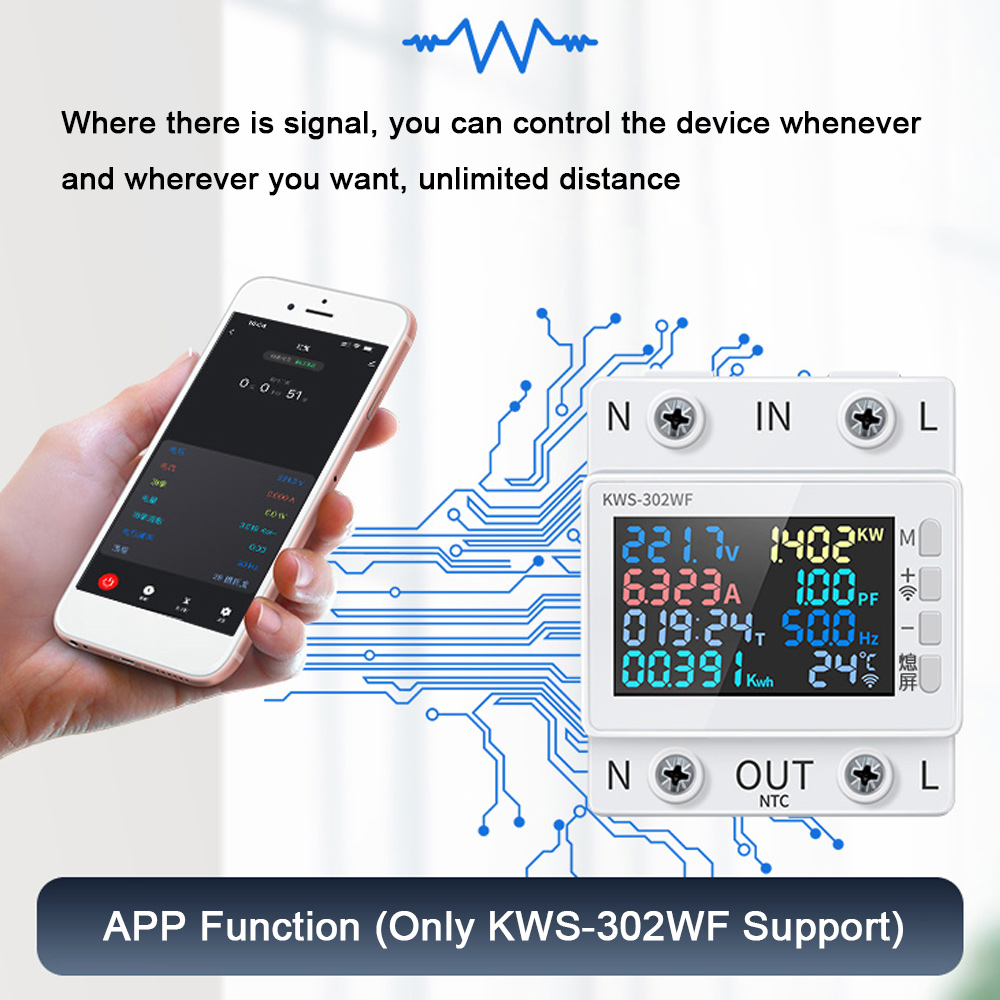

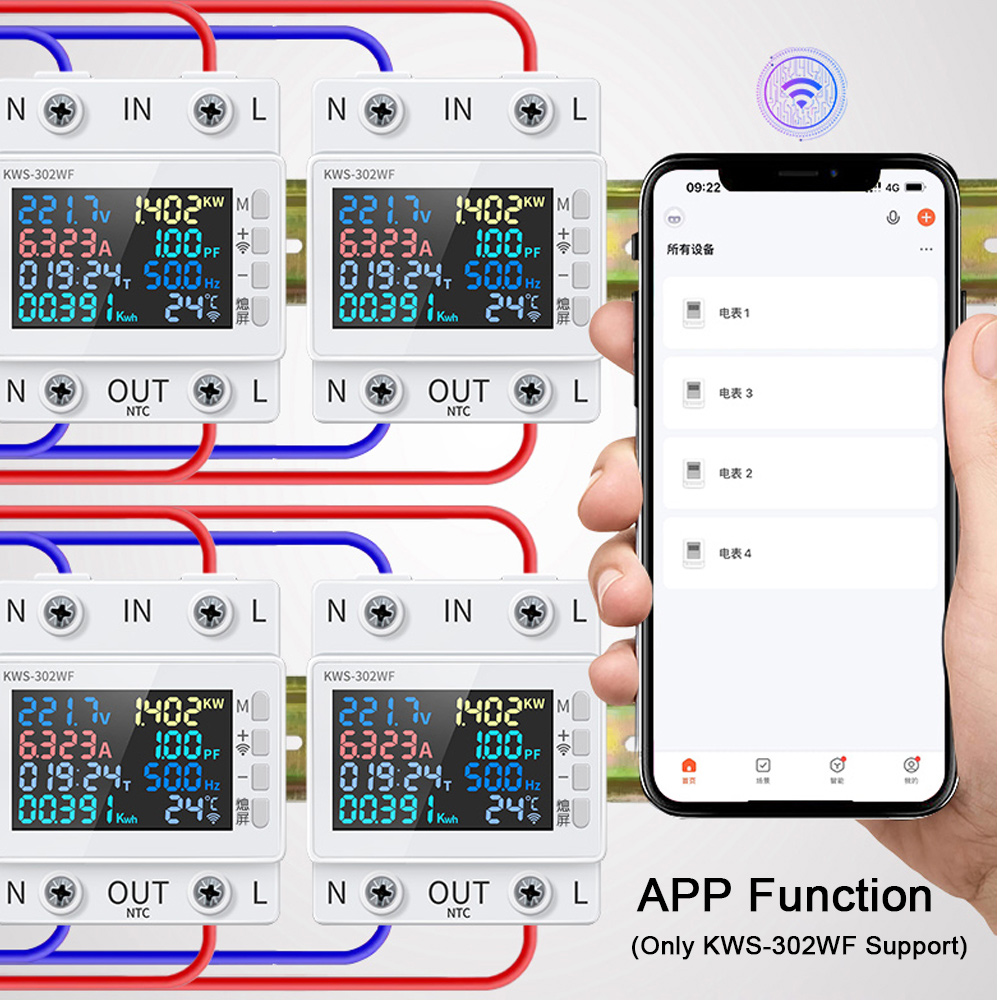

Smart App Control: With the SmartLife APP or graffiti intelligent APP, you can remotely control the device over the WiFi network cloud from any location and at any time.

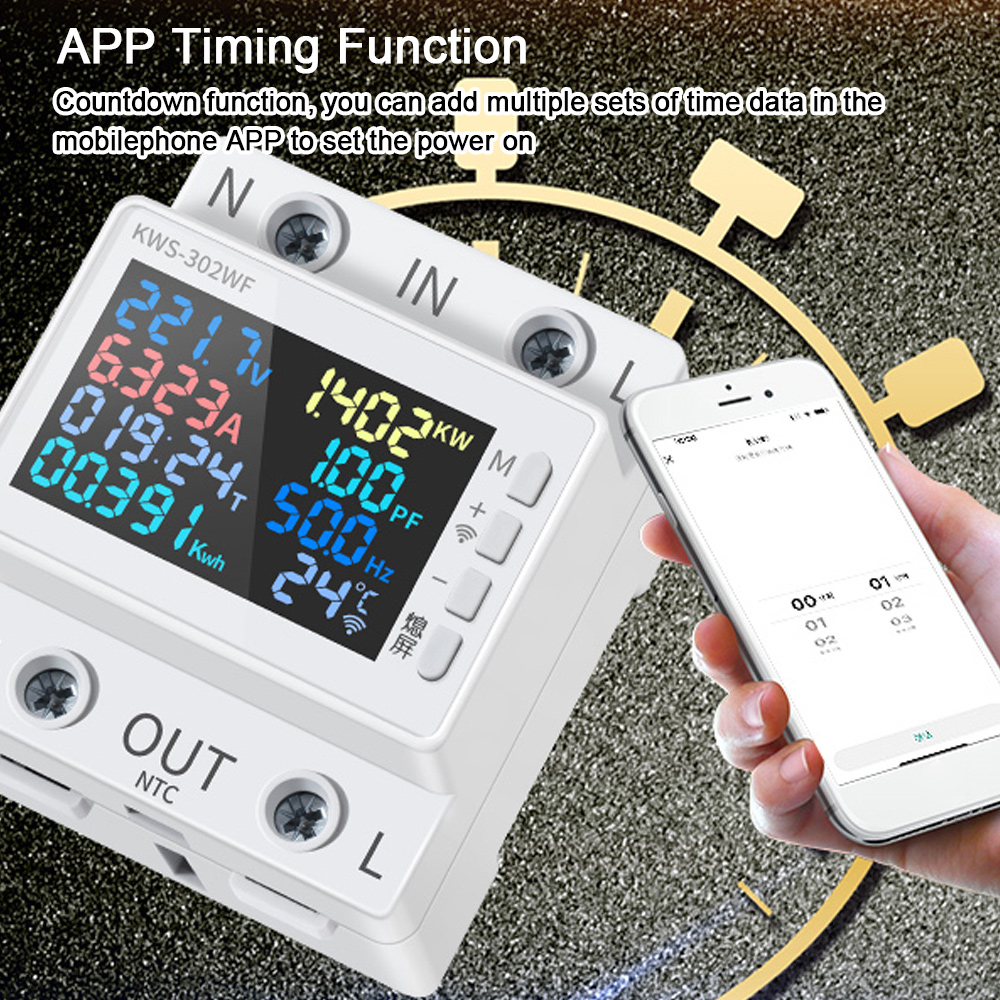

Timer Functionality: The device comes with a countdown function where you can set multiple timing data for power control, offering superior energy management.

Device Sharing: This feature allows multiple users to control the device simultaneously, which makes it an ideal choice for shared spaces and facilities.

Robust Power Failure Protection: The Energy Meter offers several protections including over-voltage, under-voltage, over-current, over-power, over-temperature, and timer power failure protections, ensuring the safety of your systems.

Specifications:

Name: 8in1 Energy Meter

Material: ABS+PC+VO

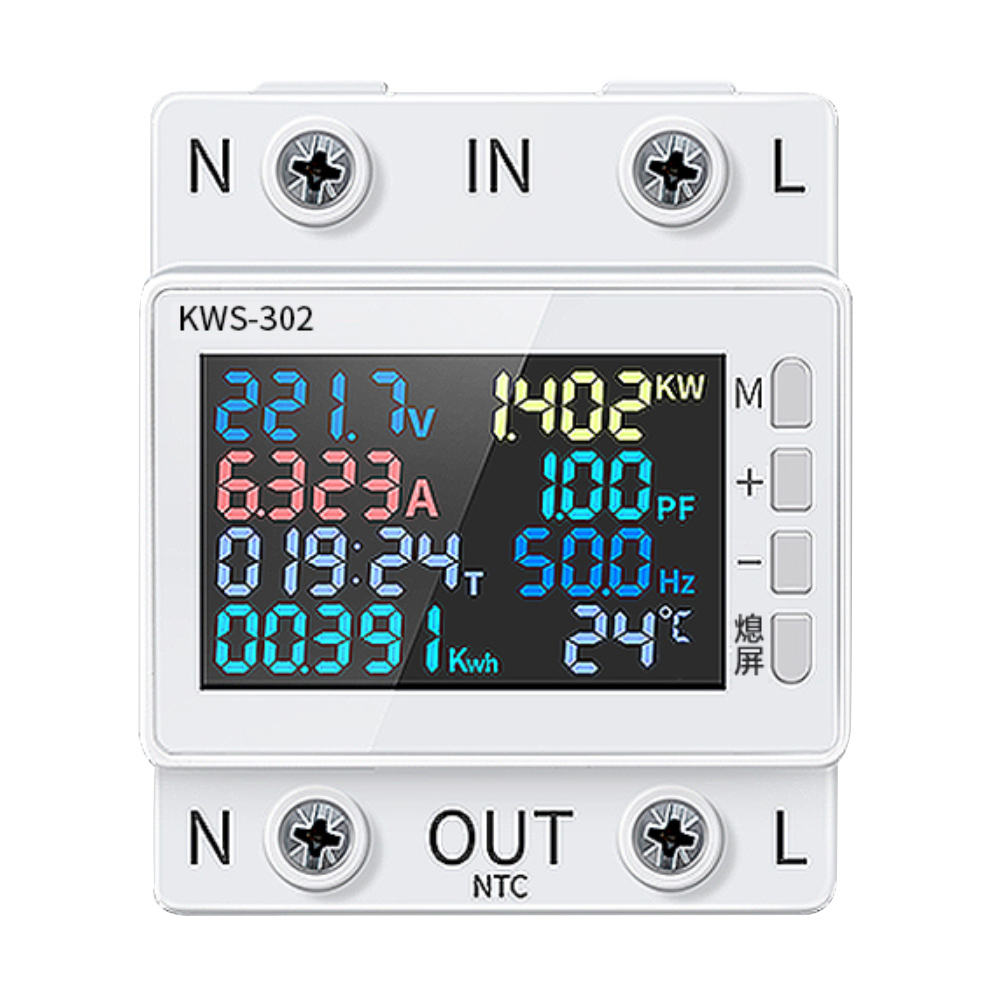

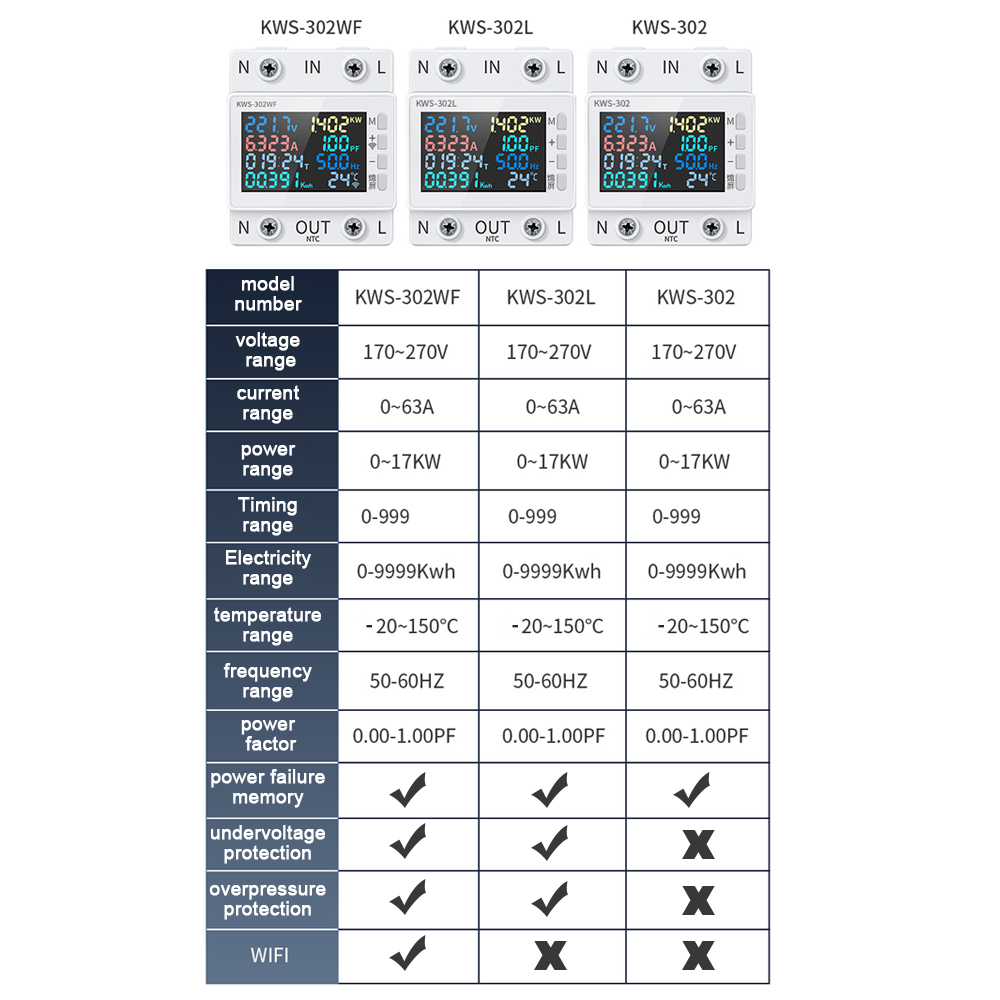

Optional Model: KWS-302WF, KWS-302L, KWS-302

Voltage Measurement Ranges: 170-270V

Current Measurement Ranges: 0-63A

Power Measurement Ranges: 0-17KW

Timing Measurement Ranges: 0-999Hrs

Electricity Measurement Ranges: 0-9999Kwh

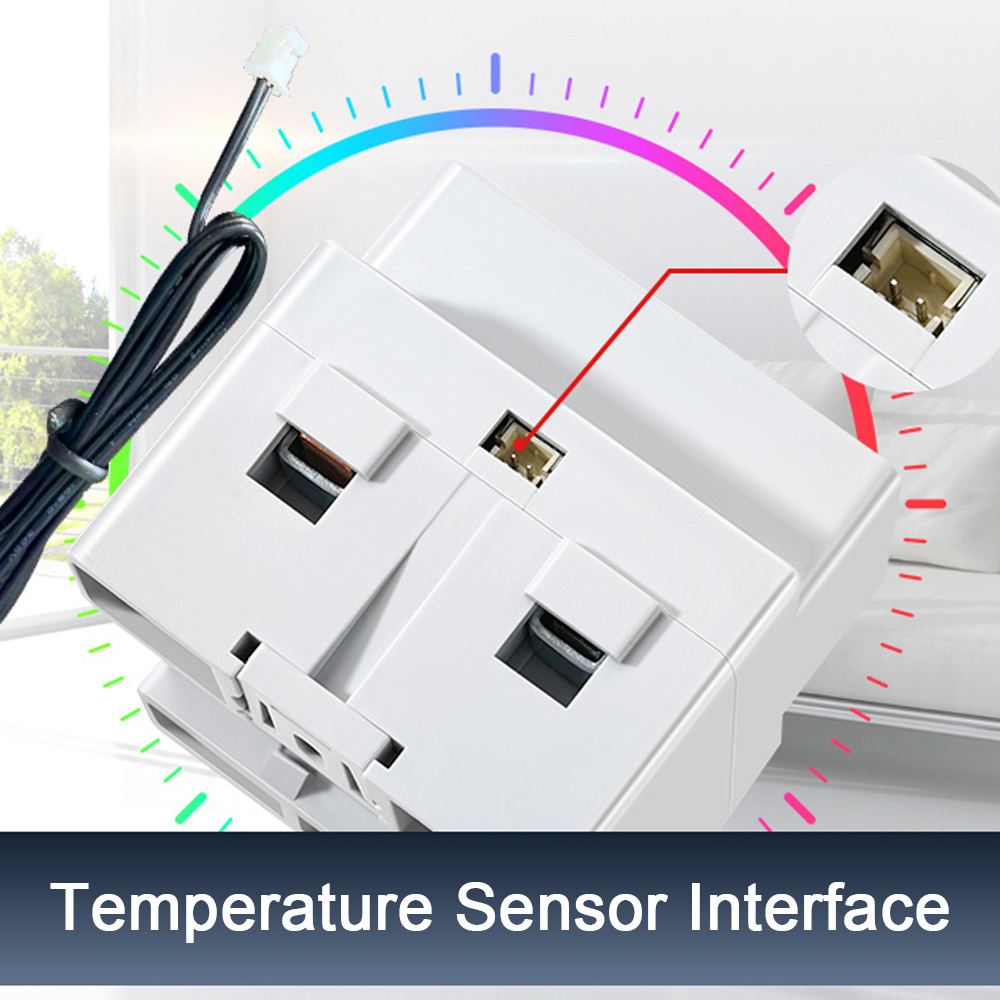

Temperature Range: -20-150℃

Frequency Measurement Ranges: 50-60Hz

Power Factor: 0.00-1.00PF

Power Failure Memory: Yes for all models

Under-Voltage Protecting: Available in KWS-302WF and KWS-302L

Over-Voltage Protecting: Available in KWS-302WF and KWS-302L

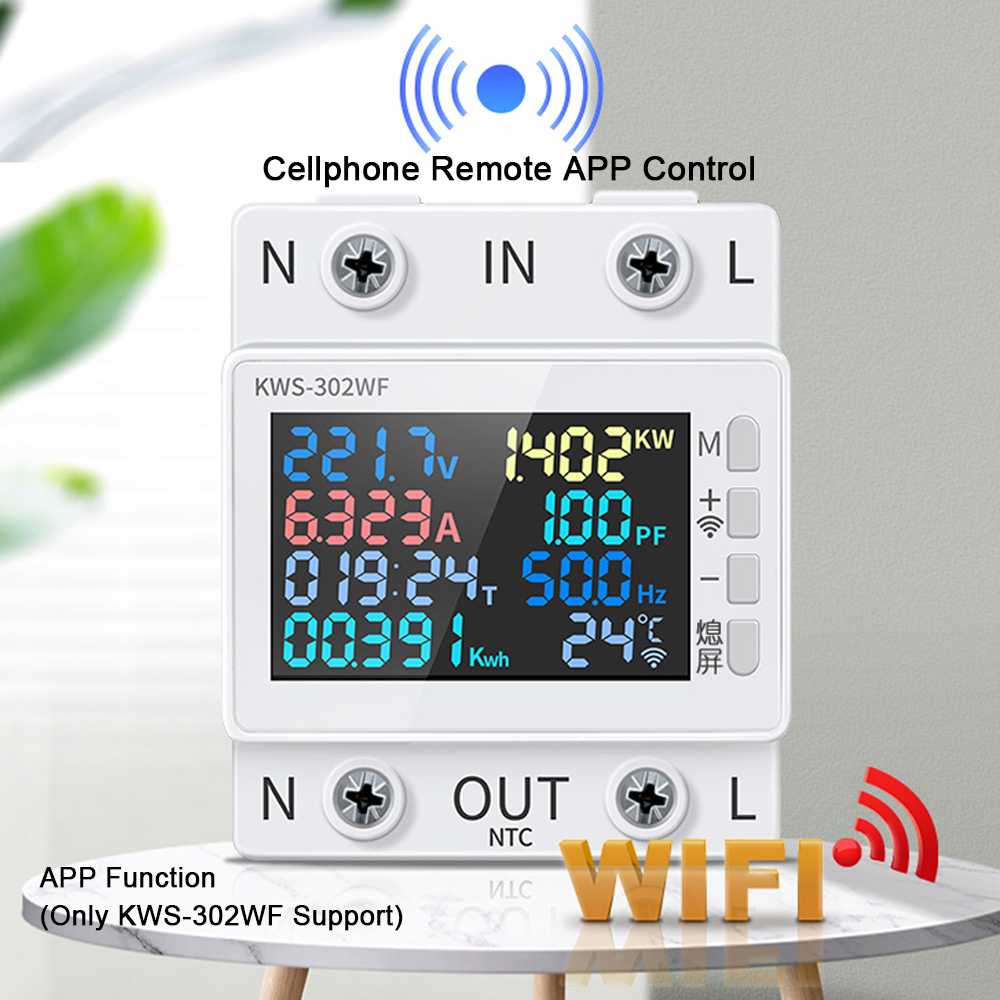

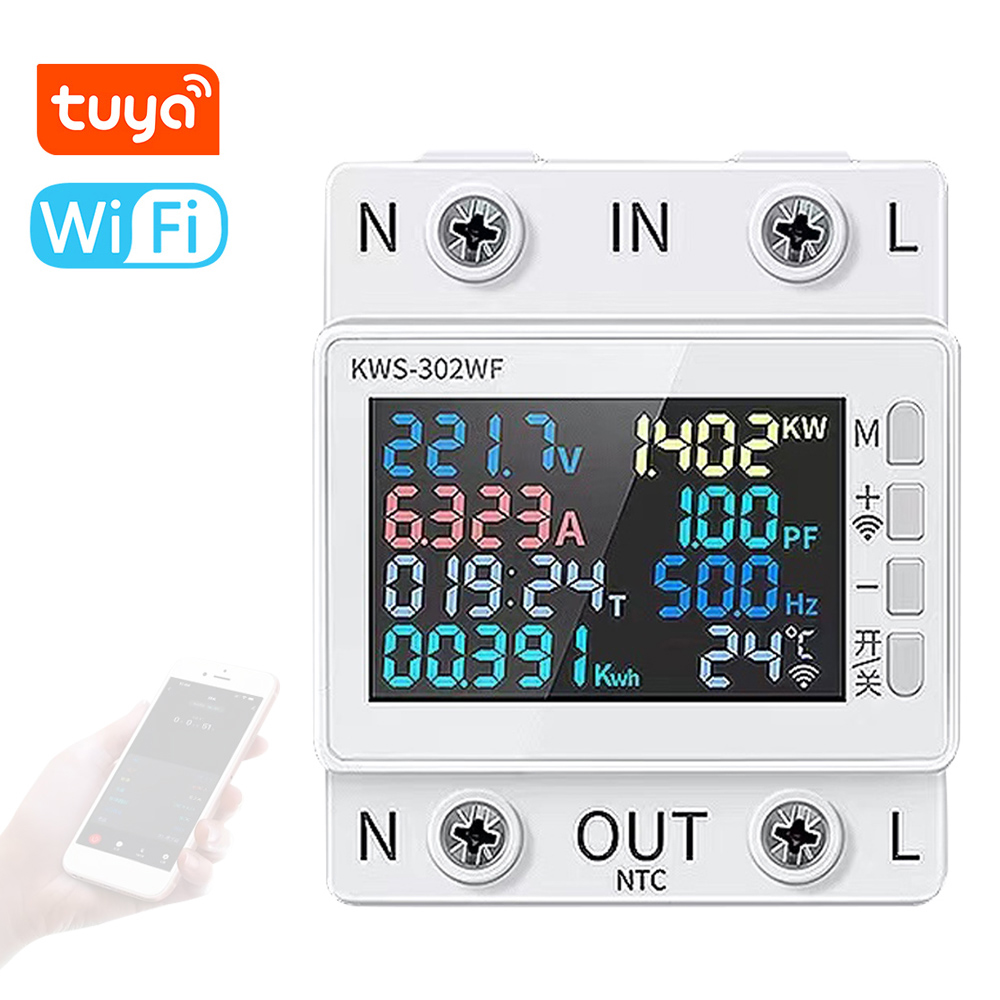

WIFI: Available only in KWS-302WF

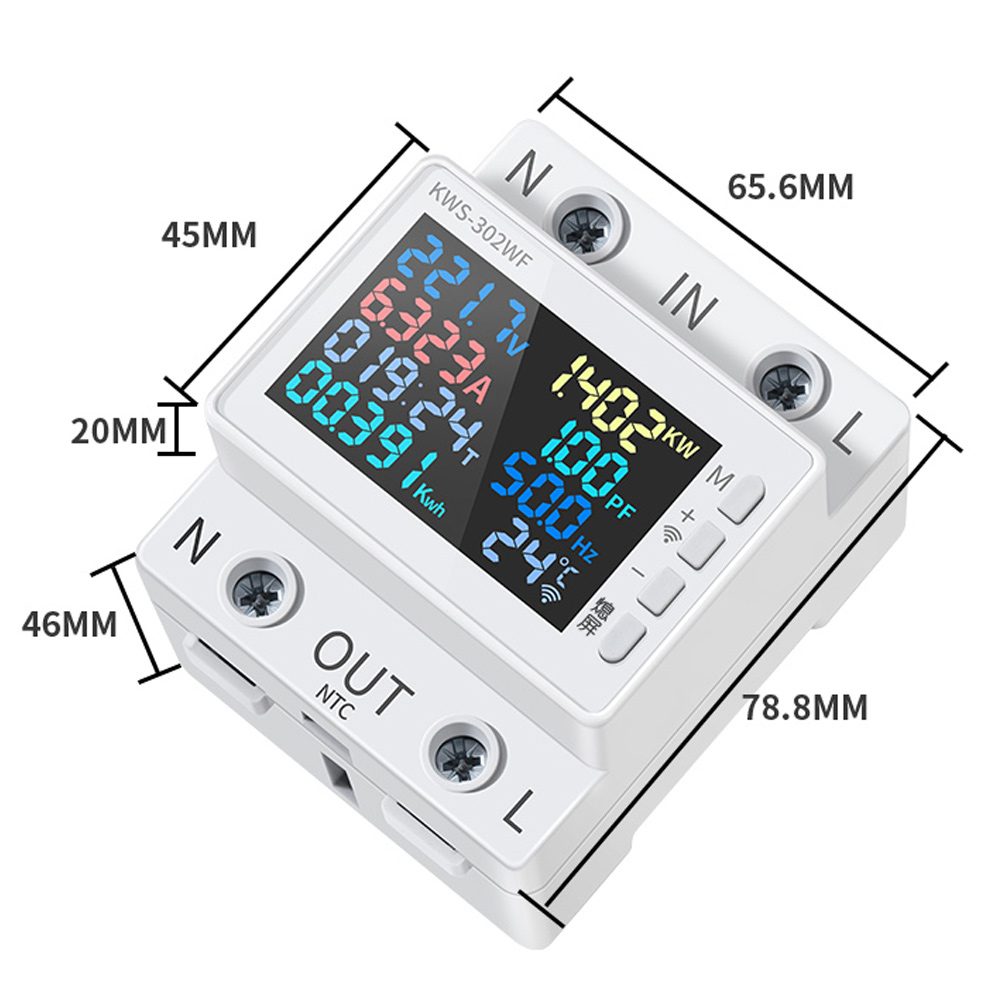

Item size: 66 * 66 * 82mm / 2.60 * 2.60 * 3.23in

Package size: 89 * 73 * 75mm / 3.50 * 2.87 * 2.95in

Package weight: Varies based on model

Package Included:

1 x 8in1 Energy Meter(Model as your choice)
